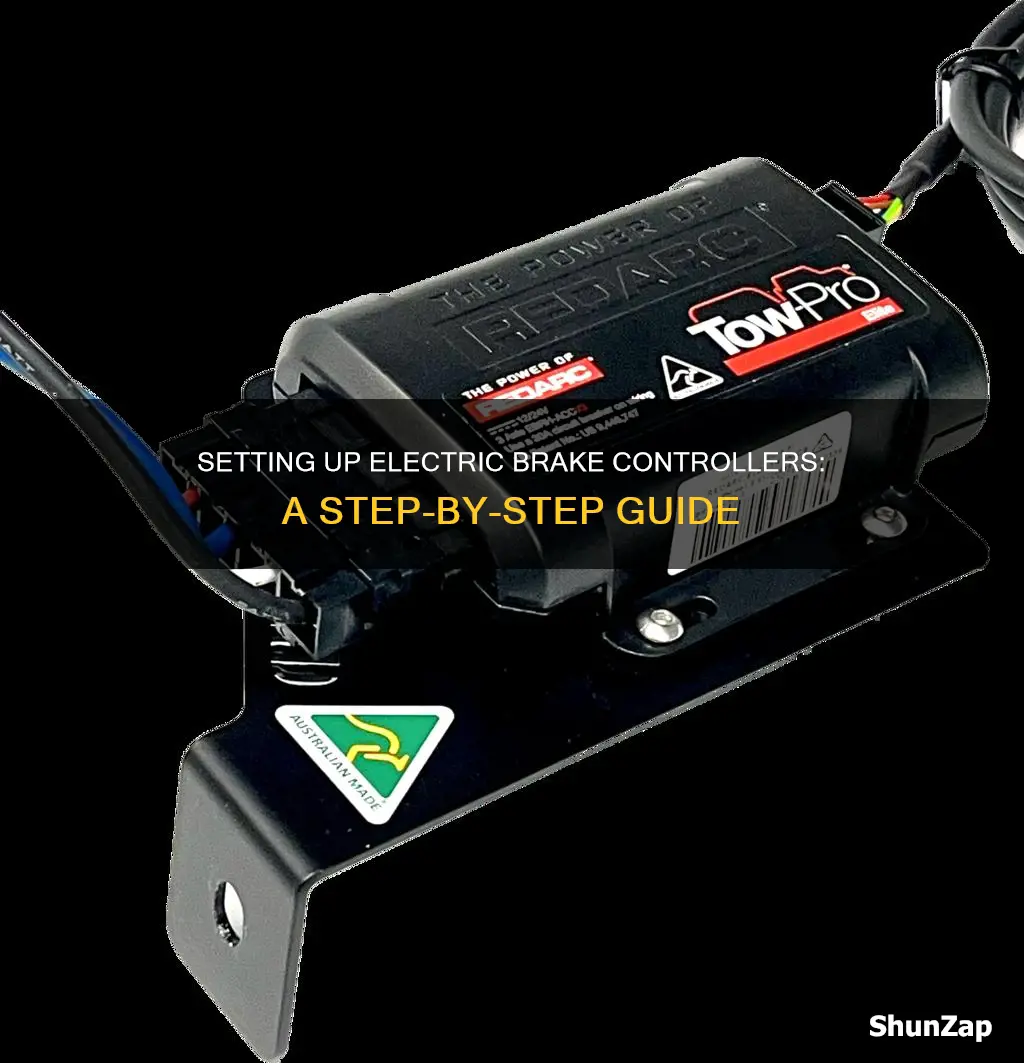

Electric brake controllers are an essential component for trailer users, especially when towing heavy loads. Without a controller, the trailer's electric brakes will be inactive, compromising safety and violating road rules. Installing an electric brake controller can be a straightforward process, taking as little as 10 minutes with the right tools and instructions. This introduction will discuss the importance of electric brake controllers, the installation process, and provide a step-by-step guide to help you get started. By following these steps and staying mindful of safety precautions, you can ensure a smooth and successful installation of your electric brake controller.
Explore related products
What You'll Learn
Disconnect the negative battery cable
Disconnecting the negative battery cable is an important step when installing an electric brake controller. This is a safety precaution to prevent personal injury and damage to your vehicle's electronics.
Before you begin, ensure you have the right wiring kit for your vehicle. Using the wrong kit can damage your car. For instance, connecting the wires directly to the car's battery can overload the electrical system and fry the wiring.
To disconnect the negative battery cable, first locate the battery. This is usually under the hood, near the fuse box. Then, simply unbolt the negative battery cable and move it off to the side. Be sure not to overtighten or strip the bolts when reattaching.
Now that you have disconnected the negative battery cable, you can continue with the installation process. The next step is to find a suitable mounting location for the brake controller.
Camping in Florida: Electricity Access at State Parks
You may want to see also
Explore related products
Find a suitable mounting location
Finding a suitable mounting location for your electric brake controller is a crucial step in the installation process. Here are some factors to consider and guidelines to follow when choosing the right spot:
Firstly, it is important to choose a location that is easily accessible. In the event of an emergency braking situation, you want to be able to reach the brake controller quickly. Typically, the lower right side of the dashboard is a good option as it is within reach but also keeps the controller out of the way.
Additionally, visibility is a key factor. You want the controller to be in a spot where you can easily see it while driving. Mounting it below and off to the side of the steering wheel is a popular choice, as it strikes a balance between visibility and staying out of the way. Another option is to mount it above the dashboard.
It is also important to consider the electronics in your vehicle. If you have a CB radio or other RF transmitters, make sure the brake controller is not installed too close to these sensitive devices to avoid any potential interference.
When selecting a mounting location, it's crucial to consider the drilling process. If possible, remove the panel you'll be drilling into to avoid damaging other components behind the dashboard. This will also give you better access during the installation.
Finally, some electric brake controllers, such as Elecbrakes, can be mounted in various locations on the trailer, either on the inside or outside of the trailer draw bar. This provides flexibility and allows you to choose the most convenient spot for your specific setup.
Remember, the mounting location should not only comply with the aforementioned guidelines but also ensure that the brake controller is securely attached and doesn't obstruct your driving view or interfere with other vehicle components.
Electric Skateboards in South Australia: Are They Legal?
You may want to see also
Explore related products
Drill holes and attach the bracket
Drilling holes and attaching the bracket is a crucial step in installing an electric brake controller. Here is a detailed guide on how to do it:
Firstly, you need to identify a suitable mounting location for the brake controller. It should be easily visible while driving but not obstruct your view of the road or other controls. Common locations include below and to the side of the steering wheel, or above the dashboard. It's important to keep the brake controller away from sensitive electronics like CB radios.
Once you've decided on the location, use the mounting bracket as a template to mark the spots where you need to drill. Be very careful not to damage any vehicle electronics behind the dashboard. If possible, remove the panel that you'll be drilling into to avoid any unnecessary risks.
Now, drill the holes for each of the fasteners included with the bracket. Make sure you don't overtighten or strip out the holes. Reposition the brake controller bracket and install the fasteners securely. Many brake controllers come with self-tapping screws.
Finally, attach the brake controller to the bracket using the included bolts. Ensure that the controller is securely fastened to the bracket before proceeding with the rest of the installation.
This process is a crucial step in ensuring the electric brake controller is securely mounted in your vehicle. Always refer to the manufacturer's instructions and take appropriate safety precautions when working with power tools and vehicle electronics.
Electricity Bills: PG&E's Rising Rates and What to Expect
You may want to see also
Explore related products
Plug the controller into your vehicle
To plug the controller into your vehicle, start by disconnecting the negative battery cable. This is an important safety precaution to prevent injury and vehicle electronics damage. Next, locate the wiring harness bundle under the dashboard. Separate the wires and remove any tape. Strip the wires as needed to prepare for splicing in the brake controller harness. Attach butt connectors, then securely crimp the wires together.
Now, plug the brake controller harness into your brake controller unit. The wiring harness diagram will show which wire goes where. One end of the wiring harness plugs into the vehicle's factory harness under the dashboard, and the other end plugs into the brake controller. The exact wiring harness location depends on the vehicle model, so refer to the service manual for your vehicle. If you can't find a plug-and-play connection, you'll need to splice in the wiring.
Finally, supply power to your brake controller unit using a factory power feed wire. Locate the power feed wire under the hood, near the fuse box, and attach it to the auxiliary power terminal on the fuse box.
Electric Batteries: Environmental Impact and Sustainability Questions
You may want to see also
Explore related products
Supply power to the brake controller
Now that you have found a suitable mounting location for the brake controller and installed it with the included bracket and other hardware, it's time to supply power to the unit. This can be done by locating the factory power feed wire installed in your vehicle and connecting it to the brake controller. Typically, the power feed wire can be found under the hood, near the fuse box. Attach it to the auxiliary power terminal on the fuse box.
If your vehicle doesn't have a factory connector for plugging in a brake controller, it should have blunt-cut brake controller wiring if it is compatible with a brake controller. This wiring bundle will be located somewhere underneath the dash. Carefully separate the bundle of wires and remove any tape holding them together. Strip the wires as needed and prepare them for splicing in the brake controller harness.
If you are using a vehicle-specific harness, plug the controller into your vehicle. One end of the harness connects to the factory harness under the dashboard, while the other goes to the brake controller. Your vehicle’s wiring harness location depends on the model, so refer to the service manual for the exact location. Common spots include under the dashboard, to the left of the steering column, or close to the emergency brake.
It is important to note that any time you work on your vehicle's electrical systems, it is recommended to disconnect the battery to prevent personal injury and damage to the vehicle's electronics. For a brake controller install, disconnect the negative battery cable and move it to the side.
Additionally, if you plan on keeping your trailer hooked up to your vehicle, consider installing a smart charger or an Isolation Solenoid to prevent the trailer battery from draining the vehicle battery.
