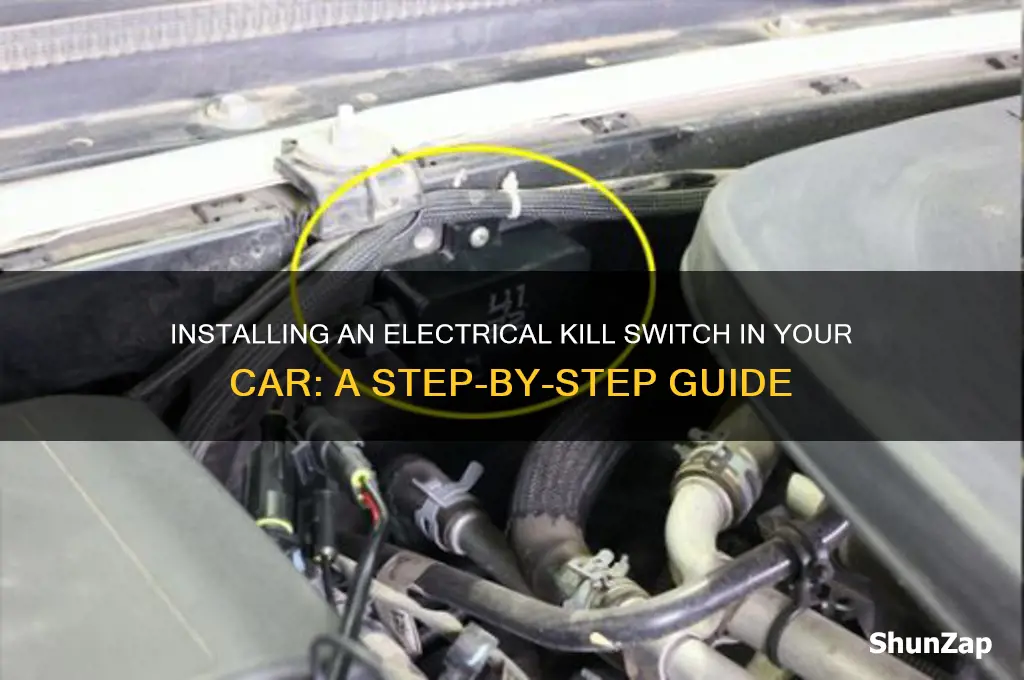

Installing an electrical kill switch on a car is a practical safety measure that allows you to quickly disable the vehicle’s electrical system in case of theft or emergencies. This simple yet effective device interrupts the power flow to essential components like the ignition or fuel pump, rendering the car inoperable. The installation process typically involves locating a suitable point in the car’s electrical circuit, such as the starter or battery, and connecting the kill switch in series. Basic tools like wire cutters, crimp connectors, and a multimeter are often required, along with a clear understanding of the vehicle’s wiring diagram. While the process is straightforward for those with basic automotive knowledge, it’s crucial to ensure the switch is easily accessible yet discreetly placed to avoid tampering. Always double-check connections and test the switch thoroughly before relying on it for security or safety purposes.
| Characteristics | Values |
|---|---|
| Purpose | To disable the electrical system of the car for security or safety reasons. |
| Tools Required | Wire strippers, screwdriver, electrical tape, soldering iron (optional). |
| Materials Needed | Kill switch, inline fuse holder, 10-15A fuse, wires, heat shrink tubing. |
| Location of Installation | Under the dashboard, near the steering column, or in the engine bay. |
| Wiring Connection | Connect the kill switch in series with the ignition or starter circuit. |
| Fuse Installation | Install an inline fuse holder with a 10-15A fuse for safety. |
| Switch Type | Toggle switch, push-button switch, or hidden switch (e.g., under a panel). |
| Grounding | Ensure the switch is properly grounded to the vehicle chassis. |
| Testing | Test the kill switch by turning it off and attempting to start the car. |
| Safety Precautions | Disconnect the battery before installation to avoid electrical shocks. |
| Legal Considerations | Check local laws to ensure kill switches are permitted in your area. |
| Difficulty Level | Intermediate (basic electrical knowledge required). |
| Time Required | 1-2 hours depending on experience and vehicle complexity. |
| Cost | $20-$50 (depending on switch and materials). |
| Maintenance | Periodically check connections for corrosion or loose wires. |
| Alternative Methods | Use a relay-based system or a remote-controlled kill switch. |
Explore related products
What You'll Learn
- Gather Tools & Materials: Wire cutters, crimpers, switch, inline fuse, heat shrink tubing, electrical tape
- Locate Power Source: Identify the battery or accessory wire to connect the switch
- Install Inline Fuse: Add a fuse between the switch and power source for safety
- Mount the Switch: Secure the kill switch in an accessible, dry location inside the car
- Test & Verify: Ensure the switch cuts power effectively before finalizing the installation
Gather Tools & Materials: Wire cutters, crimpers, switch, inline fuse, heat shrink tubing, electrical tape
Before you embark on installing an electrical kill switch in your car, it's crucial to assemble the right tools and materials. This ensures a smooth, safe, and efficient installation process. The essentials include wire cutters, crimpers, the kill switch itself, an inline fuse, heat shrink tubing, and electrical tape. Each item plays a specific role in creating a reliable and secure circuit interruption system.
Wire cutters and crimpers are the backbone of your toolkit. Wire cutters allow you to trim and strip wires precisely, ensuring clean connections. Crimpers, on the other hand, are used to secure connectors onto wires, creating a strong and durable joint. When selecting these tools, opt for high-quality options to avoid frayed wires or weak crimps, which can lead to electrical failures. For example, a ratcheting crimper ensures consistent pressure, reducing the risk of loose connections.
The kill switch and inline fuse are critical components for safety and functionality. The kill switch should be rated for the amperage of your vehicle’s electrical system, typically ranging from 20 to 30 amps for most cars. An inline fuse acts as a secondary safety measure, protecting the circuit from overcurrent. Choose a fuse with a rating slightly higher than the switch to prevent unnecessary blowouts while still safeguarding the system.
Heat shrink tubing and electrical tape are essential for insulation and protection. Heat shrink tubing is applied over crimped connections and then heated to shrink tightly around the wires, providing a waterproof and durable seal. Electrical tape can be used as a supplementary layer or for areas where heat shrink isn’t practical. However, heat shrink is preferred for its superior durability and resistance to environmental factors like moisture and heat.
In summary, gathering the right tools and materials is the first step toward a successful kill switch installation. Each item—wire cutters, crimpers, the switch, inline fuse, heat shrink tubing, and electrical tape—serves a unique purpose, contributing to the overall reliability and safety of the system. Investing in quality tools and components not only ensures a professional finish but also minimizes the risk of electrical issues down the road.
Safely Disconnecting Your Electric Car Charger: A Step-by-Step Guide
You may want to see also
Explore related products
Locate Power Source: Identify the battery or accessory wire to connect the switch
The first step in installing an electrical kill switch on your car is pinpointing the power source. This involves identifying either the battery or an accessory wire that supplies power to the circuit you want to control. The battery is the most direct and reliable option, as it provides a constant power supply, but connecting to an accessory wire can be more convenient if you want the switch to activate only when the ignition is on. Understanding the difference between these two sources is crucial for a successful installation.
Analyzing your vehicle’s electrical system is key to making the right choice. If you opt for the battery, locate the positive terminal, which is typically marked with a "+" symbol. Ensure the connection is secure and insulated to prevent short circuits. For an accessory wire, consult your car’s wiring diagram to identify a wire that receives power only when the ignition is turned on. This approach is ideal for applications like anti-theft systems, where you want the kill switch to disable the vehicle only when it’s running.
A persuasive argument for choosing the battery connection is its simplicity and reliability. It requires fewer steps and eliminates the risk of accidentally cutting power to essential systems. However, connecting to an accessory wire offers greater precision, ensuring the kill switch doesn’t interfere with critical functions like the ECU or fuel pump when the car is off. Weigh these factors based on your specific needs and technical comfort level.
When executing the connection, use a 10-12 gauge wire for durability and sufficient current handling. Strip approximately 1/4 inch of insulation from the wire ends and secure them with crimp connectors or solder for a robust joint. Always use heat shrink tubing or electrical tape to insulate connections and prevent exposure to moisture or debris. A poorly insulated connection can lead to malfunctions or even fires, so attention to detail is paramount.
In conclusion, locating the power source is a foundational step in installing an electrical kill switch. Whether you choose the battery or an accessory wire, understanding your vehicle’s electrical layout and selecting the appropriate connection method ensures functionality and safety. Take the time to plan and execute this step carefully, as it sets the stage for a reliable and effective kill switch installation.
Electric Cars: The Future of Transportation or Just a Trend?
You may want to see also
Explore related products
Install Inline Fuse: Add a fuse between the switch and power source for safety
An inline fuse is a critical safety component when installing an electrical kill switch in a car. It acts as a safeguard, preventing excessive current from reaching the switch and potentially causing damage or fire. Without a fuse, a short circuit or overload could lead to catastrophic failure, making this step non-negotiable in any kill switch installation.
To install an inline fuse, first determine the appropriate fuse rating based on the circuit’s amperage requirements. For most automotive applications, a fuse rated between 10 and 30 amps is common, but always refer to the device’s specifications or consult a wiring diagram. Position the fuse holder between the power source (typically the battery or a switched power line) and the kill switch. Use insulated wire connectors or solder joints to ensure secure connections, and avoid splicing wires in a way that exposes bare conductors.
A practical tip is to mount the fuse holder in an accessible location, such as under the dashboard or in the engine bay, where it can be easily inspected or replaced. Avoid placing it in areas prone to extreme heat, moisture, or vibration, as these conditions can degrade the fuse’s performance. Additionally, use a fuse holder designed for automotive applications, as these are built to withstand the rigors of vehicle environments.
Comparing this approach to omitting a fuse highlights its importance. While a kill switch alone can interrupt power, it does not protect against electrical faults upstream. An inline fuse, however, provides a fail-safe mechanism, ensuring that even if the switch malfunctions or the circuit is compromised, the fuse will blow before damage occurs. This dual-layer protection is essential for both safety and peace of mind.
In conclusion, installing an inline fuse is a straightforward yet vital step in adding an electrical kill switch to a car. By selecting the correct fuse rating, ensuring proper placement, and using quality components, you create a robust safety system that protects both the vehicle and its occupants. Skipping this step risks turning a safety feature into a potential hazard, making it a critical consideration in any automotive electrical project.
Electric Car Range: How Far Can You Go Before Recharging?
You may want to see also
Explore related products
Mount the Switch: Secure the kill switch in an accessible, dry location inside the car
Choosing the right spot for your kill switch is critical. Avoid areas prone to moisture, like under the dashboard near the firewall or behind the kick panels, where condensation can accumulate. Instead, opt for a dry, elevated location such as the center console, upper dashboard, or glove compartment area. Ensure the switch is easily reachable for the driver but not so obvious that it becomes a distraction or invites tampering. A balance between accessibility and discretion is key.
Consider the ergonomics of your chosen location. The kill switch should be within arm’s reach of the driver’s seat, allowing for quick activation without taking your eyes off the road. Test the placement by sitting in the driver’s position and mimicking the motion of flipping the switch. If it feels awkward or requires excessive stretching, reconsider the spot. Remember, in an emergency, every second counts, and a poorly placed switch could negate its purpose.
Securing the switch is just as important as its location. Use robust mounting hardware like brackets, zip ties, or adhesive mounts designed for automotive use. Ensure the switch is firmly attached to prevent it from vibrating loose or detaching during rough driving conditions. For added stability, drill a small hole (if your vehicle’s interior allows) and secure the switch with a screw or bolt. Double-check that the mounting method doesn’t interfere with the switch’s functionality or damage any wiring.
Finally, test the installation thoroughly. Activate the kill switch and verify that it cuts power as intended, then deactivate it and ensure the vehicle operates normally. Inspect the mounting for any signs of movement or weakness, and adjust as necessary. A well-mounted kill switch not only enhances safety but also provides peace of mind, knowing it’s ready to perform when needed.
Austin Electric Vehicles: Where Are They Manufactured?
You may want to see also
Explore related products
![[ETL Listed] Cable Matters 3-Pack Grounded Outlet Switch with On Off, Plug Switch On Off, Single Outlet Adapter, Black](https://m.media-amazon.com/images/I/71Xg9eTm-ML._AC_UL320_.jpg)
Test & Verify: Ensure the switch cuts power effectively before finalizing the installation
Before finalizing the installation of an electrical kill switch in your car, it's crucial to test and verify its functionality to ensure it effectively cuts power. This step is not just a formality; it’s a safety-critical procedure that confirms the switch operates as intended. Begin by connecting the kill switch to the vehicle’s main power line, typically the positive terminal of the battery, ensuring all other electrical components are in their normal operating state. Activate the kill switch and use a multimeter to check for continuity between the battery and the main fuse box or starter solenoid. A properly functioning switch should break the circuit, showing no continuity and effectively cutting power to the vehicle.
Testing the kill switch under real-world conditions is equally important. With the engine running, engage the switch and observe whether the engine immediately shuts off. If the engine hesitates or continues to run, recheck the wiring for loose connections or incorrect placement. It’s also advisable to test the switch’s durability by cycling it on and off multiple times to ensure consistent performance. For added thoroughness, simulate emergency scenarios, such as rapid activation during a high-load situation (e.g., headlights and AC on), to confirm the switch responds reliably under stress.
A common oversight during testing is neglecting to verify the switch’s impact on secondary systems. After cutting power, check if auxiliary components like interior lights, radio, or alarm systems are also deactivated. If these systems remain active, the switch may not be installed on the correct circuit, or there could be a parallel power source. Use a wiring diagram specific to your vehicle to trace the power flow and ensure the kill switch is positioned to interrupt the primary power supply effectively.
Finally, document your test results for future reference and troubleshooting. Note the switch’s response time, any anomalies observed, and the conditions under which testing was conducted. This documentation can be invaluable if issues arise later or if you need to explain the system to a mechanic or inspector. By rigorously testing and verifying the kill switch’s functionality, you not only ensure its reliability but also reinforce the overall safety and security of your vehicle.
Electric Car Battery Lifespan: Miles and Longevity Explained
You may want to see also
Frequently asked questions
An electrical kill switch is a device that interrupts the electrical circuit in your car, preventing it from starting or running. It’s often installed as an anti-theft measure or for safety purposes, such as in racing or off-road vehicles.
The kill switch should be installed in a location that’s easily accessible to you but hidden from potential thieves. Common spots include under the dashboard, in the glove compartment, or near the driver’s seat. Ensure it’s connected to a critical circuit, such as the ignition or fuel pump.
To wire a kill switch, locate the wire for the circuit you want to interrupt (e.g., ignition or fuel pump). Cut the wire, strip the ends, and connect them to the kill switch terminals. When the switch is off, it breaks the circuit, disabling the car. Always use a wiring diagram for your specific vehicle and test the installation before relying on it.
