The Yashica Electro 35mm Rangefinder is a camera with a variety of features, including a solid-state Electronic Brain that controls the shutter according to light intensity. It also has a single-stroke film advance lever, a fold-away crank-handle for rapid film rewind, and a multi-slot take-up spool for easy film loading. To load film into the Yashica Electro 35, you need to follow these steps: set the Film Exposure Counter to S (Start), place a 35mm film cassette into the film chamber, insert the film leader into the Take-up Spool, advance the film, close the Back Cover, wind the film rewind crank-handle, and finally, advance the film until the figure 1 appears in the Film Exposure Counter.
Explore related products
What You'll Learn

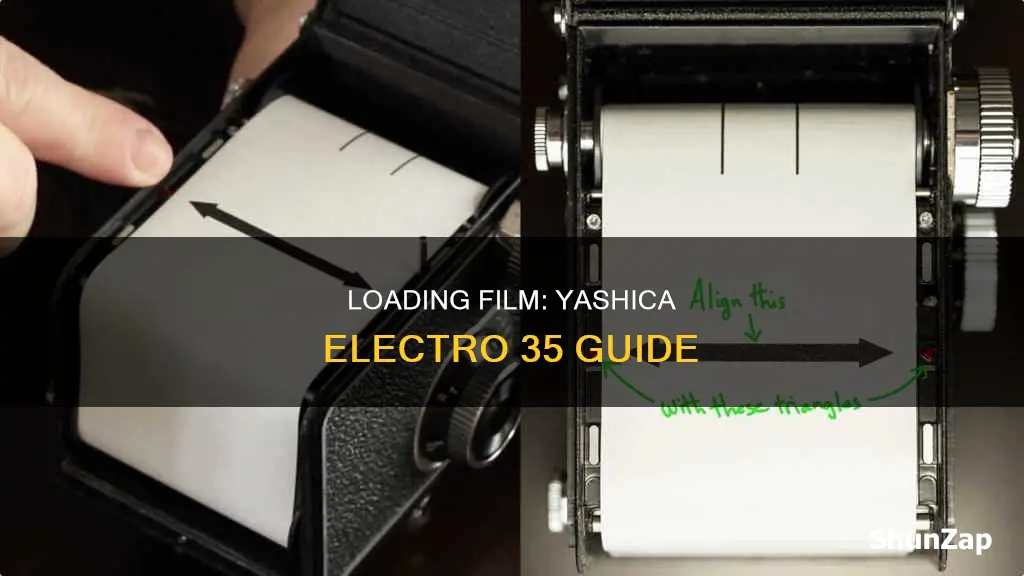

Place a 35mm film cassette into the film chamber
To load film into your Yashica Electro 35 camera, follow these steps:
Firstly, place a 35mm film cassette into the film chamber. Ensure that the cassette fits snugly and securely into the chamber. The film chamber is located on the left side of the camera, towards the bottom. It is a small, dark chamber where the film sits. Gently push down on the film rewind knob once the cassette is in place. This will secure the film and ensure it is correctly positioned.
Next, check that the film leader, or the end of the film, is correctly inserted into the take-up spool. This is located near the film chamber and will guide the film through the camera. Once the film leader is in place, advance the film using the film advance lever. This will ensure the film is taut and ready for shooting. You should feel and hear a soft, satisfying click as the film advances and locks into place.
At this point, close the back cover of the camera. It is important to keep the chamber light-tight, so ensure the cover is securely closed. Now, gently wind the film rewind crank-handle on the film rewind knob. Do this clockwise and stop once you feel a slight resistance. This step ensures the film is correctly tensioned and ready for shooting.
Finally, advance the film by pressing the shutter release button. Do this until the figure "1" appears in the film exposure counter. This confirms that the film is loaded and ready for shooting.
Always ensure your film is properly loaded before shooting. As you advance the film, the film rewind knob should rotate counter-clockwise. This is a clear indication that the film is advancing correctly.
Fixing Your Electric Bathroom Fan: A Step-by-Step Guide
You may want to see also
Explore related products
Insert film leader into the Take-up Spool
To insert the film leader into the Take-up Spool, first, place a 35mm film cassette into the film chamber and push down the Film Rewind Knob. Next, insert the film leader into the Take-up Spool and advance the film with the Film Advance Lever, ensuring that the perforations properly engage the sprocket teeth. Then, close the Back Cover.
Now, gently wind the film rewind crank-handle on the Film Rewind Knob in a clockwise direction until you feel a slight resistance. After this, advance the film and then press the shutter release button. Repeat this process until the figure "1" appears in the Film Exposure Counter.
At this point, you should check that the film has been loaded correctly. As you advance the film, the Film Rewind Knob should rotate counter-clockwise.
Finally, align the mark on the ASA Film Speed Setting Ring with the ASA rating of the film you are using. You can find the Film rating on the box or in the instructions that come with the film.
Voltage Requirements for Electric Ovens: 110 or 220 Volts?
You may want to see also
Explore related products
Wind the film rewind crank-handle
To load film into your Yashica Electro 35 camera, you must first place a 35mm film cassette into the film chamber and push down the Film Rewind Knob. Next, you need to insert the film leader into the Take-up Spool and advance the film with the Film Advance Lever, ensuring that the perforations properly engage the sprocket teeth.
Now, for the film rewind crank-handle instructions:
Winding the Film Rewind Crank-Handle
- Gently wind the film rewind crank-handle on the Film Rewind Knob in a clockwise direction until you feel a slight resistance.
- Advance the film and then press the shutter release button. Repeat this process until the figure "1" appears in the Film Exposure Counter.
- Check that the film has been loaded correctly. As you advance the film, the Film Rewind Knob should rotate counter-clockwise.
The Yashica Electro 35 has a fold-away crank-handle for rapid film rewind, making it quick and efficient to rewind your film and get back to shooting.
Fixing Your Electric Lawn Mower: A Step-by-Step Guide
You may want to see also
Explore related products
Use a strobe flash with insulation tape
The Yashica Electro 35 camera has a cold shoe, meaning it does not have a hot shoe and requires a sync cord to connect the flash.
To use a strobe flash with insulation tape, follow these steps:
- Cover the shoe with a piece of insulation tape: Before mounting a third-party non-dedicated strobe flash unit, cover the cold shoe with a piece of insulation tape to prevent a short circuit. This is necessary because the flash unit will not fire when mounted on the cold shoe.
- Connect the flash unit with a PC cord: Use a PC cord to connect the flash unit to the X-sync socket on the camera. The PC cord ensures that the flash unit receives the trigger signal to fire.
- Avoid draping the cable over the light sensor: When setting up the flash unit, ensure that the cable from the strobe gun does not drape over the Fresnel lens light sensor. This could interfere with the light metering of the camera.
- Test the flash unit: Prior to taking photographs, test the flash unit by pressing the test button while it is connected to the camera via the PC cord. This step ensures that the flash is functioning properly.
- Adjust camera settings: Depending on the lighting conditions and desired effect, adjust the aperture and ASA Film Speed Setting Ring accordingly. Refer to the camera's manual for specific guidelines on setting the aperture for automatic flash exposure.
- Take photographs: With the flash unit mounted and functioning, you are now ready to take photographs using the strobe flash in conjunction with your Yashica Electro 35 camera. Ensure that you have properly loaded film and composed your shot before capturing the image.
By following these steps, you can successfully use a strobe flash with insulation tape on your Yashica Electro 35 camera, allowing you to capture well-lit and properly exposed photographs in various lighting conditions.
Kick-Starting Your Ryobi Electric Lawn Mower: A Step-by-Step Guide
You may want to see also
Explore related products
Align the Film Speed Setting Ring
The Yashica Electro 35 GX is designed to deliver perfect exposures automatically under all light conditions, from candlelight to the glaring light of snow or beach scenes with ASA film speeds up to 200.
To align the Film Speed Setting Ring, follow these steps:
- Check the ASA rating of the film you are using. The film rating is usually shown on the box or the instructions that come with the film.
- Locate the ASA Film Speed Setting Ring on your Yashica Electro 35 camera.
- Adjust the setting on the ring to match the ASA rating of your film. For example, if your film has an ASA rating of 100, set the Film Speed Setting Ring to 100.
- In some cases, you may need to consider the filter factor when setting the Film Speed Setting Ring. If you are using a filter, refer to the filter's instructions to determine the appropriate setting.
- If you are using a flash, pay attention to the specific requirements of your flash unit. For example, when using the Yashica ES-20 Flash unit, set the ASA Film Speed Setting Lever to align with the Electro Flash Symbol on the lens barrel.
- After aligning the Film Speed Setting Ring, continue with the rest of the film loading process, including advancing the film and ensuring proper focus.
By correctly aligning the Film Speed Setting Ring, you ensure that your Yashica Electro 35 camera exposes the film correctly, resulting in optimal image quality.
