Schneider Electric is a company that prioritises safety in all its operations, especially when it comes to electrical safety. They have a comprehensive Lock Out Tag Out (LOTO) procedure in place to ensure the safe isolation of electrical circuits before any work is undertaken, which includes seven crucial steps that must be followed. Additionally, they offer a range of products designed with safety in mind, such as the Schneider SEA9LA, a compact clip-on safety device that locks the Acti 9 range of MCBs and RCBs in the 'OFF' position. With a strong commitment to safety, Schneider Electric aims to achieve a zero-accident status in their work.
| Characteristics | Values |
|---|---|
| Schneider Electric Safety Procedure | Lock Out Tag Out (LOTO) |
| Number of Steps in LOTO | 7 |
| Purpose of LOTO | Safe isolation of electrical circuits |
| Schneider Electric SEA9LA | A compact clip-on safety device |
| Schneider Electric SEA9LA Function | Locks Acti 9 range of MCB's and RCB's in the 'OFF' position |
| Schneider Electric SEA9LA Use Case | Single personnel safety isolation without a safety padlock |
| Schneider Electric 29370 | Toggle padlocking device with removable adapter |
| Schneider Electric 29370 Function | Locks in OFF position only |
| NW Cradle Locking Positions | Disconnected, test, and connected |
Explore related products
What You'll Learn
Locking the ATV212 drive to prevent parameter changes
To lock out a Schneider Electric ATV212 drive to prevent parameter changes, follow these steps:
Firstly, press the "MODE" button on the drive until you see "AUF" on the display. Then, use the arrow keys to navigate to the "F---" option and enter it. Once you're in the "F---" menu, navigate to the "F700" parameter. This specific parameter, F700, controls the lock setting of the drive.
By default, F700 is set to "0", which means the drive is unlocked and programming changes are allowed. To lock the drive and prevent any parameter changes, you need to change the F700 value to "1". Use the arrow keys to adjust the value and set it to "1". Once F700 is set to "1", the drive will be locked, and no programming changes will be allowed.
It's important to note that when the drive is locked, you won't be able to make any programming adjustments. If you need to make changes in the future, simply follow the same steps and set F700 back to "0". This will unlock the drive and enable programming changes again.
Remember, locking the ATV212 drive is a useful feature to prevent accidental or unauthorized changes to the drive's parameters. By following these steps, you can securely lock the drive and ensure that its settings remain intact.
Electric Patient Lifts: Medicare Coverage Explained
You may want to see also
Explore related products

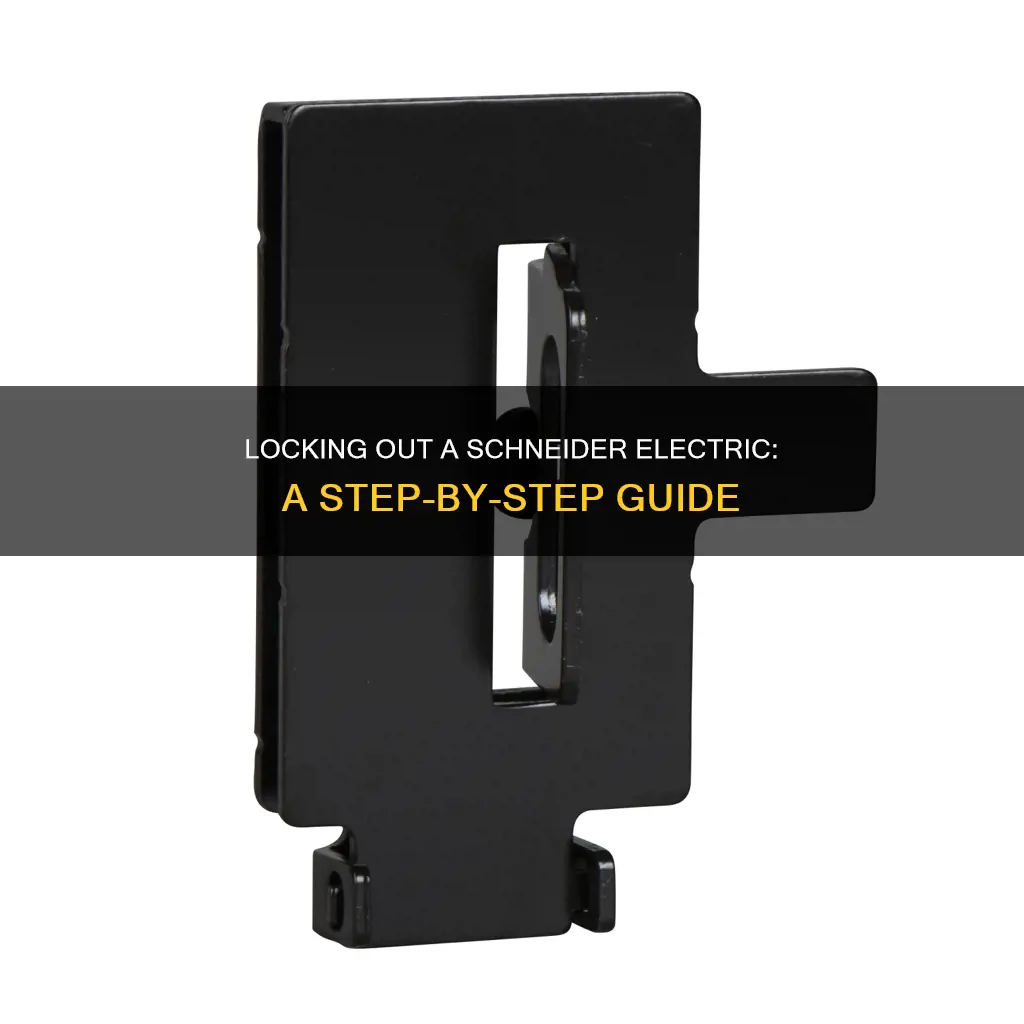

Schneider Electric SEA9LA safety device
The Schneider Electric SEA9LA is a compact clip-on safety device designed to lock the Acti 9 range of MCBs and RCBs in the 'OFF' position. It is a simple, safe, and energy-efficient system for power distribution. The device fits snugly on the MCB, allowing the electrical cabinet door to close, making it ideal for limited cabinet space. It is important to note that the SEA9LA is used for single personnel safety isolation without a safety padlock.
The Schneider Electric SEA9LA is sold in packs of three and can be used to ensure complete safety for the life of an installation. It offers features like VisiSafe and Class 2, providing enhanced reliability and continuity of service. With over 30 distribution warehouses, some suppliers offer same-day dispatch and next-working-day delivery across the United Kingdom for in-stock products.
The SEA9LA is a lockout device, which is a critical component of safety protocols in various industries. Different industries have different requirements for lockout tools and accessories, depending on risk factors such as flammable environments and electrical availability. Compliance with lockout/tagout procedures is essential to minimize workplace injuries and ensure a safe working environment.
To ensure the proper use and compliance of the Schneider Electric SEA9LA safety device, it is important to follow the manufacturer's instructions and guidelines. Additionally, seeking guidance from experts in occupational safety can help address any specific questions or concerns related to the device's application and effectiveness in lockout procedures.
Overall, the Schneider Electric SEA9LA safety device is a reliable solution for locking out the Acti 9 range of MCBs and RCBs, contributing to a safe and efficient power distribution system. By utilizing this device, individuals can enhance their safety measures, particularly in limited cabinet space situations, without the need for a safety padlock. Its compact and functional design, along with its availability through reliable suppliers, make it a convenient option for maintaining a secure working environment.
Electrical Symbols in Excel: Quick Insertion Guide
You may want to see also
Explore related products
Locking the NW cradle in any position
Locking the NW cradle of a Schneider Electric circuit breaker in any position is possible. This can be done for IEC NW breakers, and it is standard for UL/ANSI.
To lock the NW cradle in any position, follow these steps:
- Ensure that the cradle indicator is in the disconnected position.
- Remove the circuit breaker from the cradle.
- Insert the racking handle.
- Rotate the latch to the left.
The cradle can now be locked in any position. If you wish to return the cradle so that it locks only in the disconnected position, simply rotate the latch to the right.
It is important to note that rail padlocking is standard for UL, ANSI, and IEC cradles. When used with a disconnected position locking device, rail padlocking prevents the movement of the circuit breaker from the disconnected position to the fully withdrawn position when the padlock hasp is pulled out and locked.
Additionally, you can install a set of additional actuators on the cradle to change or add functions to the cradle position switches. Each standard actuator can be replaced by any other actuator to modify the function of the cradle position switch.
Conserving Energy, Saving the Planet: Electricity's Eco-Impact
You may want to see also
Explore related products
Toggle padlocking device for ComPact NSX
Schneider Electric offers a range of products for locking out electrical equipment, including the Toggle padlocking device for ComPact NSX. This device comes in two variants:
Toggle Padlocking Fixed Device, ComPact NSX 100/160/250, locking in OFF or ON position
This device allows for locking the ComPact NSX device in either the OFF or ON position. The product code for this device is LV429371.
Toggle Padlocking Device, Removable Adapter, ComPact NSX, OFF position only
This device is a removable adapter for the ComPact NSX that allows for locking the device in the OFF position only. The product code for this device is 29370.
It's important to note that the second device with the removable adapter is listed as an obsolete product on one website.
In addition to these devices, Schneider Electric also offers the SEA9LA, a compact clip-on safety device designed to lock the Acti 9 range of MCBs and RCBs in the 'OFF' position. This device is suitable for use when cabinet space is limited, as it fits snugly on the MCB, allowing the electrical cabinet door to close.
For the NW cradle, it is possible to lock it in any position, including the disconnected, test, and connected positions. This can be achieved by following the steps outlined in the Schneider Electric FAQ, which involve manipulating the cradle indicator, circuit breaker, racking handle, and latch.
Electric Razors: American Airlines' Policy Explained
You may want to see also
Explore related products
Understanding the LOTO process
Schneider Electric is committed to ensuring the safety of its workers and customers. The company achieves this through its strict adherence to the Lock Out Tag Out (LOTO) process, a methodology for the safe isolation of electrical circuits before any work is undertaken.
The LOTO process involves seven critical steps that must be followed in sequence to ensure a safe working environment. These steps are:
- Lock Out: Physically lock the energy-isolating device in the 'OFF' position using a padlock or lock attachment. This prevents the flow of electrical energy to the circuit or equipment.
- Tag Out: Affix a tag to the locked-out device, clearly indicating that it should not be operated. The tag includes essential information such as the date, the person responsible, and the reason for the lock-out.
- Isolation: Ensure that all forms of energy, including electrical, mechanical, hydraulic, pneumatic, and chemical, are isolated and cannot inadvertently energize the equipment.
- Verification: Check that the lock-out has been performed correctly and that there is no residual energy that could cause unexpected startup.
- Control: Implement additional safety measures, such as grounding and pressure relief, to further minimize risks associated with stored energy or hazardous materials.
- Safe Work: Perform the required work or maintenance on the de-energized equipment, ensuring that only authorized personnel are in the area.
- Re-energization: Once the work is complete, remove the lock and tag, and re-energize the equipment following a specified procedure. Ensure that all personnel are clear and that it is safe to restart.
It is imperative that all steps of the LOTO process are followed correctly and in the proper sequence to ensure the safety of everyone involved. At Schneider Electric, the person in charge must sign off on the completion of these steps, and the customer representative confirms that the procedure has been adhered to.
Electric Incinerating Toilets: Carbon Monoxide Risk?
You may want to see also
Frequently asked questions
The Schneider SEA9LA is a compact clip-on safety device designed to lock the Acti 9 range of MCBs and RCBs in the 'OFF' position.
No, the Schneider SEA9LA does not require a safety padlock.
LOTO stands for Lock Out Tag Out. It is a procedure for the safe isolation of electrical circuits before any work is undertaken.
The purpose of the Lock Out Tag Out procedure is to ensure electrical safety and achieve a zero-accident status.
Yes, locking the NW cradle in disconnected, test, and connected positions is optional for IEC NW breakers and standard for UL/ANSI.
