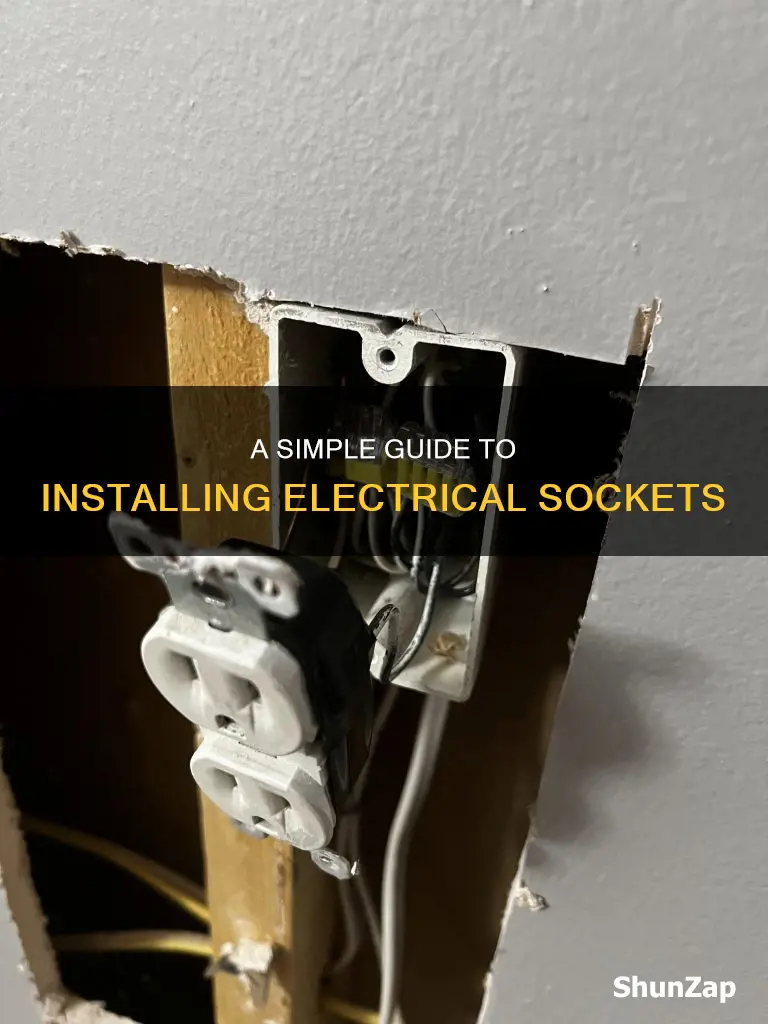

Installing a new electrical socket is a handy skill to have, but it can be dangerous, so it's important to be cautious and know when to call a qualified electrician. Before starting, ensure that your work will be compliant with local regulations, such as the IEE Wiring Regulations, and take precautions to avoid electrical safety risks. You'll need to isolate the circuit by switching off the main power and verifying that the circuit is dead using a socket tester or voltage tester. If you're tapping into an existing socket, remember to remove the breaker first. When choosing the location for your new socket, use a stud finder to ensure there is no framework or hidden pipes in the way. Installing a new socket typically requires connecting one set of wires, but the specific steps may vary depending on your location and the type of socket.
Explore related products
What You'll Learn
Ensure compliance with IEE electrical regulations
Before installing a new electrical socket, it is important to ensure compliance with IEE electrical regulations. The IEE Wiring Regulations provide detailed guidelines for safe electrical installations, including the addition of new sockets. Here are some key considerations to ensure compliance:
Firstly, determine the type of connection you will be making. If you are connecting into a ring circuit, the IEE regulations specify that you must not run a spur cable from a socket that is already on a spur or supplying one. There are also restrictions on the floor area served by the circuit, which must not exceed 100 square metres. If there is any uncertainty, it is advisable to consult a qualified electrician.
Secondly, the regulations emphasise the importance of safety, earthing, bonding, and protection. This includes considerations such as protection against mechanical damage, overcurrent, and under voltage. It is crucial to follow the recommended safety procedures and ensure that the installation is properly earthed and bonded.
Thirdly, the design of the electrical installation is crucial. The regulations outline specific considerations such as design current, protection rating, cable size, and voltage drop. These factors ensure that the installation is safe and compliant with the electrical load requirements.
Additionally, the regulations specify the testing procedures that should be followed. A qualified electrician should test the installation before energizing it, adhering to the sequence of tests recommended in the IEE Wiring Regulations.
Finally, when installing a new socket, it is important to consider the placement and mounting. Use a stud finder or gently tap the wall to identify any framework or hidden pipes and cables. Utilise a cavity fixing box for flush mounting, ensuring flexibility in positioning.
By following these guidelines, you can ensure that your new electrical socket installation complies with the IEE electrical regulations, prioritising safety and adhering to recommended practices.
Electricity's Future: Conduit-Free Commercial Power
You may want to see also
Explore related products
Turn off the main power
Before starting any electrical work, it is important to prioritise safety. You must ensure that you have switched off the main power at the consumer unit/fuse box. This is the first step to installing a new electrical socket.
To start, locate the breaker for the old receptacle that will feed your new receptacle and turn it off. You can test your non-contact voltage tester on a known live circuit to ensure it is working. Insert the tester into the old receptacle's narrow slot. If you hear a beep, stop and try another breaker. Keep repeating this process of turning off breakers and testing for power until you find the right one.
Next, you must isolate the circuit you plan to work on. Remove the circuit fuse and put it in your pocket to avoid accidental replacement. Alternatively, you can switch off the breaker and lock it if you can. Attach a note to the unit to advise others that you are working on the circuit.
Use a socket tester or voltage tester/meter for lighting circuits to double-check that the circuit is dead and safe to work on. You can also use a multimeter to test the voltage, which is more reliable and gives a more accurate result.
Sharpen Your Brain with Electric-Fast Strategies
You may want to see also
Explore related products
Identify the correct circuit
To identify the correct circuit for a new electrical socket, you can use a circuit breaker finder. This is a small, battery-operated electronic tool with a transmitter and receiver. First, you plug the transmitter into the outlet for which you want to identify the controlling circuit. The transmitter then sends a faint electronic signal through the circuit wires. You can then use the receiver at the breaker box to identify the circuit breaker carrying the signal from the transmitter—when the receiver passes over the correct circuit breaker, it will beep and flash.
Alternatively, you can create a floor plan of your home or business and mark the location of all lights and electrical receptacles. This method requires two people, each with a handheld radio for communication. One person should turn on the lights in every room, while the other opens the breaker box and flips the breakers one by one. The person flipping the breakers should communicate their actions to their helper, who can then identify which lights turn off when a certain breaker is flipped.
It is important to note that circuit breakers are safety devices that protect your electrical system from overloads and other hazards. They also serve as convenient shut-off points, allowing you to turn off the power when repairs or upgrades are needed.
When choosing the right outlet for your new electrical socket, the wiring requirements are the most important factor. Most homes in the US are wired with a combination of 15-amp and 20-amp, 120-volt circuits. A 15-amp duplex receptacle outlet is the standard type used in most residential homes, with two outlets, each featuring a long (neutral) slot, a shorter (hot) slot, and a half-round grounding hole. On the other hand, 20-amp receptacles are recommended for major appliances and have a horizontal slot branching off one of the vertical slots.
Additionally, consider the type of electrical socket you need. GFCI (Ground Fault Circuit Interrupter) outlets are common in homes as they protect against shocks by monitoring electricity flow and shutting off power when necessary. AFCI (Arc Fault Circuit Interrupter) outlets are another option that protects your home from electrical fires. If you have children, tamper-resistant receptacles are a good choice as they have built-in blocks to prevent electrical injury.
The Evolution of Auto Repair: Merging Mechanical and Electrical Skills
You may want to see also
Explore related products
Run a spur cable from an existing socket
Running a spur cable from an existing socket is a straightforward job, but it's important to follow electrical safety guidelines. Firstly, you must confirm that the existing socket is part of a ring circuit. To do this, disconnect the black cores, keeping the power off, and test them with a continuity tester. If the tester shows continuity, it is a ring circuit.
It is important to note that you cannot run a spur from a socket that is already on a spur or that supplies a spur. The new socket must not extend the floor area served by the circuit beyond 100 square metres. If you have any doubts, consult a qualified electrician.
Once you have confirmed that the existing socket is part of a ring circuit, you can proceed with the following steps:
- Plan out exactly where you will run the cable and install the new socket.
- If dealing with plasterboard, you may be able to run the cable down the cavity inside the stud wall. However, if there is a horizontal stud blocking the cavity, you will need to cut a small section out of the plasterboard and notch the stud with a chisel to run the cable around it.
- Expose the cable cores and connect them to the terminals of the junction box. Ensure that you match the cores correctly: live to live, neutral to neutral, and earth to earth.
- Add green/yellow sleeving to any bare earth cores.
- Tighten the terminal screws and replace the cover of the box.
- Turn on the power and test the new socket with a socket tester to ensure it is wired correctly.
By following these steps, you can safely and effectively run a spur cable from an existing socket to create a new socket location.
How Ring Doorbells Work: Electricity or No Electricity?
You may want to see also
Explore related products
Connect the wires
Before connecting any wires, it is important to follow safety precautions. Switch off the main power at the consumer unit/fuse box. Isolate the circuit by removing the circuit fuse and placing it in your pocket to avoid accidental replacement. You can also switch off the breaker and lock it if possible. Attach a note to the unit to indicate that you are working on the circuit. Use a socket tester or voltage tester/meter to check that the circuit is dead.
Now, you can connect the wires. If you have hots bundled together under a wire nut and neutrals bundled under a separate wire nut, undo the wire nuts and add your new wires to the appropriate bundle. Make hooks at the ends of the wires, wrap them clockwise around the screws, and tighten them with a screwdriver. Do not use the back-stab holes in the receptacle as they tend to loosen over time. Tug on every connection to ensure that the wires are tight and secure.
If you are connecting four or more wires, screw terminal wire nuts work well, as long as they are tightened sufficiently. Hold the brass sleeve in a pair of pliers while tightening the set screw to get enough torque. For the hot (not neutral) lead, you may want to leave it going through the socket, so you only have three wires to deal with. In this case, use a regular wire nut. The key to success is to twist the wires together with a pair of square-nosed pliers before twisting the wire nut on.
Finally, wrap electrical tape around the receptacle terminals and reassemble the receptacle and cover plate.
Adding an Electrical Subpanel: A Comprehensive Guide
You may want to see also
Frequently asked questions
Before starting any electrical work, you must switch off the main power at the consumer unit/fuse box. Isolate the circuit by removing the circuit fuse and putting it in your pocket to avoid accidental replacement. You should also attach a note to the unit to advise others that you are working on the circuit. Check the circuit is dead with a socket tester or voltage tester/meter.
You will need a non-contact voltage tester, a stud finder, a screwdriver, a pad saw or plasterboard saw, a spirit level, a wire stripper or utility knife, and a pair of pliers.
Strip the ends of your wires. If the wires are frayed or nicked, cut off the damaged part, then strip off roughly 3/4 inch (2cm) of insulation. Make hooks in the ends of the wires, wrap them clockwise around the screws, and tighten them with a screwdriver.
In the UK, any modifications to a circuit must comply with the latest IEE Wiring Regulations. New or replacement cables or sockets may need RCD protection. The new socket mustn't extend the floor area served by the circuit beyond 100 square meters.
In the US, the National Electrical Code (NEC) sets specific rules about receptacle loads and placement. Some rooms, like kitchens, bathrooms, and laundry areas, require dedicated circuits. Check with your local code authority to see if your plan is compliant or if you need a permit.
