Automotive electrical schematics, also known as wiring diagrams, can be intimidating to those unfamiliar with them. However, once you understand the basics, reading and interpreting these diagrams becomes more accessible. These schematics serve as maps, illustrating the paths of circuits, their power sources, and grounding points. To decipher them, you must first familiarize yourself with the symbols used, such as those representing batteries or light bulbs, and their respective colour codes. When working with automotive wiring, it's advisable to focus on one wire at a time, and if you encounter challenges, move on to the next wire and return later. Consulting a professional technician is recommended if you're unsure about interpreting these diagrams accurately.
| Characteristics | Values |
|---|---|
| Function | Acts as a map to understand where the circuits go |
| Reading | Start at the power source and follow the symbol to its ground |
| Symbols | Include batteries, light bulbs, relays, and more |
| Color Coding | Each vehicle has unique color coding, so refer to the service manual and vehicle-specific wiring diagram |
| Voltage | Check for voltage across the grid and between positive and negative pins/terminals |
| Approach | "One wire at a time" is a good rule to follow |
Explore related products
What You'll Learn
Understand the function of the diagram as a map
Automotive electrical schematics, or wiring diagrams, can look intimidating at first glance. However, understanding their function as a map is key to reading and interpreting them. These diagrams are essentially a map of the electrical system, providing information on where circuits are located, their sources of power, and where they are grounded.
To read an automotive electrical schematic as a map, it is important to familiarise yourself with the symbols and colour codes used. Symbols represent different components in the electrical system, such as batteries or light bulbs. For example, a battery is represented by a pair of parallel lines, with the short line indicating the negative terminal and the long line indicating the positive terminal. Relays may be depicted as rectangular boxes with a coil on the outside. Colour codes are also used extensively in wiring diagrams, with letters representing specific colours, such as "R" for red and "B" for black. It is important to consult the service manual and vehicle-specific wiring diagram to interpret the unique colour coding of each vehicle.
The schematic can then be used to trace the path of a circuit. By starting at the power source, you can follow a symbol to its ground, using the legend to identify the relevant automotive wiring symbols. This allows you to understand the flow of electricity through the system and identify any issues or problems.
Additionally, it is important to approach the diagram one wire at a time. This systematic approach helps to simplify the process and ensure a thorough understanding of each component and its connections. For beginners, it is recommended to start with a simple circuit before progressing to more complex ones with fuses, switches, or junctions.
Breaking Electro Fatui Shields: Tips and Tricks
You may want to see also
Explore related products
$35.99 $64.99

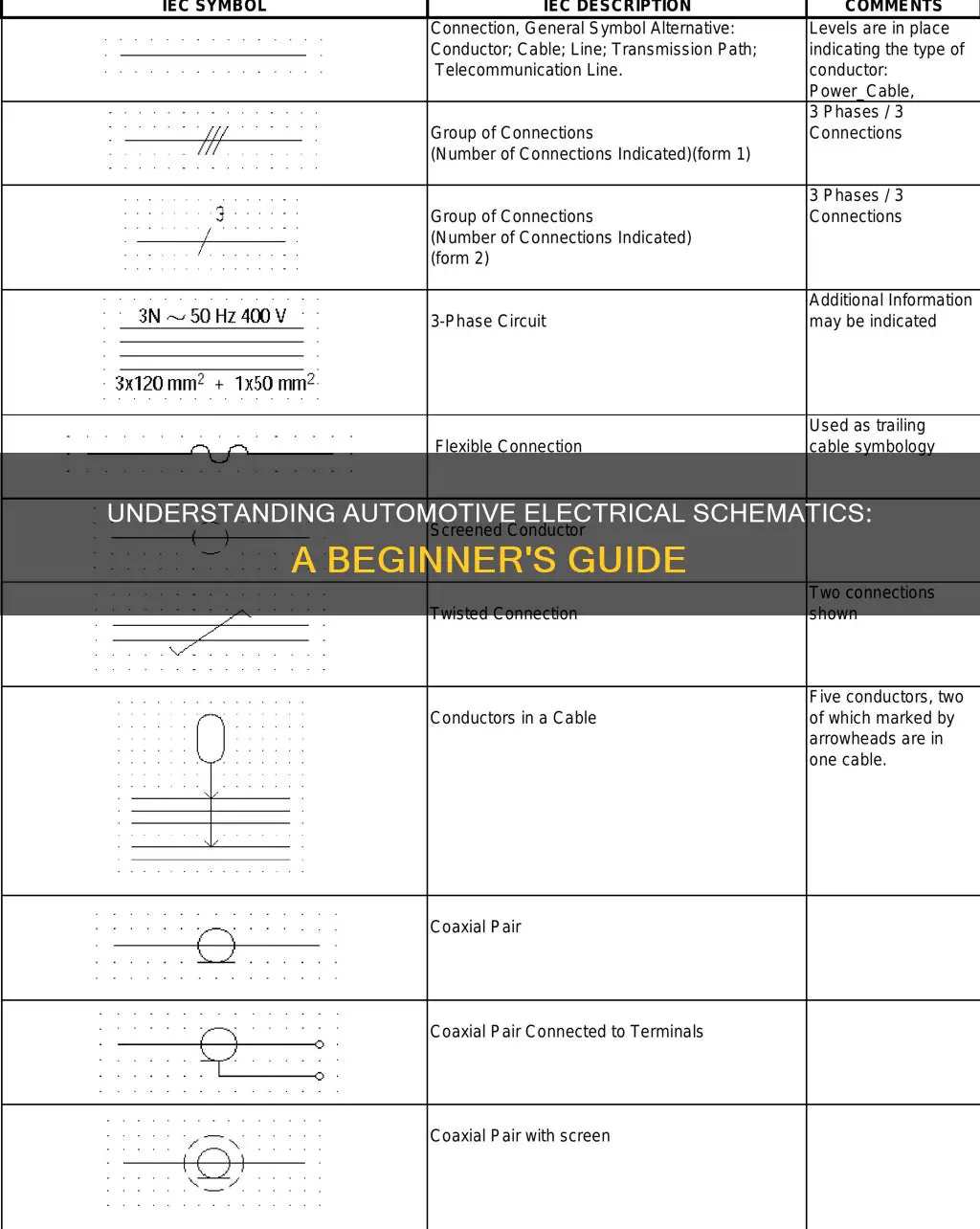

Learn to identify automotive wiring symbols
Automotive electrical schematics may seem daunting at first, but they are easy to understand once you know the basics. These diagrams act as maps, showing where circuits are located, their sources of power, and where they are grounded. To read them, you must be able to identify the various wiring symbols used to represent different components.
Battery symbols, for instance, are represented by a pair of short and long parallel lines, with the short line being negative and the long line positive. Relays, on the other hand, may be depicted as rectangular boxes with a coil on the outside. It's important to note that symbols may vary, so always refer to the legend provided with the schematic.
Color-coding is also commonly used in automotive wiring diagrams. Familiarize yourself with the color codes specific to your vehicle, as each car may have a unique system. For instance, "R" typically stands for red, while "B" represents black.
When interpreting an automotive electrical schematic, start by locating the battery symbol and follow the path from the power source to the ground. Keep an eye out for components such as switches, fuses, and relays, which are crucial for regulating power flow. Fuses and relays, in particular, ensure that the right amount of power goes through a circuit.
Once you've identified these essential components, move on to locating connectors, junctions, and other splits in the power supply. These are points where wires branch off from the main circuit to connect to other components. By understanding these symbols and their meanings, you can ensure that new components are installed correctly and receiving the necessary power.
Unlocking Your Frigidaire Electric Stovetop: Quick and Easy Steps
You may want to see also
Explore related products
$12.95
Recognise colour codes and vehicle-specific variations
Automotive electrical schematics use colour codes to indicate the purpose and function of each wire. While there are universal standards, the codes may vary depending on the country, manufacturer, or vehicle. For example, in the US, black wires typically represent ground or negative connections, while red wires denote power or positive connections. However, each vehicle might have unique colour coding, so it's important to consult the service manual and vehicle-specific wiring diagrams.
The wiring diagram or documentation specific to your vehicle will provide detailed information on the wire colours and their functions. For instance, it will specify which wires are for the headlights, brake lights, or turn signals. Understanding these colour codes is crucial for anyone working on their vehicle's electrical system, as it enables them to identify and troubleshoot problems efficiently. By knowing which wires are associated with specific components, technicians can quickly locate and address potential issues.
Some common colour codes and their functions include:
- Black: Typically represents a ground or earth connection used to complete an electrical circuit.
- Red: Often used for power supply or positive connections.
- Yellow: Can indicate a constant power source, such as for the radio or clock.
- Blue: Frequently employed for control and signalling purposes, like an antenna or power antenna.
- Green: Usually represents a low-voltage or signal wire, such as for speakers or sensors.
- White: Used for lighting circuits or illumination purposes.
It is worth noting that not all vehicles adhere to the same colour coding system. Hence, consulting the appropriate wiring diagram or reference guide for the specific make and model is essential. This ensures accurate interpretation of the colour codes and helps prevent accidents or damage to sensitive car components.
Understanding Your Ontario Electricity Rebate Calculation
You may want to see also
Explore related products
Learn how to use a multimeter to check for voltage
A multimeter is a tool that measures the voltage, current, and resistance of an electrical circuit. It can be used to test a car's charging system, voltage, and current. By using a multimeter, you can determine whether a car's alternator is working properly and avoid potential problems.
- Ensure that the multimeter is turned off before beginning any measurements.
- Identify the probes of the multimeter. The black probe is the common probe and does not carry live electricity, while the red probe is used to test voltage, resistance, or frequency.
- Connect the probes to the respective ports on the multimeter. The black probe is inserted into the common port, while the red probe is plugged into the port for voltage measurement, typically indicated as V, VΩ, or V-.
- Set the multimeter to measure voltage. If measuring DC voltage, use the selector knob or button to choose the expected voltage range. For example, if expecting 9 volts, set it to 9 or 10 volts.
- Disconnect the car battery from any power tools or chargers. For a car battery, it is recommended to turn on the headlights for two minutes and then turn them off before taking measurements.
- Touch the probes to the corresponding terminals on the car battery. Touch the black probe to the negative terminal and the red probe to the positive terminal.
- Turn on the multimeter and read the voltage measurement.
- Interpret the results: If the multimeter displays 0 volts, it indicates that no electricity is flowing through the circuit. A reading of 12 volts or higher suggests that there is a current present in the circuit.
It is important to note that voltage measurements can vary depending on the car's electrical system and battery health. A fully charged car battery typically reads around 12.6 to 12.8 volts with no load, while a fully charged battery at idle may read between 13.0 and 15.5 volts.
Additionally, always exercise caution when working with electrical circuits. Ensure that the power to the circuit is turned off before testing and always check your equipment for any signs of damage to avoid electrical shocks.
Easy Guide: Installing an Electric Shower Pump
You may want to see also
Explore related products
$34.99 $37.99
$47.79 $63.99
Start with simple circuits before moving on to complex ones
Automotive electrical schematics can be intimidating to beginners, but with a step-by-step approach, they can be understood and interpreted effectively. The key is to start with simple circuits and then gradually move on to more complex ones. This promotes a deeper understanding of how electrical circuits operate and builds proficiency in reading schematics.
Simple circuits are foundational and provide a basic understanding of the various components and their functions. For instance, a simple circuit may consist of just three elements: a battery, an LED, and a resistor. In this circuit, the battery powers the system, and the resistor limits the battery's current to prevent the LED from burning out. Understanding the role of each component and their interaction is essential.
Standardized symbols are used to represent these components in electrical schematics. For example, resistors are denoted by the letter "R," capacitors by "C," and integrated circuits by "U." Each component has a unique symbol, and it is crucial to memorize these symbols to effectively interpret schematics. Additionally, understanding polarity is vital, as most components are polar in nature.
Once you are familiar with the basic components and symbols, you can begin to explore more complex circuits. These circuits may introduce new components, such as fuses, switches, or junctions. Fuses, for instance, are safety devices that provide over-current protection by melting a narrow gauge wire when there is too much current flowing through it. Understanding the function and representation of these additional components expands your ability to interpret more intricate schematics.
As you progress, you will encounter automotive wiring diagrams that illustrate the interconnection of major electrical systems, sub-systems, and individual circuits. These diagrams serve as road maps, helping you navigate the circuits' locations, power sources, and grounding points. Grounding points, in particular, are crucial, as they function as the return path for the circuit. By starting with simple circuits and gradually advancing, you will develop the skills to interpret and navigate these complex diagrams effectively.
