Reading electrical schematics is a fundamental skill for engineers and designers, and a useful skill for anyone working with electronics. Electrical schematics are diagrams that use symbols to represent the components and connections in an electronic circuit. They are like a roadmap or blueprint, providing a visual representation of how all the wires and components in a circuit are connected. To read an electrical schematic, you need to be able to interpret the symbols used to represent different components and understand how the circuit works. While there are universally accepted symbols, there are also variants depending on the ECAD software used and the standards of the country.
Explore related products
$10.99
What You'll Learn

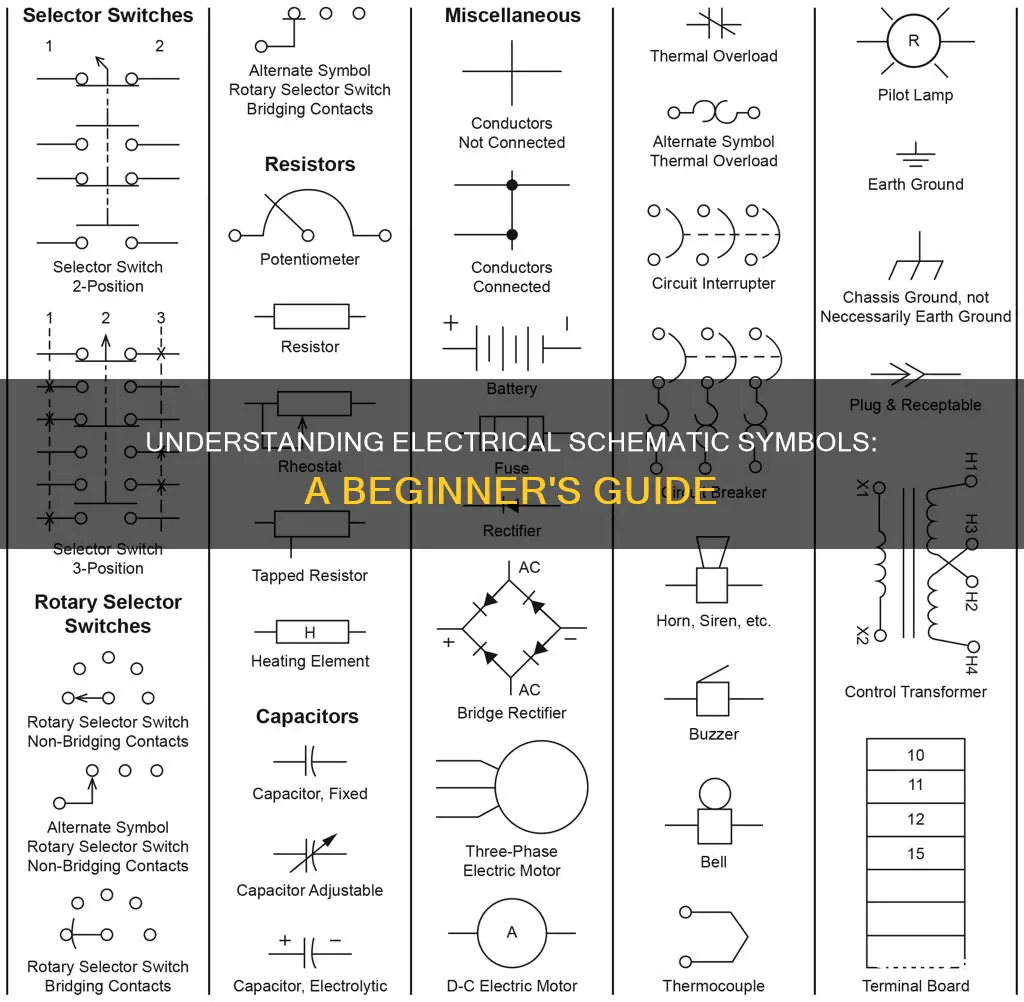

Learn the meaning of standard symbols
To read an electrical schematic, it is essential to learn the meaning of standard symbols. Electrical and electronic symbols are used by engineers in circuit diagrams and schematics to illustrate how a circuit's components are connected. Each physical component (resistor, capacitor, transistor, etc.) has a unique schematic symbol.
For example, resistors on a schematic are usually represented by a few zig-zag lines, with two terminals extending outward. However, schematics using international symbols may instead use a featureless rectangle. Variable resistors and potentiometers augment the standard resistor symbol with an arrow. Batteries, whether they are cylindrical, alkaline AA's, or rechargeable lithium-polymers, are represented by a pair of disproportionate, parallel lines, with the longer line representing the positive terminal and the shorter line representing the negative terminal.
Arrows are also used within schematic symbols to indicate the direction of conventional current flow around a circuit or through a component. For instance, the connecting leads of a bipolar junction transistor (BJT) are identified as E (emitter), B (base), and C (collector).
It is important to note that while electrical components are represented by universally accepted schematic symbols, there are variants and alternative symbols used throughout the world to represent the same component. For example, the IEC (International Electrotechnical Commission) and IEEE (Institute of Electrical and Electronics Engineers) have different sets of symbols for the same component.
Additionally, the way components and connections are arranged on a schematic follows established conventions designed to ensure clarity and readability. Schematics generally use a left-to-right convention for signal flow (inputs on the left, outputs on the right) and a top-to-bottom convention for power (higher voltages at the top, ground at the bottom).
Understanding Electric Potential Difference Calculations: A Simple Guide
You may want to see also
Explore related products
Understand signal flow direction
Understanding the signal flow direction is crucial when reading electrical schematic symbols. While there is no one-size-fits-all approach to following signal flow, some general principles and guidelines can help. Firstly, it's important to recognize that the signal flow in a schematic typically follows a left-to-right pattern. This convention aids in establishing a logical and causal flow, making it easier to comprehend the circuit's functionality. However, it's worth noting that this left-to-right paradigm might sometimes be too restrictive, particularly when dealing with bidirectional signals or certain cultural contexts.
To enhance your understanding of signal flow, it's beneficial to familiarize yourself with the symbols and their meanings. Each physical component in a circuit, such as a resistor, capacitor, or transistor, has a unique schematic symbol. For instance, capacitors are represented by parallel lines, resistors by zigzag lines, and amplifiers by triangle shapes. Understanding these symbols will enable you to interpret how the circuit operates and how the components are interconnected.
Another aspect to consider is the role of arrows within schematic symbols. Arrows are often used to indicate the direction of conventional current flow within a circuit or through a specific component. They can also signify that a component has a variable or adjustable value. Additionally, prefixes of names can provide clues about the components. For example, resistors typically have an "R" prefix, while inductors are commonly denoted by "L" due to the current's association with the letter "I."
When interpreting signal flow, it's essential to grasp the concept of nets. Nets refer to connections between components, even if there are no visible wires linking them. Names or labels are assigned to nets to maintain clarity and organization in complex schematics. These names often describe the purpose of the signals transmitted on those connections. For instance, power nets may be labelled "VCC" or "5V," while serial communication nets might use "RX" or "TX."
In some cases, you may encounter diagrams with hubs and spokes, where signals travel in both directions within the spokes. This design approach groups related signals together, creating a logical flow. It's also worth noting that some schematics might not adhere strictly to conventional rules, as designers may have their own preferences or methods for grouping signals. Therefore, when interpreting signal flow, it's crucial to adapt to the specific schematic you are working with and focus on comprehending the overall structure and functionality of the circuit.
The Turquoise Microwave: Is It Blue or Green?
You may want to see also
Explore related products
Identify power/ground distribution
When reading electrical schematics, it's important to identify power and ground distribution to understand the flow of electricity. Here are some key considerations for identifying power and ground distribution:
Understanding the Basics
Start by familiarizing yourself with the basic concepts of electrical circuits. In most circuits, you'll find a common path for current to return to its source, often referred to as the "ground." This ground is usually represented by a standard ground symbol, indicating a reference point with 0V voltage. Voltage measurements are taken relative to this reference point.
Recognizing Symbols
Learn to recognize the standard symbols used for power and ground. Power supply symbols, such as VCC, VDD, or +5V, typically point upwards, while ground symbols like GND, VSS, or 0V point downwards. These symbols provide a clear indication of the direction of voltage flow.
Voltage Distribution
Pay attention to the distribution of voltage connections. In complex circuits, there may be numerous power connections. Instead of drawing lines to the positive or negative side of the battery symbol, schematic diagrams often use ground symbols to represent the path by which current returns to the battery.
Common Voltage Path
In addition to the common ground path, many circuits also have a common voltage path. This path typically goes from the battery to the resistor and then to the second transistor. It can be represented by symbols indicating voltage sources, such as an open circle or an arrow, with the quantity of voltage indicated next to it.
Grounding Considerations
Understand the different types of grounding, such as earth ground, common ground, analog ground, and digital ground. Earth ground, for example, refers to connecting electrical systems to the Earth's conductive surface to define electrical potential and enhance safety. It is often used in homes to ensure that metal fixtures and devices share the same potential as the Earth, preventing electrical shocks.
Load Connection
Be aware of the connection between the load and the power supply. In a normal power-side circuit, the load is connected between the positive (+) and negative (-) terminals. If connected incorrectly between the positive (+) and GND terminals, the current will not flow. Ground side switching, on the other hand, ensures that at least one side of the load always has full voltage.
By considering these aspects, you can gain a better understanding of power and ground distribution in electrical schematics, enabling you to interpret the flow of electricity and the functionality of the circuit.
Understanding Electric Flux Through a Torus
You may want to see also
Explore related products
Know how to read names and values
To read an electrical schematic, it is important to understand the different symbols used to represent system components. Symbols identify a component's position and the type of electrical element, such as whether it is resistive, inductive, capacitive, or mechanical. Each symbol is assigned a name and value. The name is usually a combination of one or two letters and a number, with the letter indicating the type of component and the number identifying which exact component it is. For example, R10 indicates that it is one of at least ten resistors on the device. Resistors are usually portrayed as zigzag lines with a terminal at each end, while capacitors are depicted as two lines perpendicular to the terminal plates. Inductors are represented by a series of curved bumps or a looped coil.
The value of a component in a schematic will provide further information to help understand the schematic. For example, a value of 10k next to a resistor indicates that it is a 10k-Ohm resistor. The value may be expressed in ohms, farads, oscillating frequency, henries, or simply the name of the part chip. For integrated circuits, the value may just be the name of the chip, while for crystals, it may be their oscillating frequency.
It is important to note that while there are standardized naming conventions for component symbols, they are not always universally followed. For instance, integrated circuits may be labelled with "IC" or "U". Therefore, it is essential to be able to recognize components by their symbols, names, and values.
Additionally, arrows within schematic symbols indicate the direction of conventional current flow around a circuit or through a component, or they may signify that the component has a variable or adjustable value. The colour of wires depicted in a schematic is also important, as it often indicates the connection's function. For example, green wires typically represent a connection to the ground.
Understanding Electricity Costs: Calculating the Formula
You may want to see also
Explore related products
Understand the conventions of layout
Understanding the conventions of layout is crucial when reading electrical schematic symbols. These symbols are used by engineers to represent electrical and electronic devices and illustrate how they are connected. Each symbol corresponds to a specific component, and each line signifies a wire that connects them.
When interpreting a schematic, it is essential to be familiar with the standard conventions for signal flow direction and power/ground distribution. Schematics generally follow a left-to-right convention for signal flow, with inputs on the left and outputs on the right. An exception to this is feedback signals, which flow from right to left and are often visually emphasised. For power distribution, a top-to-bottom convention is typically used, with higher voltages at the top and ground at the bottom. Power supply symbols, such as VCC, VDD, and +5V, are usually drawn pointing upwards, while ground symbols like GND, VSS, and 0V point downwards.
It is also important to recognise the symbols for various electronic components. For instance, resistors are depicted by zig-zag lines in the US and rectangles internationally. Variable resistors are distinguished by a diagonal arrow, while potentiometers, a type of three-terminal variable resistor, have an arrow serving as the third terminal. Batteries, a common DC power source, are represented by parallel lines, with the longer line indicating the positive terminal and the shorter line the negative.
Additionally, when interpreting schematic layouts, it is crucial to understand wire connections and crossings. Wires are represented by lines, and connections are denoted by dots. The absence of a dot at the intersection of wires indicates that they are not electrically connected but merely crossing each other. To represent unconnected wires, some schematic styles employ a semi-circle or a small arc where the wires intersect without connecting.
Lastly, it is worth noting that while standard symbols are used, there may be minor variations depending on the ECAD software employed. Therefore, it is essential to familiarise yourself with the specific symbols and conventions used in the schematic you are interpreting.
The Ultimate Guide to Installing Electric Trailer Light Connectors
You may want to see also
Frequently asked questions
Electrical schematic symbols are basic electrical graphics used to visually represent components and functions in a circuit. They are used by engineers to show how a circuit is connected and how it operates.
To start reading electrical schematics, it is important to memorise the most common symbols and their meanings within a circuit context. Component names are usually a combination of letters and numbers, with the letter identifying the type of component—for example, R for resistors, C for capacitors, and U for integrated circuits.
Some commonly used electrical schematic symbols include those for resistors, capacitors, transistors, and batteries. A battery, for example, is represented by a pair of parallel lines, with the longer line indicating the positive terminal and the shorter line the negative terminal.
Electrical schematic symbols function as a standardised, universal language within the electronics industry. They enhance communication and collaboration among diverse teams and provide a lasting record of design intent, component choices, and connection topology.
When reading electrical schematic symbols, it is important to follow established conventions. Schematics generally use a left-to-right convention for signal flow and a top-to-bottom convention for power. It is also essential to understand the layout of the schematic, including signal flow direction, power/ground distribution, and net labelling.
