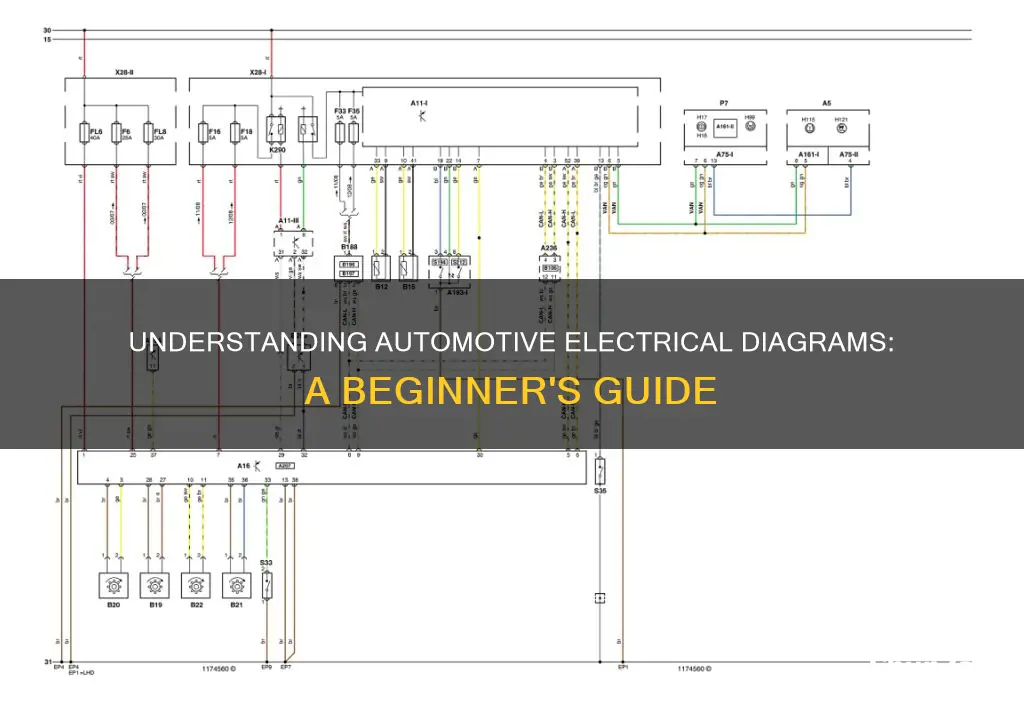

Automotive wiring diagrams are a crucial tool for anyone working with a vehicle's electrical system. They can be intimidating at first glance, but with some practice and familiarity, they become much easier to interpret. These diagrams are visual representations of a vehicle's electrical system or circuit, mapping out the connections between components such as switches, relays, sensors, motors, and lights. They show how electrical signals and power flow through a vehicle, allowing for efficient troubleshooting and modifications. To read an automotive wiring diagram, it is essential to understand the symbols and colour codes used, as these may vary depending on the vehicle and manufacturer. Wiring diagrams often follow a left-to-right and top-down reading pattern, similar to reading a book, although exceptions may be made for layout purposes. By familiarising yourself with the legend and standard symbols, you can effectively interpret the diagram and locate circuits, power sources, and grounding points.
| Characteristics | Values |
|---|---|
| Purpose | Diagnosing electrical issues, modifying vehicle systems, understanding how components work together, creating, identifying, and repairing circuits |
| Starting point | Battery and power supply |
| Layout | May vary depending on the company and designer; may be drawn by different ECAD software |
| Direction | Read from left to right and top to bottom, unless otherwise specified |
| Symbols | Represent components; must be learned and verified |
| Lines | Represent wires |
| Dots | Indicate connections between wires |
| Breaks in lines | Show where wires do not connect, even if they cross |
| Wire colours | Often follow industry standards, but can vary between manufacturers; refer to manufacturer's documentation |
| Common colour codes | Red: power supply; Black: ground; Green: signal wires (often for sensors); Yellow/Orange: communication wires; Blue: high-current circuits |
| Legend | Provides key to symbols and naming conventions |
Explore related products
What You'll Learn
Understanding standard wiring diagram rules
Reading Order
A standard rule for reading wiring diagrams is to follow a left-to-right and top-down approach, similar to reading a book. However, designers may make exceptions to improve the layout. For example, in some cases, you may need to start from the bottom, where three-phase power enters the panel.
Symbols and Legend
Wiring diagrams use symbols to represent various components and connections. Familiarize yourself with the legend and abbreviation page, also known as the "symbol page," to interpret the diagram accurately. Keep in mind that symbols may vary slightly depending on the ECAD software used to create the diagram.
Wire Colours and Tags
Wire colours often follow industry standards, but these can vary between manufacturers. Common colour codes include red for power supply, black for ground, green for signal wires, yellow/orange for communication wires, and blue for high-current circuits. Refer to the manufacturer's documentation for exact colour code definitions. Additionally, wires may have tags—combinations of letters and numbers—indicating which device or terminal block they connect to.
Circuit Breakers and Contacts
Standard wiring diagrams should depict circuits in their neutral state, with all contacts, contactors, and circuit breakers in their normal or non-energized condition. When you see a closed contact, it represents a normally closed contact, while the rest of the contacts should be open.
Line and Wire Numbers
While not universally standard, some diagrams include line and wire numbers for reference. Line numbers are often multiples of 10 or 100, and wire numbers on each line are consecutive. For example, the first wire on line 100 may be numbered 101, followed by 102, and so on.
Country-Specific Standards
Remember that voltage levels, frequencies, and other electrical standards may vary depending on the country. Wiring diagrams are designed to adhere to the standards of the country where they will be used.
By following these rules and familiarizing yourself with the specific diagram you're working with, you'll be well on your way to understanding standard wiring diagrams and their automotive applications.
FPL's Lower Electricity Costs: Understanding After-Hour Rates
You may want to see also
Explore related products
Interpreting symbols and legends
Automotive electrical diagrams can be intimidating at first glance, but they are essentially maps of a vehicle's electrical system or circuit. They are visual representations that show how electrical signals and power flow through a vehicle, allowing users to trace and troubleshoot circuits effectively. These diagrams are indispensable for anyone working with a vehicle's electrical system, as they enable the identification and repair of circuits, as well as the installation of new components or accessories.
To interpret these diagrams, it is crucial to familiarise yourself with the symbols and legends used. Legends are usually located in the corner of a diagram and list all the symbols used, along with their meanings. These symbols represent various components in the electrical schematic, such as switches, relays, sensors, motors, and lights. For example, switches have symbols indicating whether they are open or closed, with basic on/off switches represented as single-pole single-throw (SPST) switches. Multi-position switches, on the other hand, control systems with multiple states like fan speed or light brightness. Relays, which use a low-current signal to manage a high-current circuit, have symbols for the coil circuit (control side), the contact circuit (load side), and their activation state (normally open or closed).
Battery symbols are another important set of symbols to recognise. A pair of short and long parallel lines indicate battery polarity, with the short line representing the negative terminal and the long line representing the positive terminal. It's worth noting that variations may exist, such as relays depicted by rectangular boxes with a coil on the outside.
Color coding is also prevalent in automotive wiring diagrams, with wire colours often adhering to industry standards. Common colour codes include red for power supply, black for ground, green for signal wires (often sensors), yellow or orange for communication wires in modern vehicles, and blue for high-current circuits like headlights or motors. However, it's important to refer to the manufacturer's documentation for exact colour code definitions, as they can vary between manufacturers.
While interpreting symbols and legends, it is essential to verify the symbols in the legend and consult vehicle-specific manuals for accurate information. Additionally, specific details provided by manufacturers, such as wire gauge or component ratings, should not be overlooked as they can be critical.
MCA: The Electrical Acronym You Need to Know
You may want to see also
Explore related products
$19.99 $19.99
Identifying wire colours and tags
Automotive wiring diagrams are essential tools for diagnosing electrical issues, modifying vehicle systems, or understanding how various components in a vehicle work together. They are visual representations of a vehicle's electrical system or circuit, mapping out connections between components such as switches, relays, sensors, motors, and lights.
When reading an automotive wiring diagram, it is important to identify the different wire colours and tags. Wire colours in automotive diagrams often follow industry standards, but these can vary between manufacturers, so it is crucial to refer to the manufacturer's documentation for exact colour code definitions. Common wire colour codes include:
- Red: Power supply, constant or switched.
- Black: Ground.
- Green: Signal wires, often for sensors.
- Yellow/Orange: Communication wires, especially in modern vehicles (e.g., CAN bus).
- Blue: High-current circuits, such as headlights or motors.
In addition to wire colours, you will also encounter wire tags. Wire tags are the combination of letters and numbers installed on a wire or cable, indicating which device or terminal block it should be connected to. These wire tags are extremely helpful for troubleshooting. For example, if a wire becomes disconnected, you can easily refer to the wiring diagram to identify the correct connection point.
To effectively read and interpret an automotive wiring diagram, it is crucial to treat it like a map. Start at the power source and follow the path of a chosen symbol to its ground. Utilize the legend to identify key automotive wiring symbols, as these may vary depending on your vehicle. Remember to cross-reference the diagram with the physical wiring setup under the hood, as previous modifications or repairs may have altered the original circuit configuration.
Breadboards: Conducting Electricity with Ease
You may want to see also
Explore related products
Reading the diagram like a map
Automotive wiring diagrams are like maps that help you navigate a vehicle's electrical system. They can be intimidating at first glance, but with some practice and familiarity, they become easier to read and interpret. Here are some tips to help you read and understand automotive electrical diagrams effectively:
Understanding the Basics
Start by familiarizing yourself with the basic elements of a wiring diagram. These diagrams use symbols, lines, and charts to represent different components and connections in the electrical system. Think of these symbols as landmarks on a map. For example, lines represent wires, dots indicate connections between wires, and breaks in lines show where wires do not connect, even if they cross.
Reading the Legend
Just like a map, a wiring diagram will typically have a legend or a key that explains the symbols and naming conventions used. Take time to study this legend and become familiar with the symbols. The symbols may vary depending on the vehicle and the ECAD software used to create the diagram, so it's important to refer to the specific legend provided.
Identifying the Power Source and Ground
Identify the power source, which is usually the battery, and trace the flow of power from there. This is similar to locating your starting point on a map. Follow the diagram to understand how power is distributed from the battery to different circuits and where they are grounded. This will help you comprehend the path of electrical signals and power through the vehicle.
Color Coding and Wire Tags
Pay attention to the color coding of wires. While industry standards exist, colors can vary between manufacturers. Common color codes include red for the power supply, black for the ground, green for signal wires (often sensors), yellow or orange for communication wires, and blue for high-current circuits (such as headlights or motors). Additionally, keep an eye out for wire tags—combinations of letters and numbers on wires that indicate which device or terminal block they connect to.
Practicing and Patience
Reading automotive wiring diagrams takes practice and patience. Start with simpler diagrams and gradually move on to more complex ones. Over time, you'll become more proficient at interpreting the symbols, understanding the layout, and tracing circuits. Remember that each diagram may have unique aspects, so always refer to the specific documentation for your vehicle make and model.
By following these guidelines and treating automotive electrical diagrams as maps to navigate, you'll be well on your way to becoming a master at reading and understanding them.
Choosing a Cooktop: Electric or Induction?
You may want to see also
Explore related products
Troubleshooting electrical issues
Understanding the Basics
Firstly, it's important to recognize common symptoms of electrical issues in vehicles. Some tell-tale signs include dim or flickering headlights, interior lights, or dashboard lights, which could indicate a failing alternator or weak battery. Flickering lights might also point towards loose wiring connections. When accessories like power windows, locks, or the radio malfunction or stop working, it often signifies an electrical problem, possibly due to faulty wiring or a malfunctioning switch.
Preliminary Checks
Before diving into more complex troubleshooting, it's advisable to perform some basic checks and preparations. Ensure your battery terminals are clean and free of corrosion, and check that all fuses are intact. A blown fuse might be a simple fix, but it's important to investigate why it burned out to prevent a recurrence. Always make sure your battery is fully charged before proceeding.
Voltage Checks
Voltage issues are a common cause of electrical problems. When dealing with a non-functional device, the first step is to determine if voltage is reaching it when the switch is turned on. You can use a multimeter to verify the presence of voltage. If voltage is detected at the device's positive terminal, proceed to test for continuity between the wire to the device's negative terminal and ground.
Circuit Testing
Every circuit in a vehicle needs a power source and requires continuity to function. When dealing with a \"dead\" circuit, start by checking for voltage at the load point. Ohmmeters are useful for measuring circuit resistance, but caution must be exercised when checking electronic components, as the applied voltage can damage certain parts. For example, when testing a sensor, refer to the manual for specific instructions or replace it with a known working item.
Wiring Diagrams
Wiring diagrams can be invaluable tools for troubleshooting automotive electrical issues. They help you understand how the system is wired and how various components interact. By referring to a wiring diagram, you can identify the locations of potential issues, such as bad grounds, and trace wire routes and color changes.
Advanced Testing
If basic voltage and continuity tests don't reveal the issue, more advanced testing might be required. For instance, if the voltage is present at the device's positive terminal and continuity is established, conduct a voltage drop test to check for a high resistance failure.
Professional Assistance
Lastly, remember that some electrical problems might be beyond your expertise or comfort level. If you encounter persistent issues or feel unsure, it's always advisable to consult a professional mechanic. They have access to specialized tools and knowledge to efficiently diagnose and resolve complex electrical problems.
By following these steps and guidelines, you can effectively troubleshoot many automotive electrical issues. However, always prioritize safety and seek professional help when needed to avoid further complications or safety hazards.
Programming a Mitsubishi Electric Remote: Easy Step-by-Step Guide
You may want to see also
Frequently asked questions
Automotive wiring diagrams are essential tools for diagnosing electrical issues, modifying vehicle systems, or understanding how various components in a vehicle work together. They are visual representations of a vehicle's electrical system or circuit, mapping out the connections between components such as switches, relays, sensors, motors, and lights.
Automotive wiring diagrams can look intimidating at first, but once you get the basics down, they are easy to read. The most important thing to consider is that these diagrams function as maps. You need to read them like maps to understand where the circuits go. For example, you can pick a symbol and follow it to its ground by starting at its power source. Wiring diagrams tell you where circuits are located, what their sources of power are, and where they are grounded.
Common symbols in automotive wiring diagrams include lines representing wires, dots indicating connections between wires, and breaks in lines showing where wires do not connect even if they cross. Symbols may vary based on the vehicle and the ECAD software used to create the diagram, so it is important to refer to the legend and abbreviation page. Common color codes include red for the power supply, black for the ground, green for signal wires (often for sensors), yellow or orange for communication wires (especially in modern vehicles), and blue for high-current circuits (such as headlights or motors).
