Electrical drawings are diagrams that show how electrical circuits are connected. They are used to build, modify, or troubleshoot circuits. To read an electrical drawing, you need to understand the symbols used to represent different components. These symbols are standardized, and each component should have a unique name or identifier. Drawings are usually read from left to right and top to bottom. Electrical drawings can be simple to understand, but it is important to have a basic knowledge of electrical systems and wiring conventions.
| Characteristics | Values |
|---|---|
| Symbols | Used to represent components in a circuit, such as lamps, switches, and thermostats. |
| Component Names | Usually consist of one or two letters and a number, with the letter indicating the type of component (e.g., R for resistors, C for capacitors). |
| Schematics | Diagrams that show how wires and components are connected in a circuit, read from left to right and top to bottom. |
| Wires | Represented by lines, with connections indicated by dots or nodes. |
| Wire Numbers | Help locate the wire within the drawing, e.g., wire #35272 refers to page 35, line 27, the second wire in the circuit. |
| Diagrams | Various types, including ladder diagrams, piping and instrument diagrams (P&IDs), wiring diagrams, and electrical power flow diagrams. |
| Troubleshooting | Electrical drawings are used to identify and resolve issues in circuits and control systems. |
Explore related products
$10.99
What You'll Learn

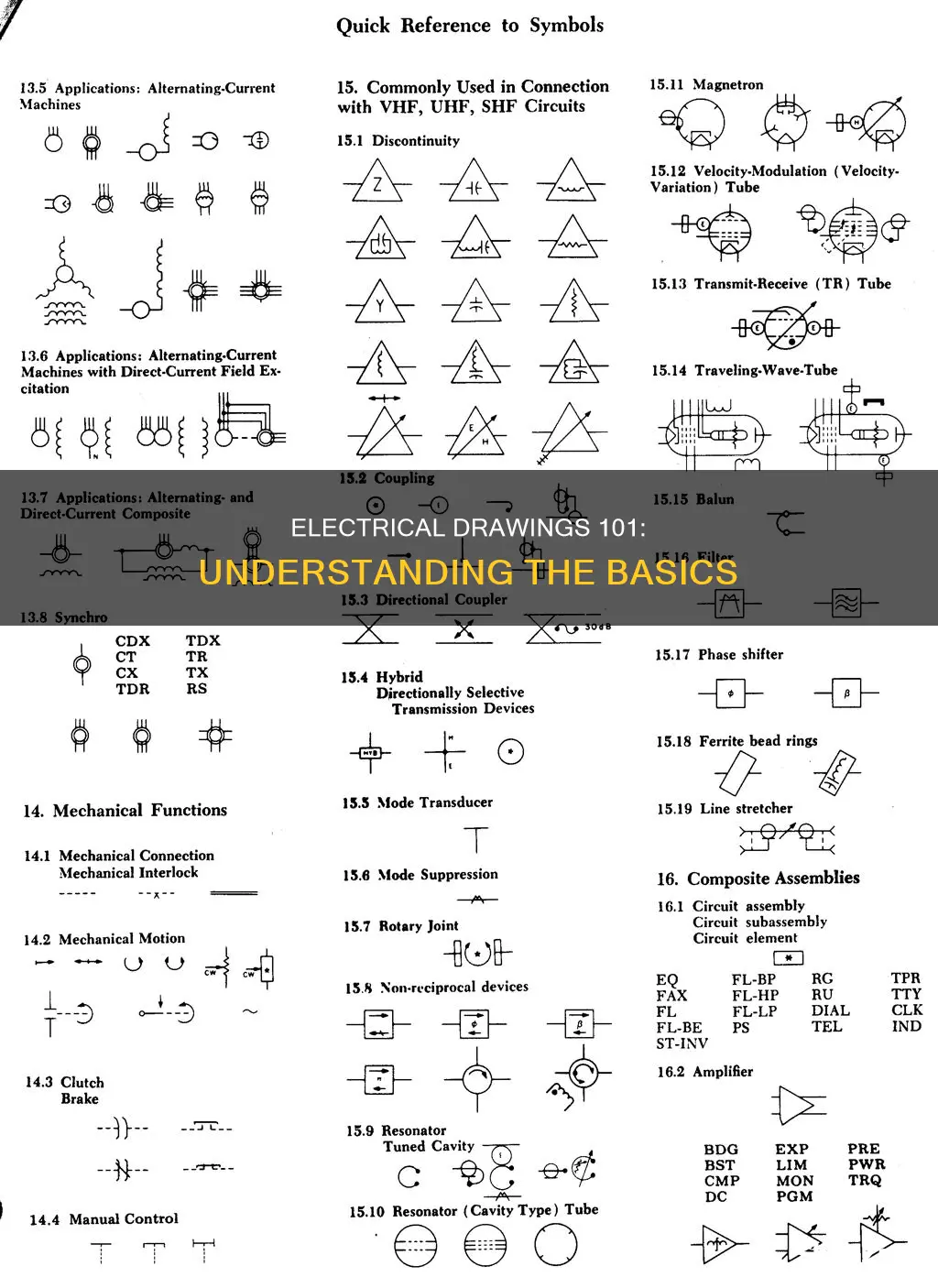

Learn electrical symbols and their meanings
Electrical symbols are used to simplify the drafting of electrical drawings and help people understand them. They are standardized across the industry, so it is easy to interpret their meanings. These symbols are used to represent electrical components or devices in schematic diagrams or circuit diagrams.
Electrical symbols are used to represent specific components in a circuit diagram. Some of the basic electrical symbols include:
- Earth electrodes: Metal plates or other conducting elements of electricity partially buried in the earth to provide a reliable conductive path for the fault current to the ground.
- Cells: Devices containing electrodes immersed in an electrolyte, used for generating current or for electrolysis.
- Batteries: Containers consisting of one or more cells, in which chemical energy is converted into electricity and used as a power source.
- Resistors: Components that impede the flow of the circuit to an extent determined by the resistance value used. They are used to scale and shape the signal.
- Capacitors: Used to control rapidly changing signals, as opposed to static or slowly changing signals conditioned by resistors.
- Switches: Symbolized by an opening or break in the line, similar to the flip of a light switch.
When creating circuit diagrams, electrical and electronic schematic symbols are used to signify electrical and electronic devices. For example, an antenna is an electrical device that converts electric power into radio waves and vice versa, and is represented by a specific symbol.
It is important to be familiar with the different types of diagrams and how to distinguish between them, as well as how to choose the appropriate diagram for a given situation. By studying a handbook or using software like EdrawMax, you can learn the meanings of electrical symbols and how to use them to create professional electrical drawings.
