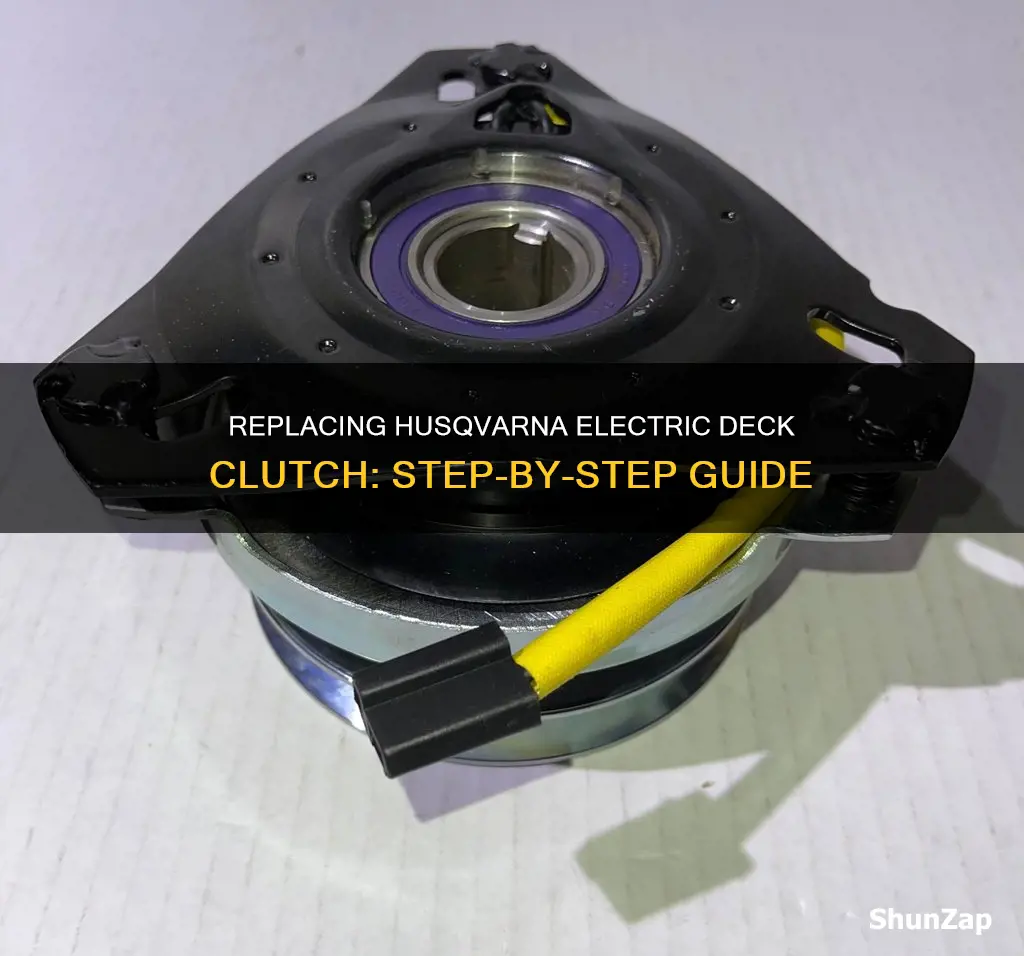

The process of replacing the electric deck clutch on a Husqvarna lawn mower may seem daunting, but with the right tools and guidance, it can be a straightforward task. This repair procedure is necessary when the clutch malfunctions, causing the blades to fail to engage. To replace the clutch, one must first lift the front of the mower and remove the mower deck belt. Subsequent steps involve disconnecting the electrical connector, removing bolts, and paying attention to the positioning of the clutch for reassembly. It is important to consult the owner's manual for belt routing instructions and to check for any dropped pulleys. Aftermarket replacement clutches are readily available, ensuring that Husqvarna lawn mower owners can acquire the necessary parts for a fully functional machine.
| Characteristics | Values |
|---|---|
| Process | 1. Lift the front of the machine and place it on jack stands. |
| 2. Remove the mower deck belt from the PTO clutch. | |
| 3. Unplug the electrical connector from the PTO clutch and secure it. | |
| 4. Remove the bottom bolt from the PTO clutch using an impact wrench or a socket wrench/breakover handle. | |
| 5. Remove the clutch, paying attention to its position. | |
| 6. Use some NeverSeez on the crankshaft to prevent rusting. | |
| 7. Put the new clutch in place, orienting it properly. | |
| 8. Reinstall the electrical connector, belt, and spark plug. | |
| Parts | Ox Clutch, RAParts, MaxPower |
Explore related products
What You'll Learn
Removing the mower deck
To remove the mower deck of your Husqvarna lawnmower, you will need to first lift the front of the machine and place it on jack stands. This will make it easier to access and work on.
Next, remove the mower deck belt from the PTO clutch. You will then need to unplug the electrical connector from the PTO clutch and secure it out of the way, so it doesn't get damaged. At this point, you should be able to see everything more clearly and have better access to the belt and pulleys.
Now, remove the bottom bolt from the PTO clutch. If you have an impact wrench, use this, but if not, you can use a length of clean cord like a starter rope and place about 36" in the spark plug hole to function as a piston stop to keep the engine from turning.
Finally, remove the clutch, paying close attention to how it is positioned so that you can put it back correctly. There is usually a locator pin or tab that mates against the clutch to keep it from spinning. Ensure the upper engine pulley stays in place as you do this.
You should now have successfully removed the mower deck of your Husqvarna lawnmower and can proceed to replace the electric clutch. Remember to refer to your owner's manual for specific instructions regarding your model and for the correct routing for your belt. You can also find replacement parts for your Husqvarna mower online.
Electric Eels: True or False?
You may want to see also
Explore related products
Checking the pulleys
To check the pulleys when replacing the electric deck clutch of a Husqvarna lawnmower, follow these steps:
First, lift the front of the mower and place it on jack stands. This will give you better access to the machine's underside and the pulleys. Ensure you have a flashlight to illuminate the dark areas under the tractor.
Next, check the pulleys by looking under the tractor. Confirm that the pulley for the transmission belt is in place. When the electric clutch is removed, this pulley can sometimes drop down, causing the belt to come off the pulleys. Make sure the upper engine pulley is also in place.
If you need to remove the clutch, pay close attention to its positioning so that you can reinstall it correctly. There is usually a locator pin or tab that mates against the clutch to keep it from spinning. When reinstalling the new clutch, ensure it is oriented properly against the pin or tab.
Finally, refer to your owner's manual to confirm the correct routing for your belt. With the mower deck removed, you can more easily position the belt back onto the pulleys correctly.
Electric Fencing for Pigs: A Step-by-Step Guide
You may want to see also
Explore related products
Using an impact wrench
To replace the electric deck clutch on a Husqvarna lawnmower using an impact wrench, follow these steps:
Begin by lifting the front of the mower and placing it securely on jack stands. This will give you better access to the clutch. Next, remove the mower deck belt from the Power Takeoff (PTO) clutch. You can do this by using your impact wrench to loosen the bolt holding the belt in place. Once the belt is removed, unplug the electrical connector from the PTO clutch and secure it safely out of the way.
Now, you can focus on the clutch itself. Using your impact wrench, remove the bottom bolt from the PTO clutch. If the bolt is rusted or stuck, you may need to apply some force by using a longer ratchet and tapping it with a hammer. Alternatively, you can prevent the engine from turning by inserting a length of clean cord (about 36" or medium size) into the spark plug hole to function as a piston stop.
With the bolt removed, you can carefully take out the old clutch, paying close attention to its positioning so that you can install the new clutch in the exact same way. There is usually a locator pin or tab that mates against the clutch to keep it from spinning. Ensure that the upper engine pulley stays in place as you remove the clutch.
Before installing the new clutch, it is recommended to apply some anti-seize compound, such as NeverSeez, to the crankshaft. This will help prevent the new clutch from rusting onto the shaft, making future maintenance easier. Position the new clutch properly against the pin or tab, then replace the washer and bolt, tightening it securely with your impact wrench.
Finally, reconnect the electrical connector to the new clutch, reinstall the mower deck belt, and remove any rope used in the spark plug. Replace the spark plug, and your Husqvarna electric deck clutch replacement is complete.
Trump's Electoral College Votes: How Many Did He Secure?
You may want to see also
Explore related products
Removing the clutch
To remove the clutch from your Husqvarna lawn mower, follow these steps:
First, lift the front of the mower and place it on jack stands to improve accessibility. Next, remove the mower deck belt from the PTO clutch. It is important to use a flashlight to check under the tractor and confirm that the pulley for the transmission belt is in place. If it has dropped down, the belt will not be on all its pulleys. Once you have confirmed that the pulley is in place, continue by unplugging the electrical connector from the PTO clutch and securing it out of the way to prevent it from being pulled loose or damaged.
Now, you can proceed to remove the bottom bolt from the PTO clutch. If you have an impact wrench, use it for this step. Otherwise, you can use a length of clean cord, such as a starter rope, and place about 36" in the spark plug hole to function as a piston stop to keep the engine from turning while you remove the bolt.
With the bolt removed, it is time to take out the clutch. Pay close attention to its position so that you can put the new clutch back in the same way. There is usually a locator pin or tab that mates against the clutch to keep it from spinning. Make sure the upper engine pulley stays in place as you remove the clutch.
Finally, apply some anti-seize lubricant, such as NeverSeez, to the crankshaft. This will prevent the clutch from rusting onto the shaft, making it easier to remove or change the clutch or the upper belt in the future.
You can find replacement clutches from various online retailers.
Adjusting Your GE Fridge: A Quick Guide
You may want to see also
Explore related products
Reinstalling the belt
To begin reinstalling the belt, first check your owner's manual for the correct routing instructions for your belt. Next, lift the front of the mower and place it on jack stands to make it easier to access.
Now, reinstall the belt by placing it back on the pulleys. Ensure that the upper engine pulley is in place, as it may have dropped down when the clutch was removed. Use a flashlight to check under the tractor to confirm.
Once the belt is back on the pulleys, you should be all set. It may be easier to do this if you remove the mower deck so you can see everything clearly.
Before testing the mower, make sure to replace the electrical connector to the clutch, remove the rope from the spark plug, and then replace the spark plug.
