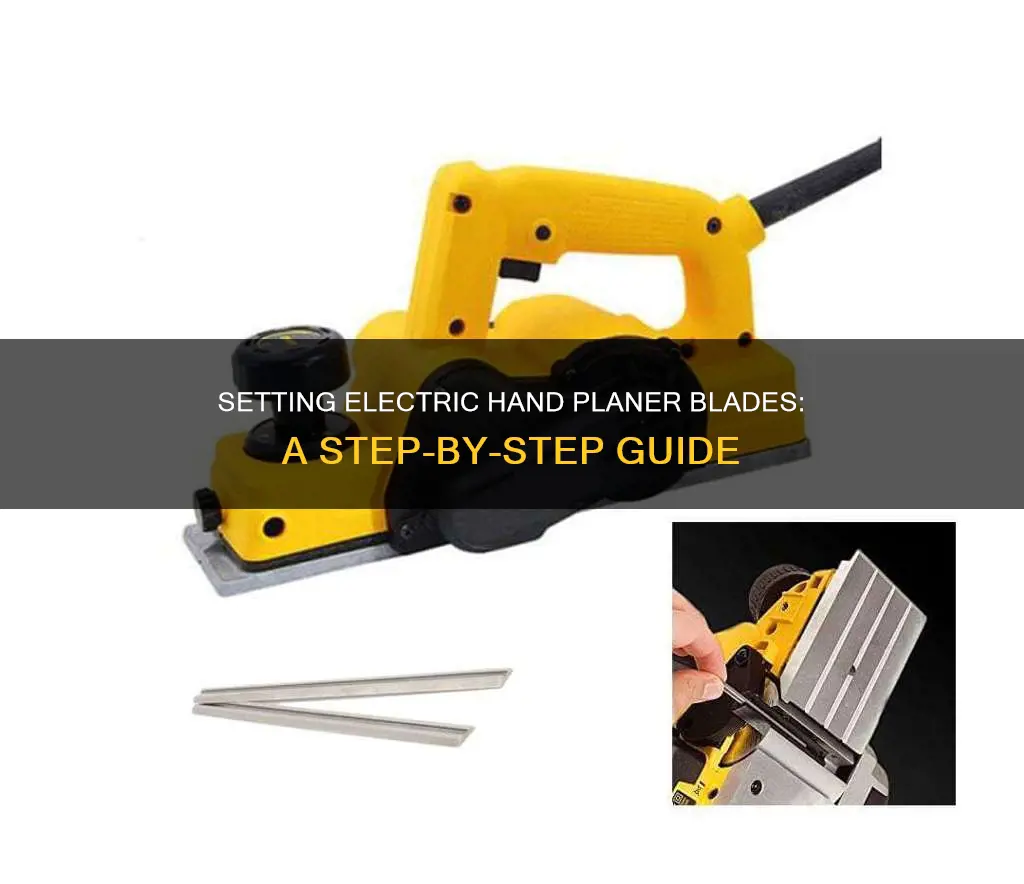

Electric hand planers are powerful tools that can shave and shape wood. They consist of blades mounted on a cutter head that spins at 20,000 rpm, removing wood at a rate dependent on the depth set by the user. Setting the blades correctly is paramount to using the tool successfully and ensuring the desired depth of cut. This article will provide a step-by-step guide on how to set the blades on an electric hand planer, covering important considerations such as blade height, alignment, and safety precautions.
Explore related products
What You'll Learn
Ensure the hand planer is set up correctly
To ensure your hand planer is set up correctly, you must first check that the dust ejection port is clear of debris. This will allow waste to eject freely, preventing shavings from building up around the cutter block, which can affect performance and lead to inaccurate cutting and a poor finish. If your planer has a parking shoe, ensure that it operates freely to prevent cutter damage when placed on a hard, flat surface.
Before fitting new blades, it is essential to clean away any build-up of resin and dust from the clamps so that the blades sit correctly. You can use a Trend Tool and Bit Cleaner to remove any dirt and stubborn deposits. The blades should be set fractionally above the outfeed table. This will allow you to set them to the same height and parallel to the table.
If you are using a hand planer with a hoop handle and front knob, keep both hands on the tool to guide and use it safely. When starting a cut, apply pressure to the toe or front of the planer, and transfer the pressure to the heel or back of the planer as the cut finishes. This will help to minimise any snipe from the planer.
If your hand planer has a depth adjustment knob, you can control the bite of your blades by raising or lowering the front sole plate. The speed at which you push the tool and the depth setting you choose will affect the final smoothness of your work.
Selecting the Right Electric Air Compressor for Your Needs
You may want to see also
Explore related products
Adjust the blade height with screws
Adjusting the blade height with screws is a crucial step in setting up your electric hand planer correctly. Here is a detailed guide on how to do it:
First, ensure your planer is unplugged for safety. Guess the blade height and place the new planer blades back in, securing them with the adjusting screws. The blades should be tight enough to hold them in place but still allow for adjustments. Both tables—the infeed and outfeed tables—should be set approximately level. The infeed table, located at the front, is where you set your desired depth, while the outfeed table remains fixed and is held firmly to the freshly cut timber.
Next, use a small piece of wood, such as a 12mm x 40mm piece, and make two pencil marks on it, roughly 15mm apart. Align the first mark with the edge of the outfeed table. Now, rotate the blade. You can use your finger on the rubber drive band to do this. Rotate it until the blade catches the timber and moves it. The distance it travels is your guide.
Adjust the blade height with the screws until the marks on the wood match the required distance. This will set the blade slightly higher than the outfeed table, ensuring a clean cut. If you are doing fine joinery work and want to avoid a noticeable scoop at the end of your cut, you may want to reduce the blade height even further.
Finally, check that the blades are parallel to the table. This ensures that your planer is set up correctly and will help you achieve the desired results. It is important to take your time during this process to ensure accuracy and prevent any issues during use.
Minkota 2HP Electric Outboard: Fast and Furious?
You may want to see also
Explore related products
$25.39
Avoid overreaching at the end of a pass
When using an electric hand planer, it is important to avoid overreaching at the end of a pass. This is because, if you overreach, the front shoe will drop off the wood, and the blades will take an uneven bite off the end of the wood. This is known as "snipe".
To avoid snipe, it is important to maintain control of the tool as you push it off the workpiece. This involves applying greater control to "catch" the rear handle. The speed at which you push the tool and the depth setting you choose will also affect the final smoothness of your work. For power-shaving dimensional lumber, it is recommended to take bites of 1/8 inch per pass.
To further prevent snipe, you can try to keep the pressure on the toe or front of the planer when starting the cut and transferring the pressure to the heel or back of the planer as the cut finishes. This technique will help to minimise snipe as the planer makes its cut.
Additionally, it is important to ensure that your blades are set correctly and are sharp. Dull blades can cause issues with extra trimming at the end of a piece of wood. You can check if your blades need adjusting by running a straight edge across the back bed and spinning the block and blades with your hand, with the tool unplugged. The blades should just skim the same amount on both sides. If they are not at the same level, you may need to adjust the blade seating so that they rotate and cut to the level of the rear heel.
Electric Rates: Summer's Impact on Your Bills
You may want to see also
Explore related products
Blades must be mounted squarely on the cutter head
The blades of your electric hand planer must be mounted squarely on the cutter head to ensure effective and accurate planing. Here are the steps to achieve this:
- Loosen the blade clamp screws: Start by loosening the screws that hold the blade in place. Do not remove the screws completely; simply loosen them enough to adjust the blade.
- Square the blade: Hold a square tool against the blade and the cutter head. Adjust the blade until it is perfectly aligned with the square, ensuring that the blade is perpendicular to the cutter head.
- Tighten the screws: Once the blade is squared, tighten the screws securely but be careful not to overtighten them, as this can damage the threads or warp the cutter head.
- Repeat for multiple blades: If your planer has multiple blades, repeat this process for each one, ensuring that they are all mounted squarely and securely.
- Check the balance: After adjusting and tightening the blades, check that the cutter head is balanced. Spin it gently by hand to ensure it rotates smoothly and does not wobble. A balanced cutter head is essential for smooth planing.
- Make final adjustments: With the blades mounted squarely and the cutter head balanced, make any final minor adjustments as needed. This may involve fine-tuning the blade positions for optimal cutting.
By following these steps, you ensure that your electric hand planer's blades are mounted squarely on the cutter head, which is key to achieving smooth, straight, and accurate planing results.
Electric Meters: Inside or Outside?
You may want to see also
Explore related products
Check the mouth for clogs
To set electric hand planer blades, you must ensure that the blades are sharp and set up correctly. Before beginning any work on your electric hand planer, ensure that the machine is unplugged for safety. Check the mouth for clogs by inspecting the chipbreaker if there is poor contact with the blade. A clogged mouth can cause the cutting to stop suddenly.
If you notice any clogging, clear the debris and dust from the mouth and the surrounding area. It is important to maintain a clear dust ejection port to prevent a buildup of shavings around the cutter block. This can be done by attaching a shop vac to the planer to remove dust and chips. Additionally, check the blade for any dull or damaged edges and replace or sharpen the blade as needed.
To set the blades correctly, adjust the height of the blades so that they are slightly above the outfeed table. This will ensure that the blades are set to the same height and parallel to the table. Mark the outfeed table with a pencil and adjust the blade until it advances and catches the timber, using the space between the marks as a guide.
For smaller hand planers, hold the plane and strike the heel with a mallet while holding the iron blades and wedge. For larger hand planers, position the plane vertically and thump the heel on a solid surface. Ensure that the sole of the hand plane is well-flattened to produce an even finish and apply even pressure during planing.
Electro Statue: Levels of Power Explained
You may want to see also
Frequently asked questions
First, put the new planer blades in at a guessed height and tighten them just enough so that they stay firm but can still be adjusted. Then, set the infeed and outfeed tables to be level with each other. The infeed table is at the front and is used to set the depth, while the outfeed table is under the handle. Finally, adjust the blade so that it is set fractionally above the outfeed table.
Ensure that the sole of the hand planer is well-flattened to produce an even finish. Otherwise, the wood will remain rough and the hand planer might be damaged.
As with all power tools, it is important to protect your eyes and hearing by wearing appropriate safety gear. After turning the tool off, set the front shoe of the hand planer up on a wood block while the cutter head stops spinning.
Check the mouth of the planer for clogs. If there are no clogs, try adjusting the iron blade forward to make heavier cuts.
