Beatrice Lang

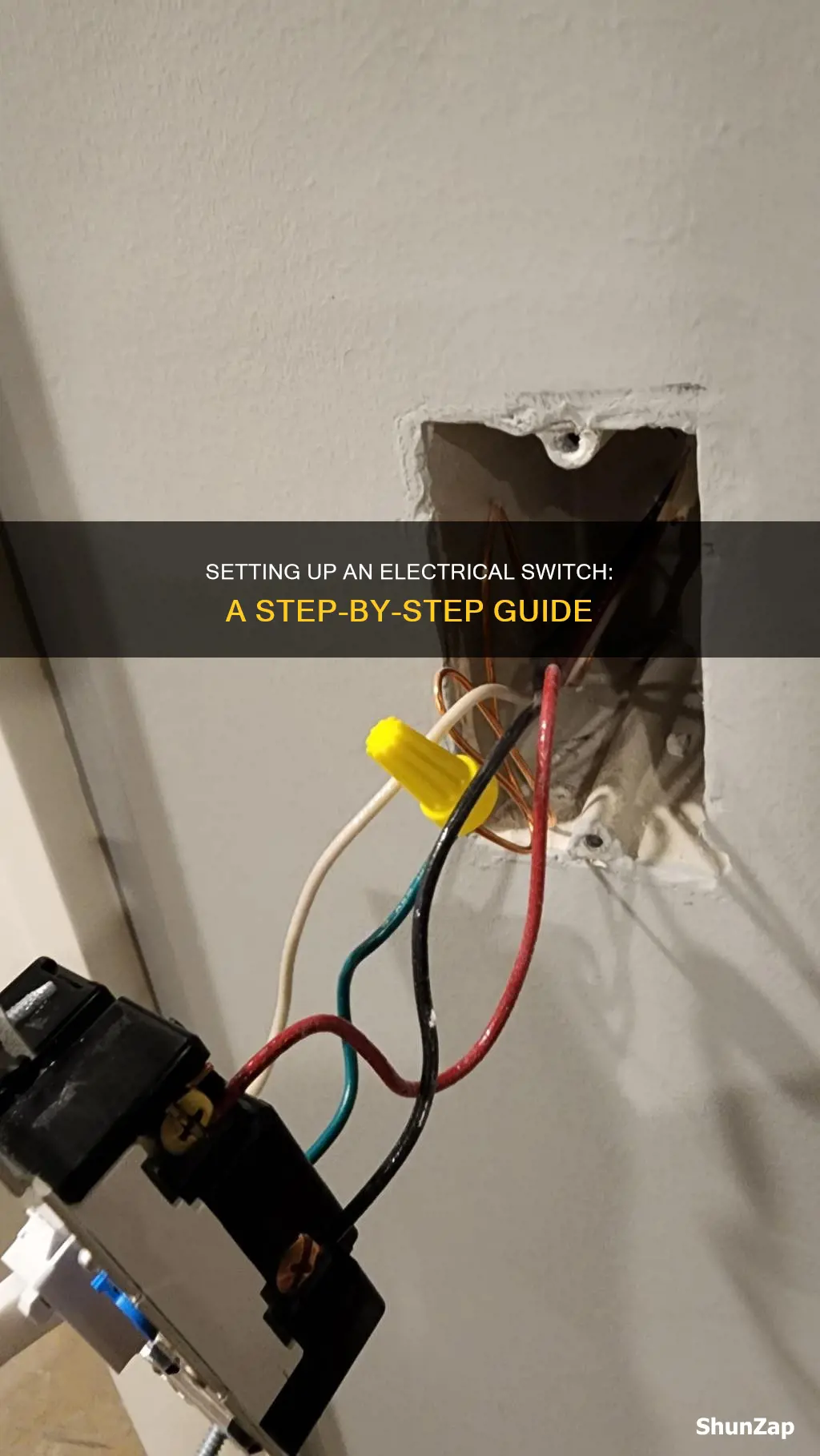

Setting up an electrical switch can be a daunting task, but with the right tools and safety precautions, it can be a rewarding DIY project. Before starting, ensure you have the necessary equipment, such as a non-contact voltage tester, wire strippers, and a utility knife. It's crucial to turn off the power to the switch circuit by switching off the circuit breaker. This guide will cover the steps to set up a single-pole switch and a 3-way switch, two of the most common types of electrical switches.
| Characteristics | Values |
|---|---|
| Switch type | Single-pole, 3-way |
| Switch control | Light or lights from a single location |
| Wire type | White, Black, Red, Bare copper |
| Wire function | One wire comes in from the power source, one wire goes out to the light(s) |
| Wire connection | Connect to the appropriate terminal (top or bottom) on the switch |
| Screw type | Brass terminal screws, Ground screws |
| Screw function | Connect to the electrical circuit's black ("hot") wires |
| Safety | Always turn off the power to the circuit before working on wiring |
| Grounding | Green grounding screw connects to the circuit's bare ground wire for safe grounding |
| Wire preparation | Strip insulation to expose 3/8 inch (0.9525 cm) of wire |
| Wire connection | Form a hook-like loop at the end of each wire and wrap it around a screw terminal |
| Testing | Use a non-contact voltage tester to confirm the power is off |
Explore related products
What You'll Learn
Turn off the power to the switch circuit
When setting up an electrical switch, the first step is always to turn off the power to the switch circuit. This is a crucial safety precaution to prevent electric shocks.
To do this, you must first locate your home's service panel (breaker box). Once you've found the circuit breaker, switch it off. If your panel has fuses instead of breakers, you'll need to unscrew and remove the appropriate fuse.
It's important to verify that the power is indeed off. Use a non-contact voltage tester to check all the wires in the switch box. Also, touch the tester probe to each of the switch's side screw terminals. If the tester lights up, indicating voltage, return to the service panel and ensure the correct breaker is off. Then retest to confirm the power is off.
After confirming that the power is off, you can proceed to the next steps of removing the old switch and installing the new one.
Always exercise extreme caution when working with electrical systems. If you're unsure about any part of the process, it's best to consult a licensed electrician to avoid any potential hazards.
The Aorta's Electrical Autorhythmic Nature: Explained
You may want to see also
Explore related products
Remove the switch cover plate
Before you begin to work on setting up an electrical switch, it is important to turn off the power to the switch circuit by switching off the circuit breaker in your home's service panel (breaker box). If your panel has fuses instead of breakers, unscrew the appropriate fuse and remove it from the panel. This is a crucial safety precaution.
Now, you can begin to remove the switch cover plate. First, remove the two screws on the switch cover plate with a screwdriver. Once the screws have been removed, carefully lift the cover plate away from the switch. It is important to be gentle and cautious during this step to avoid damaging the switch or cover plate.
With the cover plate removed, you will have access to the wires and inner components of the switch. At this point, you should use a non-contact voltage tester to test the wires and confirm that the power is indeed off. Touch the tester probe to each of the switch's side screw terminals. If the tester lights up, indicating the presence of voltage, stop and return to the service panel to ensure that the correct breaker has been turned off.
Once you have confirmed that the power is off, you can proceed with the next steps of setting up the electrical switch. Remember to handle the components carefully and seek professional guidance if you are unsure about any part of the process.
Electric or Hybrid? Nissan Leaf's Powertrain Secrets
You may want to see also
Explore related products
Test the wires for voltage
Testing wires for voltage is an essential step in electrical work, as it ensures safety and helps prevent electrical faults. Here is a detailed guide on how to test wires for voltage when setting up an electrical switch:
First, it is crucial to understand the different types of wires in an electrical system. The hot wire, typically black or red, is live and carries the current from the power source to the electrical outlet or appliance. The neutral wire, usually white, completes the electrical circuit by providing a return path for the current. The ground wire, often green or bare, provides a direct path to the ground, preventing electric shocks from faulty appliances.
To test for voltage, you can use a multimeter or a non-contact voltage tester. A multimeter is a versatile tool used to measure voltage, current, and resistance. It can be purchased at various price points from home improvement or hardware stores. To use a multimeter to test voltage, follow these steps:
- Set the multimeter to measure voltage.
- Identify the red probe as the live wire and the black probe as the neutral wire.
- Insert the probes into their respective ports on the multimeter.
- Connect the red probe to the live wire and the black probe to the neutral wire.
- Read the voltage measurement.
- Alternatively, you can connect the black probe to the earth wire for the second method.
Non-contact voltage testers are modern tools that detect voltage without direct contact. They are safe and efficient, lighting up or beeping near a live wire. This method is ideal for quickly determining if a wire is live.
When testing wires for voltage, always take safety precautions. Ensure the power is turned off before beginning any electrical work. Wear high-voltage safety gloves and take all necessary precautions to avoid accidental shocks.
By following these steps and staying vigilant about safety, you can effectively test wires for voltage when setting up an electrical switch.
Electric UPS Trucks: How Big Are They?
You may want to see also
Explore related products
![Cable Matters [ETL Listed] 3-Pack Grounded Outlet Switch with On Off, Plug Switch On Off, Single Outlet Adapter, White](https://m.media-amazon.com/images/I/61-grwp3XML._AC_UL320_.jpg)
Remove the switch
Before removing the switch, you must ensure that the power is turned off. Turn off the power to the switch circuit by switching off the circuit breaker in your home's service panel (breaker box). If your panel has fuses instead of breakers, unscrew the appropriate fuse and remove it from the panel.
Now, you can remove the switch. First, remove the faceplate from the switch with a screwdriver. Then, disconnect the wires from the existing switch with a screwdriver. Keep the wires separate; the wire from the top terminal should be positioned differently from the wire from the bottom terminal.
Once the wires are disconnected, gently remove the switch from the box. You can now measure the height, width, and depth of the electrical box to determine if your new light switch will fit.
Electric Dipole Moments: Breaking Symmetry in Physics
You may want to see also
Explore related products
Connect the wires to the new switch
When connecting wires to a new electrical switch, it is important to take safety precautions. Before removing the switch plate, use a non-contact voltage tester to check if there is any power. If there is, turn off more breakers at the breaker box. Once the power is off, remove the plate and use the voltage tester again to confirm.
Now, you can start preparing the wires. If you are replacing an old switch, take note of how the wires are connected. If you are installing a new switch, you will need to strip the insulation off the ends of the wires. Use wire strippers to remove about 3/4 inch of insulation from each wire, being careful not to nick the wire underneath.
Each wire should have about half an inch of wire exposed and bent into a U shape that fits snugly around the screws on the switch. You can use electrician's pliers for this purpose. Insert the wire into a small hole on the edge of the pliers and bend it around the lip to create the U shape.
The wires can now be connected to the switch. Typically, the black (live) wire connects to the brass screw, the white (neutral) wire to the silver screw, and the green or bare (ground) wire to the green screw. Wrap each wire around the appropriate screw in a clockwise direction and tighten the screw.
Finally, push the wired switch back into the electrical box and secure it with the provided screws. Attach the switch plate cover and turn the power back on at the main circuit breaker. Test the switch to ensure it is working properly.
Exploring Androids' Dreams in Electric Sheep Prime
You may want to see also
Frequently asked questions
First, turn off the power to the switch circuit by switching off the circuit breaker in your home's service panel. Remove the faceplate from the switch with a screwdriver, then test for voltage with a non-contact voltage tester. If the tester lights up, return to the service panel and shut off the correct breaker. If not, you can proceed. Unscrew the switch and remove it from the box, then disconnect the wires from the existing switch. Strip the insulation from the wires, then connect the new switch. Tuck the wires into the electrical box and screw the switch into place. Reinstall the faceplate and restore power to the circuit.
For a 3-way light switch, run a 14-3 NM-B cable from the first switch to the second switch, and a 14-2 NM-B cable from the second switch to the light fixture. If your breaker is 20 amps, you will need to use 12-2 and 12-3 NM-B cable. Cut away the cable sheathing, then strip the insulation from each conductor. Cut some bare copper wire to use as grounding pigtails, then splice the two bare grounds from the cables to the pigtail. Make a hook in the end of the pigtail and wrap it around the green screw.
A single-pole switch controls a light or appliance from a single location, whereas a 3-way switch adds two terminals for travellers, which connect two 3-way switches together.
