Otis Singleton
Splicing wires is a standard electrical procedure that allows you to extend wires, repair damage, or connect wires to devices. It involves joining two pieces of wire together so they can carry an electrical current. Before you begin splicing, it is important to take safety precautions such as turning off the power to the circuit and wearing rubber-soled shoes to insulate your body. There are several methods for splicing wires, including using wire caps, soldering, twist-on connectors, and lineman's splice. It is important to use a junction box to contain spliced wires and prevent sparks and fires.
Explore related products
What You'll Learn
Prepare wires by stripping and turning off power
Before you begin splicing wires, it is important to prioritise your safety. Always turn off the power at the circuit breaker in the electrical panel before doing any electrical work. If you can, unplug the device you're splicing wires to. If the wire is in the wall or can't be unplugged, turn off the circuit leading to the area to avoid getting shocked while working. If you can't disconnect the power, do not attempt to splice the wire, as you could get electrocuted.
Once the power is off, you can prepare the wires by stripping them. Cut the wires so they are the same length, and strip off about half an inch of insulation with wire strippers. If you need to strip more insulation, you can do so later if you need to keep twisting the wire. Pick a hole on the wire stripper that's one or two sizes smaller than your wire. Clamp the wire in the hole and pull the stripper towards the end to completely remove the insulation. Repeat this process for each wire. The ground wire is uninsulated and does not need to be stripped.
After stripping, you can begin splicing the wires together. However, it is important to note that electrical splices cannot be left on their own in a wall or ceiling cavity. All splices must be contained within an approved junction box or fixture electrical box. The box must remain accessible and cannot be hidden behind drywall or other building materials. The junction box provides a safe environment for your splices, protecting them against impact and containing sparks and fire if anything goes wrong.
Building Your Own Electric Drift Trike: A Step-by-Step Guide
You may want to see also
Explore related products
Use wire caps or twist-on wire nuts
When splicing wires, it is important to use wire caps or twist-on wire nuts to ensure a secure connection. Wire caps and twist-on wire nuts are both effective methods for joining wires and creating a safe electrical connection. Here is a step-by-step guide on how to use these tools:
Preparing the Wires:
Before using wire caps or twist-on wire nuts, you must prepare the wires. First, cut the wires to the desired length, ensuring they are the same length. Then, strip off a half-inch of insulation from the end of each wire using a wire stripper. Make sure to leave enough exposed wire for making the connection. It is important to note that you should never connect wires without first stripping off the insulation, as this can create a dangerous situation.
Using Wire Caps:
If you choose to use wire caps, follow these steps:
- Slide a piece of shrink tube onto one of the wires before splicing. This step can be skipped if you are using a wire cap without a shrink tube.
- Hold the wire ends together, ensuring they are parallel and touching, but do not twist or coil the wires.
- Place the wire cap over the exposed wire ends and secure it in place by tightening or screwing it on.
- If using a shrink tube, apply heat to shrink the tube and secure the connection.
Using Twist-on Wire Nuts:
For twist-on wire nuts, follow these instructions:
- Hold the wires even with each other, ensuring they are parallel.
- Place the twist-on wire nut over the exposed wire ends.
- Twist the connector in one direction until it is tight and locked in place.
- Tug at each wire to test the strength of the connection.
Finishing Touches:
After using wire caps or twist-on wire nuts, there are a few final steps to complete the splicing process:
- Use electrical tape to cover the wire caps or twist-on wire nuts. This adds an extra layer of insulation and protection.
- Place the spliced wires into a junction box. This box will protect the wires and contain any sparks in case of a short circuit.
- Attach the junction box to a wall stud or ceiling joist, ensuring it is secure and accessible.
- Always label the wires with corresponding colours to avoid confusion later on.
Remember, safety should always be the top priority when working with electrical wiring. Ensure that the power is turned off before beginning any splicing work, and consider having a partner assist you for added safety.
Electric Scooter Speed: How Fast Can You Go?
You may want to see also
Explore related products
Cover exposed ends with electrical tape
While electrical tape is not recommended for splicing wires, it can be used to bind wire nuts to the wires. Once your wires are connected, you can cover the exposed ends with electrical tape.
If you are working on multiple wiring projects, use different colours of electrical tape to mark which wires are connected.
To splice wires, you can use wire caps, wire nuts, push-fit connectors, or solder the wires together. If you are using wire caps, you can skip the step of covering the exposed ends with electrical tape.
It is important to note that splicing wires with electrical tape creates a bond that is less solid than using wire nuts or push-fit connectors. Therefore, it is recommended to use these other methods for a more secure connection.
Always exercise caution when working with electricity, as it can be dangerous if not handled properly.
Transforming Trucks: Electric Conversions for a Greener Future
You may want to see also
Explore related products

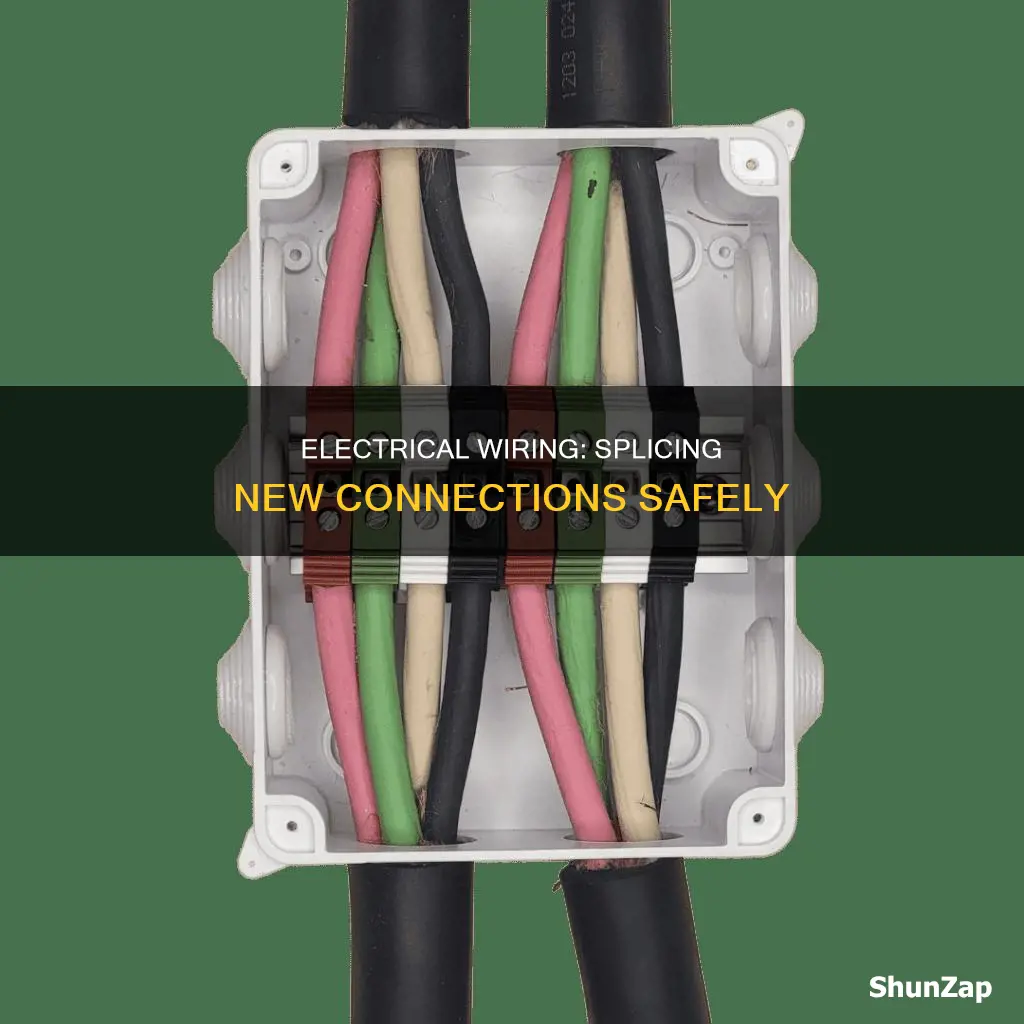

Use a junction box to contain spliced wires
When splicing electrical wires, it is essential to use a junction box to contain the spliced wires. This is not only a safety requirement but also a protective measure.
A junction box is a safe environment for your spliced wires, protecting them from impact and containing sparks and fire in case of any issues. It is installed specifically for the purpose of splicing and has a blank cover that can be opened whenever you need to access the wires. The box must remain accessible and cannot be hidden behind walls or other materials that would require removal to reach it.
Before placing the spliced wires in the junction box, ensure that you have turned off the power to the circuit at the service panel (breaker box). Splicing wires involves combining two lengths of wires so they can carry a current, and this process should never be done while the power is on, as it could lead to electric shock.
To use a junction box, you will need to remove two knockouts from the box using electrician's pliers. These knockouts are predetermined locations in the box that can be easily removed. Insert a Romex connector into each knockout hole, choosing a connector that fits the hole and the wire diameter. Secure the connector to the junction box by tightening it with a screwdriver or needle-nose pliers.
Once your wires are spliced and secured with wire nuts or electrical tape, fold them neatly into the junction box. Align the protective cover with the mounting screws and tighten it firmly. This will ensure that your spliced wires are safely contained and protected.
Understanding Electrical Circuit Load: Calculating Capacity and Demand
You may want to see also
Explore related products
![221-2401 | WAGO Lever-Nuts® Inline Splicing Connector | for Solid and Stranded Conductors | 2-Conductor with Operating levers | 24-12 AWG | Transparent housing | White Cover | [Box of 60 Pieces]](https://m.media-amazon.com/images/I/61yTGs92OcL._AC_UY218_.jpg)
Finish with a shrink tube or twist-on connector
When splicing wires, it is important to finish with a shrink tube or a twist-on connector to ensure safety and security. Here is a detailed guide on how to finish with these components:
Using a Shrink Tube
Before splicing the wires, slide a 3-inch (7.6 cm) piece of shrink tube onto one of the wires. The shrink tube is made of plastic that contracts when heated. By installing it beforehand, you can easily slide it into place once the wires are spliced. Ensure the shrink tube colour matches the wire insulation for a neat finish.
Once the wires are spliced, move the shrink tube over the splice, covering the entire section so that none of the wires are exposed. If the tube is loose, crimp it in place. Then, use a heat gun to heat the shrink tube until it tightens securely around the wire insulation. Rotate the wire during this process to ensure even heating. If you don't have a heat gun, a small torch or lighter can be used, being careful not to melt the wire or tubing.
Using a Twist-on Connector
Twist-on connectors, also known as wire nuts, are plastic cones with threaded metal inserts. They are a safe and approved method for joining wires. Before using a twist-on connector, strip the insulation from the wire ends to expose the metal core, typically by about 1/2 to 5/8 inch, but always refer to the manufacturer's instructions.
To install the connector, hold the wire ends together and twist the connector in a clockwise motion until it is very tight, covering the bare wire ends. You can twist the wires together first, providing an extra layer of protection, although this is not recommended by manufacturers. Finally, tug on each wire to confirm they are secure.
Remember, it is crucial to disconnect the power to the circuit before working on any electrical wiring.
Unlocking Sanctuary Holes in Electric Fences
You may want to see also
Frequently asked questions
Wire splicing is a standard electrical procedure that allows you to extend wires and add devices. It is the process of combining two lengths of wires so they can carry a current.
Firstly, ensure you disconnect the power to the circuit at the service panel. Then, strip the wires to expose the ends. Next, you can twist the wires together or use a wire cap or soldering to connect them. Finally, cover the exposed ends with electrical tape or a shrink tube.
Always disconnect the power before you begin. Never leave electrical splices in a wall or ceiling cavity—they must be contained within an approved junction box. Use a non-contact voltage tester to double-check that the electricity is off.
