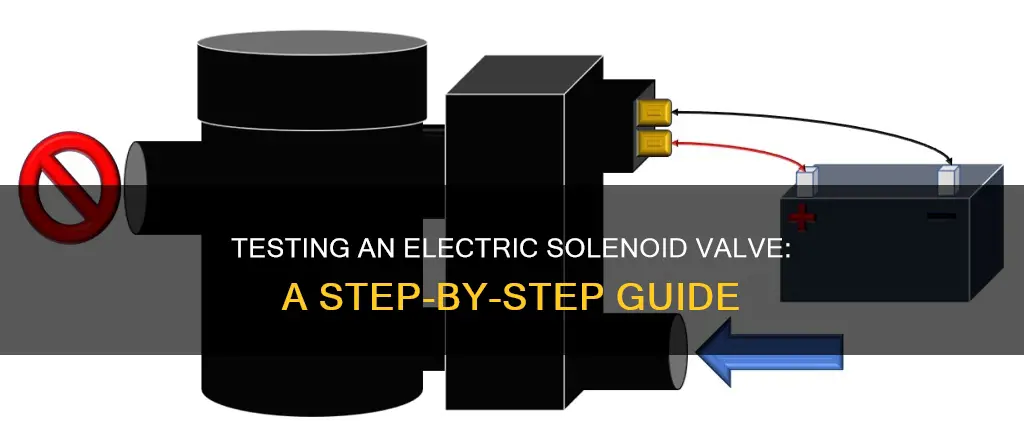

Testing an electric solenoid valve is an important part of maintaining the performance of your system. A solenoid valve is a specific type of valve that controls the flow of fluids or gases by opening or closing a valve mechanism in response to an electrical signal. To test a solenoid valve, you will need to use a multimeter to check its electrical resistance and verify the continuity of the coil. Before you begin, ensure you have disconnected the power source and worn safety gear such as gloves and protective eyewear. Then, set your multimeter to measure resistance (ohms) and connect the probes to the two electrical terminals of the solenoid valve. A reading of 20-60 ohms is generally considered good, but this may vary depending on the brand and make of the solenoid. If the resistance value is infinite or close to zero, the solenoid coil is faulty and requires replacement. Additionally, listen for an audible click when activating the solenoid, as this indicates proper functioning. It is also important to be cautious when testing, as incorrect connections can render the coil inoperable or even cause a fire or explosion.
| Characteristics | Values |
|---|---|
| Step 1 | Disconnect the solenoid from any electrical connections or wiring attached to it |
| Step 2 | Check the solenoid manufacturer's specifications to determine its supply voltage (AC/DC) |
| Step 3 | Connect the solenoid terminals to the required power source |
| Step 4 | Connect the positive terminal of the power source to one of the solenoid terminals and the negative terminal of the power source to the second terminal of the solenoid |
| Step 5 | This should bring continuity across its terminals |
| Step 6 | Once the solenoid is connected to the power source, the circuit closes, and the solenoid should activate |
| Step 7 | There should be a click from the solenoid once the current is properly supplied |
| Step 8 | If there isn't a click, the solenoid coil is bad, and the solenoid needs to be changed |
| Step 9 | To diagnose the solenoid, use a multimeter to test the solenoid for its resistance and voltage |
| Step 10 | Set the multimeter to measure resistance (ohms) |
| Step 11 | Connect the multimeter probes to the two electrical terminals of the solenoid valve and check if the reading on the multimeter falls within the specified range for the valve |
| Step 12 | Generally speaking, 20-60 ohms is "good" |
| Step 13 | If the resistance value is infinite or close to zero, it indicates that there is a problem with the solenoid coil and further check or replacement of the solenoid valve is required |
| Step 14 | Turn off the power supply to the solenoid valve and disconnect the multimeter probes |
Explore related products
What You'll Learn
Use a multimeter to test the solenoid's resistance
To test an electric solenoid valve using a multimeter, you must first disconnect the solenoid from any electrical connections or wiring. Locate the solenoid terminals—the coil typically has two main terminals, but some have three. Consult the manufacturer's documentation to determine the expected resistance value range and correctly identify the terminals.
Once you have located the terminals, set your multimeter to the resistance measurement mode. Choose an appropriate resistance range, usually in the range of 1KΩ or 10KΩ. Generally, a reading of 20-60 ohms is considered "good".
Now, connect the multimeter probes to the terminals, ensuring that the connections are properly in contact. If the solenoid coil is functioning correctly, you should see a stable resistance value on your multimeter, typically between a few hundred to a few thousand ohms, depending on the size of the solenoid.
If the resistance value is infinite or close to zero, it indicates a problem with the solenoid coil, and further checks or replacement may be required. An 'OL' reading on the multimeter, for example, signifies an incomplete circuit within the solenoid, which may be due to a faulty coil or wire.
It is important to note that you should disconnect the power source after the test. Failure to do so may result in the generation of very high voltages, leading to sparks and other hazards.
