Testing a house electrical socket is a simple task that can be done by most homeowners. The purpose of testing an electrical socket is to determine whether power is reaching the outlet and to check for any wiring faults. This can be done using a multimeter, voltage tester, or even a working lamp. It is important to exercise caution when working with electricity and to call a professional electrician if you are unsure or uncomfortable. This introduction will cover the various tools and methods for testing a house electrical socket, as well as safety precautions to keep in mind.
| Characteristics | Values |
|---|---|
| Tools | Multimeter, voltage tester, circuit tester, continuity tester |
| Purpose | To test if power is reaching an outlet, to check voltage, to check polarity, to check wiring, to test appliances |
| Safety | Hold meter probes in the same hand, do not touch metal prongs, shut off the large breaker panel main switch to turn off all power in the house |
| Multimeter Voltage Reading | A reading of 110-120 volts indicates a properly working outlet |
| Multimeter Voltage Reading | A reading lower or higher than 110-120 volts may indicate a malfunctioning outlet |
| Multimeter Voltage Reading | A reading of 0 or 0.001 volts indicates no electricity reaching the outside of the outlet and that it is well grounded |
| Multimeter Wiring Reversal Test | Place the red lead into the longer slot and the black lead into the shorter slot; if there is a reading, the wiring is reversed |
| Appliance Test | Unplug the appliance, set the multimeter to ohms function, touch one lead to each of the appliance's prongs; a reading of 2 ohms or less indicates the appliance is in good working order |
| Circuit Tester | Touch one probe to the hot screw terminal attached to a black wire, and the other probe to the ground screw, bare copper wire, or metal electrical box; if the tester doesn't glow, there is no power |
| Continuity Tester | Attach the clip to the hot screw terminal and the black wire lead, touch the probe to the metal tab in the bottom of the socket; if the tester doesn't glow, the socket is faulty |
Explore related products
$9.97 $10.97
What You'll Learn
Using a multimeter to check voltage

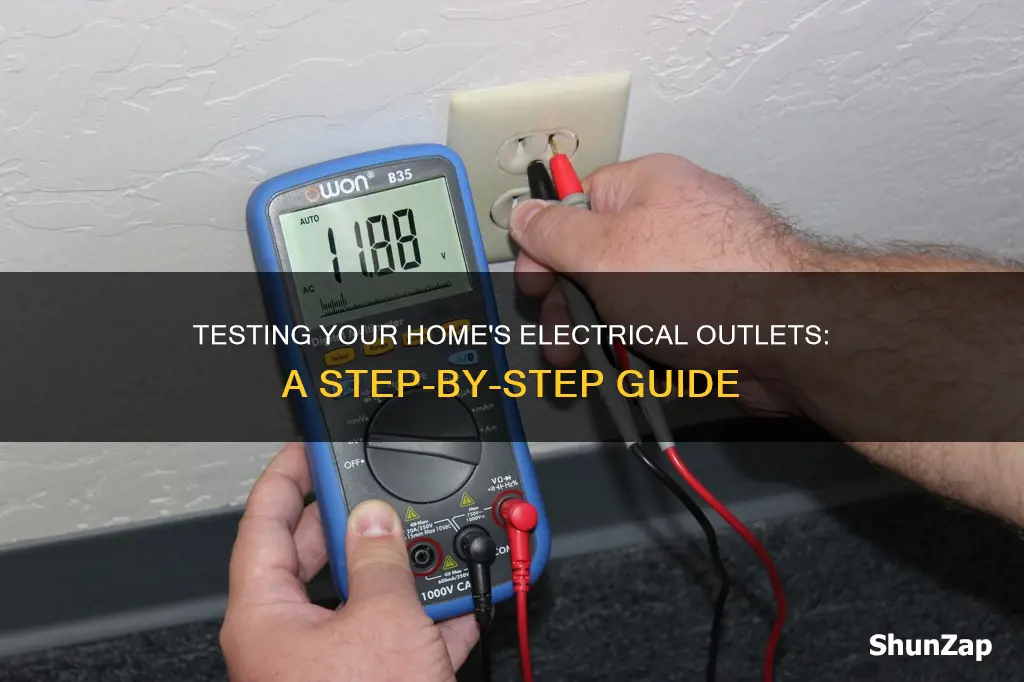

Using a multimeter to check the voltage of a house electric socket is a simple process, but it requires caution. Before you begin, ensure you have purchased a multimeter from a home improvement store, hardware store, or anywhere that sells tools. Basic handheld multimeters meant for non-professional, at-home use cost between $15 and $50.
First, read the instructions that came with your multimeter. Different models can vary, so it is important to read the instructions to keep yourself safe. Set your multimeter to measure voltage. Insert a probe into each slot (black lead on the left and red lead on the right) and read the line voltage measurement. A properly functioning outlet will give a reading of 110 to 120 volts. If there is no reading, check the wiring and the outlet. If the reading is higher than 120 volts, the casing is a potential electrocution hazard, so call an electrician for assistance.
To check if your outlet is grounded, insert the red lead into the smaller slot on the right of your outlet. Then, move the black lead to the ground or rounded slot. The reading should not change. If it does, your outlet is not properly grounded.
You can also use a multimeter to check for reversed wiring. Insert one probe of a voltage detector or a multimeter into the large slot and the other against the screw (scrape off any paint to ensure good contact). If the voltage detector lights up, the hot and neutral wires are reversed, and the wiring should be further checked.
Remember to proceed with caution when working with electricity. If anything feels off or you are unsure, stop and call a licensed electrician for help.
Measuring Electrical Impulses: Understanding Movement Science
You may want to see also
Explore related products
$23.4
Checking for reversed wiring
To check for reversed wiring, it is recommended to use a multimeter or voltage detector to perform a polarity test. Begin by turning off the power to the outlet and disconnecting it from the power source. Ensure that you have capped all wires except for one black wire. Next, insert one probe of the multimeter or voltage detector into the large slot, and touch the other probe to the screw, scraping off any paint to ensure a good connection. If the voltage detector lights up, it indicates that the hot and neutral wires are reversed.
Alternatively, you can use a continuity tester or a circuit tester. Attach the clip of the tester to the hot screw terminal, which is usually connected to a black wire. Then, touch the probe to the metal tab at the bottom of the socket. If the tester glows, the socket is functioning properly. If it doesn't glow, the socket is faulty and requires replacement. You can also attach the clip to the neutral metal screw terminal (connected to a white wire) to check for continuity.
It is important to note that socket testers may not always detect reversed wiring, especially if the incoming supply polarity has been reversed. In such cases, a special additional test is required to identify the fault. Therefore, if you suspect any issues with your electrical sockets, it is recommended to contact a professional electrician to perform a thorough inspection and make any necessary repairs.
Additionally, there are some warning signs that may indicate potential problems with your house wiring. These include loose outlets, burning smells, and any visible damage to the wires. If you notice any of these signs, it is important to address them promptly and consult a qualified electrician to ensure the safety of your home's electrical system.
Setting Up Electric Fence Tape: A Step-by-Step Guide
You may want to see also
Explore related products
Testing a light socket
Firstly, determine if the issue is due to a burned-out bulb. If the bulb is not the problem, check the main service panel for a tripped breaker or a blown fuse. If the problem persists, the next step is to find out if power is reaching the light socket. This can be done using a voltage tester, which can be purchased at most hardware stores or online. Insert fresh batteries into the voltage tester, ensuring they are facing the right direction, and turn it on. Hover the tip of the tester about an inch away from the wire, and if a current is detected, the tester will flash or beep.
If no power is detected, the next step is to test the light socket itself. Turn off the power to the socket and carefully remove the mounting screws, lowering the socket. To test for current, use a circuit tester. Touch one probe of the circuit tester to the hot screw terminal attached to a black wire, and the other probe to the ground screw, bare copper wire, or metal electrical box. Repeat this test with each of the other screw terminals. If the tester does not glow in any position, there is no power coming to the box, indicating a faulty socket that needs replacement.
If the socket is receiving power, you can continue testing with a continuity tester. Attach the clip of the tester to the hot screw terminal (the black wire lead), and touch the probe to the metal tab at the bottom of the socket. The tester should glow; if it doesn't, the socket is faulty. For further verification, attach the clip to the neutral metal screw terminal (the white wire lead), and touch the probe to the threaded portion of the socket. Again, the tester should glow, indicating a functioning socket.
Texas Electric Distribution: Fixed Territories or Open Competition?
You may want to see also
Explore related products
Conducting a polarity test
To perform a polarity test, you can use a digital multimeter or a specialised socket polarity tester. When using a multimeter, it is important to work carefully and hold both meter probes in the same hand to prevent electric shock. Set the multimeter to measure voltage and insert one probe into each slot of the outlet. A properly working outlet should give a reading of 110 to 120 volts. If there is no reading, check the wiring and the outlet.
For a more detailed test, you can follow these steps:
- Plug the black lead of the multimeter into the middle input and the red lead into the right input.
- Turn the multimeter on by setting it to "Voltage AC".
- Insert one lead into the longer vertical opening (0-volt neutral contact) and the other lead into the shorter vertical opening (120-volt hot contact) of the outlet.
- If a reading appears on the multimeter, the polarity is correct, indicating voltage transfer from the hot to the neutral contact.
Alternatively, you can use a socket polarity tester, such as the Metravi ST-09B Socket Polarity and Earth Leakage Tester. These testers are designed to be easy to use and can detect whether neutral, live, and earth wires are connected correctly, helping to ensure electrical safety.
Electricity Supply: Powering Buildings, Step by Step
You may want to see also
Explore related products
Troubleshooting with a professional
While it is possible to perform some basic tests on your home's electrical sockets yourself, it is always best to consult a professional electrician if you suspect any issues. Electricians are trained and licensed to handle electrical repairs and will have the necessary tools and knowledge to quickly and safely diagnose and resolve any problems.
One of the most important aspects of electrical safety is ensuring that your home's electrical system is properly grounded. This means that there is a path for electricity to follow in the event of a fault, which helps to prevent shocks and fires. A professional electrician will be able to test the grounding of your electrical sockets and ensure that they are properly connected to the earth.
Another common issue with electrical sockets is faulty wiring. Over time, wires can become corroded, stripped, or frayed, leading to electrical interruptions or even fires. A professional electrician will be able to safely access and inspect the wiring behind your sockets, identifying any areas of concern and making the necessary repairs or replacements.
If you are experiencing frequent issues with your electrical sockets, such as blown fuses or tripped breakers, it may be a sign of a more serious problem. A professional electrician will be able to conduct a comprehensive electrical inspection of your home, identifying any potential hazards and ensuring that your electrical system is up to code.
By hiring a professional electrician to troubleshoot and resolve your electrical socket issues, you can ensure that the job is done safely, effectively, and in compliance with all relevant regulations. While it may be tempting to attempt repairs yourself, electricity can be dangerous, and even seemingly minor issues can have serious consequences if not handled properly. Trust the experts to keep your home's electrical system safe and reliable.
