Umair Gaines
Multimeters are invaluable, inexpensive, and easy-to-use tools for electric guitarists and bassists to test their gear's health. They can be used to test many components on a guitar or bass, including pickups, output jacks, switches, and batteries. Guitar pickups are a vital part of any electric guitar, and a multimeter can help test a pickup to determine what might be wrong with it. This can be done by checking the pickup's resistance, finding a short by locating where the signal is broken, or diagnosing ground issues.
| Characteristics | Values |
|---|---|
| Use | Testing acoustic electric pickup |
| Purpose | Diagnosing unwanted noises or verifying performance |
| Testing | Reading the pickup's resistance |
| Testing | Finding a short by locating the signal break |
| Testing | Diagnosing ground issues |
| Testing | Checking continuity |
| Testing | Testing the adjustable south coil |
| Testing | Checking 9v batteries |
| Testing | Testing the TRS jack |
| Testing | Testing switches |
| Testing | Testing cables and wiring harnesses |
| Testing | Testing output |
| Testing | Testing the phase of a pickup |
| Testing | Testing with an oscilloscope |
| Testing | Testing with an analog multimeter |
| Price | Inexpensive |
Explore related products
What You'll Learn
Check the pickup's resistance
Multimeters are a useful tool for testing guitar pickups. They can be used to check the continuity, phase, and resistance of pickups. The resistance of a pickup can be used to diagnose problems with the pickup.

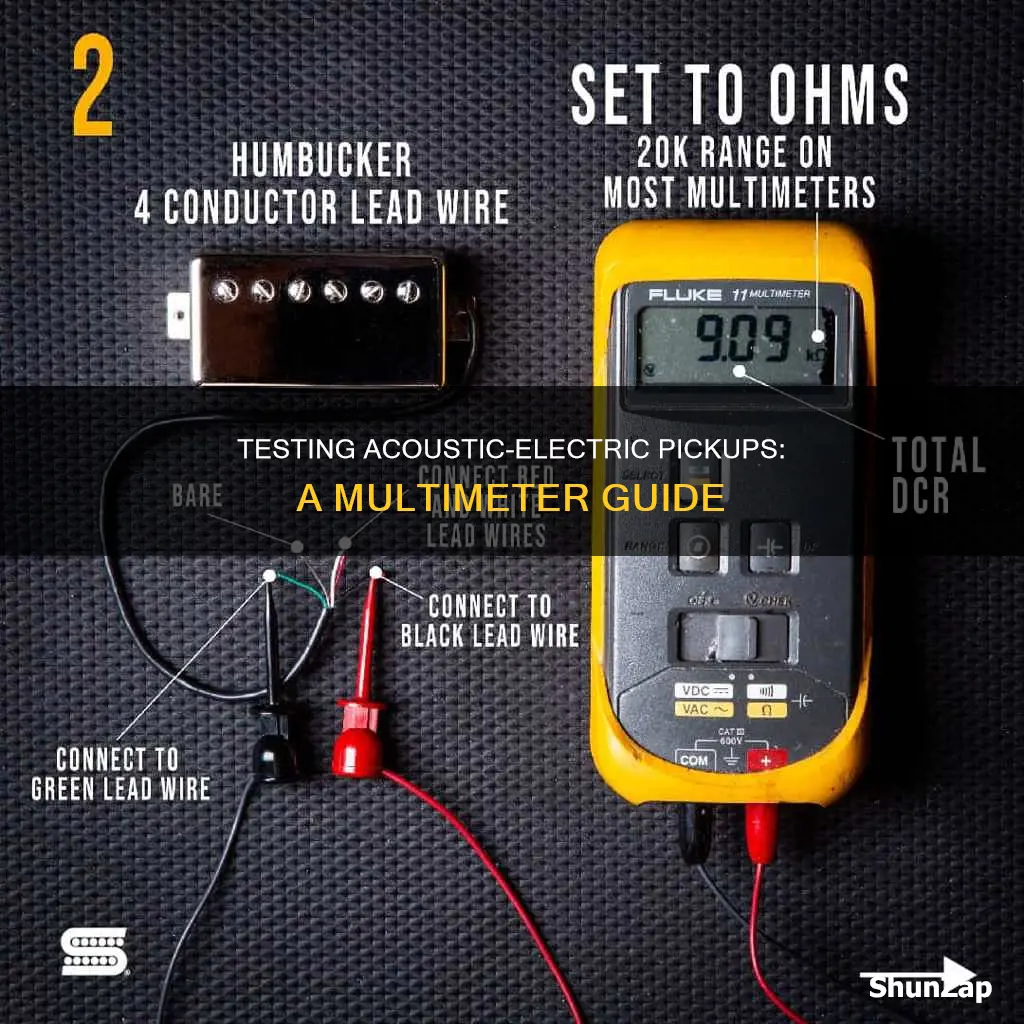

To check the pickups resistance, you will need to use a multimeter. First, turn on the multimeter and set it to the "Ohm" or "Ω" setting. This is because Ohms "Ω" is the unit of measurement for resistance. Next, plug a cable into your guitar but leave the other end free. Set your pickup selector switch to the position of the pickup you want to check and ensure the volume is turned all the way up.
Then, touch one multimeter probe to the tip of the cable's free end. After that, touch one multimeter probe to the sleeve (the part of the cable end below the tip section) of the cable's free end. After a moment, your multimeter should settle on a number. This number is the pickup's resistance. It is important to remember that resistance is never exact, so the number will be around the pickup's rating, give or take.
If the resistance is not as expected, you may have a broken pickup. For example, if you have a 4-conductor humbucker, the resistance of each coil should be roughly half of the full pickup's listed rating. If one or both are off the mark, then the pickup is broken.
Electric Propulsion for Aircraft: Feasible Future or Far-Fetched Fantasy?
You may want to see also
Explore related products
Test the adjustable south coil
Multimeters are a handy tool for testing acoustic electric pickups. They are affordable and can be used to test a range of different electronics, not just guitar pickups. When it comes to testing the adjustable south coil of a pickup, there are a few steps to follow.
Firstly, ensure your multimeter is turned on and set to the "Ohm" or "Ω" setting. This is to measure the resistance of the coil. The resistance of a guitar pickup is a measure of the electrical current that runs through the wire coils. The more copper wire wound around the magnets, the higher the resistance.
Next, touch the multimeter probes to the coil's red and green wires. This will give you a reading of the resistance of the adjustable south coil. The resistance of each coil should be roughly half of the full pickup's listed rating. If the reading is within the acceptable range, the coil is functioning correctly. If the reading is outside the acceptable range, the coil may be damaged or broken.
If the adjustable south coil is found to be faulty, it may need to be replaced or repaired. It is important to note that the resistance of pickups can vary depending on the make and model, so it is recommended to refer to the specific pickup's desired resistance range.
By following these steps and using a multimeter, you can effectively test the adjustable south coil of an acoustic electric pickup and identify any potential issues.
The Perfect Electric Round Brush Styling Guide
You may want to see also
Explore related products
Check continuity
Multimeters are invaluable tools for any guitarist or bassist. They can be used to test an array of different electronics, not just your guitar pickup. They are also widely available and affordable.
To check continuity, you will need to test the resistance of your pickup. This is a measure of the electrical current that runs through the wire coils. If there is no resistance, then the circuit is healthy and electricity is flowing freely from point A to B.
To test the resistance of your pickup, first, turn on your multimeter and set it to the "Ohm" or "Ω" setting. Then, touch the multimeter probes to the coil's wires. The resistance of each coil should be roughly half of the full pickup's listed rating. If the resistance is too high, then the pickup is faulty.
If your pickup and pots check out but there is still excess noise, you are likely experiencing bad grounding. To test this, touch one of the terminals to a common ground (e.g. the back of the volume pot) and use the other terminal to see which other part of the guitar isn't grounded. If you see a "0.0", or a number close to "0", then there is a healthy connection with the ground. If you see a "0.L", there is a break in the signal path and that item needs to be grounded.
Beat the Heat: Cooling Your Room, Electricity-Free
You may want to see also
Explore related products
Test a TRS jack
Testing a TRS jack with a multimeter is a straightforward process. First, plug a guitar cable into the output jack and switch your multimeter to the continuity setting. Next, touch one of the test leads to the tip of the exposed guitar cable plug, and touch the other test lead to one of the lugs on the TRS output jack. You should listen for a tone to identify which lug makes the connection. The lug that gives you a tone while you are touching the plug tip is where you will attach the primary lead from a pickup or preamp.
It is important to note that TRS jacks have three connections: tip, ring, and sleeve. When testing, you should connect the meter's tip to the tip of the jack, the meter's ring to the ring of the jack, and the meter's sleeve to the sleeve of the jack. If you are measuring 2k, it indicates a bad joint.
Additionally, you can test for continuity by inserting a cable into the jack and placing one probe at the other end of the cable to test the tip, sleeve, etc. The other probe should be placed on the legs of the jack to test for continuity.
A visual inspection is also recommended as a first step to verify if there is any damage. If there is no visible damage, you can use a multimeter or a cable tester to identify any underlying issues.
Power Crisis: Understanding the Main Causes of Electricity Shortage
You may want to see also
Explore related products
Check the phase of a pickup
Checking the phase of a pickup is a quick and easy process that only requires a few tools. Before getting started, it's important to understand what phase means in the context of guitar and bass pickups. Simply put, the phase of a pickup refers to the direction of the electrical current flowing through the pickup coil. This is influenced by the pickup's wind direction, magnetic polarity, and which end of the coil is connected to ground or hot.
To check the phase of a pickup, you'll need a multimeter and a screwdriver. First, set your multimeter to ohms and connect its probes to the pickup leads. Ensure that the red probe is attached to the positive lead and the black probe to the negative lead. You should now see a reading on the multimeter, which may vary depending on the pickup.
Now you're ready to perform the phase test. Place the steel shank of the screwdriver across all the polepieces on one coil. By doing this, you're checking the phase of the pickup.
It's important to ensure that your pickups are in phase because when they are out of phase with each other, the signals can cancel out, resulting in a noticeable reduction in low- and mid-range frequencies. This will cause a thin and weak sound. Generally, it is preferred to have pickups in phase with each other to achieve the intended tone. However, some people intentionally wire pickups out of phase to create a specific sound.
Electricity's Impact: Transforming Daily Life and Powering the Future
You may want to see also
Frequently asked questions
Multimeters are used to test the continuity, phase, and resistance of pickups. To test the resistance, set the multimeter to the “Ohm” or “Ω” setting and touch the probes to the coil's wires. If the multimeter reads out the pickup's expected resistance, the pickup is fine.
You are likely experiencing bad grounding. To test this, touch one of the terminals to a common ground and use the other terminal to see which other part of the guitar isn't grounded. If there is a break in the signal path, you've found the problem.
Multimeters are affordable, widely available, and easy to use. They can be used to test an array of different electronics, not just guitar pickups.
