Electric temperature gauges are important components of a vehicle's cooling system, and they can indicate whether your car or truck is overheating. There are various ways to test an electric temperature gauge, and the testing method depends on the type of gauge. For example, a short sweep temperature gauge typically has three terminals at the rear, and to test it, you will need a controlled and measurable resistance to ground source. On the other hand, a full sweep electric temperature gauge typically has a 10-pin plug-in connector at the rear, and the easiest way to test it is by using an ohm meter.
| Characteristics | Values |
|---|---|
| Testing equipment | ohm meter, multimeter, temperature gun |
| Testing procedure | warm up engine, remove wire from sender, hook positive wire of ohm meter to sender, hook negative wire of ohm meter to ground, compare resistance to expected values |
| Interpreting results | if resistance matches expected values, gauge is functioning correctly; if resistance is higher or lower than expected, sender may be faulty |
| Alternative methods | compare readings with another thermometer, use gauge tester from automotive electrical repair shop |
Explore related products
What You'll Learn
Ensure clean electrical connections and no corrosion
To ensure clean electrical connections and no corrosion in an electric temperature gauge, you must take several steps during the installation process and maintain the system regularly.
Firstly, it is crucial to choose a gauge that is compatible with your vehicle's electrical system. A wiring harness specifically designed for electric water temperature gauges is essential for a clean and organised installation, providing accurate readings and proper functionality. When installing the gauge, refer to the wiring diagram to identify the appropriate wires for power, ground, and sender. Ensure that the connectors are securely attached to the wire, creating a tight connection. After crimping the connectors, use heat shrink tubing and a heat gun or lighter to provide extra protection against moisture and corrosion.
Additionally, you should regularly inspect the electrical connections for any signs of corrosion or buildup, which can affect gauge readings. If you notice any corrosion, it is important to disconnect the power and carefully clean the affected parts. You can use deionized water or baking soda to effectively remove corrosion from electrical components. To prevent corrosion, keep your electrical components in a dry and clean area, avoiding exposure to humid temperatures or acidic liquid contaminants.
When testing an electric temperature gauge, you can disconnect the wire from the temperature sensor and ground the wire. If the gauge moves through the full range of motion, from cold to hot, when grounded, the sensor is likely functioning correctly. However, if it does not, you may have a bad sensor.
Androids, Dreams, and Depression: Electric Sheep's Complex Web
You may want to see also
Explore related products
Check the accuracy of a short sweep temperature gauge

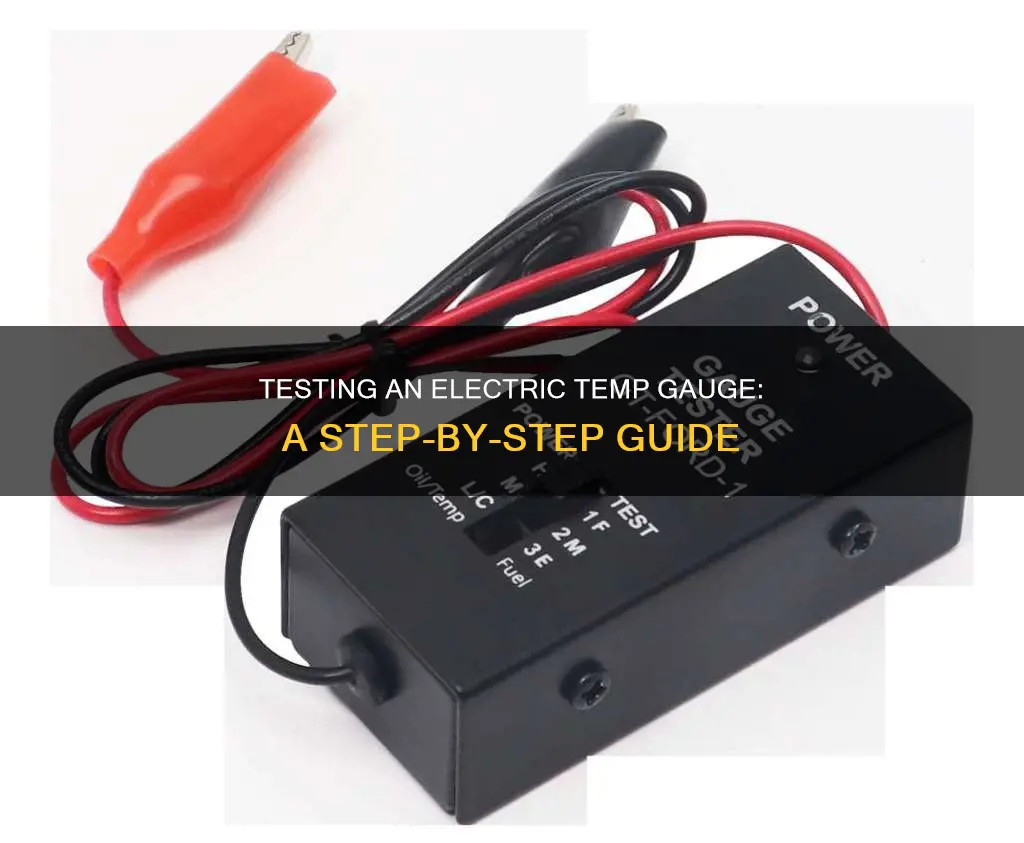

To check the accuracy of a short sweep temperature gauge, you will need a controlled and measurable resistance to ground source. Many automotive electrical repair shops have what is called a gauge tester, which is a switchboard with different resistance values. For example, the Auto Meter 100 to 250-degree short sweep temperature gauge uses a specification of 1123 ohms of resistance to ground to equal 100 degrees Fahrenheit, and 65 ohms of resistance to ground to equal 250 degrees Fahrenheit.
If you do not have access to a gauge tester, you can start with the sender. Warm up the engine to a stable temperature and have an ohm meter ready, as well as the tools needed to remove the wire from the sender. With the engine running or idling, note the gauge's reading and write it down. Then, with the engine still idling, remove the wire from the sender and connect the positive wire of your ohm meter to the sender where the sender wire was. Now, connect the negative wire of your ohm meter to the ground.
For example, if the gauge read 210 degrees and you measured 123 ohms, this would mean that the gauge was reading correctly. If the gauge is not reading correctly, there may be an issue with the electrical connections. Corrosion, buildup, and loose wires can all affect the gauge readings. Additionally, grounding issues between the engine and the gauge can result in erratic readings. It is also important to ensure that you have the correct sending unit for your gauge, as they are not always interchangeable and a mismatch can cause inaccurate readings or prevent the gauge from functioning altogether.
To test a mechanical temperature gauge, a simple method is to place a water-filled container on a stove and insert a probe into the water. As the water heats up, the gauge needle should move accordingly. When the needle reaches about 212 degrees Fahrenheit, the water should be boiling. For a more precise test, you can use a trusted thermometer to compare readings as the water temperature changes. If there is any discrepancy or failure to read, it likely indicates a faulty gauge.
Electricity Bills: How Often Do They Arrive?
You may want to see also
Explore related products
Test the temperature sensor with a multimeter
To test a temperature sensor with a multimeter, you should first park your vehicle and turn off the engine. Open the hood and allow the engine to cool down for around 15 minutes. Locate the temperature sensor next to the thermostat.
Turn on your multimeter and set it to DC. Attach the temperature sensor to the multimeter and locate the DC setting on the dial of the sensor, turning it to select. The DC setting will give you a voltage reading.
Submerge the sensor in a cup of cold water and take a reading. A common reading for a temperature sensor in cold water is around 5 volts. Next, move the sensor to a cup of boiling water and take another reading. A hot water reading should give you around 0.25 volts.
You can also set the multimeter to measure resistance and clip one probe to an outer sensor connector and the other across from it. Submerge the sensor in hot water and then ice water, noting the readings after a few seconds. The readings should be around 250 and 1000 ohms, respectively.
Compare your readings to the correct readings for your vehicle. Every make and model will have specific temperature sensor readings when tested with a multimeter. Look online or check the car's manual for the correct hot and cold readings, and compare them to your readings. If they closely match, your sensor is functioning properly; if not, you will need to replace it.
Polaris Electric UTVs: Who's Driving Change?
You may want to see also
Explore related products
Compare readings with a temperature gun
An electric temperature gauge, such as a coolant temperature gauge, consists of two main parts: the gauge and a sending unit, connected by a wire. Inside the sending unit is a thermally-sensitive electrical resistor or "thermistor". As the temperature around the sending unit changes, the electrical resistance of the thermistor also changes, and the gauge interprets these resistance values to deliver a temperature reading.
To test an electric temperature gauge, you can compare its readings with those of a temperature gun, also known as a non-contact or infrared thermometer. Here are some steps to follow:
- Prepare the temperature gun: Ensure that your temperature gun is powered on and set to the appropriate mode, either ""body temperature mode" or "object temperature mode", depending on what you are measuring.
- Position the temperature gun correctly: Hold the temperature gun 1-3 cm away from the center of the forehead or the object's surface. Ensure that the sensor is perpendicular to the skin or surface and free from any obstructions, such as hair, sweat, or dirt.
- Take a reading with the temperature gun: Press the measurement button on the temperature gun and wait for the beep or the reading to appear on the display.
- Compare the readings: Note the temperature reading from the temperature gun and compare it with the reading on your electric temperature gauge. If the readings are similar, your electric temperature gauge is likely functioning correctly. If there is a significant discrepancy, your electric temperature gauge may be faulty.
- Ensure consistent readings: Take multiple measurements with the temperature gun at different times to ensure consistency. Compare these readings with those of your electric temperature gauge. If the temperature gun consistently shows different readings, it may indicate an issue with your electric temperature gauge.
- Calibrate the temperature gun: If you have access to a known temperature source, such as a blackbody calibration device or an ice bath (0°C) and boiling water (100°C), you can calibrate your temperature gun. Measure the temperature of the source and compare it to the known value. Adjust the temperature gun's settings if there is a discrepancy, following the manufacturer's instructions.
By comparing readings between the temperature gun and your electric temperature gauge, you can verify the accuracy of your gauge and identify any potential issues with its functioning.
A Simple Guide to Changing Your Electric Burner Safely
You may want to see also
Explore related products
Check the sender with an ohm meter
To check the sender with an ohm meter, start by warming up the engine to a stable temperature. Prepare an ohm meter and the tools required to remove the wire from the sender. Observe and note down the reading on the gauge. With the engine still idling, remove the wire from the sender. Next, connect the positive wire of the ohm meter to the sender where the sender wire was attached. Then, connect the negative wire of the ohm meter to the ground.
Now, you need to interpret the resistance measured by the ohm meter. For example, if the gauge read 210 degrees, and the ohm meter reading is 123 ohms, the gauge is functioning correctly. If you believe the engine temperature differs from the gauge reading, the sender may be faulty.
It is important to note that resistance values vary with temperature. For instance, a resistance of 415 ohms may indicate a temperature of 100 degrees, while 50 ohms could mean 250 degrees. Therefore, it is helpful to create a chart listing the temperature and their corresponding resistance values.
Additionally, the resistance readings may differ depending on the gauge manufacturer. Thus, it is recommended to compare your resistance readings with the manufacturer's specifications.
