Electric dog fences are a great way to keep your dog within a certain boundary without the need for a physical fence. However, sometimes these fences can break, causing the transmitter to beep. This can be due to a break in the wire, which can be challenging to locate and fix. This guide will take you through the steps to test your electric dog fence and locate any breaks, saving you time and money. By using tools such as voltage testers, signal tracers, and AM radios, you can effectively detect and repair breaks in your fence, ensuring your dog's safety and your peace of mind.
| Characteristics | Values |
|---|---|
| Tools to detect a break in the fence | Voltage tester, Non-Contact Voltage Tester, Signal Tracer, Handheld AM radio, Multimeter |
| How to use a voltage tester | Disconnect the fence, unplug the transmitter, and test the wires. If there is no voltage, the wire is broken. Move the tester along the wire to find the break. |
| How to use a signal tracer | Attach the signal generator to one end of the fence wire and follow the wire's path to locate the break. |
| How to use a handheld AM radio | Tune to the lower AM range (usually around 600 kHz) to track the wire. Increase the signal strength at the transmitter if needed, but remember to turn it back down. |
| How to use a multimeter | Disconnect one end of the wire from the transmitter and connect it to the meter. Check the resistance; if there is no continuity, there is infinite resistance and the loop is broken. |
| How to locate the break | Expose the wire using a 3-pronged hand tiller or a pick axe. Once the break is found, use a radio to check the signal on both lines. |
| How to fix the break | Connect the broken ends with a waterproof and weatherproof connector, then bury the mended wire. |
| Testing the collar | The collar should make a continuous "Beep-Beep-Beep" sound. Adjust the shock level, tighten the collar, or adjust its position on the neck if needed. |
Explore related products
What You'll Learn
Using a handheld AM radio to detect the radio signal
To test an electric dog fence, you can use a handheld AM radio to detect the radio signal. This method is useful for finding a break in the fence.
Firstly, you will need to disconnect the wires from the transmitter and create a loop by twisting the ends of the wires together. This will send a radio signal to the transmitter. If the transmitter does not beep, then the issue is with the buried underground wire.

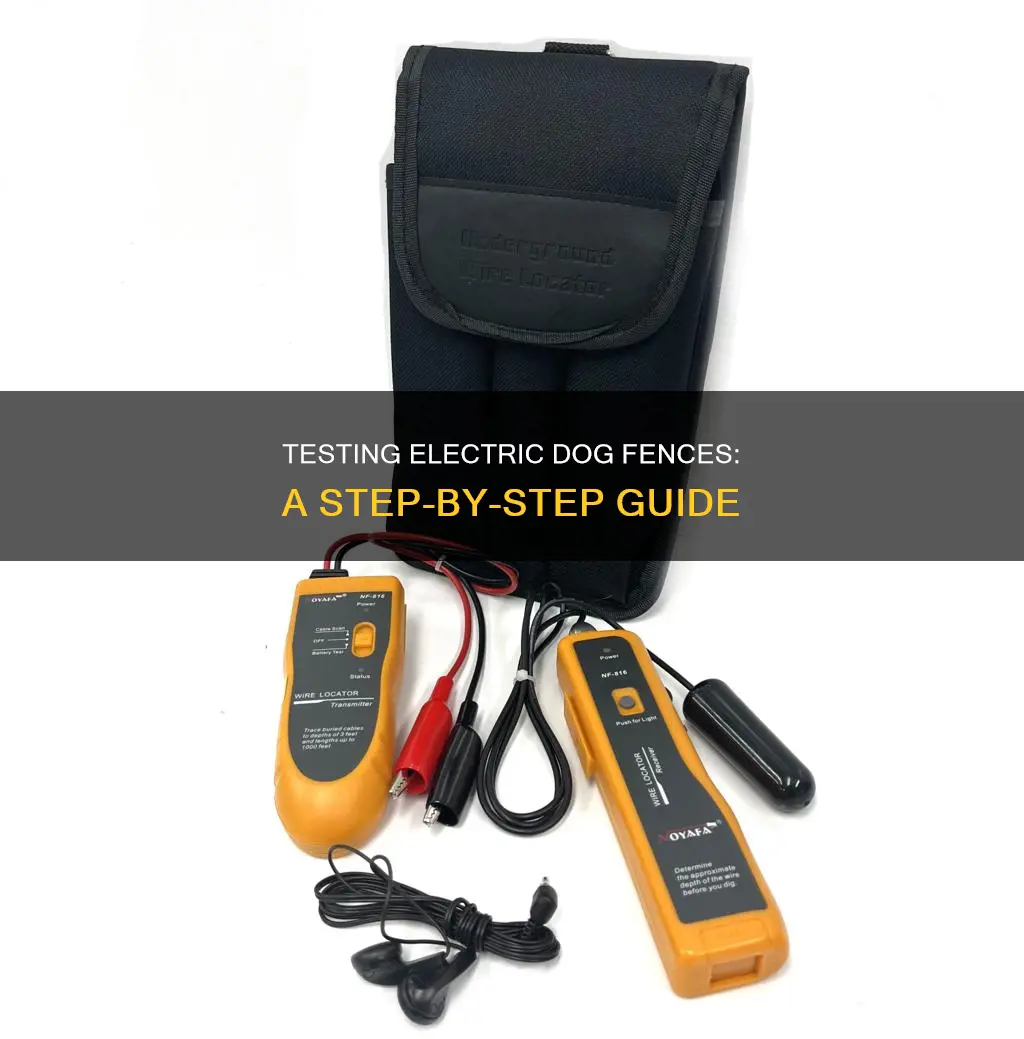

Next, unplug the transmitter of the underground fence wire and connect one of the alligator clips of the wire break locator transmitter to the underground wire. The other clip should be grounded in wet dirt using a screwdriver.
Now, turn on the transmitter of the wire locator, as this will power the buried wire of the underground fence. Following this, turn on the AM radio and adjust the volume. The lower AM range, from 530-700 kHz, can detect radio signals emitted by electric dog fences. Ensure no radio station channel is active.
Finally, walk along the underground wire path, swinging the radio close to the ground surface. You will hear a combination of two sounds as you walk the perimeter line. The sound will switch from two to one or get softer and disappear at a wire break point.
It is important to distinguish these sounds, and there are tutorial videos available online to help with this. When tuned in perfectly, the signal may sound like rapid tapping or beeping. When the radio passes over the wire, the static will get louder if the signal is close but not quite right. When you find an area where the signal drops out, this is likely to be a break in the wire.
Electricity: The Flow of Ions and Their Superpowers
You may want to see also
Explore related products
Adjusting the signal sensitivity
Firstly, you need to identify the source of the problem. Begin by conducting a thorough inspection of the entire system, including the wires, transmitter, and receiver units. Look for any visible damage, such as chewed wires, broken connectors, or loose connections. This visual inspection is essential to rule out any obvious issues.
If you don't spot any apparent problems, it's time to test the signal strength. Use a handheld AM radio, which is essential for detecting the radio signal emitted by the fence. Tune it to the lower AM range, typically around 600 kHz. This frequency will help you track the wire buried underground. Walk along the boundary line with the radio's antenna close to the ground, and listen for a clear signal.
If you encounter areas with weak or no signal, this indicates potential issues. You may need to increase the signal strength at the transmitter temporarily for better detection. Remember to turn it back down afterward to avoid harming your dog. An RF choke is a small component that can be connected to the transmitter to help it continue sending a signal even if the wire is broken.
Once you've adjusted the signal sensitivity and located the weak spots, it's time to dig carefully and expose the wire in those areas. Use tools like a hand tiller or pickaxe, being cautious not to cut or nick the wire. After exposing the wire, use the radio to check for a strong signal on both sides. If there is no signal on one side, continue digging in that direction to locate the break.
By following these steps and adjusting the signal sensitivity as needed, you can effectively troubleshoot and repair your electric dog fence, ensuring your dog's safety and your peace of mind. Remember to make any necessary connections weatherproof and secure once you've located and addressed the issues.
Checking Electric Oil Pressure Gauges: A Step-by-Step Guide
You may want to see also
Explore related products
Locating the break in the fence with a voltage tester
To locate the break in an electric dog fence with a voltage tester, follow these steps:
- Unplug the transmitter and disconnect the fence wires: Before testing the wires, ensure that the power source is disconnected by unplugging the transmitter. This step is crucial for safety and to prevent any accidental electric shocks.
- Connect the voltage tester to the ends of the wire: With the power disconnected, connect the voltage tester to the ends of the wire. This will allow you to check for continuity and determine if the wire is carrying a current.
- Test the wires for voltage: If the voltage tester does not beep or light up, it indicates that there is a break in the wire somewhere. A voltage tester is a handy tool for detecting breaks in the fence wire.
- Walk the perimeter to find the voltage drop: Move the voltage tester along the wire to locate the point where the voltage drops. This drop in voltage indicates the exact location of the break in the fence. By walking the perimeter with the tester, you can quickly pinpoint the problem area without having to dig up your entire yard.
- Repair the broken wire: Once you have located the break, you can repair or replace the damaged section of the wire. Ensure that you use appropriate connectors that are waterproof and suitable for your climate.
- Test the fence after the repair: After making the necessary repairs, test the fence again with the voltage tester to ensure that it is functioning correctly. If the tester now shows voltage and there are no further alarms or errors, you can be confident that your electric dog fence is operational once more.
Using a voltage tester is a straightforward and effective way to locate and repair breaks in your electric dog fence. It does not require any specialized skills and can save you time and frustration by helping you pinpoint the problem quickly.
Locating Electrical Shorts in Your Truck
You may want to see also
Explore related products
Exposing the wire in the suspected break area
Firstly, it is crucial to turn off the power to the fence. Disconnect any wires leading to the fence to ensure safety during the repair process. This step is often overlooked, but it is essential for your protection.
The next step is to visually inspect the suspected break area. Walk along the perimeter of the fence, carefully examining the wire, posts, and connection points for any signs of damage or wear and tear. Look for any gaps or holes in the ground along the boundary line, as your dog may have dug their way out. Chewed wires or broken connectors are common issues, especially if your dog likes to chew on things. Make sure to check the transmitter and receiver units to ensure they are functioning correctly.
If you are unable to identify the problem through visual inspection, you may need to use specialised tools such as an underground wire locator or circuit tester. A voltage tester, for instance, can be extremely helpful. By connecting it to the ends of the wire, you can detect the presence of voltage. If the tester does not beep or light up, it indicates a break in the wire. You can then move the tester along the wire to pinpoint the exact location of the break.
Once you have located the suspected break area, it's time to expose the wire. You can use a variety of tools for this step, such as a 3-pronged hand tiller, a pickaxe, or any other tool that can carefully dig and expose the wire without damaging it. Be cautious not to cut or nick the wire during this process.
After exposing the wire, use a radio or a signal tracer to check the signal strength on both lines. This step is crucial to confirm the presence of a break. If you find a strong signal on both ends, you can connect them with a piece of wire. However, if one of the ends shows no signal, continue digging in that direction to locate the break.
In conclusion, exposing the wire in the suspected break area of your electric dog fence requires a systematic approach. By following the steps outlined above, you can effectively locate and expose the wire, setting the foundation for a successful repair. Remember to take your time, use the appropriate tools, and prioritise safety throughout the process.
Soldering Stainless Steel Electrical Pins: The Ultimate Guide
You may want to see also
Explore related products
Connecting the broken ends securely
Once you have located the break in the fence, you will need to connect the broken ends securely. This can be done by using connectors purchased from a local hardware store. It is important to select connectors that are waterproof and suitable for the temperature range in your climate. The connectors should be filled with silicone to seal the twisted wires.
Before connecting the wires, use a radio to check that both ends have a strong signal. If one end does not have a signal, continue searching in that direction to locate any additional breaks.
After confirming a strong signal on both ends, connect the wires together using the connectors. Then, disconnect the choke and reconnect the wires from the fence into the transmitter. If an alarm goes off, you have successfully found and connected the break.
Finally, ensure that the connection is weatherproof and secure. Bury the mended wires, and test the fence to ensure it is operating correctly.
Electric Scooters: Ohio's Street Legality Question
You may want to see also
Frequently asked questions
If you have a break in your electric dog fence, the transmitter will usually beep. This indicates that there is a break in the fence and that you should locate and fix it as soon as possible.
You can use a handheld AM radio to detect the radio signal emitted by the fence. Tune it to the lower AM range (around 600 kHz) to help you track the wire. You may need to increase the signal strength at the transmitter.
You can use a voltage tester, a non-contact voltage tester, or a signal tracer. A voltage tester will beep or light up if the wire is carrying a current. A non-contact voltage tester detects electrical fields without touching the wire. A signal tracer helps you follow the wire's path by sending a signal through it and locating where the signal stops.
Once you've located the break, expose the wire carefully. Check that you have a strong signal on both lines with a radio. If you do, connect the broken ends with a piece of wire, then reconnect the wires to the transmitter.
Test your collar at the signal field; it should make a continuous beeping sound. However, this does not guarantee that the shock is strong enough to deter your dog. You may need to adjust the shock level, tighten the collar, shorten the neck hair, or adjust the collar's position.
Note: Always refer to the specific instructions and safety guidelines provided by the manufacturer of your electric dog fence and collar.
