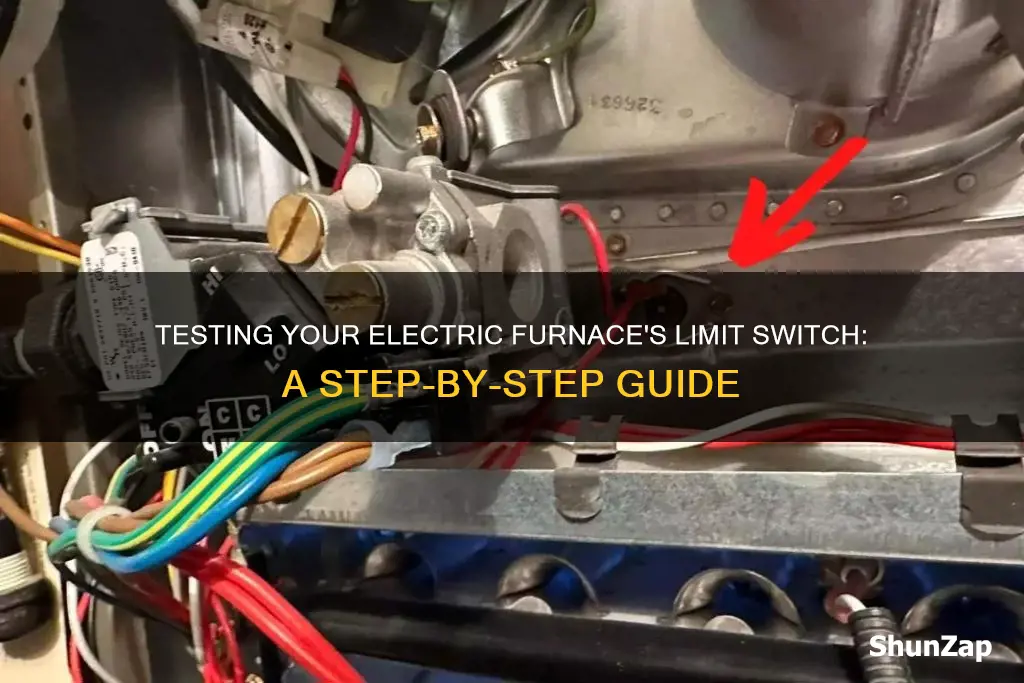

Electric furnace limit switches are safety mechanisms that prevent overheating by shutting down the burner or heating elements when temperatures exceed safe limits. Testing and maintaining these switches are crucial to ensure proper operation and safety. A faulty limit switch can lead to dangerous conditions or system failures. To test an electric furnace limit switch, you can perform a burnout test using a specialized testing device to simulate an over-temperature condition. If the limit switch is functioning correctly, it should respond by opening the circuit and shutting down the furnace. Additionally, you can use a multimeter to test for continuity by disconnecting the power, removing the switch, and connecting the multimeter probes to the terminals. A reading of 0.00 indicates a faulty switch. Regular inspections and cleaning of the ductwork and heat exchanger are also important to maintain optimal airflow and prevent blockages that can lead to overheating and limit switch errors.
| Characteristics | Values |
|---|---|
| Purpose of testing | To prevent failures and ensure safety |
| Testing device | Multimeter |
| Testing process | 1. Turn on the furnace and let it heat up to the set temperature; 2. Turn the temperature dial all the way down and wait for 3-5 seconds; 3. Listen for a click, indicating the limit switch is working |
| Alternative testing process | 1. Connect the tester according to the manufacturer's instructions; 2. Activate the tester to simulate an over-temperature condition; 3. Observe if the limit switch responds by opening the circuit and shutting down the furnace |
| Fault identification | A reading of 0.00 on the multimeter indicates a faulty switch |
| Fault prevention | Regularly check for blockages in the ductwork, heat exchanger, and vents to prevent airflow obstructions, which can lead to overheating and triggering the limit switch |
Explore related products
What You'll Learn
Use a multimeter to check for continuity
To test an electric furnace limit switch with a multimeter, you must first understand how the switch should operate normally. The limit switch should respond to unsafe conditions, such as a temperature rise, by opening the circuit and shutting down the furnace to prevent damage.
To test the limit switch with a multimeter, first, disconnect the switch from the furnace. This is important for safety and to avoid electric shock. Then, set the multimeter to the voltage setting (VAC). Next, identify the common wire on the 24v transformer. This wire is usually connected to the ground directly from the transformer or from the gas valve to the ground. Touch one probe of the multimeter to the ground. This can be any metal part of the furnace, such as an unused screw hole.
Now, touch the other probe to the terminal on one side of the switch. The meter will indicate the voltage present. Then, touch the probe to the contact on the other side of the switch. If the voltage reading is the same on both sides, this indicates that the voltage is present at both terminals and the switch is functioning properly.
If the voltage reading is not the same on both sides, the switch may need adjustment or replacement. Additionally, you can test for continuity with the multimeter. A lack of continuity indicates a faulty switch. You can also test the electrical resistance in ohms across the switch while it is disconnected from power. These tests will help you understand if the limit switch is functioning correctly and identify any potential issues.
Net Metering in California: Is It a Reality?
You may want to see also
Explore related products
Disconnect the power and remove the switch
Disconnecting the power and removing the switch is a crucial step in testing an electric furnace limit switch. This process helps identify any issues with the switch and ensures the safety of your appliance. Here are the detailed steps to follow:
Disconnect the Power
Before beginning any work on your electric furnace, it is imperative to disconnect the power supply. This step is crucial for your safety and to prevent any accidental activation of the furnace during the testing process. Locate the power source and disconnect it from the furnace. Ensure that the power is completely turned off before proceeding to the next step.
Remove the Switch
Once the power is disconnected, you can safely access the limit switch. Furnace limit switches are typically located near the blower compartment or within the ductwork of the furnace. Refer to your furnace's manual or a qualified technician to accurately locate the limit switch. Gently remove the switch by unscrewing or detaching it according to the manufacturer's instructions. Be cautious not to damage any surrounding components or connections during this process.
Inspect the Switch
With the switch removed, you can now visually inspect it for any signs of damage or malfunction. Look for any burnt or worn-out components, as these could indicate a faulty switch. Additionally, check for any dirt, dust, or debris accumulation, as this can cause the switch to malfunction. A dirty switch may require cleaning or replacement, depending on the severity of the buildup.
Testing the Switch
At this stage, you can test the switch for continuity using a multimeter. Connect the multimeter probes to the terminals of the switch. If the multimeter displays a reading of 0.00, it indicates a faulty switch that needs to be replaced. If you are unfamiliar with using a multimeter or handling electrical components, it is advisable to consult a professional technician.
Reinstallation and Reconnection
If the switch tests okay or has been replaced due to damage or malfunction, you can carefully reinstall it according to the manufacturer's instructions. Ensure that all connections are secure and properly aligned. Once the switch is reinstalled, you can reconnect the power supply to the furnace.
Remember to exercise caution throughout the process and seek professional assistance if you have any doubts or concerns.
The Electric Iron's Social Impact: A Historical Perspective
You may want to see also
Explore related products
Inspect ductwork for debris, dust, or blockages
Inspecting ductwork for debris, dust, or blockages is an important part of maintaining the efficiency and effectiveness of an HVAC unit. Here are the steps you can take to inspect ductwork:
Locate the Ducts
Start by locating the ducts in your home. They are usually found in the basement, attic, or walls. Most rooms should have a vent, either on the floor or on the upper half of a wall.
Visual Inspection
Once you have located the ducts, begin by performing a visual inspection. Unscrew the vent and use a flashlight or a digital camera with a flash to look inside the ducts. Check for any signs of debris, dust, rodent droppings, mould, or moisture. If you notice large amounts of dust or debris, or spot anything unusual, it is recommended to call a professional for a more thorough inspection and duct cleaning.
Check Insulation
Inspect the insulation surrounding the ducts for any damage, including torn pieces, damp spots, or mould. Wet areas indicate blockage and poor indoor air quality, requiring immediate attention from a technician.
Listen for Air Leaks
While inspecting the ducts, pay attention to any air movement around the duct seams and connections. Air leaks can cause the HVAC unit to work harder to heat or cool your home, reducing energy efficiency.
Regular Maintenance
It is recommended to have your ductwork professionally cleaned every 5 to 10 years to maintain good indoor air quality and HVAC system efficiency. Regular maintenance can help prevent dust and debris buildup, as well as identify potential issues early on.
By following these steps, you can effectively inspect your ductwork for debris, dust, or blockages, ensuring the optimal performance of your HVAC system.
The Painful Truth About Electric Fly Swatters
You may want to see also
Explore related products
Check for air leaks in the plenum and vacuum lines
Checking for air leaks in the plenum and vacuum lines of an electric furnace is a critical step in ensuring its safe and efficient operation. Here is a detailed guide on how to perform this task:
Understanding Leaks in Electric Furnaces
Firstly, it's important to understand the nature of leaks in electric furnaces. Leaks can occur in various forms, such as holes, cracks, or openings that allow uncontrolled entry or exit of air or gas. These leaks can develop over time due to residue build-up, gas becoming trapped, or seals loosening due to temperature and pressure changes. Both large and small leaks can occur, with small leaks often going undetected as the pumping system may offset the gas rate. Therefore, it's crucial to be vigilant in checking for leaks to prevent damage to the furnace and ensure its optimal performance.
Precautions and Safety
Before beginning any leak testing or maintenance on an electric furnace, it's essential to take necessary precautions. Some gases present in vacuum pump furnaces are heavier than air and can cause asphyxiation if inhaled. Oil diffusion pumps, which boil oil to form vapour, can reach extremely high temperatures, posing risks of burns and explosions. Always proceed with caution and, if possible, consider having a professional perform the leak detection and maintenance for your safety.
Methods for Detecting Leaks
There are several methods to detect leaks in electric furnaces:
- Sound: Listen carefully for any whistling or unusual noises that could indicate gas escaping through a leak.
- Solvent: Apply a solvent to the suspected leak area and monitor the vacuum "jump" on the vacuum gauges.
- Bubble Test: Apply liquid dish soap to the joint of a pressurised pipe or component and look for bubbles, indicating a leak.
- Tracer Gas Testing: This method involves using a tracer gas, such as helium or forming gas, to detect leaks. It is precise and can identify smaller leaks.
- Pressure Decay Testing: This method is often used before tracer gas testing to ensure that large leaks are not present, as they could interfere with tracer gas test results.
- Vacuum Testing: Using a vacuum gauge, you can perform a vacuum test to check for leaks. This method is commonly used and can be effective in detecting leaks.
- Nitrogen Purge Testing: Nitrogen is used to create a neutral test environment, and then a tracer gas is introduced to detect leaks.
- Rate of Rise Test (CDE): This test determines the true linear leak rate by pumping down the furnace, letting it sit, and then stopping the process cycle to separate the vacuum pumping system from the furnace.
Locating the Leak
Once you have identified a leak, you can proceed to locate it:
- Visual Inspection: Look for any signs of oxidation on the processed material, which could indicate a large leak.
- Leak Rate Test: By measuring the rise in vacuum level, you can determine if there is a leak. A rise of more than 10 microns per hour indicates a potential leak.
- Checking Common Leak Areas: Leaks often occur in threaded and brazed joints, welds, valves, and plugs. Inspect these areas carefully.
- Using a Helium Mass Spectrometer: This instrument can help detect leaks and determine the leak rate.
Fixing the Leak
Once a leak is identified and located, it is important to fix it:
- Sealing: For small leaks, such as openings or cracks, use an appropriate sealant to close the leak.
- Replacing Parts: If a component is damaged or severely leaking, such as a valve or pipe, consider replacing it with a new one.
- Cleaning: Ensure that any residue or water left in the furnace is properly cleaned to prevent further leaks.
- Maintenance: Regular maintenance, including checking seals and valves, can help prevent future leaks.
Remember, safety should always be a priority when working with electric furnaces. If you are unsure about any aspect of leak detection, testing, or repair, it is best to consult a qualified technician to ensure the job is done correctly and safely.
Easy Guide: Installing Electric Radiator Fans
You may want to see also
Explore related products
Simulate an over-temperature condition
To simulate an over-temperature condition to test an electric furnace limit switch, follow these steps:
Firstly, locate the limit switch. It is usually found near the heat exchanger in the furnace and is a small, rectangular device with wires connected to it. Once located, carefully disconnect the wires from the terminals on the switch, taking note of their original positions for later.
Next, using a specialised testing device, simulate an over-temperature condition. This will trigger the limit switch to respond, and it should open the circuit and shut down the furnace to prevent damage. Observe the results. If the limit switch functions as expected, it is operating correctly. However, if it fails to respond, the switch may require adjustment or replacement.
After testing, carefully reconnect the wires to the correct terminals on the limit switch. Ensure you follow safety precautions by turning off the power supply before beginning any work on the furnace. Additionally, be cautious when handling the limit switch to prevent damage and always refer to the manufacturer's instructions for specific guidance.
It is important to test and maintain limit switches to ensure the safe and proper operation of your furnace. A faulty switch can lead to dangerous overheating or other system failures. Regular testing can help identify potential issues and ensure the limit switch is functioning correctly to protect your furnace and home.
