Tracing electrical wires can be a tricky task, but with the right tools and techniques, it can be done efficiently and without causing damage to your walls. This process is known as 'toning' and can be done without specialty equipment. While some tools, such as tone generators, can be expensive, there are other more affordable options available, such as the Klein Tools Tone & Probe PRO Electrical Wire Tracing Set. This set, along with other similar tools, can be used to streamline the process of locating hidden wires within walls, helping with home renovation or repair projects. In this discussion, we will explore the different methods and equipment used for toning electrical wires and provide tips for those looking to take on this task themselves.
| Characteristics | Values |
|---|---|
| Use of tone generator | To trace electrical wiring through walls, locate buried wires, and trace wires up to 1000 feet in length |
| Circuit status | Works on both energized and de-energized circuits |
| Tools required | Tone generator, toner and probe kit, Ideal Suretest, Triplett 3388, Progressive Electronics 200EP, Tempo 77HP/6A, Fluke Pro3000, Amprobe 6-600VAC Circuit Tracing Kit, Extech TG20 Wire Tracer and Tone Generator |
| Safety precautions | Wear electrical gloves, handle tools with care, consult device manual and seek professional advice to avoid electrocution |
Explore related products
What You'll Learn
Use a tone generator to trace wires
Tone generators are a useful tool for tracing electrical wiring through walls, and they can be used on both energised and de-energised circuits. They are especially handy for tracing low-voltage cabling and building wiring.

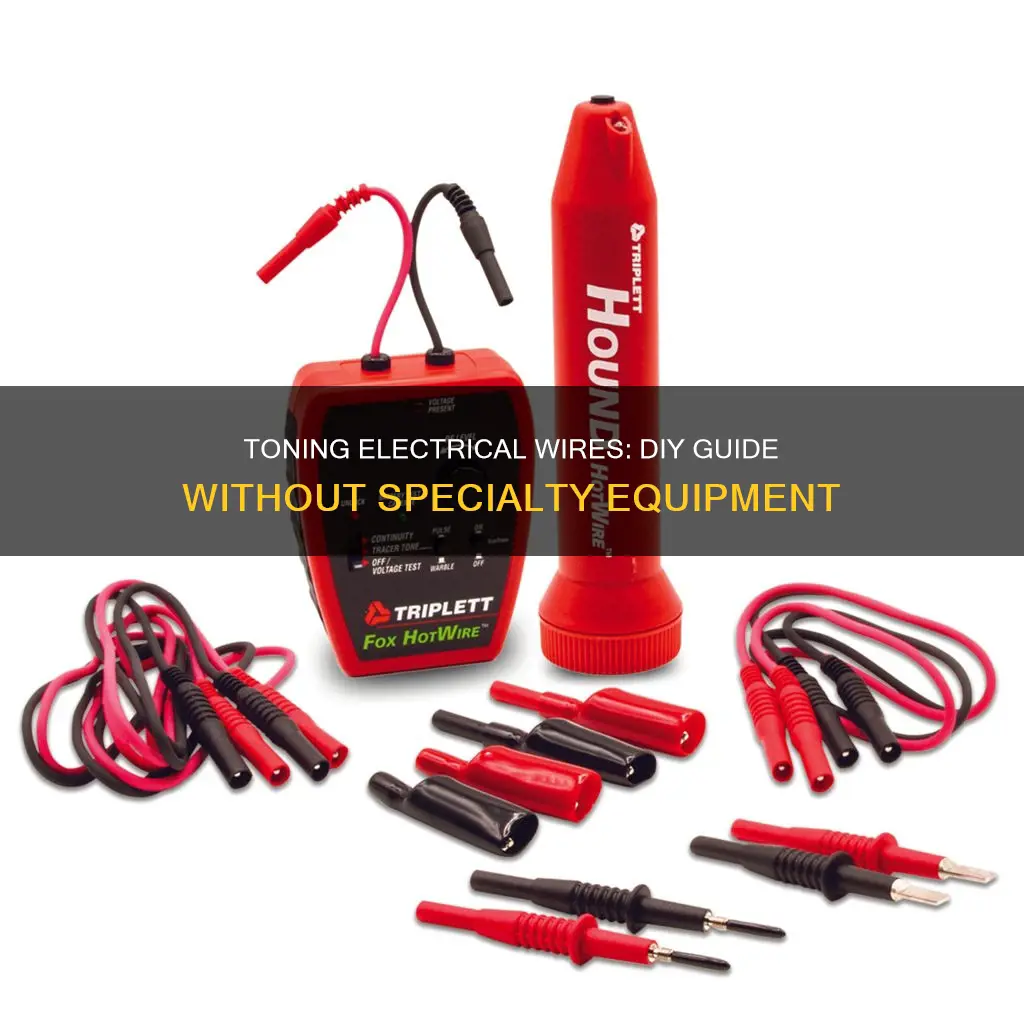

To use a tone generator to trace wires, you can attach the tone generator clip to either end of a wire. The generator will then emit a tone along the wire, which you can follow with a probe or sensor. The closer the probe is to the wire, the clearer and louder the tone will be. This means that you can easily identify the wire at the other end. It doesn't matter which direction or which end you clip the tone generator to, as it will generate a tone along the entire wire.
There are various tone generators available on the market, such as the Fluke Pro3000, the Triplett 3388, and the Extech TG20 Wire Tracer and Tone Generator. Some tone generators can be quite expensive, with prices exceeding $2000. However, there are also cheaper options available for less than $100. It's worth noting that the more expensive units may be able to pick up the tone from further away.
When using a tone generator to trace wires, there are a few things to keep in mind. Firstly, depending on the loads on the circuit, the tone generator may not work. Additionally, if there are multiple wires in close proximity, the signal can bleed over, making it difficult to identify the correct wire. In this case, touching the probe to the insulation of the wire you are looking for can help to identify it clearly.
By following these steps and using a tone generator, you can effectively trace electrical wires without the need for specialty equipment.
