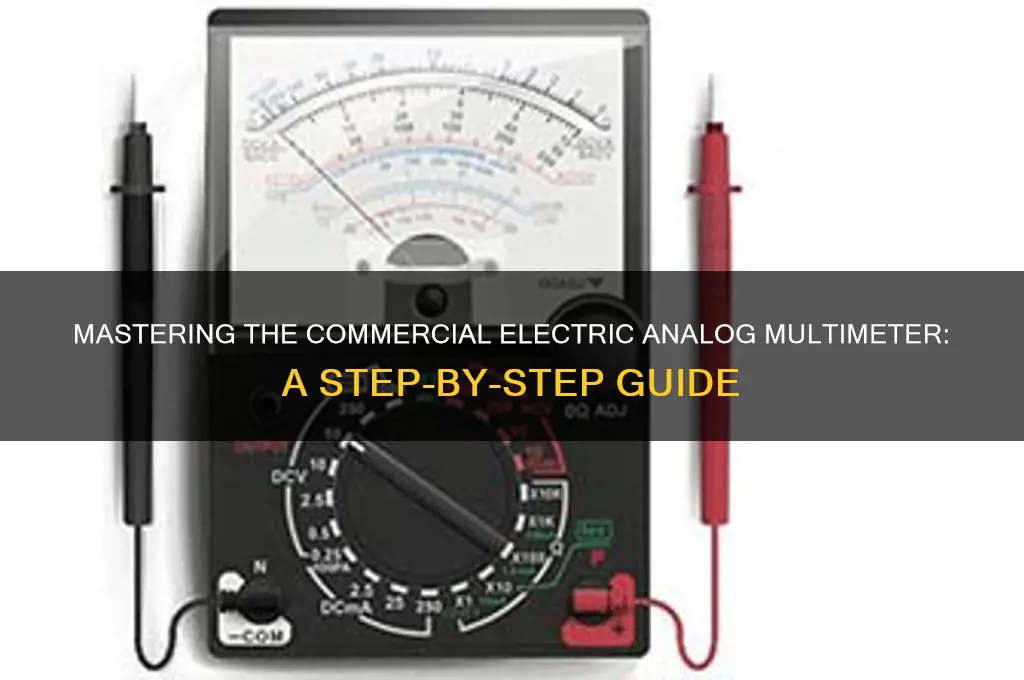

A commercial electric analog multimeter is a versatile tool used to measure voltage, current, and resistance in electrical circuits. To use it effectively, start by selecting the appropriate measurement range on the dial, ensuring it exceeds the expected value to prevent damage. Connect the test leads to the correct terminals—red for positive and black for negative—and place the multimeter in parallel for voltage measurements or in series for current measurements. When measuring resistance, ensure the circuit is de-energized, then touch the probes to the component. Observe the needle’s position on the analog scale, aligning it with the calibrated markings to read the value accurately. Always prioritize safety by wearing insulated gloves and avoiding live circuits unless necessary.
Explore related products
What You'll Learn
- Understanding Multimeter Basics: Learn the parts, functions, and safety precautions for using a commercial electric analog multimeter
- Setting Up the Multimeter: Properly connect probes, select measurement type, and adjust range for accurate readings
- Measuring Voltage: Safely measure AC/DC voltage by selecting the correct range and connecting probes in parallel
- Measuring Current: Measure AC/DC current by connecting probes in series and choosing the right range
- Measuring Resistance: Test resistance by connecting probes across the component and interpreting the needle position
Understanding Multimeter Basics: Learn the parts, functions, and safety precautions for using a commercial electric analog multimeter
A commercial electric analog multimeter is a versatile tool, but its utility hinges on understanding its components and their functions. At first glance, the device may appear intimidating, with its needle, scales, and multiple ports. However, breaking it down into key parts simplifies the learning curve. The selector switch is the heart of the multimeter, allowing you to choose the measurement type—voltage, current, or resistance. The needle moves across the scales, which are labeled for different units and ranges. Finally, the input jacks connect the test leads, with specific ports for voltage, current, and resistance measurements. Mastering these parts is the first step to accurate and safe usage.
Consider the selector switch as your multimeter’s control center. Each position corresponds to a specific function, often color-coded for clarity. For instance, the "V" range measures voltage, the "A" range measures current, and the "Ω" range measures resistance. Selecting the wrong range can damage the meter or yield inaccurate readings. For example, measuring high voltage on a low-voltage setting can blow a fuse, while measuring current on the voltage setting can overload the meter. Always start with the highest range and adjust downward to avoid these pitfalls. This methodical approach ensures both precision and longevity of the device.
Safety precautions are non-negotiable when using an analog multimeter. Unlike digital models, analog meters often require manual range selection, increasing the risk of user error. Always de-energize the circuit before connecting the meter, and ensure the test leads are in the correct ports. When measuring current, connect the meter in series with the circuit, but for voltage, connect it in parallel. Avoid touching probe tips together while measuring high voltage, as this can create a short circuit. Additionally, wear insulated gloves and stand on a rubber mat to minimize the risk of electric shock. These precautions may seem excessive, but they are critical in preventing accidents.
To illustrate the importance of understanding these basics, imagine troubleshooting a faulty lamp. You suspect the issue is either a broken wire or a dead bulb. By selecting the resistance range and testing the bulb, you can determine if it’s functioning. If the needle doesn’t move, the bulb is likely burnt out. However, if you mistakenly select the voltage range, you’ll get no useful reading and risk damaging the meter. This example underscores the need to align the selector switch with the task at hand. Practice and familiarity with the multimeter’s parts and functions transform it from a daunting device into an indispensable tool.
In conclusion, mastering a commercial electric analog multimeter requires a blend of knowledge and caution. Understanding the selector switch, needle, scales, and input jacks is fundamental to accurate measurements. Pairing this knowledge with strict safety protocols—such as proper range selection and circuit de-energization—ensures both effective troubleshooting and personal safety. While the learning curve may seem steep, the payoff is a versatile tool that can diagnose a wide range of electrical issues. With practice, the analog multimeter becomes not just a device, but an extension of your problem-solving skills.
Using Electrical Tape for Charging Cables: Safe or Risky Repair?
You may want to see also
Explore related products
Setting Up the Multimeter: Properly connect probes, select measurement type, and adjust range for accurate readings
Before taking any measurements with a commercial electric analog multimeter, proper setup is crucial to ensure accuracy and safety. Begin by connecting the probes correctly. The red probe, typically marked for positive, should be inserted into the terminal labeled for voltage or resistance measurements, while the black probe, designated for ground, goes into the common terminal. Ensure the probes are firmly seated to avoid loose connections that could lead to erroneous readings or damage to the device under test.
Selecting the appropriate measurement type is the next critical step. Analog multimeters often have a rotary switch with multiple positions for voltage (AC/DC), current, and resistance. For instance, if measuring DC voltage, align the switch with the V~ symbol for AC or V— for DC, depending on the power source. Misalignment can lead to incorrect readings or, worse, damage to the multimeter. Always double-check the switch position before proceeding, especially when transitioning between different types of measurements.
Adjusting the range is where many users falter, yet it’s essential for precision. Analog meters require manual range selection, unlike their digital counterparts. Start with the highest range and gradually decrease it until the needle deflects within the optimal 2/3 to 3/4 of the scale. For example, if measuring a 12V battery, begin with the 50V range and step down to 20V or 10V for a more accurate reading. Failing to adjust the range properly can result in overloading the meter or obtaining a reading too small to interpret accurately.
Practical tips can further enhance your setup process. Always handle probes with care, avoiding contact with bare metal to prevent short circuits. When in doubt, start with the highest range and work downward to avoid damaging the meter. Additionally, if the multimeter has a mirror behind the needle, ensure the needle’s reflection aligns perfectly with the needle itself for precise readings. These small details can significantly impact the reliability of your measurements.
In conclusion, setting up a commercial electric analog multimeter involves more than just plugging in probes. It requires deliberate actions—connecting probes securely, selecting the correct measurement type, and adjusting the range thoughtfully. Master these steps, and you’ll not only obtain accurate readings but also extend the life of your multimeter and the devices you test.
Electric Field Lines: Reality, Visualization, and Practical Applications Explained
You may want to see also
Explore related products
Measuring Voltage: Safely measure AC/DC voltage by selecting the correct range and connecting probes in parallel
Voltage measurement is a fundamental task in electrical work, and using a commercial electric analog multimeter requires precision and caution. To measure voltage safely, whether AC or DC, start by selecting the correct range on your multimeter. Analog meters have multiple voltage scales, typically ranging from 10V to 500V or higher. Always choose a range higher than the expected voltage to prevent overloading the meter. For instance, if you suspect the voltage is around 120V, select the 250V range to ensure accuracy and safety.
Once the range is set, connect the multimeter probes in parallel with the circuit you’re testing. This means placing the probes across the component or power source you want to measure. The red probe (positive) connects to the higher potential point, while the black probe (negative) connects to the lower potential or ground. Ensure the circuit is live but exercise extreme caution to avoid short circuits or electric shocks. For example, when measuring household outlet voltage, insert the probes into the hot and neutral slots, respectively, while avoiding contact with metal parts.
A critical aspect of measuring voltage with an analog multimeter is interpreting the needle’s position. Unlike digital meters, analog meters require you to read the scale manually. The needle’s deflection corresponds to the voltage value, and you must align it with the correct scale markings. Practice and familiarity with your meter’s scales are essential for accurate readings. For instance, if the needle points between 100 and 150 on the 250V scale, the voltage is approximately 125V.
Safety precautions are paramount when measuring voltage. Always wear insulated gloves and ensure the multimeter is in good condition, with no damaged probes or exposed wires. Never touch the probe tips while they are connected to a live circuit. Additionally, avoid measuring voltage in wet or humid environments to prevent electrical hazards. For high-voltage applications, such as industrial systems, use a meter with higher voltage ratings and consider having a second person present for added safety.
In summary, measuring voltage with a commercial electric analog multimeter involves selecting the appropriate range, connecting probes in parallel, and carefully interpreting the needle’s position. By following these steps and adhering to safety guidelines, you can accurately and safely measure both AC and DC voltage in various electrical systems. Practice and attention to detail will make this process second nature, ensuring reliable results every time.
Do Frame TVs Consume High Electricity? Energy Efficiency Explained
You may want to see also
Explore related products
Measuring Current: Measure AC/DC current by connecting probes in series and choosing the right range
To measure current with a commercial electric analog multimeter, you must connect the probes in series with the circuit. This is a fundamental rule because current flows in a loop, and inserting the meter in series allows it to intercept and measure the flow. Unlike voltage measurements, where probes are connected in parallel, current measurements require breaking the circuit and inserting the meter as a link. This ensures the entire current passes through the meter, enabling an accurate reading.
Choosing the right range is equally critical. Analog multimeters typically offer multiple current ranges, such as 10mA, 100mA, 1A, and 10A for DC, and similar ranges for AC. Start with the highest range to avoid overloading the meter, then gradually decrease the range until the needle deflects within the optimal 70-90% of the scale. For instance, if measuring a 12V DC circuit with a 500mA load, begin with the 1A range and adjust downward if necessary. Overloading the meter can damage the internal fuse or the movement mechanism, so always err on the side of caution.
A practical tip is to estimate the expected current before connecting the meter. For DC circuits, use Ohm’s Law (*I = V/R*) if you know the voltage and resistance. For AC circuits, consider the appliance’s rated current or use a clamp meter for a preliminary reading. This estimation helps in selecting the appropriate range and reduces the risk of errors or damage. For example, a household lamp drawing 0.5A should be measured on the 1A range, not the 10A range.
One common mistake is forgetting to reconnect the circuit properly after measurement. Always remove the meter and restore the original circuit configuration to avoid open circuits or unintended disconnections. Additionally, be mindful of polarity when measuring DC current. Reverse polarity can cause the needle to deflect in the opposite direction, leading to incorrect readings or potential meter damage. Most analog meters have a separate jack for high-current measurements, often marked with a "10A" label, so ensure you’re using the correct terminal.
In summary, measuring current with an analog multimeter requires both precision and caution. Connecting in series, selecting the right range, and estimating the current beforehand are essential steps. By following these guidelines, you can safely and accurately measure both AC and DC currents, ensuring the longevity of your meter and the reliability of your measurements.
Using a Gas Stove Without Electricity: A Complete Guide
You may want to see also
Explore related products
Measuring Resistance: Test resistance by connecting probes across the component and interpreting the needle position
To measure resistance with a commercial electric analog multimeter, begin by setting the selector switch to the appropriate resistance (ohms) range. This step is crucial because analog meters lack auto-ranging, and selecting the wrong range can lead to inaccurate readings or damage to the meter. For instance, if you’re testing a resistor expected to be in the thousands of ohms, start with the 10kΩ range. If the needle deflects minimally, switch to a lower range like 1kΩ for precision.
Next, connect the test probes across the component you’re measuring. The red probe (positive) should touch one end of the component, while the black probe (negative) touches the other. Ensure the probes make firm contact, as poor connections can result in erratic readings. For example, when testing a resistor, hold the probes directly on the resistor leads rather than the body to avoid interference from surface contaminants.
Interpreting the needle position requires understanding the meter’s scale. Analog meters have non-linear scales, meaning the spacing between values changes across the range. For resistance measurements, the scale typically expands near zero and infinity. If the needle rests near the leftmost edge, the resistance is very low (close to a short circuit). If it’s near the rightmost edge, the resistance is extremely high (close to an open circuit). For precise readings, align the needle’s position with the scale, ensuring you account for the parallax error by viewing directly from the front.
A practical tip for accuracy is to zero the meter before each measurement. With the probes connected to each other (shorted), adjust the "ohms adjust" knob until the needle points to zero on the scale. This calibration compensates for battery voltage variations and ensures reliable readings. For instance, if you’re testing a 470Ω resistor and the needle lands slightly off the mark, re-zeroing the meter can refine the result to within a few ohms.
Finally, consider safety and component handling. Always power down the circuit before measuring resistance, as live circuits can damage the meter or skew results. For sensitive components like transistors or integrated circuits, use the lowest resistance range to avoid applying excessive voltage from the meter’s internal battery. By following these steps and precautions, you’ll master resistance measurements with an analog multimeter, combining precision with practical skill.
Pregnancy and EMS: Is Electric Muscle Stimulation Safe for Moms-to-Be?
You may want to see also
Frequently asked questions
To set the range, turn the selector dial to the highest value in the category you’re measuring (e.g., voltage, current, or resistance). Gradually reduce the range until the needle deflects within the optimal range (typically the top 2/3 of the scale) for accurate readings.
Ensure the multimeter is set to the correct voltage range and connected in parallel with the circuit. Always start with the highest range to avoid damaging the meter. Never touch probe tips or circuit components while power is applied, and ensure the device is properly insulated.
Set the multimeter to the continuity or resistance (ohms) setting. Touch the probes together; the needle should deflect to zero, indicating proper functioning. Then, connect the probes across the component or circuit to check for a complete path. A low resistance reading or audible beep (if available) confirms continuity.
Needle fluctuation can result from weak batteries, loose connections, or external magnetic interference. Replace the batteries, ensure probes are securely connected, and move the meter away from magnetic fields. If the issue persists, the meter may require calibration or repair.
