Beatrice Lang

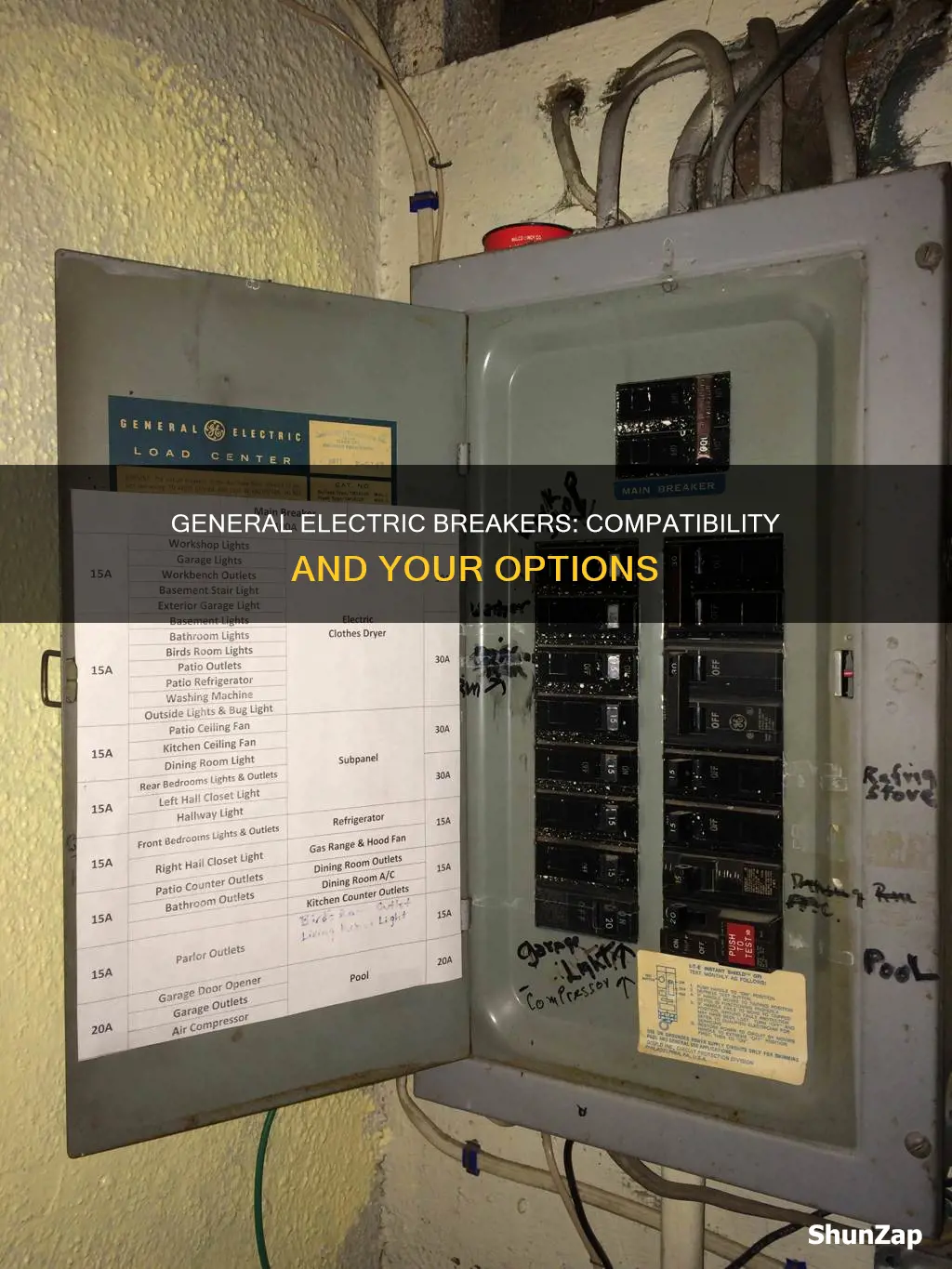

Breaker boxes, also known as distribution boards, are used to distribute power to various sources, and they are commonly found in homes. General Electric (GE) is one of the largest distribution board manufacturers in the country. When it comes to compatibility, the safest option is to use GE circuit breakers with GE breaker boxes. Siemens breakers are also generally compatible with GE breaker boxes, but it is important to match the size and voltage requirements for safety reasons.
| Characteristics | Values |
|---|---|
| Circuit breakers compatible with GE breaker boxes | GE circuit breakers |
| Siemens breakers | |
| Breakers from other makers that match the size and voltage requirements | |
| Breaker type for GE's Q-Line | THQL |
Explore related products
What You'll Learn
GE Q-Line breakers are compatible with old GE panels
If you have an old GE electrical panel and are looking to replace the breakers, it is recommended to use breakers from the same brand. GE Q-Line breakers are compatible with old GE panels and can be a suitable replacement option.
GE Q-Line breakers are designed to provide continuous, long-term protection against thermal or overcurrent faults. They are compact and feature corrosion-resistant, tin-plated copper stabs for extended durability. The breakers also have temperature-resistant casing and easily accessible trip handles.
The Q-Line series offers both two- and three-poled units, with each pole measuring 1 inch in width. All Q-Line units are GE arc fault breakers equipped with arc fault interrupters (AFCIs). This built-in technology can detect and prevent arc faults caused by wiring damage, enhancing the overall safety of your electrical system.
When considering breaker replacements, it is important to ensure compatibility with your specific panel. The THQL breaker, for example, is listed as compatible with old GE panels and can be used safely. However, it is always advisable to consult a professional electrician to ensure the proper type and brand of breaker are being used to avoid any electrical issues or warranty concerns.
In summary, GE Q-Line breakers are compatible with old GE panels and can provide reliable and safe circuit protection. By following the recommendations provided, you can ensure the continued safe operation of your electrical system.
Relocating Double Electric Sockets: A DIY Guide
You may want to see also
Explore related products
Siemens breakers are also compatible with GE breaker boxes
Breaker boxes, also known as distribution boards, are used to distribute power or electricity to multiple sources. They are a safety mechanism that controls the amount of electricity that passes through any given outlet. If too much electricity surges through a certain outlet, it sets off what is commonly known as a circuit breaker. This shuts off the power until it is manually reset, preventing a dangerous surge from running through any part of the system. General Electric (GE) is one of the largest distribution board makers in the country.
While Siemens breakers are generally known to be compatible with GE breaker boxes, it is recommended to use GE circuit breakers with GE breaker boxes as these products were designed to be used together. GE's Q-Line is a recommended option for older GE panels.
It is important to note that some sources suggest that only GE breakers are compatible with GE panels, and they are not classified for any competitive makes. It is always best to consult a professional electrician before making any changes or replacements to your breaker box or circuit breakers.
In summary, Siemens breakers can be used in GE breaker boxes, but it is crucial to ensure that the size and voltage requirements are matched for safety reasons. However, GE circuit breakers are specifically designed for GE breaker boxes, providing the safest option.
HP Encoder Strip: Electrical Safety Concerns and Precautions
You may want to see also
Explore related products
Using the wrong breakers can be dangerous
If you have an old GE panel from the 1970s, the only compatible brand of breakers is GE's Q-Line. For any breakers with AFCI and/or GFCI, you'll need type THQL.
Using the wrong breakers can be extremely dangerous. Circuit breakers protect against overload, surges, and short circuits in your home. They are the emergency shut-off mechanism, and without them, electrical faults can escalate, resulting in accidents like electrical fires.
Older homes may have circuit breakers that cannot support the demands of modern appliances. Breakers that trip frequently could indicate that your home has too few circuits and needs a service upgrade. If you are unable to fully reset a tripped breaker, you should call an electrician immediately to address the issue before it leads to a house fire.
Flickering lights, dimming lights, burning smells, buzzing, or crackling noises could also indicate a problem with your circuit breaker. If you are experiencing any of these issues, it is important to call a professional electrician to inspect your electrical panel as soon as possible.
Additionally, frequent power outages or brownouts can put a strain on circuit breakers and electrical panels, causing them to wear out faster. It is recommended that circuit panels be inspected at least every ten years to ensure they are in good working order.
Exploring Chime Types: Mechanical or Electric?
You may want to see also
Explore related products
Breakers should match the size and voltage requirements
When it comes to circuit breakers, size and voltage requirements are crucial factors in ensuring compatibility and safety. Circuit breakers are designed to protect electrical circuits from damage caused by overloads or short circuits, and choosing the right size is essential to preventing hazards and meeting your home's electrical demands.
The size of a circuit breaker refers to its amperage rating, typically ranging from 15 to 200 amps. The appropriate size depends on the electrical load of the circuit, which is determined by what the circuit powers, such as lighting, outlets, or heavy appliances. For instance, a small lighting circuit may only need a 15-amp breaker, while a kitchen circuit with multiple appliances may require a 20-amp breaker.
It's important to note that circuit breakers are also available in different physical sizes. These include full-size breakers (1-inch wide), half-size breakers (1/2-inch wide), and twin or tandem breakers (1-inch wide with two switches, controlling two circuits). The physical size of the breaker must be compatible with the available space in the breaker panel.
To ensure compatibility, it's recommended to consult the breaker panel door or documentation, which specifies the compatible breaker types. Additionally, it's crucial to match the circuit breaker size with the wire size in use. Using a wire-breaker size chart or calculator can help determine the right combination to ensure safety and prevent issues like overheating or fires.
When considering voltage requirements, circuit breakers are designed to supply specific voltage ranges, such as 120V, 240V, or a combination of both. The voltage requirement depends on the appliances or devices connected to the circuit. It's important to select a breaker that matches the voltage specifications of the devices it will protect.
In conclusion, ensuring that breakers match the size and voltage requirements is vital for safety, compatibility, and efficiency. By considering factors such as electrical load, wire size, and voltage specifications, you can select the appropriate breakers that align with your electrical system's demands and prevent potential hazards. If you're unsure, consulting a licensed electrician is always recommended to guide you through the complexities of your home's electrical needs.
The Harley Electra Glide's Radio: What You Need to Know
You may want to see also
Explore related products
It is recommended to use GE circuit breakers with GE breaker boxes
Breaker boxes, also known as distribution boards, are used to distribute power to various sources. They are a safety mechanism that controls the amount of electricity that passes through any given outlet. If there is an electricity surge, the circuit breaker is set off, shutting off the power until it is manually reset. This prevents a dangerous surge from running through the system.
General Electric (GE) is one of the largest distribution board makers in the country. When it comes to choosing circuit breakers that are compatible with a GE breaker box, it is recommended to use GE circuit breakers. These products are designed to be used together and can be easily found as their packaging references the appropriate breaker box.
While other brands of circuit breakers may fit a GE breaker box, it is important to prioritize safety when dealing with electricity in the home. Using breakers from lesser-known companies may result in cost savings, but it also increases the risk. It is crucial to match the size and voltage requirements when using breakers from other manufacturers, as using the wrong breakers can be dangerous.
For example, Siemens breakers are generally known to be compatible with GE breaker boxes. However, it is important to ensure that the size and voltage requirements are matched when using Siemens breakers. If the wrong breaker is used, it may fail to shut off the power during a surge, leading to a potential meltdown of the breaker box or even a fire.
Therefore, to ensure the safest setup, it is recommended to use GE circuit breakers with GE breaker boxes.
Glass-Fronted Electric Fireplaces: A Step-by-Step Setup Guide
You may want to see also
Frequently asked questions
The safest option is to use GE circuit breakers with GE breaker boxes. Siemens breakers are also compatible with GE breaker boxes, but it is important to match the size and voltage requirements as using the wrong breakers can be dangerous.
Breaker boxes, also known as distribution boards, are used as a base to distribute power or electricity to a number of sources. They are commonly found in homes and act as a safety mechanism to control the amount of electricity that passes through any given outlet.
The safest option is to use breakers and breaker boxes from the same brand. This ensures that the products were designed to work together and makes it easier to find compatible products as their packaging will often reference the appropriate breaker box.
