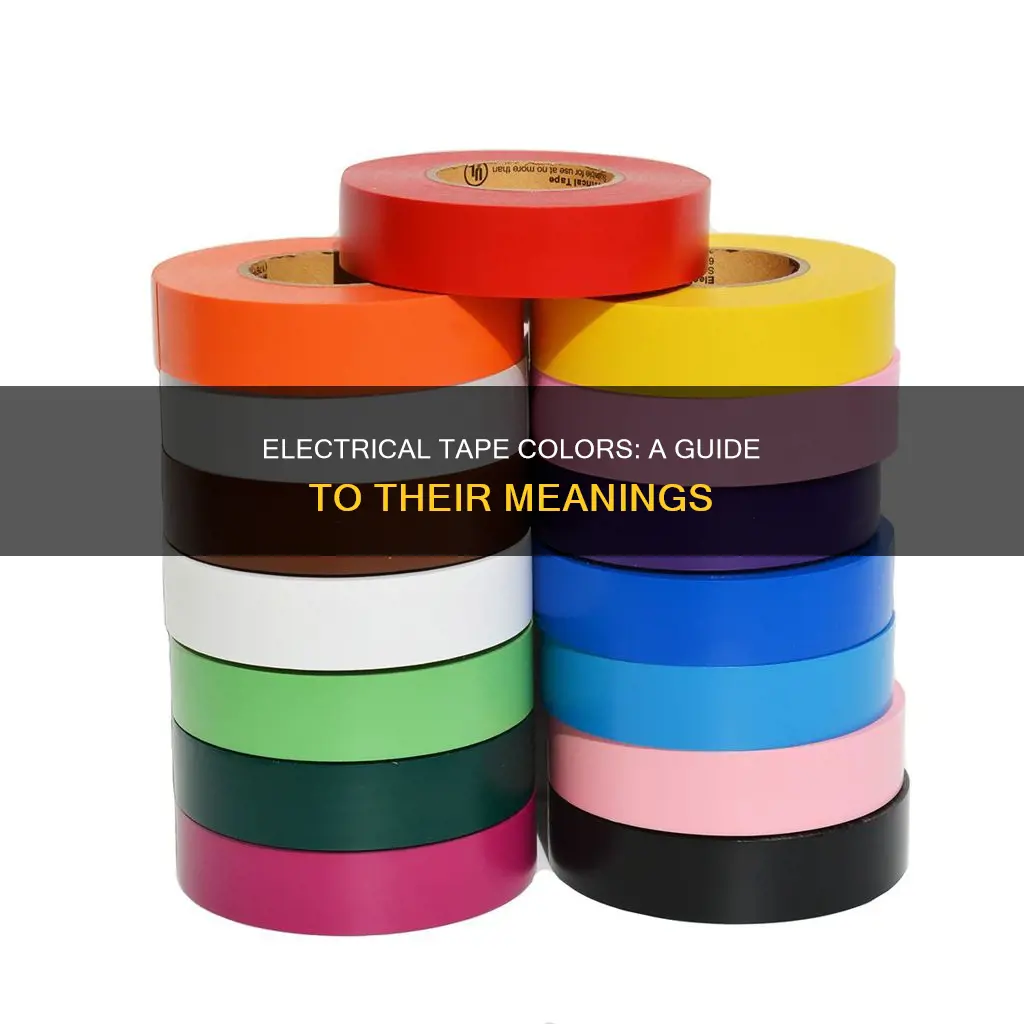

Electrical tape, also known as electrical insulation tape, is a versatile tool used by electrical contractors to insulate wires carrying electricity. It is typically made of flexible materials such as vinyl or PVC, with one side coated in a pressure-sensitive adhesive. Electrical tape comes in a variety of colours, each with a specific significance. The colours are used to differentiate wires, identify voltage levels, and indicate the phase of electrical power. For example, black electrical tape is generally used to insulate electrical wires, while blue tape indicates low voltage, phase C in both the UK and the US. Understanding the meaning of each colour is essential for electrical safety and ensuring a safe working environment.
Explore related products
What You'll Learn
Electrical tape colours and their voltage levels
Electrical tape, also known as electrical insulation tape, is typically made of flexible materials such as vinyl or PVC. One side of the tape is coated with a pressure-sensitive adhesive, allowing it to adhere firmly to surfaces. It is used to insulate and protect electrical connections, wires, and cables, creating a barrier that shields them from moisture, dust, and other contaminants. Electrical tape comes in various colours, each indicating a specific voltage level and usage designation for phasing tasks.
Black electrical tape is generally used to insulate electrical wires, while white electrical tape often signifies "low voltage, neutral". Blue tape indicates "low voltage, neutral sheath, 230V", and green tape usually means "earth ground". In the UK, yellow tape is used for "low voltage, phase B", while in the US, it denotes "high voltage, phase C". Brown tape is used in the US for "high voltage, phase A", and red tape typically means "low voltage, phase B". Grey tape generally indicates "low voltage, phase C".
Violet or purple tape is primarily used in the US for "high voltage, phase B", although other shades of purple are not common. Clear electrical tape is used alongside other colours to avoid confusion and is suitable for maintenance and repair work. The colours of electrical tape vary by region, and it is important to follow proper electrical practices and safety precautions when working with electrical tape.
The colours of electrical tape are not just for differentiation but also serve a functional purpose, indicating voltage levels and phases of wires. This helps professionals working with electrical systems to determine the purpose and role of each wire, ensuring a safe and manageable system.
Electrical Room Egress: Two Ways Out?
You may want to see also
Explore related products
Phasing and electrical tape colours
Electrical tape, also known as electrical insulation tape, is typically made of flexible materials such as vinyl or PVC and is used to insulate wires carrying electricity. Electrical tape comes in a variety of colours, each of which has a specific meaning and purpose. These colours are used to identify different phases of electrical power, allowing for the proper identification and organisation of wiring systems. This is known as phasing tape or phase taping.
Phasing tape is used to mark different phases or conductors in electrical systems. It is specifically used when multiple voltage-carrying conductors or phases need to be distinguished from one another. By applying phasing tape to individual conductors, electricians and technicians can easily identify the different phases, reducing the risk of errors or confusion. The tape is typically wrapped around both terminations of a wire to indicate its phase and voltage.
The colours of phasing tape include red, yellow, blue, black, green, grey, brown, orange, purple, and white. Black electrical tape is commonly used to insulate electrical wires, while green wires indicate the system's ground. Grey-marked wires typically indicate the neutral wire in a high-voltage system, taking the place of white. Red, black, and blue are used as phase wires in a 3-phase system, while black and red are used in a 1-phase system. Brown, orange, and yellow indicate a higher-voltage system, most often 480V.
It is important to note that the colours of electrical tape and their specific purposes may vary by region. For example, grey and orange electrical tapes are rare in the UK, while green electrical tape is an example of a colour used in the US but not in the UK. It is always essential to follow proper electrical safety practices and choose the correct colour of tape for the job to ensure a safe working environment.
In addition to phasing, electrical tape is also used for colour-coding and marking wires. This helps professionals working on electrical systems determine the role of each wire and keeps the system manageable. By using colour-coding, a tangled mess of black wires can be avoided, making it easier to work with and understand the electrical system.
Understanding Electrical Schematics: Decoding the Meanings of Symbols
You may want to see also
Explore related products
Electrical tape colours and their safety precautions
Electrical tape, also known as electrical insulation tape, is typically made of flexible materials such as vinyl or PVC. One side of the tape is coated with a pressure-sensitive adhesive, allowing it to adhere firmly to surfaces. It is used to insulate and protect electrical connections, wires, and cables, creating a barrier that shields them from moisture, dust, and other contaminants. Electrical tape also helps prevent electrical shocks and short circuits.
The different colours of electrical tape are used to identify various phases of electrical power and voltage levels, aiding in the proper identification and organisation of wiring systems. It is important to select the appropriate colour of electrical tape based on its intended use and industry standards. For example, yellow insulation tape has a specific purpose, and green electrical tape generally signifies the ground or earth. Blue electrical tape usually indicates "low voltage, phase C" or "low voltage, neutral sheath, 230V".
Before using electrical tape, it is crucial to inspect it for any damage, such as cuts or tears, or issues with the adhesive. Compromised or defective tape may not provide sufficient insulation. The surface to which the tape will be applied should be clean, dry, and free from contaminants to ensure proper adhesion.
It is important to note that the meaning of electrical tape colours may vary by region. For instance, brown electrical tape denotes "high voltage, phase A" in the US but is not widely used as a phase indicator in the UK. Similarly, white insulation tape is commonly used in the UK for visible and external applications, while in the US, it often signifies "low voltage, neutral". Therefore, it is essential to stay updated with local codes and application techniques to ensure safety when working with electrical tape.
Understanding Electrical Term Uo: What Does It Mean?
You may want to see also
Explore related products
Electrical tape colours for marking
Electrical tape, also known as electrical insulation tape, is typically made of flexible materials such as vinyl or PVC. One side of the tape is coated with a pressure-sensitive adhesive, allowing it to adhere firmly to surfaces. It is a versatile tool used to insulate wires carrying electricity, providing an effective barrier against moisture, dust, and other contaminants.
Electrical tape comes in a variety of colours, each serving a specific purpose. These colours are used to identify different phases of electrical power and voltage levels, enabling the proper identification and organisation of wiring systems. The meaning of each colour can vary by region, and it is important to follow local standards and regulations.
In the UK, white insulation tape is commonly used for external applications involving white cordage, providing better aesthetics for domestic applications. Blue electrical tape indicates "low voltage, phase C" in the UK and US, while internationally, it signifies "low voltage, neutral sheath, 230V". Green electrical tape represents earth in the UK and earth ground in the US, and when combined with yellow tape, it implies an isolated ground.
Yellow electrical tape in the UK denotes "low voltage, phase B", while in the US, it indicates "high voltage, phase C". Brown electrical tape is used in the US to signify "high voltage, phase A" and internationally for "low voltage, phase A", but it is not commonly used as a phase indicator in the UK. Black electrical tape is often used to insulate electrical wires, and it can be marked with colour-coded phasing tape to indicate the purpose of each wire.
It is important to note that coloured electrical tape is just one aspect of electrical safety. Proper electrical practices and safety precautions should always be followed to ensure a safe working environment. Additionally, it is crucial to inspect the tape for any damage, prepare the surface properly, and choose the appropriate tape thickness and width for the specific application.
Voltage: Understanding the Meaning of Electrical Potential Difference
You may want to see also
Explore related products
Electrical tape colours and their international usage
Electrical tape, also known as electrical insulation tape, is typically made of flexible materials such as vinyl or PVC. One side of the tape is coated with a pressure-sensitive adhesive, allowing it to adhere firmly to surfaces. It is used to insulate and protect electrical connections, wires, and cables, creating a barrier that shields them from moisture, dust, and other contaminants. Electrical tape is also used for marking and colour-coding wires and other components.
While the meaning of electrical tape colours varies by region, here is a guide to the international usage of different electrical tape colours:
White
White electrical tape is often used to indicate "low voltage, neutral" or "neutral sheath". In the UK, it is commonly used for external applications involving white cordage to provide better aesthetics.
Black
Black electrical tape is generally used to insulate electrical wires. It is also often marked with colour-coded phasing tape to indicate the purpose of each wire.
Blue
Blue electrical tape typically indicates "low voltage, phase C" in both the UK and the US. Internationally, it signifies "low voltage, neutral sheath, 230V".
Green
In the UK, green electrical tape signifies "earth". In the US, it means "earth ground". Internationally, green-and-yellow-striped tape is used for "isolated ground".
Brown
Brown electrical tape is not commonly used in the UK. In the US, it denotes "high voltage, phase A". Internationally, it usually means "low voltage, phase A".
Yellow
In the UK, yellow electrical tape is used for "low voltage, phase B". In the US, it signifies "high voltage, phase C". Internationally, yellow tape means "sheath, 110V site wiring".
Violet/Purple
Violet or purple electrical tape is primarily used in the US for "high voltage, phase B". Other shades of purple are not commonly used.
Grey
Grey electrical tape is not commonly found in the UK. It generally indicates "low voltage, phase C".
It is important to note that these are general guidelines, and the specific usage of electrical tape colours may vary depending on local standards and regulations. Always refer to wiring diagrams, research local standards, and follow proper electrical practices and safety precautions when working with electrical tape.
Electrical XYZ: Understanding the Basics of Electricity
You may want to see also
Frequently asked questions
The different colours of electrical tape are used to differentiate wires and indicate their voltage level, phase, and purpose. For example, black electrical tape is generally used to insulate electrical wires, while blue tape indicates "low voltage, phase C".
White electrical tape often signifies "low voltage, neutral".
Green electrical tape generally signifies "earth" in the UK and "earth ground" in the US.
