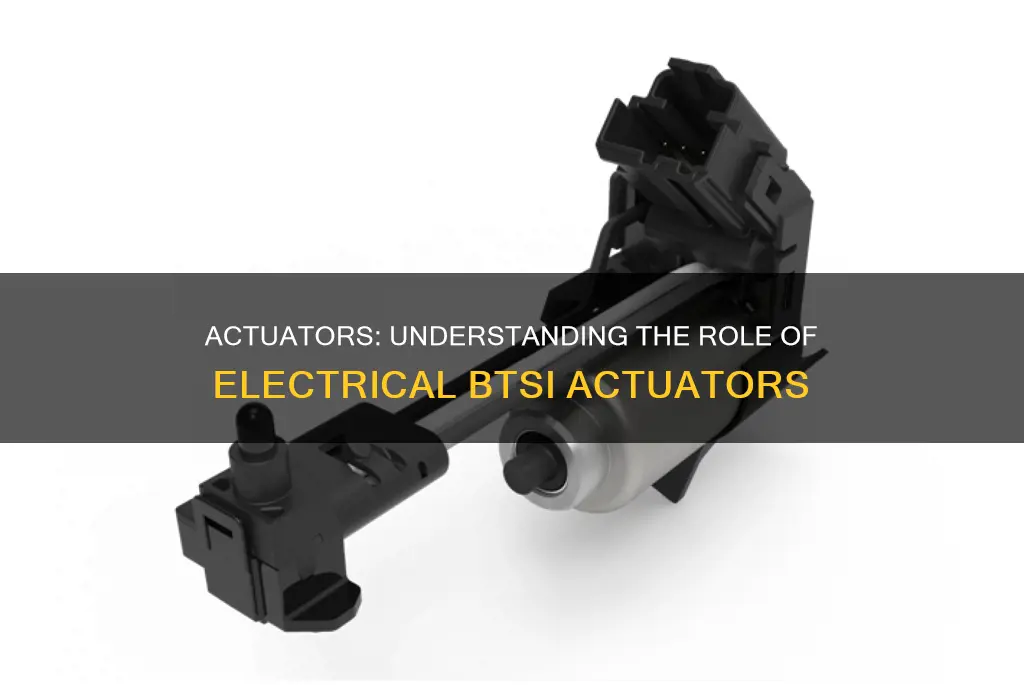

Actuators are devices that convert energy, such as electricity, air, or hydraulic power, into mechanical force, enabling movement in machines. BTSI, or Brake Transmission Shift Interlock, actuators are activated by pressing the brake pedal, which releases the vehicle's gear lever. They are designed to prevent a vehicle from shifting out of park mode into drive mode until the brake system operational state is determined. This is achieved through a mechanical blocking mechanism that prevents the transmission output shaft from rotating, and by using an electromagnetic solenoid to move the blocking mechanism out of its blocking position, allowing the vehicle to operate.
| Characteristics | Values |
|---|---|
| Definition | BTSI (Brake Transmission Shift Interlock) actuator |
| Function | Releases the vehicle's gear lever when the brake pedal is pressed |
| Activation | Pressing the brake pedal |
| Additional Features | Low-noise, Integrated parking recognition switch |
| Power Consumption | 567 mA (max. calculated) |
| Power Source | DC electric power source |
| Use Cases | Vehicles, industrial devices, robots, home appliances, electronic access control systems, mobile phones, etc. |
| Types | Electric, hydraulic, pneumatic, toggle, rotary, biased, piezoelectric, etc. |
Explore related products
What You'll Learn
- BTSI Actuators prevent vehicles from shifting out of park mode
- BTSI Actuators are activated by pressing the brake pedal
- BTSI Actuators are controlled by the Intelligent Power Module (IPM)
- BTSI Actuators are a type of electrical actuator
- Electrical actuators convert electrical energy into mechanical force
BTSI Actuators prevent vehicles from shifting out of park mode
BTSI stands for Brake Transmission Shift Interlock. BTSI actuators are a critical safety feature in vehicles, preventing them from shifting out of park mode unless the brake pedal is depressed. This mechanism ensures that the vehicle remains stationary when not in use, reducing the risk of accidental movement and improving overall safety.
BTSI actuators are activated by pressing the brake pedal, which releases the vehicle's gear lever and allows for shifting out of park mode. This activation is made possible through the integration of a mechanical blocking mechanism and an electromagnetic solenoid. The solenoid is energised when the brake pedal is depressed, which moves the mechanical blocking member out of its blocking position, enabling the transmission output shaft to rotate and the vehicle to operate.
The BTSI system plays a crucial role in preventing unintended vehicle movement by interlocking the transmission and brake systems. When the vehicle is in park mode, the BTSI unit engages a blocking position, preventing the transmission output shaft from rotating and immobilising the vehicle. This blocking mechanism ensures that propulsion torque is removed from the drive wheels, making it impossible for the vehicle to be operated until the brake pedal is activated.
In addition to the mechanical blocking mechanism, the BTSI unit also incorporates an electromagnetic solenoid. This solenoid is activated by the vehicle's DC electric power source through a brake switch. The brake switch ensures that the solenoid is only activated when the brake pedal is depressed, providing an additional layer of safety. When the brake pedal is released, the solenoid is energised, and the shift lever is locked in the park position.
The integration of BTSI actuators in vehicles enhances safety and provides peace of mind for drivers. By preventing accidental shifts out of park mode, BTSI systems ensure that vehicles remain stationary unless the brake pedal is intentionally depressed. This safety feature is especially important in modern vehicles with automatic transmissions, where a shift from park to drive mode could result in unintended acceleration without proper brake interlock mechanisms in place.
Testing Electric Golf Cart Controllers: A Step-by-Step Guide
You may want to see also
Explore related products
BTSI Actuators are activated by pressing the brake pedal
BTSI, or Brake Transmission Shift Interlock, actuators are activated by pressing the brake pedal. This releases the vehicle's gear lever, allowing the vehicle to be shifted out of park mode into a drive mode. BTSI actuators are an essential safety feature in vehicles with automatic transmissions, preventing vehicle movement when not in use.
BTSI actuators are activated by a supplemental control unit that generates a transmission release signal in response to the presence of a brake intent signal from brake pedal sensors. This signal is sent to the BTSI activating circuit, which then permits the release of the transmission. This process involves de-energizing the BTSI solenoid coil, which is activated by the vehicle's DC electric power source. When the brake pedal is depressed, the ground circuit opens, de-energizing the solenoid and allowing the mechanical blocking member to move out of its blocking position, enabling transmission output shaft rotation and vehicle operation.
In some vehicles, the BTSI system is designed to be 'active', requiring a power supply to activate. In these cases, disconnecting the solenoid power connector from the interlock solenoid will disable the system. Additionally, the BTSI solenoid is hardwired to and controlled by the Intelligent Power Module (IPM). The IPM relies on voltage supplied from the stop lamp switch to tell when the brake pedal is depressed. When the brake pedal is pressed, the ground circuit opens, de-energizing the solenoid and allowing the shift lever to be moved.
BTSI actuators are an example of a mechanical actuator, which converts energy, often electrical, into mechanical force to enable movement in a device or machine. Actuators are present in a wide range of applications, from simple electronic access control systems and household appliances to vehicles, industrial devices, and robots. They are a critical component in modern machinery, ensuring devices can perform the necessary mechanical movements.
Large Electric Motors: Understanding 120-Volt Power Requirements
You may want to see also
Explore related products
BTSI Actuators are controlled by the Intelligent Power Module (IPM)
BTSI (Brake Transmission Shift Interlock) actuators are a type of device that converts energy, often electrical, into mechanical force. They are activated by pressing the brake pedal, which releases the vehicle's gear lever. BTSI actuators are controlled by the Intelligent Power Module (IPM), which is a type of controller. Controllers ensure that the system functions seamlessly with the appropriate input quantities and other setpoints decided by an operator.
In the context of BTSI actuators, the IPM controls the ground side of the solenoid, which is energised or de-energised depending on whether the brake pedal is depressed or released. When the brake pedal is depressed, the ground circuit opens, de-energising the solenoid and moving the gearshift lever pawl, allowing the shift lever to be moved into any gear position. Conversely, when the brake pedal is released, the ground circuit is closed, energising the solenoid and prohibiting the shift lever from moving out of the park position.
The IPM relies on voltage supplied from the stop lamp switch to the stop lamp sense circuit to determine when the brake pedal is depressed. This information is used to control the ground side of the solenoid and ensure the proper functioning of the BTSI actuator. The IPM also receives input from the ignition key position, which influences the behaviour of the BTSI solenoid and the resulting shift lever functionality.
Overall, the IPM plays a critical role in controlling the BTSI actuator by interpreting various inputs and adjusting the behaviour of the solenoid accordingly. This ensures that the BTSI actuator functions as intended to prevent vehicle operation unless the brake pedal is activated, promoting safety and proper usage.
Medela Electric Breast Pump: Troubleshooting Guide for Moms
You may want to see also
Explore related products
BTSI Actuators are a type of electrical actuator
BTSI (Brake Transmission Shift Interlock) actuators are a type of electrical actuator. Actuators are devices that enable machines to achieve physical movement by converting energy into mechanical force. They are present in almost every machine, from simple electronic access control systems to vehicles, industrial devices, and robots.
BTSI actuators are activated by pressing the brake pedal, which releases the vehicle's gear lever. They are designed to prevent a vehicle from being shifted out of park mode into drive mode until a brake system operational state is determined. This is achieved through a mechanical blocking mechanism that prevents the transmission output shaft from rotating, effectively blocking the vehicle from being operated.
The BTSI unit includes an electromagnetic solenoid that moves the mechanical blocking member out of its blocking position, allowing the transmission output shaft to rotate and the vehicle to operate. This solenoid is activated by the vehicle's DC electric power source through a brake switch, which closes when the brake pedal is activated.
BTSI actuators are an essential safety feature in vehicles, ensuring that the vehicle remains in park mode until the brake pedal is depressed. This prevents accidental shifts into drive mode, enhancing the overall safety of the vehicle.
BTSI actuators are just one example of the many types of electrical actuators available, each designed for specific applications and functions.
Electric Force: Powering Our World
You may want to see also
Explore related products
Electrical actuators convert electrical energy into mechanical force
An actuator is a device that converts energy, often electrical, air, or hydraulic, into mechanical force. Actuators are present in almost every machine, from simple electronic access control systems to vehicles, industrial devices, and robots. They are the components in any machine that enable movement.
Electric actuators, for instance, work on the input of electric current or voltage. The output is always mechanical energy. Electrical actuators are a vital component in modern mechatronic systems, converting electrical energy into physical motion with precision and reliability. These devices are critical in a wide range of industries, but they assume particular importance in aerospace, where they regulate systems critical to flight and aircraft safety.
Electric rotary actuators use electrical energy to achieve rotational movement. This movement can either be continuous or towards a fixed angle as seen in servo and stepper motors. Electric linear actuators, on the other hand, use electrical energy to enable movements in a straight line.
BTSI (Brake Transmission Shift Interlock) actuators are activated by pressing the brake pedal, releasing the vehicle's gear lever. This prevents a vehicle transmission from being shifted out of a park mode into a drive mode until a brake system operational state is determined.
Electricity Access in Thailand: How Many Have Power?
You may want to see also
Frequently asked questions
BTSI stands for Brake Transmission Shift Interlock. It is a safety mechanism that prevents a vehicle from being shifted out of park mode into drive mode until the brake system is operational.
The BTSI actuator is activated by pressing the brake pedal, which releases the vehicle's gear lever. It is controlled by the Intelligent Power Module (IPM) and relies on voltage supplied from the stop lamp switch to tell when the brake pedal is depressed.
The purpose of a BTSI actuator is to prevent accidental shifting of the vehicle's transmission, which could result in unintended movement of the vehicle.
Yes, there are different types of BTSI actuators depending on the vehicle and its transmission system. Some common types include mechanical interlock systems, electromagnetic solenoid-based systems, and supplemental brake units.
Most modern vehicles with automatic transmissions are equipped with a BTSI mechanism. If your vehicle is not equipped with one, you may consider installing one as an additional safety measure to prevent accidental shifting. Consult your vehicle's manual or a professional mechanic for advice specific to your vehicle.
