Molly Ayala

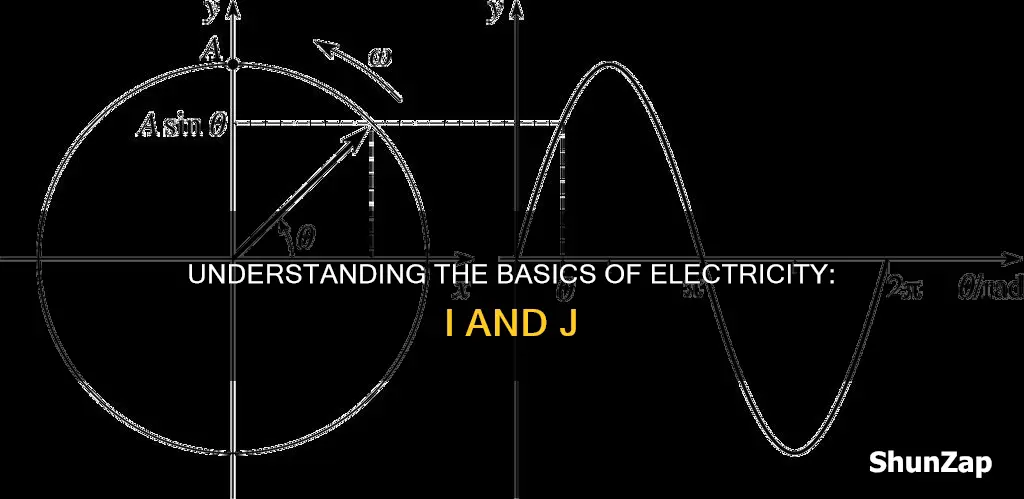

In mathematics, the letter i is used to represent the imaginary unit, or the square root of -1. However, in electrical engineering, i is used to represent current, so j is used in place of i for the imaginary unit. This is done to avoid confusion when dealing with complex numbers and equations that involve current. In electronics, the imaginary unit is important as it represents the energy stored in a circuit and phase shift when dealing with sinusoidal signals.
| Characteristics | Values |
|---|---|
| What does 'i' mean in electricity? | Current |
| What does 'j' mean in electricity? | Square root of -1, Imaginary unit |
| Why is 'j' used for the imaginary unit? | To avoid confusion with 'i' which is used for current |
Explore related products
What You'll Learn
i represents current
In electrical engineering, the letter 'i' is used to represent electric current. This is distinct from the use of 'i' in mathematics, where it represents the imaginary unit, or the square root of -1.
The use of 'i' to represent current is standard in electrical engineering, and it is important to distinguish it from the mathematical usage of the symbol to avoid confusion. In electrical engineering, current typically refers to electric current, which is a coarse, average quantity that describes what is happening in an entire wire. It is a fundamental concept in electricity and electronics, and it is measured in Amperes, or 'amps'.
Electric current is the flow of electric charge, and it can be direct or alternating. In a direct current (DC), the flow of electrons is unidirectional, whereas in alternating current (AC), the flow of electrons changes direction periodically. Electric current is essential for the operation of electrical circuits, as it enables the flow of energy and the transmission of power.
The magnitude of the current is determined by the number of electrons flowing past a given point in a circuit per unit of time. Ohm's law, a fundamental principle in electrical engineering, states that the current (I) flowing through a conductor is directly proportional to the voltage (V) applied, and inversely proportional to the resistance (R) of the conductor. This relationship is expressed by the equation: I = V/R.
In electrical engineering, the use of 'i' to represent current is so prevalent that it influences the choice of symbols in other contexts. For example, in mathematics, the symbols 'i', 'j', and 'k' are used as unit vectors in the directions of the x, y, and z-axes, respectively. However, in electrical engineering, 'i' is already used for current, so j is used instead for the imaginary unit to avoid confusion.
Electrical Waves: Understanding Their Nature and Significance
You may want to see also
Explore related products
j represents the imaginary unit
In mathematics, the imaginary unit, denoted by the letter "i", is a very helpful number used to solve equations with a higher order than 2. The imaginary unit is defined solely by its property that its square is -1. The letter "i" is used for the current in electrical engineering, so to avoid confusion, the letter "j" is used to represent the imaginary unit in this field.
The use of "j" instead of "i" for the imaginary unit in electrical engineering is a matter of convention and convenience. The imaginary unit is often used in electrical engineering to represent the square root of -1, and since "i" is commonly used to represent electric current in this field, using "j" helps to avoid ambiguity. This convention is particularly useful when dealing with complex numbers, which consist of both a real and an imaginary part. For example, in electronics, the equation E=I*Z, where E is the voltage, I is the current, and Z is the impedance, can be used to find the voltage in any AC circuit. If the current is given as 5+4j amps and the impedance as 3-j ohms, the voltage can be calculated as (5+4j)*(3-j).
Using "j" as the imaginary unit in electrical engineering also aligns with the use of "i", "j", and "k" as unit vectors in the directions of the x, y, and z-axes, respectively. This means that "i" has two different meanings in the real plane, depending on whether it is interpreted as a vector or a complex number. In contrast, "j" consistently represents the y-axis, regardless of whether it is interpreted as a vector or a complex number.
In electronics, the imaginary unit is used to represent the energy stored in a circuit, such as in a capacitor, and it also represents the phase shift in a circuit when dealing with sinusoidal signals. Imaginary numbers are necessary for certain types of circuits to produce energy flow, such as in coils and capacitors, where there is no real voltage drop or current flow. They are also used to measure the amplitude and phase of electrical oscillations, such as audio signals, radio waves, and waves used in transmitting telephone calls.
Understanding CTL in Electrical Panels: A Comprehensive Guide
You may want to see also
Explore related products
j is used to avoid confusion
In mathematics, the imaginary unit is a very helpful number used to solve equations with higher than the second order. It was introduced to provide at least one root in every polynomial. In electronics, the imaginary unit represents the energy stored in a circuit, such as a capacitor, and also represents the phase shift in a circuit when dealing with sinusoidal signals.
In electrical engineering, the letter 'i' is used to represent current. This is why, in electronics, the letter 'j' is used to represent the imaginary unit, i.e. the square root of -1, to avoid confusion with the variable for current. The use of 'j' is almost ingrained in electrical engineering, and the use of 'i' for current is always used.
The use of 'j' is also helpful as the symbols 'i', 'j', and 'k' are used for unit vectors in the directions of the x, y, and z-axes, respectively. This means that 'i' has two different meanings in the real plane, depending on whether you think of it as the vector space spanned by 'i' and 'j' or complex numbers. However, the meaning of 'j' does not change, and either way, it points along the y-axis.
In electronics, it is quite convenient to be able to pack in two pieces of information into one number, which is possible with complex numbers. This allows for the representation of both magnitude and phase in a single number, which is useful when dealing with calculations involving 2-dimensional vectors.
The Meaning of Fuses: Electrical Safety and Protection
You may want to see also
Explore related products
i is used for indices
In mathematics, the letter 'i' is used to represent an imaginary number, specifically the square root of -1. This is a very helpful number used to solve equations with a higher order than 2. In electronics, the imaginary unit represents the energy stored in a circuit. However, in electrical engineering, the letter 'i' is used to represent current.
To avoid confusion, electrical engineers use the letter 'j' to represent the square root of -1. The letter 'i' is also used for unit vectors in the x-direction, and so using 'j' instead for the imaginary unit avoids any dual meaning.
In physics, the letter 'i' is used for the imaginary unit, as 'j' is used for current density.
The letter 'i' is also used for indices in physics. For example, in the expression for current density, the variable 'j' is defined as:
> the limit of the ratio of electric current flowing through a surface (I_A) to the surface area (A) as the surface area tends to 0.
Here, the subscript 'A' is an index that specifies the surface area in question. Similarly, the subscript 'M' in the variable 'I_A' denotes that the current is flowing through a surface centred at point M.
What is FSR Technology? Electrical Engineering Explained
You may want to see also
Explore related products
j is used for the square root of -1
In mathematics, the imaginary unit, or the square root of -1, is typically represented by the letter "i". However, in electrical engineering, the letter "i" is used to represent current. To avoid confusion, electrical engineers use the letter "j" to represent the square root of -1 instead. This substitution ensures that the symbol for the imaginary unit does not conflict with the symbol for current.
The use of "j" for the imaginary unit in electrical engineering can be traced back to the work of William Rowan Hamilton, who first introduced the concept of quaternions. Quaternions are a number system that includes real and imaginary components. In a quaternion, the form is typically expressed as a + bi + cj + dk, where a, b, c, and d are real numbers, and i, j, and k are imaginary units. Importantly, i, j, and k are not equal to each other, and squaring each of them results in -1.
The use of "j" in electrical engineering provides some advantages. Firstly, it eliminates potential confusion with the use of "i" for current. Additionally, in the context of unit vectors, using "j" ensures that its meaning remains consistent. In mathematics, "i" can have two different interpretations depending on whether it is considered in the context of vector space or complex numbers. On the other hand, "j" consistently represents the unit vector in the y-axis direction, regardless of the context.
The choice of "j" over other letters, such as "c," for the imaginary unit in electrical engineering is a matter of convention and practicality. While some people have suggested using "c" for complex numbers, the use of "j" is deeply ingrained in electrical engineering notation and is widely accepted.
It is worth noting that the use of "j" specifically for the square root of -1 is unique to electrical engineering. In other fields, such as physics, "j" may have different meanings, such as representing current density. Therefore, the use of specific symbols can vary depending on the discipline and context.
Understanding Parallel Circuits: Electricity's Multi-Tasking Marvels
You may want to see also
Frequently asked questions
In electrical engineering, 'i' represents current and 'j' is used for the square root of -1, which is also known as the imaginary unit.
'i' is used to represent current because it originally denoted intensity.
'j' is used for the imaginary unit because 'i' is already used for current.
The imaginary unit in electronics represents the energy stored in a circuit. It also represents the phase shift in a circuit when dealing with sinusoidal signals.
The symbols i, j, and k are used for unit vectors in the x, y, and z-axis directions respectively. 'i' has two different meanings in the real plane when thought of as either the vector space spanned by i and j, or as a complex number. 'j' does not change meaning depending on the context.
