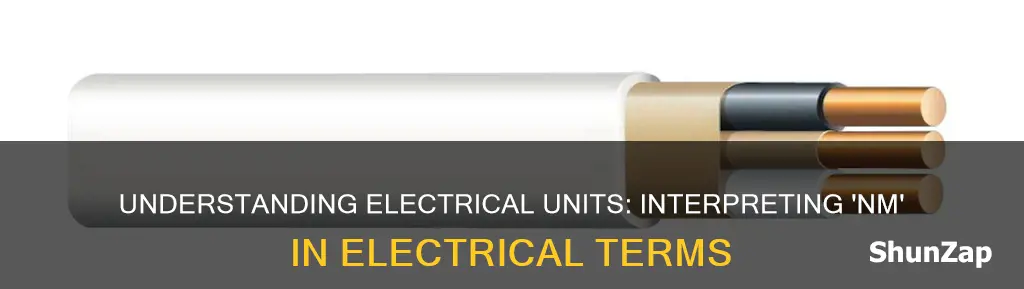

In electrical wiring, NM stands for non-metallic and refers to a type of cable with a vinyl or PVC outer sheathing. It is used for residential electrical devices and is the most common wiring used when wiring a house. NM cables are made of copper and are individually coated in plastic. They are typically used for GFCI outlets, lights, and wall outlets. NM cables are also known as Romex wire, which is the brand name of one type of NM wire.
Explore related products
What You'll Learn
NM stands for non-metallic
Non-metallic wiring is typically made up of three parts: an outer cable sheathing, wire insulation, and individual wires (conductors). The outer sheathing is made of a tough 30 mil-thick PVC jacket that serves to protect the bundle of individual wire conductors. The wires within the sheathing are made of soft, uncoated copper and are individually coated in plastic. A strip of paper is often woven between the individual wires to act as a separator.
NM cable comes in various wire gauges, with 12-gauge and 14-gauge wires being the most common for standard household circuits. The size of the conductors and their number are used to identify the type of NM cable. For example, the commonly used Type NM 12-2 cable contains two 12 American Wire Gauge (AWG) insulated conductors.
NM cable is permitted for use in one and two-family dwellings, including their attached or detached garages and storage buildings. However, it is not suitable for services, outdoor use, underground installation, embedding in concrete, or as data or fire alarm cable. NM cable should be secured at intervals not exceeding 4.5 feet and within 12 inches of junction boxes and panels to prevent sagging and vulnerability to damage.
