An open ground is an electrical outlet that is not connected to a ground wire. This is unsafe because, although the outlet appears to be grounded, it is not. Therefore, plugging in a three-prong cord creates a potentially unsafe condition. Modern homes have three-wire receptacles that accommodate electrical cords with three-prong plugs, and most major appliances, such as stoves, refrigerators, and computers, have three-prong plugs. This means they must be grounded through the receptacle. If there is no grounding conductor at the receptacle, there is a danger of possible shock or electrocution and damage to the equipment.
Characteristics and Values
| Characteristics | Values |
|---|---|
| Definition | An open ground is when a three-pronged outlet is not connected to an equipment ground. |
| Cause | Replacing old two-prong receptacles with modern three-prong receptacles without adding a grounding conductor. |
| Identification | An outlet tester will indicate an open ground with a light-up code. |
| Safety | Open grounds can lead to electrical shock, electrocution, equipment damage, and house fires. |
| Repair | Run a new ground wire from the receptacle to the main panel or install a ground fault circuit interrupter (GFCI) receptacle. |
| Building Codes | Required by building codes since the 1970s and mandated on appliances since 1969. |
| Insurance | Home insurance may be cancelled or selling a home may be impacted without repairing open grounds. |
Explore related products
What You'll Learn
Open grounds are common in houses built before 1962
An open ground is an electrical outlet that does not have a ground wire connected. This is common in houses built before the adoption of the 1962 electrical code, where two-prong outlets were standard and no ground wire was present. When these older outlets are replaced with modern three-prong outlets and a grounding conductor is not added, an open ground is created. This results in a potentially unsafe condition as the outlet appears to be grounded but is not. Plugging in a three-prong cord, which requires a grounding conductor for safety, can lead to possible shock, electrocution, or equipment damage.
To address this issue, it is recommended to hire a certified and licensed electrical services company. They can test the outlets to determine if they are grounded and make any necessary repairs. In some cases, a ground fault circuit interrupter (GFCI) receptacle can be installed to protect against shock, but this will not safeguard equipment from damage. For comprehensive protection against shock, electrocution, and equipment damage, a new ground wire must be run from the receptacle back to the main panel.
While it is not mandatory to rewire an older home entirely, it is advisable to bring it up to code when financially feasible. Some insurance companies may not insure houses that have not been updated with proper grounding. Significant upgrades, such as adding grounds to many receptacles, are generally recommended to ensure electrical safety. This may involve cutting into walls or floors to access ceiling lights on the first floor.
It is worth noting that open grounds can also be found in post-1962 houses where the equipment grounding conductor has been disabled for various reasons. Therefore, it is important to have a professional inspect and diagnose the electrical system to ensure safety and compliance with modern standards.
Interlocking Electrical Systems: Safety Through Connection
You may want to see also
Explore related products
Three-pronged outlets are required by building codes
An open ground is when a three-pronged outlet is not connected to the grounding system of the electrical system in a house. Three-pronged outlets are now required by building codes and have been mandated on all appliances by the Underwriter's Laboratory since 1969. Any home built since the 1970s is likely to have three-pronged or grounded outlets installed.
Three-pronged outlets are now standard in modern homes, accommodating electrical cords with three-prong plugs. The third prong provides a path to the grounding system of the house. Most major appliances, such as stoves, refrigerators, and computers, have three-prong plugs, meaning they must be grounded through the receptacle.
If there is no grounding conductor at the receptacle, there is a risk of possible shock or electrocution and damage to equipment. The equipment could become energized, creating a dangerous situation for anyone in contact with it. Therefore, it is important to have three-pronged outlets installed by a certified, licensed professional, and to ensure they are properly grounded.
Building codes, such as the National Electrical Code (NEC) in the US, provide standards for the safe installation of electrical systems. While local codes can vary, the NEC is the standard followed by most communities. Codes outline requirements for outlet placement, GFCI protection, and grounding. For example, in bathrooms, there must be a GFCI-protected receptacle at least 3 feet from the outside edge of the sink basin. In kitchens, outlets should be placed no more than 48 inches apart.
Understanding Flexible Electricity Plans: Month-to-Month Explained
You may want to see also
Explore related products
Open grounds can lead to electrical shock, equipment damage, and death
An open ground is when a three-pronged outlet is not connected to a ground wire. This can lead to electrical shock, equipment damage, and even death.
An open ground occurs when a three-pronged outlet is not connected to an equipment ground, or grounding conductor. This is often found in houses built before the 1962 electrical code, where two-prong receptacles are replaced with modern three-pronged outlets without adding a grounding conductor. It can also be found in newer homes where the equipment grounding conductor has been disabled.
Dangers of an Open Ground
An open ground poses several dangers:
- Electrical Shock and Electrocution: If there is no grounding conductor, there is a risk of electrical shock or electrocution when plugging in a three-prong cord. This is because the grounding conductor provides a path to ground for the electric current, and without it, the equipment and anyone in contact with it can become energized.
- Equipment Damage: An open ground can lead to damage to sensitive electronic equipment. While a ground fault circuit interrupter (GFCI) can protect against electrical shock, it does not provide full protection against equipment damage.
- Fire Hazard: An open ground can increase the risk of a house fire. In the event of an electrical surge, the excess electricity has nowhere to go and can lead to a fire.
- Death: In extreme cases, an open ground can lead to death. According to the National Center for Biotechnology Information, approximately 1,000 deaths occur each year in the United States due to electrical injuries.
It is important to take electrical safety seriously and address any open grounds in your home. You can identify an open ground using an outlet tester or by physically checking the connection between the outlet and the ground wire. If you are unsure, it is best to contact a licensed electrician for assistance.
Understanding Electric Fences: Low Impedance Explained
You may want to see also
Explore related products
Home inspections often flag open grounds

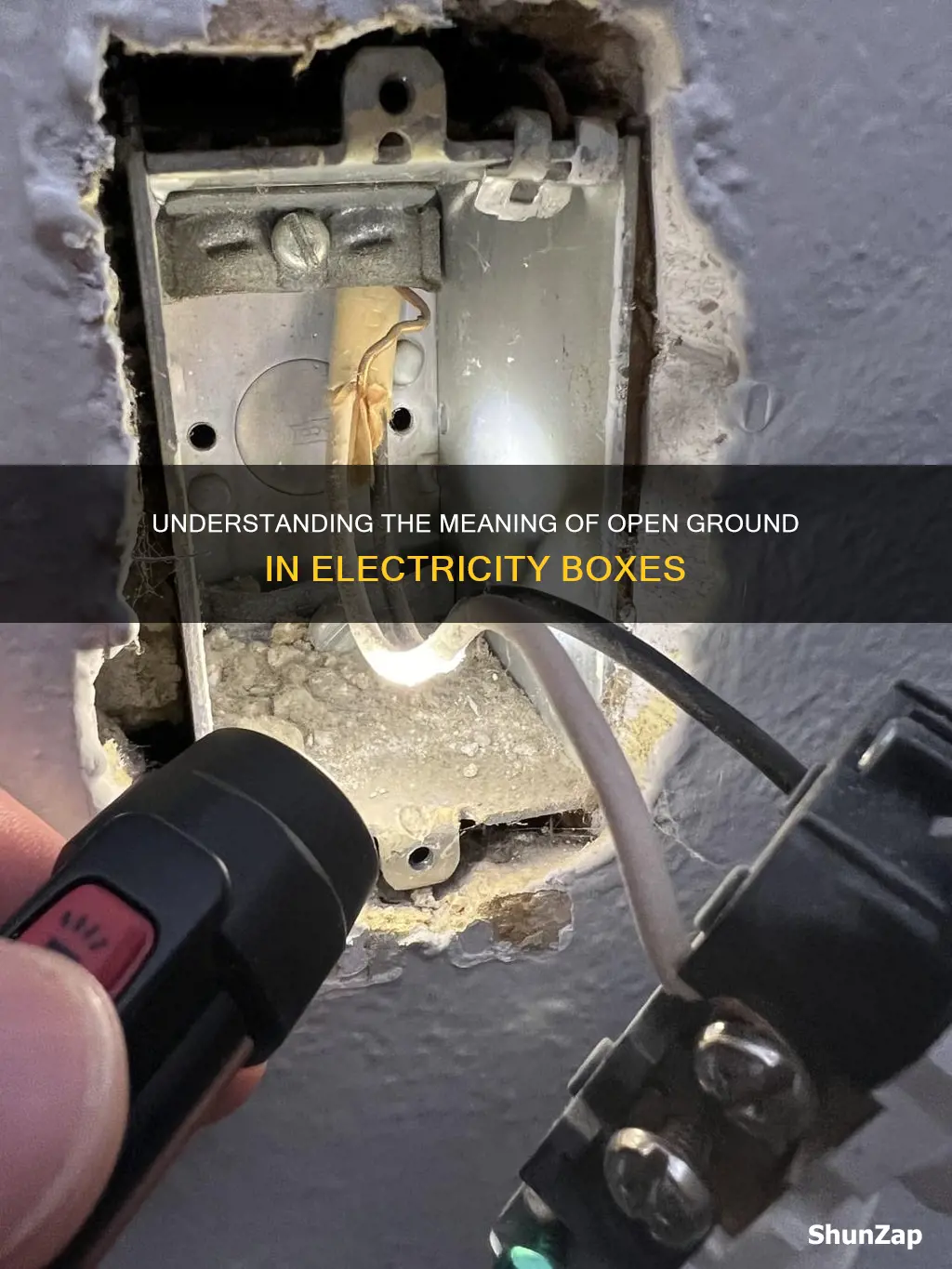

An open ground in an electrical box means that the electrical outlet is not connected to the grounding system of the electrical system in the house. This is a common issue in houses built before the adoption of the 1962 electrical code, where two-prong outlets were replaced with modern three-prong outlets without adding a grounding conductor.
During a home inspection, it is important to identify any electrical problems, as they can be costly to repair and potentially dangerous. Outdated wiring may need to be replaced entirely to make the home safe to occupy and to accommodate large, modern appliances. A licensed professional should inspect most electrical outlets and problems, but there are a few things to look out for when inspecting a property. If there are appliances present, it is recommended to turn them on while the lights are on. If the circuit breaker trips, this is a sign of a potential electrical issue.
To fix an open ground, an electrical company can test the outlets to see if they are grounded and fix any problems. If there is no need for a ground at the receptacle because only two-prong cords will be plugged in, the three-prong receptacle can be replaced with a two-prong one. If three-prong cords need to be plugged in, a ground fault circuit interrupter (GFCI) receptacle can be installed to protect against possible shock, although equipment may still be damaged. To protect against shock, electrocution, and equipment damage, a new ground wire must be run from the receptacle to the main panel.
Understanding LEN in Electrical Wiring: A Simple Guide
You may want to see also
Explore related products
To fix an open ground, you can install a GFCI receptacle
An open ground is an electrical receptacle that does not have a ground wire connected. This is unsafe because plugging in a three-prong cord creates a potentially hazardous situation. Modern homes have three-wire receptacles that accommodate electrical cords with three-prong plugs, and the third prong provides a path to the grounding system of the house. Most major appliances, such as stoves, refrigerators, and computers, have three-prong plugs and must be grounded through the receptacle. If there is no grounding conductor at the receptacle, there is a risk of shock or electrocution and damage to the equipment.
It is important to note that while GFCI outlets offer some protection, they will not protect your electronics in the event of a ground fault. Your electronic devices will only be protected if there is a ground wire and surge protector in place. Additionally, a plug-in tester on a GFCI outlet will not work without a ground wire, and all ungrounded GFCI receptacles must be labelled with "No Equipment Ground" and "GFCI Protected" stickers.
If you are considering installing a GFCI outlet, it is recommended to always have a professional electrician perform the installation. While GFCIs are relatively easy to replace, there is always a risk of electrical shock. If electrical safety is not your strong suit, it is best to call in a professional. Get quotes from multiple pros and choose a licensed and certified electrician to ensure the work is done safely and correctly.
By installing a GFCI receptacle, you can fix an open ground and improve the safety of your electrical system. GFCI outlets offer protection against electrical faults, fires, and electrocution, helping to keep your family and home safe. However, it is important to be aware of the limitations of GFCI outlets and take the necessary steps to ensure proper installation and labelling.
Understanding Electrical Line Meanings: A Comprehensive Guide
You may want to see also
Frequently asked questions
An open ground means that a three-pronged outlet is not connected to a ground wire or an equipment ground. This can be because the wire is disconnected or because there is no wire.
An open ground can lead to electrical shocks, electrocution, property damage, and even death. It can also cause a house fire.
You can fix an open ground by hiring a licensed electrician to run a new ground wire from the receptacle back to the main panel. Alternatively, you can install a ground fault circuit interrupter (GFCI) receptacle, which will protect against electrical shocks but not equipment damage.
