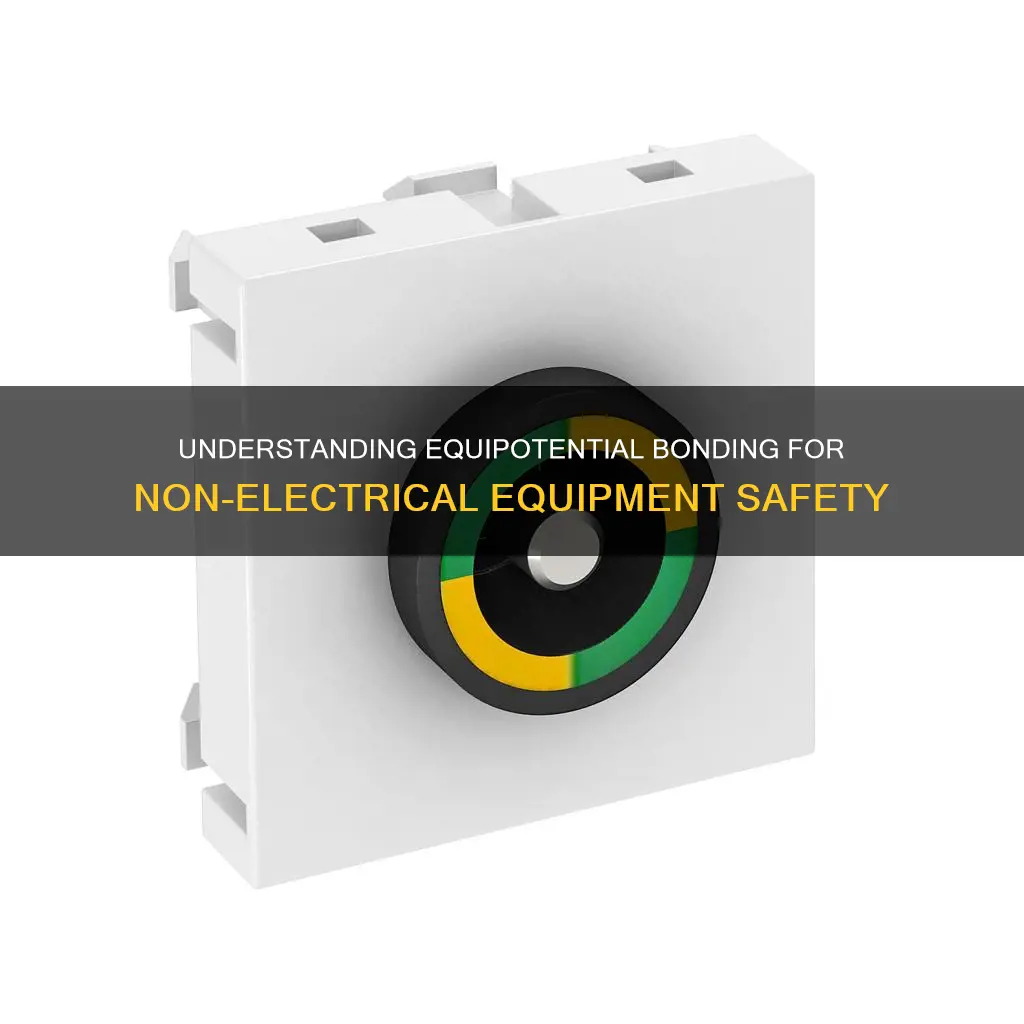

Equipotential bonding is a technique used to prevent equipment damage and personal injury by minimising the risk of electric shock. It involves connecting all exposed metal items not designed to carry electricity in a room or building to an earthing system, ensuring that all conductive parts have the same electrical potential. This is particularly important in areas with an increased risk of electric shock, such as bathrooms, kitchens, and swimming pools, where supplementary equipotential bonding is required. In these areas, all exposed metal, including pipes and electrical circuits, must be bonded together to prevent potential differences and the risk of electric shock.
Characteristics and Values of Equipotential Bonding
| Characteristics | Values |
|---|---|
| Definition | A technique for minimising the danger of equipment damage and personal injury |
| Purpose | To prevent electric shock and protect equipment and people by reducing the current flow between pieces of equipment at different potentials |
| Application | Connecting all metals and conductive goods to an earthing system (grounding system) so all of them have the same potential energy (voltage) |
| When to use | In areas with an additional risk of electric shock, such as bathrooms, saunas, kitchens, and showers |
| Benefits | Reduces the risk of equipment damage and personal injury, ensures safety, and achieves electromagnetic compatibility |
| Standards | BS 7671, IEC 364-4-41 Standard, GOST 13109-97, IEEE Standard 1048 |
Explore related products
What You'll Learn
Electrical bonding
In a building, there are typically a number of services other than electrical supply that employ metallic connections in their design. In its most basic form, earthing and equipotential bonding prevent electric shock. For example, in a kitchen, if a dishwasher develops an electrical problem, a current is removed and sent down to the earthing path of the electrical equipment. Without an earth connection, the dishwasher’s metal exterior casing might become live. The goal of earthing is to reduce the contact voltage in such an instance. Equipotential bonding is a protective conductor that connects all at-risk metallic (conductive) pieces.
In a system with a grounded (earthed) neutral, connecting all non-current-carrying metal parts of equipment to earth ground at the main service panel will ensure that current due to faults (such as a "hot" wire touching the frame or chassis of the device) will be diverted to earth. In a TN system, earthing will allow the branch circuit over-current protection (a fuse or circuit breaker) to detect the fault rapidly and interrupt the circuit. In the case of a TT system where the impedance is high, a residual-current device (RCD) must be used to provide disconnection. RCDs are also used in other situations where rapid disconnection of small earth faults (including a human touching a live wire by accident) is desired.
The majority of electrical installations typically use Automatic Disconnection of Supply (ADS) as a protective measure against electric shock. Basic protection is provided by basic insulation of live parts or by barriers or enclosures, and fault protection is provided by protective earthing, protective equipotential bonding and ADS in the event of a fault.
In areas that carry an additional risk of electric shock to people, such as bathrooms, saunas, kitchens and showers, an additional equipotential bonding system (AEBS) shall be installed to provide a sufficient level of safety in case of emergency. The additional equipotential bonding system interconnects all conductive parts open for touch and external conductive parts, neutral and protective ground conductors of all equipment.
In modern apartment buildings, household appliances with metal elements can serve as conductors and have their own potential. Under normal operating conditions, this potential is close to zero and does not differ from the potential of surface and other surrounding objects. In the case of an accident, such as insulation breakage or the intake of potential through the pipes, the potential of such conductive parts may increase to several hundred volts. If a human touches two objects with different potentials at once, there is a risk of electric shock.
