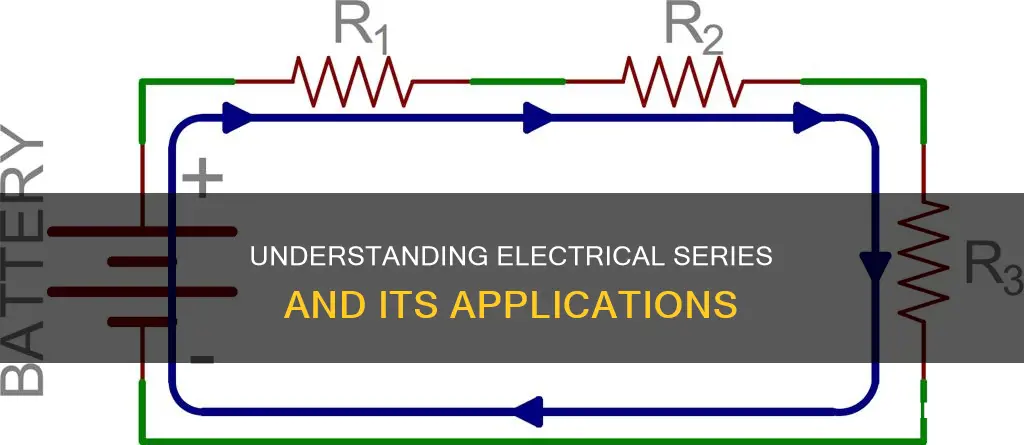

There are two main types of electrical circuits: series and parallel. In a series circuit, the components are connected in a single electrical path, with a constant current flowing through each component, and the voltage across the network is the sum of the voltages across each component. If one component in a series circuit fails, the entire circuit is broken. Series circuits are commonly used in flashlights, holiday lights, and other simple devices. On the other hand, parallel circuits have multiple pathways, and each component experiences a different current. The voltage across each component in a parallel circuit is the same, and the total current is the sum of the currents flowing through each component.
Explore related products
What You'll Learn
- Series circuits have a single pathway for electricity to flow through
- If one component in a series circuit fails, the whole circuit fails
- Series circuits are used in flashlights, holiday lights, and other simple devices
- Series circuits are used in batteries to obtain a convenient operating voltage
- Series and parallel circuits can be combined to form a series-parallel circuit
Series circuits have a single pathway for electricity to flow through
Series circuits are a type of electrical circuit in which all the components are connected in a successive manner. This means that the circuit forms a closed loop, with each component connected to the next in a linear fashion, creating a single pathway for electricity to flow through.
In a series circuit, the current that flows through each component is the same, and the voltage across the entire circuit is the sum of the individual voltage drops across each component. This is because there is only one path for the current to follow, and the rate of flow must be equal at any point in the circuit at any given time. This is in contrast to parallel circuits, where the current divides as it reaches each branch, resulting in different currents at different points in the circuit.
The components of a series circuit include the power source, wires, and devices, all connected along the same pathway. This means that if one component in the series circuit fails or is disconnected, the entire circuit is broken, and the flow of current stops, causing all the devices to stop working. This is because the circuit forms a continuous loop, and if one part of the loop is interrupted, the current cannot complete its path.
Series circuits are commonly used in flashlights, holiday lights, and other simple devices. They are also used in batteries, where several cells are connected in series to achieve a desired voltage. For example, two disposable zinc cells in series might power a flashlight or remote control at 3 volts, while a dozen lithium-ion cells in series could provide 48 volts for a handheld power tool.
Understanding LRA: Electrical Term for Inductance and Motor Starting
You may want to see also
Explore related products
If one component in a series circuit fails, the whole circuit fails
A series circuit is a type of electrical circuit in which circuit components are connected in a successive manner. In other words, the components are arranged in a straight line, with one end of each component connected to the end of another. This means that the current in all the components of these circuits is constant, while the voltage is variable.
In a series circuit, if one component fails, the whole circuit fails. This is because there is only one path for the current to flow in a series circuit. If one component in the series does not work, it creates a gap in the circuit, preventing the current from reaching the other components. As a result, all the other components in the series will stop working as well. For example, if one bulb in a string of fairy lights connected in series blows out, the entire string of lights will go out.
This property of series circuits is important to understand when designing or troubleshooting electrical systems. It can be both advantageous and disadvantageous. On the one hand, it makes it easy to identify when a component has failed, as the entire circuit will stop functioning. On the other hand, it means that a single component failure can cause the entire system to shut down, which can be inconvenient or even dangerous in certain applications.
To determine what would happen in a circuit if a component fails, one can re-draw the circuit with the equivalent resistance of the failed component and recalculate all values. For instance, if a resistor fails as a short circuit, the circuit will behave as if a jumper wire were connected across the resistor, and the total circuit resistance will decrease.
In summary, the failure of one component in a series circuit disrupts the entire flow of current, causing all other components to cease functioning. This is a fundamental characteristic of series circuits that distinguishes them from parallel circuits, in which the failure of one component does not affect the entire circuit.
Understanding Electrical Panels: What Does 'Panel' Mean?
You may want to see also
Explore related products
Series circuits are used in flashlights, holiday lights, and other simple devices
In electrical circuits, a series connection refers to linking circuit components successively, end-to-end, creating a single path for current flow. All components in a series circuit experience the same current, with voltage dropping at each component. This means that if one component fails, the entire circuit fails.
Series circuits are commonly used in flashlights, holiday lights, and other simple devices. In the case of flashlights, the circuit includes a battery, wires, and a light bulb. When the circuit is closed, electricity flows through the components, illuminating the bulb.
Holiday lights, or Christmas lights, also utilize series circuits. Traditionally, these lights used incandescent bulbs, which, when failing, caused an open circuit due to the missing filament. This issue was addressed with the introduction of LEDs, which, when failing, typically create a short circuit, allowing the remaining lights to stay lit.
The use of series circuits in holiday lights and flashlights ensures that electricity flows through the components, powering each device. The consistent current in series circuits makes them suitable for these applications, providing a simple and effective way to control the flow of electricity and illuminate the bulbs.
Additionally, series circuits are employed in other simple devices, such as those with a single battery and a load resistance. While these circuits are less common in practical applications, they provide a basic understanding of how electricity flows through a closed loop of conducting elements.
Mains Electricity: Understanding the Power in Your Walls
You may want to see also
Explore related products
![Knight Rider - The Complete Series [DVD]](https://m.media-amazon.com/images/I/71HIc-0sleL._AC_UY218_.jpg)
Series circuits are used in batteries to obtain a convenient operating voltage
In the context of electricity, a series circuit refers to a type of electrical circuit where the components are connected in a successive manner. In other words, the components are linked one after the other, forming a chain-like structure. This is in contrast to a parallel circuit, where components are connected in parallel to each other.
In a series circuit, the current remains constant, but the voltage is variable. This means that the current flowing through each component in the series is the same, but the voltage across each component can be different. This is because the total voltage in a series circuit is the sum of the individual voltages of each component. For example, if two 6-volt batteries are connected in series, the total voltage becomes 12 volts.
This principle of series circuits is applied in batteries to obtain a convenient operating voltage. By connecting batteries in series, the voltages of the individual batteries add up, resulting in a higher overall voltage. This is particularly useful in applications that require higher voltages, such as power tools or devices. For instance, a battery pack for a power tool may contain several lithium-ion cells wired in series to achieve a higher voltage, such as 48 volts.
Additionally, in a series circuit, if one component fails, it breaks the entire circuit. This is because there is only one path for the current to flow. Therefore, in the context of batteries, if one battery in a series connection fails or is removed, the entire circuit becomes inoperable until the battery is replaced. This is an important consideration for maintaining and controlling current flow, which is crucial for efficient battery operation and preventing premature failure.
Insulation in Electrical Systems: What Does It Mean?
You may want to see also
Explore related products
Series and parallel circuits can be combined to form a series-parallel circuit
In electrical circuits, a series connection refers to the successive connection of components, forming a single path for the current to flow through the circuit. All components in a series circuit experience the same current, but the voltage varies. If one component in a series circuit fails, the entire circuit fails.
Parallel circuits, on the other hand, have components connected in parallel to each other, with the same point of contact. Each component in a parallel circuit experiences a different current, but the voltage remains the same. If one component in a parallel circuit fails, it does not affect the rest of the circuit.
Most circuits are not just series or parallel but a combination of both. These are called combination circuits or series-parallel circuits. Series and parallel circuits can be combined in endless ways, and no two series-parallel circuits are the same. This means that each series-parallel circuit must be treated and solved individually.
To solve a series-parallel circuit, you can use the following steps:
- Identify which parts of the circuit are in series and which are in parallel.
- Analyse each part separately, applying the appropriate rules for series and parallel circuits to determine the relationships of voltage, current, and resistance.
- Simplify the circuit by repeatedly replacing combinations of series and parallel components with their equivalent single components.
- Calculate the total current, voltage, and resistance for the entire circuit.
By combining series and parallel circuits, you can find the unknown values of voltage, current, and resistance in a circuit. This allows you to solve complex circuits with many elements to obtain different voltage and current values.
Electric Feel: Exploring MGMT's Musical Odyssey
You may want to see also
Frequently asked questions
A series circuit is a type of electrical circuit in which the circuit components are connected in a single pathway, with each component having the same electric current. The amount of current is the same at every point in a series circuit, but the amount of current for each device decreases as more devices are added.
Series circuits are most commonly used in flashlights, holiday lights, and other simple devices. They are also used in batteries, where several cells are connected in series to obtain a convenient operating voltage. For example, two disposable zinc cells in series might power a flashlight or remote control at 3 volts.
If one component of a series circuit fails or is disconnected, the entire circuit is broken. This means that the flow of current stops and all the devices stop working.
