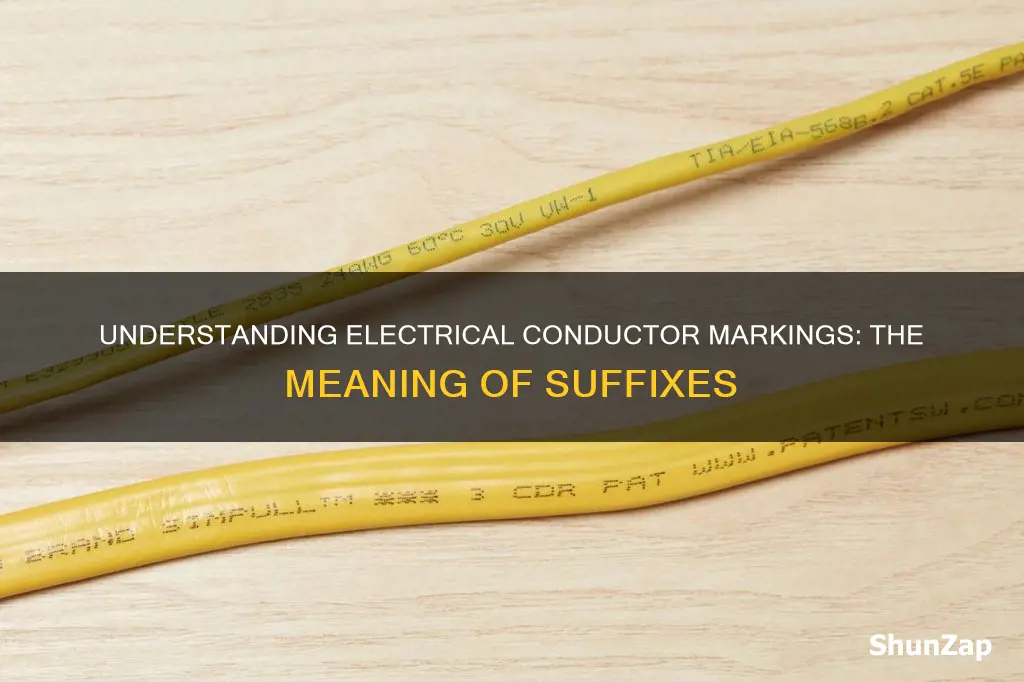

Wiring and cables used for electrical projects are often labelled with letters, numbers, and words to convey important information about the product. These markings indicate details such as the wire material, wire size, and type of insulation used on the conducting wires. For example, the suffix -LP indicates a power source with a rated current per conductor up to the marked current limit, while the suffix D indicates two insulated conductors laid parallel within an outer non-metallic covering. Understanding these markings is crucial for selecting the right product for specific applications and ensuring safe installations.
| Characteristics | Values |
|---|---|
| Number of insulated conductors | A type letter or letters used alone indicate a single insulated conductor. |
| D – two insulated conductors laid parallel within an outer non-metallic covering | |
| M – an assembly of two or more insulated conductors twisted spirally within an outer non-metallic covering | |
| Temperature rating | H – heat-resistant; able to withstand temperatures up to 167°F |
| HH – highly heat-resistant; able to withstand temperatures up to 194°F | |
| –2 – 90°C wet or dry | |
| -B – 90°C insulation | |
| R – basic 60°C rubber insulation | |
| H – rubber insulation heat-rated for 75°C | |
| HH – high-heat rubber insulation rated for 90°C | |
| W – wet, moisture-rated rubber insulation | |
| T – thermoset plastic | |
| Manufacturer | Name or E number |
| Conductor size | 3/0 AWG |
| Cable type | NM – non-metallic sheathed cable |
