Beatrice Lang
Choosing the right gauge electric cord for your device is crucial to ensuring efficiency and safety. The gauge of an extension cord determines how much electrical current (measured in amperes, or amps) it can safely carry. A lower AWG (American wire gauge) number indicates a thicker, higher-capacity cord. For example, a 12-gauge extension cord is suitable for 15 to 20 amps and is considered heavy-duty, while a 16-gauge cord is typically used for light-duty applications, such as lamps or clocks. Using an incorrect gauge can lead to overheating, equipment damage, or even fire hazards. Therefore, it is essential to understand the power requirements of your devices and select an extension cord with the appropriate gauge to ensure optimal performance and prevent accidents.
| Characteristics | Values |
|---|---|
| Amperage | 12 amps |
| Gauge | 12-gauge |
| Length | 50-100 feet |
| Use | Heavy-duty |
| Suitable for | High-power applications, outdoor use, construction sites, workshops, air compressors, table saws, power washers, electric chainsaws, lawnmowers, high-wattage outdoor appliances |
| Safety | UL-certified, grounded, regularly inspected |
Explore related products
What You'll Learn
- A 12-gauge extension cord is suitable for 12 amps
- Extension cord length affects its ability to convey power
- AWG (American wire gauge) is a standardised system for measuring electrical wire
- Heavy-duty extension cords are designed for high electrical loads
- Safety guidelines for extension cord use in residential and commercial settings
A 12-gauge extension cord is suitable for 12 amps
When it comes to electrical cords, choosing the right gauge is crucial for ensuring efficiency and safety. The gauge of a cord determines how much electrical current, or amperage, it can safely carry. If a cord has too high a gauge, meaning it's too thin, it can lead to overheating and potentially cause a fire. Therefore, it's important to select a cord with a suitable gauge for your specific application.
The 12-gauge cord is ideal for tools or appliances that require up to 20 amps, such as a shop vacuum or a circular saw. It's important to note that the length of the extension cord also affects its performance. Longer cords mean more resistance and less power reaching the equipment, so it's always advisable to use the shortest extension cord possible.
When selecting an extension cord, it's essential to determine the wattage and amperage requirements of the tool or appliance. While basic household extension cords usually use 16-gauge wire, heavy-duty applications require thicker cords like the 12-gauge or even 10-gauge for industrial or high-power tasks. Always refer to the power requirements of your equipment and choose an extension cord that meets or exceeds those specifications.
In summary, a 12-gauge extension cord is suitable for 12 amps and higher, making it a versatile option for a range of applications. By understanding the relationship between gauge and amperage, you can make informed decisions to ensure the safe and efficient use of electrical equipment.
Understanding VA in Electric Systems: Power Factor Essentials
You may want to see also
Explore related products
Extension cord length affects its ability to convey power
The length of an extension cord affects its ability to convey power. Longer extension cords result in greater resistance and potential power loss. This loss can lead to voltage drops, causing equipment to operate inefficiently or malfunction. Longer wires mean more resistance and less power getting through to your equipment.
The length of an extension cord is crucial in ensuring that the equipment receives the correct amount of electricity. Longer cords can cause a strain on the outlet and the machine, as the power has to travel a greater distance. This can lead to decreased performance and even damage the motor of the equipment.
The relationship between cord length and power transmission is essential for professionals to understand. They can then make informed decisions when choosing the right extension cord for their workspace. For example, a 100-foot extension cord with a 12-gauge wire and a 15A draw is suitable for tools requiring 15 amps.
To mitigate the adverse effects of cord length, professionals often turn to heavy-duty extension cords. These cords are designed to handle high power demands over longer distances without compromising voltage stability. Heavy-duty extension cords have thicker wire gauges, reducing resistance and minimizing power losses, thus ensuring efficient power transmission.
In summary, the length of an extension cord significantly impacts its ability to convey power. Longer cords result in increased resistance and potential power loss, which can lead to equipment malfunction. To overcome this, heavy-duty extension cords with thicker wire gauges are often used to minimize power losses and ensure stable voltage supply.
The All-Electric Range Rover: A Quiet Revolution
You may want to see also
Explore related products
![[6-Feet] On Off Switch Extension Cord, Right Angle 2-Prong Polarized Extension Cord with On-Off Inline Switch 12A 125V for Your Chargers/Lamp/Power Adapters etc, 16AWG Cord Black](https://m.media-amazon.com/images/I/61ZB9uvbdaL._AC_UL320_.jpg)
AWG (American wire gauge) is a standardised system for measuring electrical wire
AWG, or American Wire Gauge, is a standardised system for measuring electrical wire. It is the standard way to denote wire size in North America. AWG is primarily used for single-strand, solid, round, electrically conductive wire. It was introduced in 1857 as a standard to replace the various measurements used by different manufacturers.
The AWG of a wire is important because it determines the amount of current it can carry. A wire with a smaller gauge (larger diameter) can carry more power than one with a larger gauge. AWG is of primary importance for wires that will carry electrical power, such as home or business electrical wiring, extension cords, or high-power wire in automotive or audio use. If a wire with too high a gauge (thinner wire) is used for a device that draws a lot of power, it can lead to overheating and potentially cause a fire.
The AWG of a wire can be determined by first figuring out the radius of a wire squared, multiplied by pi. The term “circular mil” is often used, which refers to the area of a 1/1000 (or 1 mil) diameter circle.
When selecting an extension cord, it is important to consider the gauge as well as the length. The longer the extension cord, the more resistance it will have, and the less power will reach the other end. Therefore, it is recommended to use the shortest extension cord possible. If you are using a longer extension cord, you may need to use a thicker wire to ensure enough power gets through. For example, a 100-foot extension cord will typically not exceed a 15-amp capacity.
For a 12-amp tool, a 14-gauge extension cord would be suitable. This is because a 14-gauge cord is recommended for appliances that draw up to 15 amps.
The Intriguing Components of Electric Batteries
You may want to see also
Explore related products
![[2-Feet] On Off Switch Extension Cord, Right Angle 2-Prong Polarized Extension Cord with On-Off Inline Switch 12A 125V for Your Chargers/Lamp/Power Adapters etc, 16AWG Cord White Collor](https://m.media-amazon.com/images/I/418IHdugQ6L._AC_UL320_.jpg)
Heavy-duty extension cords are designed for high electrical loads
When selecting an extension cord, it's important to choose the right wire gauge and length to ensure efficiency, safety, and optimal performance of your electrical devices. Heavy-duty extension cords are designed for high electrical loads and are suitable for use with power tools or equipment that require higher amperage.
The gauge of an extension cord refers to its thickness and capacity to carry electrical current, typically measured in amperes or amps. A lower gauge number indicates a thicker wire with a higher capacity, while a higher gauge number corresponds to a thinner wire that can carry less current. For example, a 12-gauge or 10-gauge extension cord is recommended for tools or appliances that require up to 20 amps, such as a shop vacuum or a circular saw.
Heavy-duty extension cords typically fall within the 14 AWG, 12 AWG, or 10 AWG range, indicating their ability to handle higher electrical loads. A 12-gauge extension cord, for instance, allows electricity to flow more freely over longer distances, making it suitable for powering janitorial equipment or heavy-duty machinery.
When selecting a heavy-duty extension cord, it's crucial to consider the length of the cord. Longer extension cords introduce more resistance, resulting in decreased power delivery to the equipment. Therefore, it's recommended to use the shortest extension cord possible that meets your length requirements. Additionally, if you're using longer cords (over 100 feet), you may need to select a thicker wire (lower gauge) to ensure sufficient power transmission.
Some examples of heavy-duty extension cords include the Utilitech Outdoor 100-ft 12/3 Heavy Duty Lighted Extension Cord and the Southwire 50-ft 12/3 Hi-Visibility Heavy-Duty Extension Cord. These cords are designed to handle higher electrical loads and provide temporary power solutions for jobsites, power tools, or outdoor equipment.
How Electric Light Bulbs Work: Illuminating Your Home
You may want to see also
Explore related products
![[2-Feet] On Off Switch Extension Cord, Right Angle 2-Prong Polarized Extension Cord with On-Off Inline Switch 12A 125V for Your Chargers/Lamp/Power Adapters etc, 16AWG Cord Black](https://m.media-amazon.com/images/I/51qeVQlIE2L._AC_UL320_.jpg)
Safety guidelines for extension cord use in residential and commercial settings
Extension cords are a convenient way to bring power to electrical devices. However, they can pose a serious risk to personal safety if used without caution. Here are some detailed safety guidelines for using extension cords in residential and commercial settings:
Residential Settings
- Always use extension cords temporarily and not as a permanent power source.
- Inspect the cord for any damage before use. Look for frayed cords, broken prongs, or exposed wires and discard the cord if you find any damage.
- Ensure the extension cord is fully inserted into the outlet.
- Avoid powering multiple appliances with a single cord.
- Do not overload power strips or plug multiple cords together.
- Do not run extension cords under rugs or furniture, or attach them to the floor or surfaces with staples or nails.
- Keep children and pets away from plugged-in cords.
- Stop using an extension cord if it feels hot to the touch.
- Choose a cord with a polarized or three-prong plug.
- Only use indoor extension cords indoors and outdoor extension cords outdoors.
- Do not bend or coil cords when they are in use.
- Do not use extension cords with space heaters.
- Ensure the extension cord is rated to handle the amps and wattage of the devices it will be used with.
- Use a shorter cord if possible, as longer cords offer more resistance and reduce the power that reaches the other end.
- Avoid interconnecting extension cords and power strips in a "daisy chain," as this can lead to overloading and a potential fire hazard.
Commercial Settings
- Ensure the extension cord is approved for commercial use and is in good condition, with no cuts or frayed wires.
- Match the cord to the equipment being powered, considering the correct amperage, voltage, and length.
- Do not interconnect multiple cords to make longer lengths.
- Ensure the extension cord has a lower gauge (thicker wire) than the equipment's power cord to provide adequate power.
- Use the shortest extension cord possible to reduce resistance and strain on the outlet and equipment.
- Avoid using extension cords for high-energy devices or powering multiple items simultaneously.
- Comply with OSHA regulations, which require that conductors and electrical equipment be used in accordance with the conditions approved by a recognized testing organization.
In both residential and commercial settings, it is crucial to follow safety guidelines when using extension cords. Improper use can lead to electrical shocks, equipment failure, and fire hazards. Always prioritize safety and consult a qualified professional if you have any doubts or concerns.
Sharpening Electric Hedge Clippers: DIY Blade Maintenance
You may want to see also
Frequently asked questions
A 12-gauge extension cord is suitable for 12 amps. This is a heavy-duty cord that can handle 15 to 20 amps and is perfect for outdoor use and construction sites.
Here are some examples of 12-gauge extension cords:
- Southwire 50 ft. 12/3 Hi-Visibility Heavy-Duty with Power Light Plug
- Husky 25 ft. 12/3 Heavy-Duty 15 Amp with Lighted Triple Tap
- Voltec 25 Ft. 12/3 SJEOW Extreme U-Ground
Extension cords are used to extend the reach of electrical circuits when the attached cord of a lamp, appliance, or tool is too short to reach a power outlet.
When selecting an extension cord, it is important to consider the length of the cord and the amount of wattage and amperage required by the tool or appliance. It is also crucial to choose a cord with the appropriate gauge to ensure safety and efficiency.
Using an incorrect gauge extension cord can lead to overheating, electrical shocks, and even fires. It is important to select an extension cord with the correct gauge to match the power requirements of your device.

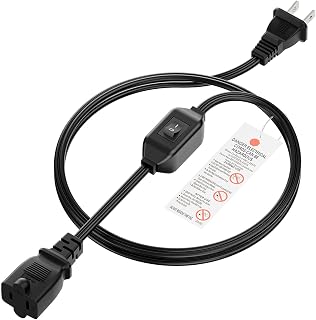

![[6-Feet] On Off Switch Extension Cord, 2-Prong Polarized Extension Cord with On-Off Inline Switch 12A 125V for Your Chargers/Lamp/Power Adapters Etc, 16AWG Cord](https://m.media-amazon.com/images/I/61E4yiPfNQL._AC_UL320_.jpg)
