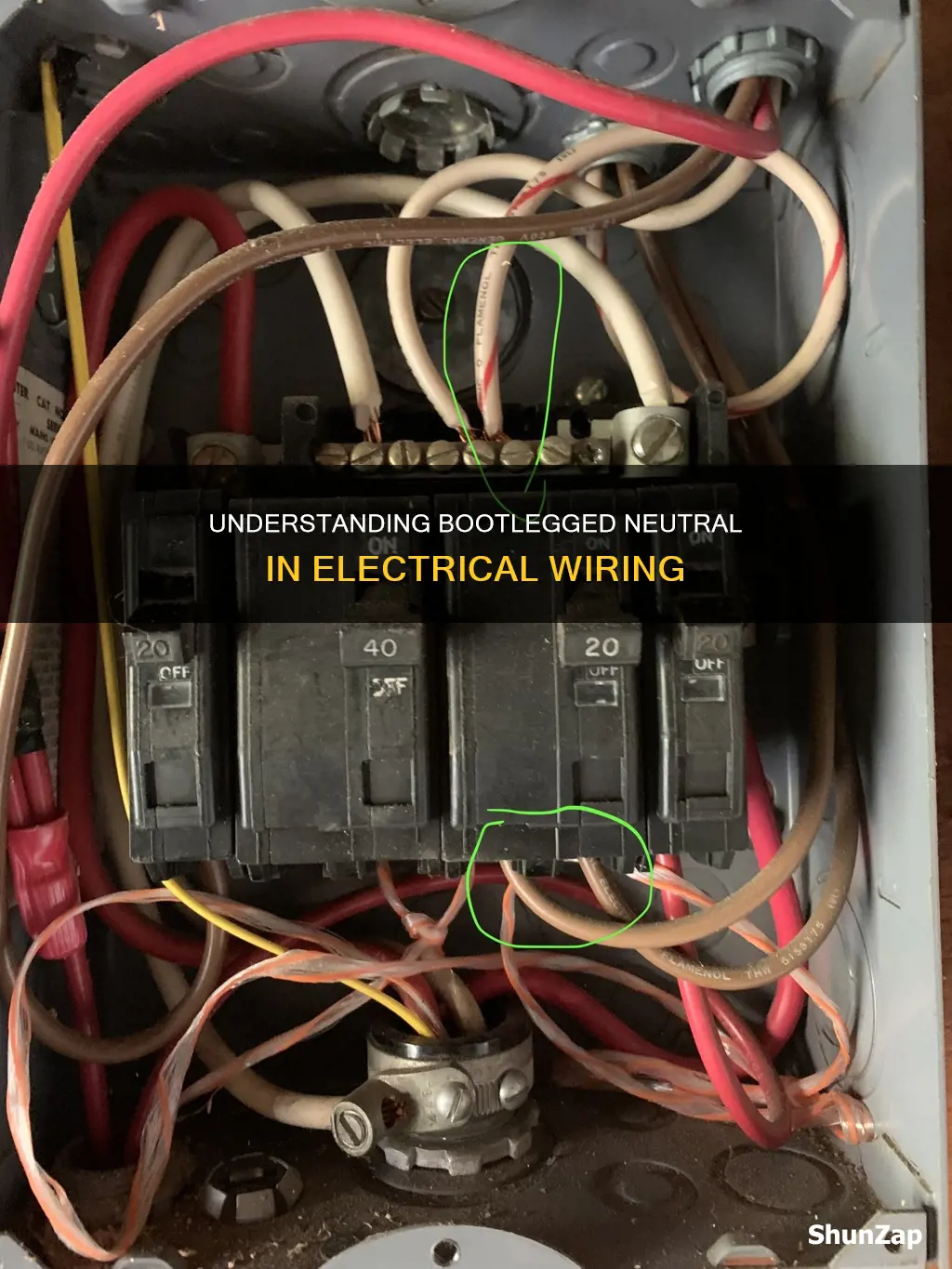

A bootleg neutral is a term used to describe borrowing a neutral wire from a different circuit or source than the one you are working with. This practice is hazardous and is an improper use of equipment. It is often found in older homes, particularly those built before the 1960s, and is done either unknowingly or to pass off the wiring as grounded when it is not. A bootleg ground, which is related to a bootleg neutral, is when a jumper wire is installed on a receptacle to ground it when going from a two-prong outlet to a three-prong. This practice is also dangerous and illegal, as it does not actually ground the receptacle.
Explore related products
What You'll Learn
Bootleg neutral meaning
The term "bootleg neutral" is used to describe an improper use of a neutral wire from a different circuit than the one being worked on. It is a slang term, and there is no official definition. However, it generally refers to borrowing or "stealing" a neutral wire from another source or circuit. This practice is often seen in old buildings or DIY electrical work.
In electrical systems, a neutral wire is necessary to complete a circuit and direct the current back to the power source. It is part of the live circuit and carries the current back to the panel, providing a path for excess current. The ground wire, on the other hand, is not intended to carry current under normal conditions but connects to the Earth to protect against unstable currents or short circuits.
In the context of bootleg neutrals, electricians may borrow the neutral wire from a single-phase service and run it into a three-phase service. This allows them to use a higher voltage (e.g., 120/240V) from an old three-wire service. However, this practice can be hazardous. Using a neutral wire from a different circuit can overload the wire, as it may not be sized appropriately for the additional circuit. It also deviates from standard wiring practices, increasing the risk of electrical faults and electrocution during future repairs.
Bootleg neutrals are commonly found in older buildings constructed before the 1960s, particularly those with outdated wiring or improper maintenance. In some cases, bootleg grounds may also be present, which further increase the risk of electrical hazards. It is crucial for homeowners with older buildings to have their electrical systems inspected regularly and prioritize safety measures to mitigate these risks.
While the specific practices may vary by region, the term "bootleg neutral" generally refers to this unsafe electrical wiring practice. It is important to prioritize electrical safety and consult with licensed professionals to ensure proper wiring and grounding in homes and buildings.
Sun Power: Electricity from the Sun
You may want to see also
Explore related products
Bootleg ground
A bootleg ground is an illegal and hazardous electrical connection. It occurs when a jumper wire is installed between the neutral wire and the ground screw of a receptacle. The purpose of this connection is to ground the receptacle when transitioning from a two-prong outlet to a three-prong outlet. However, it does not actually provide proper grounding and can lead to dangerous consequences.
In a bootleg ground, the neutral side of the receptacle is connected to the conductive casing of an appliance or lamp. This becomes a hazard because the neutral wire carries current, and as a result, the exposed casing can become energised. This means that anyone coming into contact with the appliance or lamp risks receiving an electric shock.
Additionally, a bootleg ground can lead to a fault condition that will not trip a GFCI (Ground Fault Circuit Interrupter) breaker. This further increases the risk of electrocution, as there is no protection against faulty wiring. It is important to note that bootleg grounds are commonly found in older homes, particularly those built before the 1960s, and they may have been installed by contractors to pass off the homes as having proper grounding when they did not.
To identify a bootleg ground, you can turn off the electricity at the panel box and remove the receptacle cover. If you see a jumper wire connecting the neutral wire to the ground screw, then you have a bootleg ground. It is crucial to contact a licensed professional for assistance in properly grounding three-prong outlets and ensuring the safety of your electrical system.
To mitigate the risks associated with bootleg grounds, homeowners with older buildings should have their electrical systems inspected regularly. If grounding cannot be achieved through rewiring, GFCIs can be installed, and outlets should be properly labelled as "No Equipment Ground". These measures help provide protection against the dangers posed by bootleg grounds.
Android Dreams: Electric Sheep Audiobook Experience
You may want to see also
Explore related products
Hazards of bootleg ground
A bootleg ground is a connection between the neutral side of a receptacle or light fixture and the ground lug or enclosure of the wiring device. This connection is made between the neutral wire and the ground screw of a three-prong outlet. This wiring method will give false readings of correct wiring and can be extremely hazardous.
One of the primary dangers of a bootleg ground is the risk of electrocution. When a bootleg ground is used, the chassis of a "grounded" appliance is connected to the neutral wire. If the neutral wire becomes energised or "hot", it can lead to a hazardous situation where the exposed casing of the appliance becomes energised. This poses a significant risk of electrical shock to anyone who comes into contact with the appliance.
Additionally, a bootleg ground can create a false sense of security as it may not trip a GFCI (Ground Fault Circuit Interrupter) breaker or protect a receptacle wired from the load side of a GFCI receptacle. This means that a fault condition may go undetected, increasing the risk of electrical hazards.
In the case of a reverse polarity bootleg ground, the hot and neutral wires are connected to the opposite terminals, resulting in the hot wire being directly connected to the ground on the receptacle. This places low-impedance live voltage on all grounded parts of equipment plugged into that outlet, creating a deadly voltage situation that may not trip a circuit breaker in time to prevent electrocution.
Furthermore, bootleg grounds can be challenging to detect during home inspections. Standard three-light electrical testers commonly used by inspectors may not identify bootleg grounds or other defects such as reverse polarity and open ground. More advanced circuit analyzers are required to accurately detect these issues.
While bootleg grounding has been largely banned in many countries and by electrical codes, older buildings may still contain this wiring method, posing ongoing risks. It is crucial for homeowners with older constructions to have their electrical systems regularly inspected by experienced electricians to ensure safety and compliance with updated standards.
Shinx's Electric Evolution: Unlocking Powerful Moves
You may want to see also
Explore related products
Identifying bootleg ground
A bootleg ground is a hazardous electrical connection that can lead to electrocution. It occurs when the neutral side of a receptacle is connected to the conductive casing of an appliance, lamp, or device. This practice was once common but has since been prohibited by the National Electrical Code (NEC) in the United States.
To identify a bootleg ground, follow these steps:
- Turn off the electricity at the panel box.
- Remove the receptacle cover and inspect the wiring.
- Look for a jumper wire connecting the neutral wire to the ground screw. This wire may be visible or hidden behind the receptacle.
- Ensure that the white wires are connected to the white metal screws and the green screw is connected to a bare copper or green wire for proper grounding.
- If you are unsure, contact a licensed electrician for assistance.
- While at the electric panel box, check for any recalled breakers or panels that may pose additional risks.
It is important to note that a standard three-light tester may not accurately detect a bootleg ground. For a definitive diagnosis, it is recommended to use a circuit analyzer or hire a professional inspector.
Additionally, homes built before the 1960s are more likely to have bootleg grounds due to outdated wiring practices. If you own an older home, it is crucial to have the electrical system inspected regularly by a qualified electrician to ensure safety and compliance with current electrical codes.
Understanding Electrical Breaker Trip Causes
You may want to see also
Explore related products
Alternatives to bootleg ground
A bootleg ground is a hazardous wiring configuration that connects the neutral side of a receptacle to the conductive casing of an appliance or lamp. This practice can lead to electrical shocks and fires, as the exposed casing can become energised. It is important to note that bootleg grounds are illegal and are not compliant with the National Electrical Code (NEC).
- Proper Grounding: The safest alternative is to ensure proper grounding of receptacles. This involves installing a dedicated ground wire that connects to the grounding terminal screw, providing a safe path for electrical currents.
- GFCI Outlets: If proper grounding is not feasible, the National Electrical Code (NEC) recommends the use of Ground Fault Circuit Interrupter (GFCI) outlets. GFCIs detect current leaks and quickly shut off power to prevent electrical shocks. It is important to label such outlets as "No Equipment Ground" and "GFCI Protected".
- Rewiring: For older homes with bootleg grounds, it is advisable to rewire the electrical system. This may involve updating two-prong outlets to three-prong outlets, ensuring that a dedicated ground wire is included in the new cabling.
- Regular Inspections: Homeowners with older buildings should prioritise regular electrical inspections to identify bootleg grounds and other potential hazards. Licensed professionals can advise on necessary repairs or replacements to ensure electrical safety.
- Smart Circuit Breakers: Advancements in technology have led to the development of smart circuit breakers and real-time monitoring systems. These systems can detect wiring issues, including bootleg grounds, and alert homeowners or electrical contractors to potential dangers, enabling timely interventions.
It is important to consult with qualified electricians and adhere to local electrical codes when considering alternatives to bootleg grounds to ensure compliance and maintain safety.
Preventing AC Electricity Back Feed: A Comprehensive Guide
You may want to see also
Frequently asked questions
A bootleg neutral is when a neutral wire is borrowed from a different source or circuit than the one you are working with. This is an improper use of equipment and can be extremely hazardous.
Neutral wires carry electricity back to the power source, completing the circuit. They are usually white and are found in newer homes built after 1985.
A bootleg ground is when a jumper wire is installed on a receptacle, connecting the neutral wire to the ground screw. This is an illegal practice that does not properly ground the receptacle.
Bootleg grounds can cause electrocution and do not trip GFCI breakers in the event of a fault condition. They are commonly found in homes built before the 1960s and can be identified by checking for jumper wires and proper wire colours.
