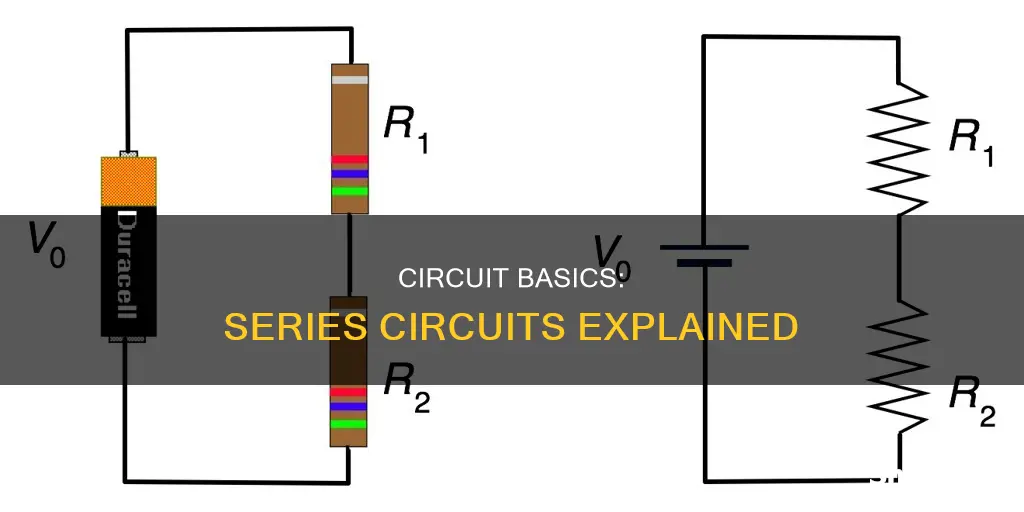

A series circuit is an electrically conducting pathway in which all components are connected end-to-end to form a single path for current flow. Each component in a series circuit shares one electrical node with its nearest neighbour and has the same current flowing through them. The total resistance in a series circuit is equal to the sum of the resistors, and the total voltage is equal to the sum of the voltage drops across the resistors. Series circuits were formerly used for lighting in electric multiple-unit trains and are also found in RLC circuits, which are used in AC circuits as filters.
Explore related products
What You'll Learn
Series vs parallel circuits
A series circuit is a closed circuit where the current follows one path, and each component has the same electric current. In a series circuit, all components are connected end-to-end to form a single pathway for current flow. If one part of the circuit fails, the entire circuit fails. Series circuits are rare in household wiring but are sometimes used in strings of holiday lights.
A parallel circuit, on the other hand, is also a closed circuit, but it has multiple pathways for the current to flow through. In a parallel circuit, all components are connected across each other, forming exactly two electrically common nodes with the same voltage across each component. If one device fails or is disconnected, the rest of the circuit remains intact. Parallel circuits are more common than series circuits and are usually found in household wiring.
The main difference between series and parallel circuits is that, in a series circuit, the same amount of current flows through all the components, whereas, in a parallel circuit, the current is different in each branch, and the components are placed in parallel with each other, causing the circuit to split the current flow.
To understand the difference between the two, consider a freeway. A parallel circuit is like a freeway, with on-ramps and off-ramps that allow cars to exit and enter without interrupting the main highway. A series circuit, on the other hand, is like a circular road with multiple bridges. If one of the bridges fails, a vehicle cannot continue to drive on the circular road.
Both series and parallel circuits are important for powering and controlling appliances. For example, in offices, parallel circuits are used to power appliances, while series circuits control the power. Fuses and circuit breakers are examples of series circuits that control operating parallel circuits.
Electricity Costs: Will Prices Drop?
You may want to see also
Explore related products
How series circuits are used in train lighting
A series circuit is one in which all components are connected end-to-end, forming a single path for the current to flow. Each resistor in a series circuit shares one electrical node with its nearest neighbour. This means that all components in a series circuit have the same current flowing through them.
Train lighting systems have special requirements due to their operating conditions. Early systems used axle-driven generators with batteries. The double battery parallel block system addresses issues of the single battery system, such as lamp flickering. It uses two batteries, a dynamo, switchgear, auto cut-in/cut-out switches, overvoltage relays, lamp resistance, and coach wiring to distribute power throughout the train. This system sequences power from the batteries and dynamo to charge batteries and power loads efficiently during train operation.
Some manufacturers use "constant voltage" control chips to maintain brightness as track voltage changes. This also protects against overpowered tracks. Lightboards often use series wiring and one shared resistor. When modifying a lightboard, separate, larger resistors may need to be added to make the circuit safe.
In the case of model trains, older ones may use 16V bulbs instead of resistors. These don't need a resistor in series when used on DC. For a 60mA bulb with a 33-ohm resistor, the resistor will drop around 2 volts from the supply voltage. This won't dim the light significantly, and a 1/4 Watt resistor is sufficient. If there is more than one bulb in series, the current will be the sum of the bulbs, and a larger resistor may be needed.
Setting Up Electricity in Cambridge: A Step-by-Step Guide
You may want to see also
Explore related products
Total resistance in a series circuit
A series circuit is a type of electrical circuit in which all components are connected end-to-end, creating a single path for current flow. Each resistor in a series circuit shares an electrical node with its nearest neighbour. The defining characteristic of a series circuit is that all components in the circuit have the same current flowing through them.
Now, let's discuss the total resistance in a series circuit. The total resistance in a series circuit is equal to the sum of the individual resistors' resistances. This is because the current must pass through each resistor sequentially, and therefore experiences the resistance of each. As a result, the more resistors in a series circuit, the more difficult it is for the current to flow.
For example, consider a series circuit with three resistors: R1, R2, and R3. If R1 has a resistance of 3 kΩ, R2 has a resistance of 10 kΩ, and R3 has a resistance of 5 kΩ, the total resistance in the circuit would be 18 kΩ (3 kΩ + 10 kΩ + 5 kΩ).
It's important to note that the voltage value of the circuit is the total quantity for the whole circuit, while the resistance values are individual quantities for each resistor. Therefore, to calculate the total current in the circuit, you would use the formula I = V/R, where V is the total voltage and R is the total resistance.
By understanding the principles of total resistance in a series circuit, we can analyse and design circuits with specific resistance requirements and ensure the proper functioning of electrical systems.
The Evolution of Electric Cars: Gas to Electric Transition
You may want to see also
Explore related products
Total voltage in a series circuit
A series circuit is one in which all components are connected end-to-end, forming a single path for current flow. The total voltage in a series circuit is equal to the sum of all the individual voltage drops in the circuit. This is because the current passing through the conductors between two points is directly proportional to the voltage across those two points.
In a series circuit, the voltage is distributed among all the components. This means that the total voltage provided by the power source is shared across all the elements in the circuit. Each component experiences a portion of the total voltage, depending on its resistance or impedance.
The total voltage in a series circuit can be calculated by adding all the voltage drops across each component in the circuit. This is known as Kirchhoff's Loop Rule, which states that the total voltage around any closed circuit is equal to the sum of the voltage drops in the circuit.
The voltage drop across each component in a series circuit can be calculated using Ohm's law, which states that the voltage drop is equal to the product of the current and the resistance. The total voltage in a series circuit is equal to the sum of these individual voltage drops.
It is important to note that the total voltage in a series circuit is different from the voltage across each individual component. The voltage across each component in a series circuit is variable and depends on its resistance.
The Evolution of Electric Light: A Bright Idea
You may want to see also
Explore related products
Total current in a series circuit
A series circuit is a connection of electrical components in a single path, where each component is connected end-to-end. There is only one path for the current to flow through in a series circuit, and the current remains the same through all the components.
To calculate the total current in a series circuit, you need to first determine the total resistance and voltage of the circuit. The total resistance in a series circuit is the sum of all the individual resistances in the circuit. This means that the more resistors there are in a series circuit, the higher the total resistance, and the harder it is for the current to flow.
The total voltage in a series circuit is equal to the sum of the individual voltage drops across each resistor. As the current passes through each resistor, it creates a voltage drop, and the magnitude of this drop is directly proportional to the value of resistance. So, a higher resistance will result in a larger voltage drop across that resistor.
Once you have the values for total resistance and voltage, you can use Ohm's Law to calculate the total current. Ohm's Law states that the total current is equal to the total voltage divided by the total resistance (I = V/R).
It is important to note that in a series circuit, the current remains the same through all the individual resistors. This is because there is only one path for the current to flow, and any change in resistance or voltage will affect the entire circuit.
