In electrical installations, a spur is a subsidiary cable or electrical circuit that branches off from a main circuit. It is typically used to power additional electrical outlets or devices. Spur circuits are connected to the main circuit through a fused connection unit (FCU) or a junction box. Fused spurs, which are commonly used within 13-amp circuits, have a fuse cage that contains a fuse and sometimes a switch. They are particularly useful when access to an appliance is difficult, such as with washing machines or tumble dryers installed under a worktop.
| Characteristics | Values |
|---|---|
| Definition | A subsidiary cable or electrical circuit that branches off from a main circuit |
| Purpose | To power additional electrical outlets or devices |
| Connection | Connected to the main circuit through a fused connection unit (FCU) or a junction box |
| Safety | Regulations and guidelines exist to ensure safety and prevent overloading |
| Load and Supply | "Load" refers to the part of the circuit connected to devices or appliances consuming electrical power; "Supply" refers to the part connected to the main power source or electrical supply |
| Fuse | Designed to protect the circuit from overcurrent by breaking the circuit if the current exceeds a certain limit |
| Installation | Can be installed by adding another ring main or extending an existing ring main, following building regulations and consulting a qualified electrician |
| Number of Spurs | One spur per socket or junction box to prevent overloading |
| Fused Spurs | A switch used within a 13-amp circuit with a fuse cage and, in some cases, a switch; provides a means of isolating the circuit and is useful for appliances in hard-to-access locations |
| Current Ratings | Crucial to select the appropriate current rating to ensure safety and efficiency; 10-amp fused spurs for low-power applications, 13-amp fused spurs for residential and commercial settings |
| Applications | Low-power heating systems, kitchen appliances, entertainment systems, bathrooms, refrigeration units |
Explore related products
What You'll Learn
A spur is a subsidiary cable or electrical circuit
In electrical installations, a spur refers to a subsidiary cable or electrical circuit that branches off from a main circuit. Spur circuits are connected to the main circuit through a fused connection unit (FCU) or a junction box.
Spurs are typically used to power additional electrical outlets or devices, such as outlets, switches, lighting fixtures, or any other electrical equipment that requires power. The load side of a fused spur refers to the part of the circuit that is connected to these devices or appliances that consume electrical power. It distributes electricity to these connected devices, allowing them to function.
The supply side of a fused spur refers to the part of the circuit that is connected to the main power source or electrical supply. It brings electrical power to the fused spur from the main source, such as the electrical panel. The supply side typically connects to the electrical distribution board or another power source.
It is important to note that there are regulations and guidelines regarding the maximum number of spurs that can be connected to a main circuit to ensure safety and prevent overloading. For example, there can only be one spur per socket or junction box to prevent overloading and the potential risk of fire.
Electric Fireplace Installation: Mounting Your Cozy Feature
You may want to see also
Explore related products
Fused spurs have a ''load' and 'supply' side
A spur in electrical terms is a branch circuit that originates from a main circuit or another branch circuit. It is a way to extend the electrical supply to additional outlets or devices. Fused spurs are an important aspect of electrical wiring, especially in the UK and similar electrical systems. These spurs have a distinct load and supply side, which serves a specific purpose and ensures safety.
The load side of a fused spur is where the electrical current flows out from the spur to power a specific appliance or device. This could be anything from a shower or electric heater to a garage door opener or a hot tub. The load side is designed to provide an electrical supply to a single, dedicated appliance, ensuring it receives a consistent and dedicated power supply. This dedicated supply is important for several reasons. Firstly, certain high-power appliances require a consistent and stable power input to function correctly and safely. A dedicated supply ensures that the appliance receives the correct voltage and current, reducing the risk of malfunction or damage.
The supply side of the fused spur is connected to the main circuit or another branch circuit, from which it draws its power. This side typically includes a fuse, hence the name "fused spur." The fuse is an essential safety feature, as it protects the wiring and the device connected to the load side. In the event of an electrical fault or overload, the fuse will blow, interrupting the circuit and preventing excessive current from reaching the appliance. This adds an extra layer of protection, as the main circuit breaker may not always trip in the event of a fault on a branch circuit.
Having a fused spur with distinct load and supply sides offers several advantages. Firstly, it simplifies troubleshooting and maintenance. If an issue arises with a specific appliance, the problem can be isolated to that particular spur, making it easier to identify and rectify the fault. Secondly, it enhances safety. By having a dedicated fuse for each high-power appliance, the risk of electrical fires or damage to appliances due to voltage fluctuations is significantly reduced. This setup also ensures that any issues with one appliance will not affect the power supply to other devices on separate spurs.
Powering Caves: Rust Electricity Guide
You may want to see also
Explore related products
Spur sockets can be added to existing circuits
In electrical installations, a spur refers to a subsidiary cable or electrical circuit that branches off from a main circuit. Spur sockets can be added to existing circuits to power additional electrical outlets or devices. However, it is important to follow regulations and guidelines to ensure safety and prevent overloading. For instance, there is a limit to the maximum number of spurs that can be connected to a main circuit.
Another way to add a spur socket is by using a junction box, such as a 3-terminal, 30-amp junction box wired into the main circuit cable. This method offers more flexibility in choosing the install location and ensures ample space for connections. It is important to note that only a 30-amp junction box should be used on a ring or radial circuit feeding a spur socket.
When adding spur sockets, it is crucial to understand the load and supply sides of a fused spur. The load side refers to the part of the circuit connected to devices or appliances that consume electrical power, while the supply side is connected to the main power source or electrical supply. Proper installation and wiring of the spur socket are essential to ensure the safety and proper functioning of the electrical system.
While it is possible to add spur sockets to existing circuits, it is important to seek professional help if you are unsure about the process. Consulting a qualified electrician is recommended to ensure compliance with electrical codes, regulations, and safety standards.
Texas Blackout: Regions Without Power
You may want to see also
Explore related products
Fused spurs are used for safety and reliability

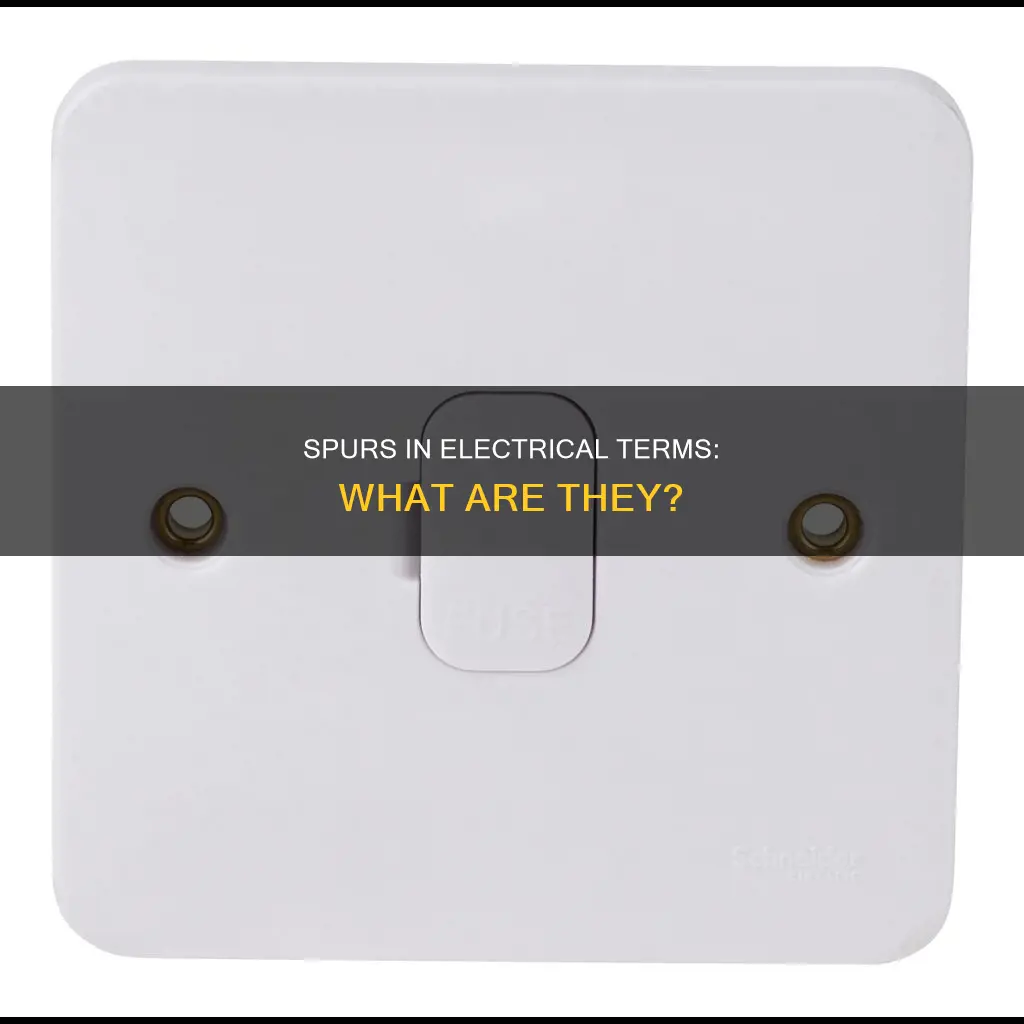

In electrical installations, a spur refers to a subsidiary cable or electrical circuit that branches off from a main circuit. Fused spurs, also known as fused connection units (FCUs) or fused spur switches, are essential electrical devices with a built-in fuse that provides a direct connection between an electrical cable and an appliance.
The built-in fuse in a fused spur is designed to protect the circuit from overcurrent by breaking the circuit if the current exceeds a certain limit. This protects against electrical shocks, prevents fire hazards, and ensures safety for both users and appliances. Fused spurs are particularly useful for high-demand appliances, such as ovens, dishwashers, and electric heaters, as they provide a more permanent and reliable power solution.
Fused spurs come in various types, including switched and unswitched models. Switched fused spurs include a manual switch that allows users to turn the power on or off directly at the unit, making them ideal for appliances that are not used continuously. Unswitched fused spurs, on the other hand, do not have a manual switch and provide a constant power supply. They are commonly used with appliances that require uninterrupted power, such as freezers, refrigerators, and security lights.
The choice between a switched and unswitched fused spur depends on the specific application and safety requirements. Double pole fused spurs, for example, offer enhanced safety by isolating both the live and neutral wires when switched off. Additionally, choosing a reliable brand can ensure that the fused spur meets safety standards and functions efficiently.
Overall, fused spurs play a crucial role in enhancing the safety and reliability of electrical installations by providing a controlled and protected means of connecting appliances to the mains power source.
Electric Type's Achilles Heel: What's the Weakness?
You may want to see also
Explore related products
Current ratings are crucial when selecting a fused spur
When it comes to electrical installations, a spur is an additional circuit that branches off from a main circuit. It is a way of providing power to an additional outlet or device without having to run a completely new circuit from the consumer unit or distribution board. Spurs are commonly used in residential and commercial buildings to provide power to lighting, sockets, or specific appliances.
A fused spur is a type of spur that includes a fuse to protect the circuit from overload or short circuits. The fuse is typically located in the spur's accessory box and is an essential safety feature. Current ratings are a critical factor when selecting a fused spur for an electrical installation. The current rating of a fused spur refers to the maximum amount of current it can safely carry.
When selecting a fused spur, it is important to ensure that the current rating of the spur is equal to or higher than the maximum current drawn by the appliance or devices connected to it. This is crucial for several reasons. Firstly, if the current rating is too low, the fuse may blow frequently, causing inconvenience and disruption. Secondly, an undersized fuse can overheat, posing a fire hazard.
On the other hand, if the current rating of the fused spur is higher than required, it may not provide adequate protection. In the event of a fault, an oversized fuse may not blow, allowing excessive current to flow, which can damage connected equipment or even cause a fire. Therefore, it is important to accurately determine the current requirements of the spur circuit and select a fused spur with an appropriate current rating.
When determining the current rating for a fused spur, several factors need to be considered. These include the type and power rating of the appliance or devices connected, the length of the spur cable, and the operating environment. It is generally recommended to allow for some margin when selecting the current rating to accommodate any future changes or additions to the circuit.
In conclusion, when selecting a fused spur for an electrical installation, it is crucial to give utmost importance to current ratings. Choosing a fused spur with an appropriate current rating ensures safe and efficient operation, preventing potential hazards and extending the lifespan of connected equipment. By carefully considering the current requirements and selecting a suitably rated fused spur, installers can maintain a reliable and safe electrical system.
