Electrical insulators are materials that block or retard the flow of electrical or thermal currents. They are also referred to as poor conductors or substances with high resistance to the flow of electricity. Insulators are used in electrical equipment to support and separate electrical conductors without allowing current through themselves. Some examples of electrical insulators include glass, paper, PTFE, rubber, plastic, and porcelain.
| Characteristics | Values |
|---|---|
| Definition | Materials that block or retard the flow of electrical or thermal currents |
| Other names | Poor conductors, substances of high resistance |
| Examples | Glass, paper, PTFE, rubber, plastic, cotton, diamond, fiberglass, porcelain, pure water, air, wood |
| Use cases | Insulating wires, insulating electrical plugs, insulating power lines and substations, insulating high-voltage areas, insulating transformers, switches, circuit breakers, capacitors, and lamps |
| How they work | Electrons are tightly bound to their atoms, preventing them from moving |
| Dielectric breakdown | Insulators can be forced to conduct electricity if the voltage is extremely high, causing a sudden rush of current |
| Resistivity | Materials with higher resistivity values are better insulators |
Explore related products
What You'll Learn
Plastic, rubber, and paper are common electrical insulators
Plastic is one of the most popular forms of electrical insulation. It is used in wire insulation, particularly PVC or polyvinyl chloride, in vehicles, commercial buildings, and homes. Plastic is also used to replace old rubber insulation. For example, the outer covering of a phone charger plug is made from plastic so that electric charges do not pass onto human skin. Electricians also use screwdrivers with plastic coatings to check the passage of electrical charges without getting electrocuted.
Rubber is another tried-and-true material in electrical insulation. Most electricians wear rubber gloves to protect against electric shocks, and protective rubber mats are often found in front of fuse boxes. Silicone rubber is often found in electrical insulation and wire sheathing.
Paper is also a strong electrical insulator due to its natural cellulose. Many early electrical machines were made with paper board or pressboard, which is made with many layers of dry paper. Later electrical and telephone cables were often insulated with thick paper.
Other common electrical insulators include glass, wood, and fiberglass.
Electrical Resistivity of Gold: Understanding the Science
You may want to see also
Explore related products
Insulators are poor conductors
Insulators are materials that block or retard the flow of electrical currents. They are often referred to as poor conductors or substances with high resistance to the flow of electricity. Insulators have a large energy gap, known as a band gap, between their valence band and conduction band, which prevents the free flow of electrons. This makes it difficult for electric charges to pass through them.
Materials with larger resistivity values provide greater resistance to the flow of electric current and are therefore better insulators. For example, glass has a high resistivity value of 1012 Ωm (ohmmeter), while copper, a conductor, has a low resistivity value of 10-12 Ωm. Insulators are used to prevent electrical currents from passing through to other materials or conductors. For instance, the plastic or rubber coating on electrical wires blocks electric currents, preventing electric shocks and short circuits.

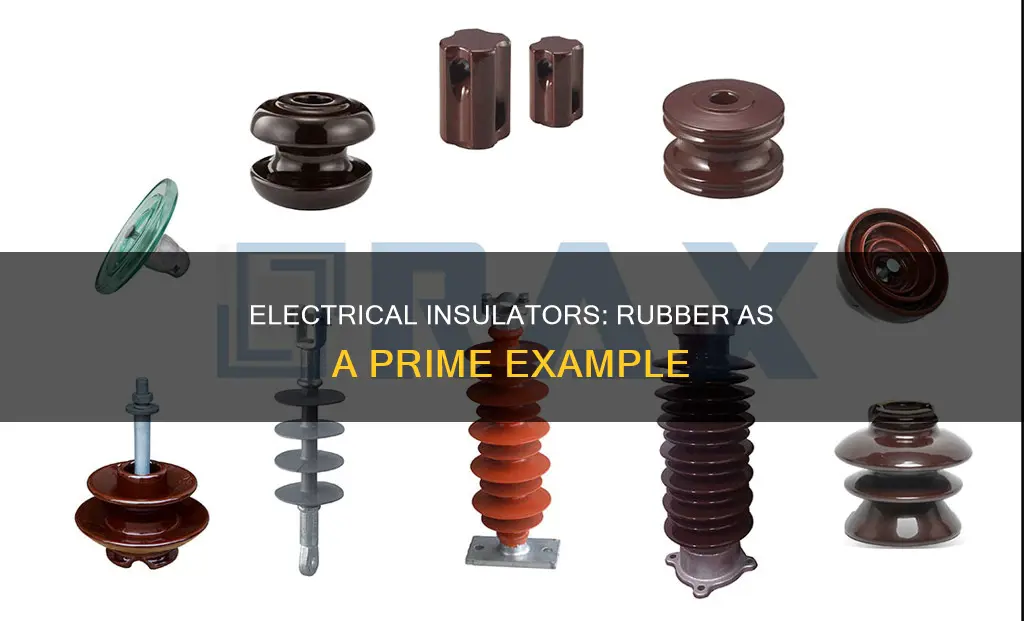

There are various types of insulators that are used depending on the application and voltage levels. Pin-type insulators are used for supporting low-voltage line conductors, while suspension-type insulators are better suited for handling high-voltage transmission lines. Strain-type insulators, also known as tension insulators, are used for high voltages and can accommodate changes in the direction of the electrical line.
While insulators typically block the flow of electricity, they can become conductors at very high temperatures or when the voltage exceeds the material's dielectric strength. At extremely high temperatures, the thermal energy of the valence electrons is sufficient to move them into the conduction band, allowing the flow of electric current. Similarly, when the voltage is extremely high, it can tear electrons away from their atoms, causing a sudden rush of current and permanently damaging the insulator.
Atlanta Airport Power Outage: Electricity Restored?
You may want to see also
Explore related products
Insulators have high resistivity
Insulators are materials that block or retard the flow of electrical currents. They are also known as poor conductors or substances with high resistance to the flow of electricity. Materials with larger resistivity values provide greater resistance to the flow of electric current and are therefore better insulators. This is because their electrons are very tightly bound to their atoms, requiring a high amount of energy to force an electron to jump the band gap and move freely.
Glass, for example, has a high resistivity value of 1012 Ωm (ohmmeter), while copper has a low resistivity value of 10-12 Ωm. This makes glass a good insulator and copper a good conductor. Other examples of materials with high resistivity include wood, cardboard, paper, PTFE, and plastics such as PVC (polyvinyl chloride). These materials are commonly used as electrical insulators in applications where the prevention of the flow of electric charges is required.
The outer covering of a phone charger plug, for instance, is often made of plastic to prevent electric charges from passing onto human skin. Electricians also use screwdrivers with plastic coatings to check the passage of electrical charges without the risk of electrocution. Plastic is also commonly used to insulate electrical wires, replacing old rubber insulation. This prevents electric shocks, short circuits, and fires.
In addition to plastics, porcelain is another material with high resistivity that is used for insulation. Porcelain is made from white clay fired at high temperatures, making it stronger than similar materials like ceramic. It is used to insulate more conductive materials at higher voltages, such as power lines and substations.
Estimating Electricity Costs: Understanding Your kWh Rates
You may want to see also
Explore related products
Insulators are used to coat wires
Insulators are materials that block or retard the flow of electrical currents. They are often used to coat wires and cables, providing a barrier between conductors to keep electric currents under control. This is known as insulated wire. The purpose of coating wires with insulators is to prevent short circuits, cross connections, and human shock and electrocution hazards.
There are various materials that can be used as insulators, including plastic, rubber, paper, glass, and ceramics. Plastic is one of the most popular forms of electrical insulation and is commonly used to coat wires, such as the outer covering of a phone charger plug. It is also used in wire insulation in vehicles, commercial buildings, and homes, as well as in electrical bedding and sheathing. Rubber is another commonly used insulator, often found in electrical insulation and wire sheathing. It is used to protect electricians against electric shocks and is also found as protective mats in front of fuse boxes.
Paper is a strong electrical insulator due to its natural cellulose content. It was used in early electrical machines and telephone cables, although many companies are now replacing it with plastic insulation. Glass is another effective insulator, often used to enclose high-voltage areas to prevent the conductivity of charges. Fibreglass, a common insulator, is made of glass fibres and plastic woven into a flat sheet, which is then braided around high-voltage wires and cable conductors.
Other materials used as insulators include ceramics, which are excellent insulators in their pure form, and wood, although it is not commonly used commercially as it becomes a conductor when wet.
Electric Hoist Installation: A Step-by-Step Guide
You may want to see also
Explore related products
Insulators become conductors at very high temperatures
Electrical insulators are materials that block or retard the flow of electrical or thermal currents. They are used to prevent electrical conductivity and protect against electric shocks and short circuits. Common examples of insulators include plastic, rubber, glass, paper, PTFE, and fibreglass.
Insulators have a high resistivity, which means they impede the flow of electric current. This is because the electrons in an insulator are tightly bound to their atoms, requiring a significant amount of energy to force an electron to break free and move freely. However, at very high temperatures, insulators can become conductors.
At extremely high temperatures, the thermal energy of the valence electrons in an insulator increases to the point where they can enter the conduction band. This results in a sudden increase in the number of free electrons, causing the insulator to exhibit conductive properties. The specific temperature at which this occurs varies depending on the material.
This phenomenon, known as electrical breakdown, occurs when the electric field becomes strong enough to accelerate free electrons and ions, creating a chain reaction of ionization. Once the breakdown voltage is exceeded, the insulator can no longer impede the flow of electric charge, and it effectively becomes a conductor.
It is important to note that a perfect insulator does not exist. Even materials used as insulators contain small numbers of mobile charges that can carry a current under certain conditions. Additionally, applying a sufficiently high voltage can also force an insulator to conduct electricity, as seen in the case of lightning, where the air, normally an insulator, becomes a conductor due to the immense voltage.
Electrical Systems and Sewers: Underground Infrastructure Secrets
You may want to see also
Frequently asked questions
An electrical insulator is a material that does not allow electric charges to flow freely through it.
Common examples of electrical insulators include glass, wood, plastic, rubber, paper, cardboard, porcelain, and dry air.
Electrical insulators have a large energy gap, known as a band gap, between their valence band and conduction band. This makes it difficult for electrons to move from atom to atom, preventing the flow of electric current.
Electrical insulators are important for safety, preventing electric shocks and short circuits. They are used to hold conductors in position, separate them from one another, and confine the flow of current to desired paths.
Electrical conductors are materials that allow electric charges to flow easily through them due to the presence of free electrons. In contrast, electrical insulators have tightly bound electrons and offer high resistance to the flow of electric current.
