Wiktor Wise

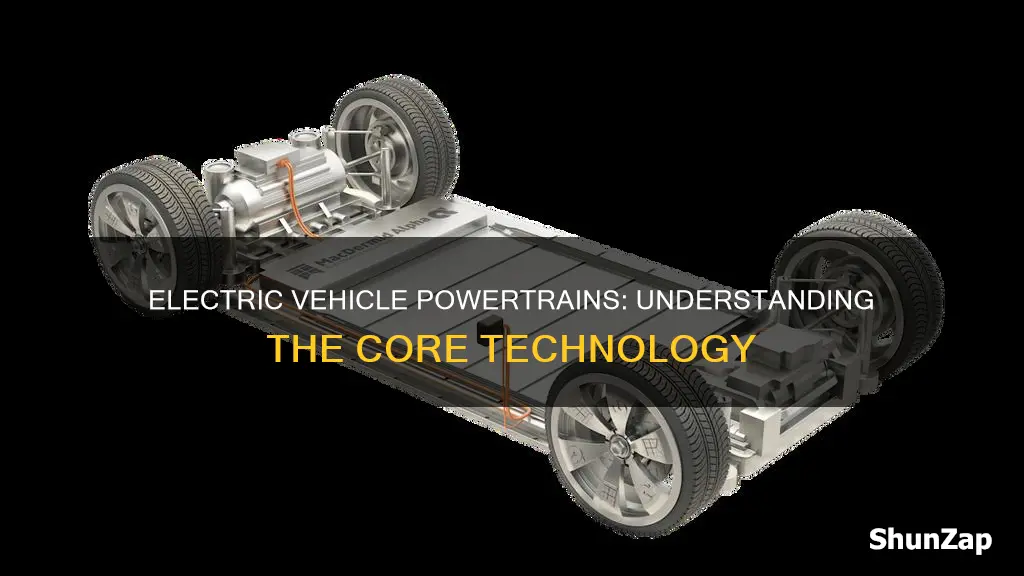

The electric vehicle (EV) powertrain is a system of components that transforms electrical energy into mechanical energy, allowing the vehicle to move forward. It is the drivetrain of an electric vehicle, and it consists of vital parts, including the battery pack, electric motor, traction inverter, and energy management systems. The battery pack, typically composed of lithium-ion cells, stores the energy needed to power the vehicle and provides a direct current (DC) output. The DC power is then converted to alternating current (AC) power, which is then sent to the electric motor, which converts the electrical energy into mechanical energy, propelling the vehicle forward. The powertrain design and components of electric vehicles are much simpler than those of conventional internal combustion engine (ICE) vehicles, resulting in zero tailpipe emissions, a smoother engine, and lower upkeep costs.
| Characteristics | Values |
|---|---|
| Definition | A system of components in a vehicle that converts the chemical energy of the fuel into mechanical energy that propels the motion of an automobile. |
| Types | There are three main types of electrified powertrains: BEVs, HEVs, and PHEVs. |
| Zero-Emission | Electric powertrains produce zero tailpipe emissions and no ICE noise. |
| Maintenance | Electric powertrains have fewer moving parts, less wear, and generally lower upkeep costs. |
| Battery | The battery pack is made up of multiple lithium-ion cells and stores the energy needed to run the vehicle. |
| DC-AC Conversion | The DC supplied by the battery pack is converted to AC and supplied to the electric motor through a DC-AC converter. |
| Electric Motor | The electric motor converts electrical energy to mechanical energy, which is delivered to the wheels via transmission. |
| Power Distribution | The power distribution unit ensures each system receives the right amount of power and integrates power electronics to prevent overloads. |
| Electronic Control Units (ECUs) | Software programs integrated with powertrain components to facilitate data exchange and processing. |
| Thermal Management | Maintains the optimum operating temperature range for powertrain components. |
| Traction | The traction motor generates road traction and propels the vehicle forward. |
| Gearbox | Some EVs have direct drive systems or single-speed transmissions, while multispeed gearboxes can be useful for high-performance or larger commercial EVs. |
Explore related products
$74.85 $141.95
What You'll Learn
Electric vehicle transmissions
Electric vehicles (EVs) do have transmissions, but they are very different from those of internal combustion engine (ICE) vehicles. Unlike ICE vehicles, which require multiple gears to transfer power from the engine to the wheels, most EVs use a single-speed transmission to manage the electric motor. This is because EVs can produce a constant amount of torque through a wide range of revolutions per minute (RPM), eliminating the need for multi-speed transmissions and gear shifts. This results in a smoother and more effortless driving experience, with less need for transmission maintenance and repair.
The transmission in an EV regulates how much power is sent to the wheels, moving the vehicle forward or backward, depending on whether it is set to drive or reverse. EVs with all-wheel drive use two electric motors, one for the front axle and one for the rear axle, with different gear ratios to achieve different results. For example, the smaller front motor and gear may be designed for efficiency, while the larger rear motor and gear are engineered for power. During acceleration, the vehicle may send more power to the rear, and once it reaches cruising speed, it can divert power to only the front motor for better efficiency.
While most EVs use a single-speed transmission, there are a few exceptions. The Porsche Taycan and Audi e-tron GT are examples of electric cars with two-speed transmissions, which allow for greater efficiency during highway cruising. Additionally, Plug-in Hybrid Electric Vehicles (PHEVs) use a combination of an electric motor and combustion engine, requiring a more traditional transmission to coordinate power delivery to the wheels.
The EV powertrain is a different architecture from the ICE powertrain, producing zero tailpipe emissions and no engine noise. It consists of a battery pack, inverters for power transfer, and electric motor(s) through a final reduction drive. The battery pack provides direct current (DC) output, which is converted to alternating current (AC) and supplied to the electric motor through a DC-AC converter. The powertrain electronic control unit (ECU) controls the frequency and magnitude of the voltage supplied to the electric motor, managing the speed and acceleration based on the driver's inputs.
Ford Model T: Electric Vehicle Pioneer?
You may want to see also
Explore related products
Power electronics
The power electronics in an EV powertrain are responsible for optimising efficiency and power density. This includes managing the conversion of electrical energy to mechanical energy, which is then delivered to the wheels to propel the vehicle forward.
The battery pack, which is typically made up of multiple lithium-ion cells, provides direct current (DC) output. This DC power is then converted to alternating current (AC) power through a DC-AC converter or inverter, which is then sent to the electric motor. The electric motor then converts this electrical energy into mechanical energy, which is delivered to the wheels via a single fixed-gear ratio transmission. This process allows the vehicle to move forward smoothly and without emissions.
In addition to the powertrain, power electronics are also integrated into other systems in the vehicle, such as the power distribution unit, which ensures that each system receives the right amount of power and prevents system overloads. Electronic Control Units (ECUs) powered by firmware enable the efficient exchange and processing of data, helping to control and optimise the performance of the powertrain and other vehicle systems.
Overall, power electronics play a crucial role in the efficient and safe operation of EV powertrains, helping to manage and convert energy, control vehicle performance, and ensure the optimal distribution of power throughout the various systems in the vehicle.
Claiming Tax Credits: Electric Vehicle Leasing
You may want to see also
Explore related products
Battery management systems
An electric vehicle (EV) powertrain is a system of components that converts the chemical energy of the fuel into mechanical energy that propels the motion of an automobile. In the case of electric vehicles, the powertrain design and components are much simpler than those of conventional internal combustion engine (ICE) vehicles. A typical EV powertrain consists of a battery pack, inverters for power transfer, and an electric motor(s) through a final reduction drive.
A BMS is a crucial component of electric and hybrid electric vehicles. Its primary purpose is to ensure the safe and reliable operation of the battery. It is a sophisticated piece of technology that performs the complex operation of managing the battery. The BMS is an electronic system that controls and protects a rechargeable battery to guarantee its best performance, longevity, and safety.
The BMS continuously monitors the state of the battery and is responsible for taking necessary measures in case of a malfunction. It performs cell balancing to deliver maximum efficiency from the battery pack. It communicates with other ECUs, sensors, and EVSEs to control the charging input, check the current state of charge, and share data about battery specifications.
The BMS tracks the battery's condition and generates critical information reports. Important metrics tracked by the BMS include the battery's voltage, current, temperature, state of charge (SOC), state of health (SOH), and residual capacity. By monitoring these parameters, the BMS ensures that the battery cells operate within a safe working range.
Additionally, the BMS helps to optimise the performance of the battery while ensuring its safety. It eliminates variations in the performance of individual battery cells, allowing them to work uniformly and exert their maximum capability. This, in turn, helps to extend the service life of the battery and ensure its safe use.
The BMS also plays a role in improving the integration of the battery with other vehicle systems. For example, it can communicate directly with the motor controller and the onboard computer, enabling the car to operate more smoothly and enhancing its effectiveness, performance, and user experience.
In summary, the BMS is a critical part of electric vehicles that manages, safeguards, and monitors the battery, ensuring its optimal performance, safety, and longevity.
Electric Vehicles: Mutual Funds for the Future of Driving
You may want to see also
Explore related products
Electric motor and reduction drive
Electric vehicles (EVs) are powered by an electric motor that produces mechanical energy for propulsion. This motor receives electrical power from the transmission, which is then converted into mechanical energy to turn the wheels. This process is known as the "electric motor and reduction drive".
The electric motor is a crucial component in the EV powertrain, as it is responsible for creating the propulsion that moves the vehicle. The motor creates a magnetic field in its stator windings, inducing a rotation in the rotor, which then turns the wheels. This process is how electric vehicles move forward. The motor also facilitates regenerative braking, which can convert kinetic energy back into electrical energy, improving the life of mechanical braking systems and reducing wear and tear.
The reduction drive is another essential part of the EV powertrain. It transforms the input from the motor into a high-torque output, which is then delivered to the wheels to accelerate the vehicle. The final drive ratio is set per vehicle specification and driving conditions to optimise battery usage and improve mileage. A higher final drive ratio leads to higher torque and better acceleration, while a lower ratio allows for maximum vehicle speeds.
The electric motor and reduction drive work together to convert electrical energy into mechanical energy, which is then delivered to the wheels to propel the vehicle forward. This system is much simpler than traditional internal combustion engine (ICE) powertrains, which have many complex moving parts. EV powertrains have fewer components, which means less wear and lower maintenance costs.
The EV powertrain is an integrated system of components that work together to efficiently manage and deliver electrical power, transforming it into mechanical power for propulsion. The electric motor and reduction drive are key parts of this system, responsible for the efficient and sustainable movement of electric vehicles.
Electric Vehicles and Floods: What You Need to Know
You may want to see also
Explore related products
Power generation system
The power generation system is a fundamental part of an electric vehicle (EV) powertrain. It is one of the three main systems that make up the EV powertrain, alongside the power distribution system and the mechanical system. The power generation system is responsible for producing and transferring power to the vehicle, allowing it to move forward. This system transforms energy into motion, serving as the mechanical core of the EV.
The main component of the power generation system is the battery pack, which stores the electrical energy needed to power the vehicle. The battery pack is typically composed of multiple lithium-ion cells, which provide a direct current (DC) output. The number of cells and their configuration can vary depending on the vehicle's specifications and driving conditions. Optimising battery usage and improving mileage are crucial considerations in EV powertrain design.
The battery management system (BMS) is another essential component of the power generation system. The BMS ensures the safe and efficient operation of the battery pack by monitoring its health, performance, and charging and discharging processes. It regulates the charging and discharging cycles to optimise performance, safety, and battery life. The BMS also communicates with other electronic control units (ECUs) and sensors to control the charging input, check the state of charge, and share data about battery specifications.
In addition to the battery pack and BMS, the power generation system includes other management components such as the power control module and the inverter, or DC-AC converter. The DC-AC converter plays a crucial role in converting the DC power from the battery pack into alternating current (AC) power required by the electric motor. This power conversion is essential for the proper functioning of the EV powertrain.
The power generation system in an EV powertrain differs significantly from that of an internal combustion engine (ICE) vehicle. Unlike ICE vehicles, which have complex moving parts, EV powertrains have a simpler design with fewer components. EV powertrains do not produce tailpipe emissions and operate smoothly and quietly. The power generation system in an EV powertrain is also more sustainable and cost-effective, as it eliminates the need for high-maintenance items associated with ICE vehicles, such as spark plugs and oil changes.
