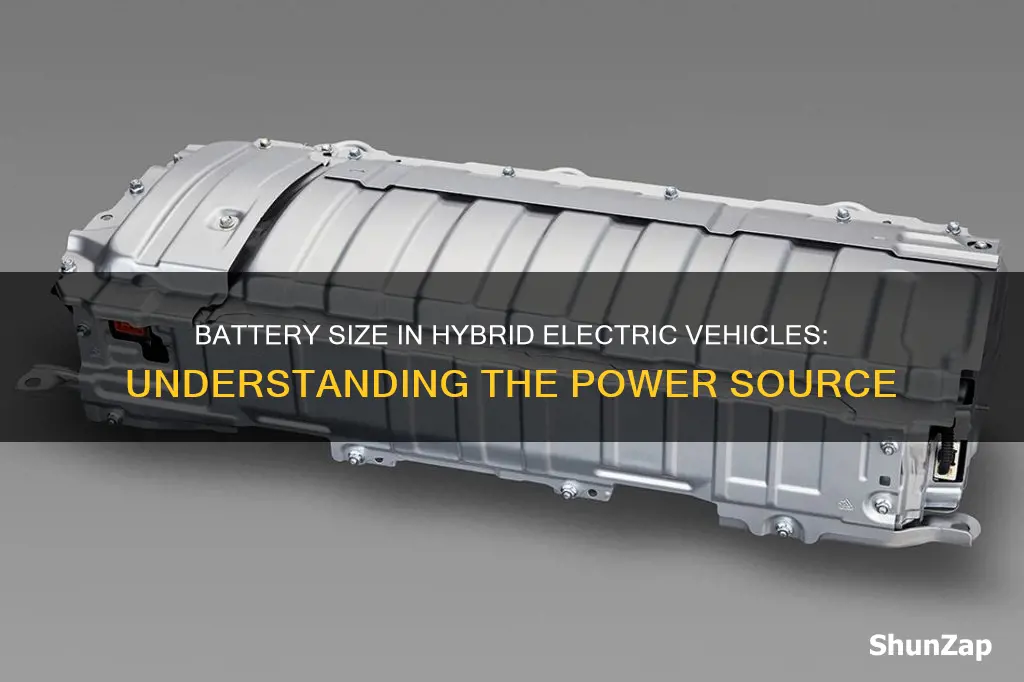

Powering The Future: Unveiling Hybrid Battery Sizes

Hybrid electric vehicles (HEVs) are known for their innovative approach to combining traditional combustion engines with electric motors, offering improved fuel efficiency and reduced emissions. One crucial component of this technology is the battery, which plays a pivotal role in powering the electric motor and supplementing the internal combustion engine. The size of the battery in HEVs varies depending on the specific model and its intended purpose. These batteries are typically smaller than those found in all-electric vehicles (EVs) but still play a significant role in enhancing the vehicle's overall performance and efficiency. Understanding the battery's size and capacity is essential for drivers to manage their vehicle's range and performance effectively.

Battery Capacity: Measures the energy storage in hybrid vehicles

The battery capacity in hybrid electric vehicles (HEVs) is a critical aspect of their design, determining how much energy can be stored and utilized for propulsion. This measure is typically expressed in ampere-hours (Ah) or kilowatt-hours (kWh), with the latter being more commonly used for vehicle specifications. The capacity of a battery in an HEV is a result of various factors, including the type of battery chemistry, its physical dimensions, and the overall system design.

In HEVs, the battery's role is to provide the necessary power for the vehicle's electric motor during acceleration and to recover energy through regenerative braking. The capacity directly influences the vehicle's range, especially in all-electric modes, and its ability to handle frequent stop-and-go driving. For instance, a higher capacity battery can store more energy, allowing the vehicle to travel longer distances without refueling, which is a significant advantage over conventional vehicles.

Measuring battery capacity involves several steps. Firstly, the battery's voltage and current ratings are determined, which are essential for understanding its power output and energy storage capability. This is often done through laboratory testing, where the battery is subjected to various load conditions to measure its performance. The results provide valuable data on the battery's efficiency, power density, and overall capacity.

Another critical factor in battery capacity is the physical size and weight of the battery pack. HEVs often use compact, lightweight battery designs to minimize the impact on vehicle performance and fuel efficiency. These designs can include advanced materials and structures to maximize energy density while ensuring safety and reliability. For example, some HEVs employ lithium-ion batteries, known for their high energy density and ability to provide rapid power delivery.

Understanding battery capacity is crucial for both manufacturers and consumers. It allows engineers to design vehicles with optimal energy management systems, ensuring efficient use of the available energy. Consumers can make informed decisions when purchasing HEVs, considering factors like range, charging infrastructure, and the overall driving experience. The battery capacity, therefore, plays a pivotal role in the widespread adoption of hybrid technology, offering a more sustainable and environmentally friendly transportation option.

Voltage: Voltage levels define the power output of the battery

The voltage of a battery in a hybrid electric vehicle (HEV) is a critical factor that directly influences the vehicle's performance and efficiency. Voltage levels in HEV batteries typically range from 200 volts to 400 volts, with some advanced systems even reaching higher voltages. This voltage range is significantly higher than that of conventional lead-acid batteries, which are commonly used in traditional vehicles. The higher voltage is essential to provide the necessary power to drive the electric motor and ensure the vehicle can accelerate and maintain speed efficiently.

In an HEV, the battery acts as a power source, supplying electricity to the electric motor and, in some cases, directly to the vehicle's accessories and electronics. The voltage level determines the amount of power that can be delivered to these components. Higher voltage batteries can provide more power, allowing for quicker acceleration and improved overall performance. For instance, a 300-volt battery can deliver more torque and power compared to a 200-volt battery, resulting in a more responsive and dynamic driving experience.

The voltage of the battery also impacts the vehicle's energy efficiency. Modern HEVs use sophisticated power electronics to manage the flow of electricity between the battery, motor, and other components. By optimizing voltage levels, engineers can ensure that energy is used efficiently, reducing waste and improving the overall range of the vehicle. This is particularly important in hybrid systems, where the vehicle can switch between electric and combustion modes, and efficient energy management is crucial for maximizing fuel economy.

Furthermore, voltage levels in HEV batteries are carefully designed to match the requirements of the vehicle's electrical system. Each component, such as the motor, inverter, and control units, operates within specific voltage ranges. For example, the inverter, which converts direct current (DC) from the battery to alternating current (AC) for the motor, needs to handle the voltage levels supplied by the battery. Matching the voltage to the system's needs ensures optimal performance and prevents damage to the components.

In summary, voltage levels in hybrid electric vehicle batteries are a key consideration in their design and operation. Higher voltages provide increased power output, improve acceleration, and enhance overall vehicle performance. Efficient energy management and matching voltage levels to the electrical system's requirements are essential for the successful integration of HEV batteries, ensuring a smooth and environmentally friendly driving experience. Understanding these voltage considerations is vital for engineers and manufacturers in the development of advanced hybrid systems.

Cell Chemistry: Different chemistries offer varying performance and longevity

The battery pack in a hybrid electric vehicle (HEV) is a crucial component, and its size and chemistry significantly impact the vehicle's performance, efficiency, and overall driving experience. The battery's cell chemistry is a key factor in determining its energy density, power output, and longevity. Different chemistries have unique characteristics, each offering advantages and trade-offs.

One of the most common chemistries used in HEVs is Nickel-Metal Hydride (Ni-MH). Ni-MH batteries have been widely adopted due to their relatively low cost and good cycle life. These batteries typically provide a moderate energy density, allowing for a reasonable driving range in hybrids. Ni-MH cells are known for their ability to handle high discharge rates, making them suitable for the varying power demands of hybrid systems. However, they may not offer the highest energy efficiency compared to other chemistries.

Lithium-ion (Li-ion) batteries have gained significant popularity in recent years for HEVs. Li-ion technology offers higher energy density, resulting in smaller and lighter battery packs while providing improved performance. This chemistry is known for its high power output, enabling quick acceleration and responsive driving. Additionally, Li-ion batteries have a longer cycle life, ensuring that the vehicle can maintain its performance over many years. The trade-off is that Li-ion batteries can be more expensive, and their manufacturing process requires careful management to ensure safety.

Another emerging chemistry is Sodium-ion (Na-ion) battery technology, which has shown promise for HEV applications. Na-ion batteries offer a similar energy density to Li-ion but at a potentially lower cost. These batteries are particularly attractive due to the abundance of sodium, making them a more sustainable option. However, Na-ion batteries are still in the development stage, and further research is needed to optimize their performance and longevity.

The choice of cell chemistry influences the overall size and weight of the battery pack. For instance, Li-ion batteries, with their higher energy density, can provide the same or even better performance while being smaller and lighter than traditional Ni-MH packs. This reduction in size allows for more flexible vehicle design and improved overall efficiency.

In summary, the cell chemistry of a hybrid electric vehicle's battery pack is a critical consideration. Different chemistries offer varying performance characteristics, energy densities, and longevity. While Ni-MH batteries provide reliability and moderate performance, Li-ion and emerging Na-ion technologies offer higher energy densities and improved power output. The choice of chemistry ultimately influences the vehicle's driving experience, efficiency, and overall sustainability.

Size and Weight: Physical dimensions impact vehicle design and efficiency

The size and weight of the battery pack in a hybrid electric vehicle (HEV) are critical factors that significantly influence the overall design, performance, and efficiency of the vehicle. These physical dimensions play a pivotal role in determining the vehicle's range, power output, and overall driving experience.

In HEVs, the battery pack serves as the energy storage system, supplying power to the electric motor and often providing assistance to the internal combustion engine. The size of the battery pack is typically measured in terms of its energy capacity, often expressed in kilowatt-hours (kWh). Larger battery packs offer increased energy storage, allowing for longer all-electric ranges and improved overall efficiency. For instance, some advanced HEVs feature battery capacities ranging from 1.3 kWh to 4 kWh, with higher-end models sometimes exceeding 5 kWh.

The weight of the battery pack is another crucial consideration. Heavier batteries can impact the vehicle's overall weight distribution, affecting handling and performance. To optimize efficiency, engineers strive to minimize the weight of the battery pack while maximizing its energy density. This involves using lightweight materials such as advanced composites and thin-film batteries, which can reduce the overall weight without compromising energy storage capacity.

Physical dimensions also influence the design of the vehicle's underbody and packaging. Larger batteries may require more space, impacting the overall footprint of the vehicle. Designers must carefully consider the placement of the battery pack to ensure it fits within the available space while maintaining a low center of gravity for improved stability and handling. This careful arrangement of components is essential for achieving the desired vehicle performance and aesthetics.

Furthermore, the size and weight of the battery pack have implications for the vehicle's efficiency and range. Smaller, lighter batteries can contribute to improved fuel economy and reduced weight, enhancing the overall efficiency of the HEV. However, this must be balanced with the need for sufficient energy storage to support the vehicle's electric driving capabilities. Optimizing these dimensions is a complex task that requires a deep understanding of vehicle dynamics, materials science, and energy storage technologies.

Charging Technology: Methods and infrastructure influence battery charging speed and efficiency

The charging technology and infrastructure play a crucial role in determining the speed and efficiency of battery charging in hybrid electric vehicles (HEVs). The rapid advancement in HEV technology has led to the development of various charging methods, each with its own advantages and limitations. Understanding these methods and their impact on charging infrastructure is essential for optimizing the performance and range of HEVs.

One of the primary charging methods for HEVs is the use of alternating current (AC) charging. This method typically involves connecting the vehicle to a standard electrical outlet or a dedicated charging station. AC charging is widely available and convenient, as it can be easily integrated into existing power grids. However, the charging speed is relatively slow compared to other methods. The charging power is usually limited to a few kilowatts, which results in a longer charging time, especially for larger battery packs. For instance, charging a typical 1.5 kWh battery pack at a rate of 3 kW might take around 30 minutes to 1 hour, which is acceptable for overnight charging but not ideal for quick top-ups during a journey.

Direct current (DC) fast charging is another popular method that significantly improves charging speed. This technology utilizes high-power DC chargers, often located along highways and in public charging stations. DC fast chargers can provide charging currents of up to 500 amps or more, enabling rapid charging of HEV batteries. For example, a 120 kWh battery pack can be charged to 80% capacity in as little as 20-30 minutes using a 350 kW fast charger. This method is highly efficient and is widely adopted for public charging infrastructure, allowing HEV drivers to quickly replenish their battery during long-distance travel.

The charging infrastructure also plays a vital role in optimizing charging speed and efficiency. The availability and distribution of charging stations, especially fast-charging stations, are essential for HEV owners. A well-planned charging network ensures that drivers have convenient access to charging points, reducing range anxiety and promoting the widespread adoption of HEVs. Additionally, smart charging infrastructure can help balance the electrical grid by managing charging rates and optimizing energy usage during peak demand periods.

Furthermore, the integration of wireless charging technology is an emerging trend that promises to revolutionize the charging experience. Wireless charging eliminates the need for physical connectors, making the process more convenient and potentially faster. This technology uses electromagnetic fields to transfer energy between a ground-based charging pad and a receiver on the vehicle's underbody. While wireless charging is still in the development stage, it has the potential to significantly enhance charging efficiency and speed, especially for plug-in hybrid electric vehicles (PHEVs) that require more frequent charging.

In summary, the charging technology and infrastructure are integral to the performance and user experience of HEVs. AC charging provides convenience and is suitable for overnight charging, while DC fast charging offers rapid charging for long-distance travel. The availability of charging stations and the integration of wireless charging technology will further enhance the efficiency and speed of battery charging, ultimately contributing to the success of the HEV market. As HEV technology continues to evolve, the focus on charging infrastructure and innovative charging methods will be essential to meet the growing demand for sustainable transportation.
