Triac Component Functionality In Electrical Circuits

what is triac in an electrical diagram

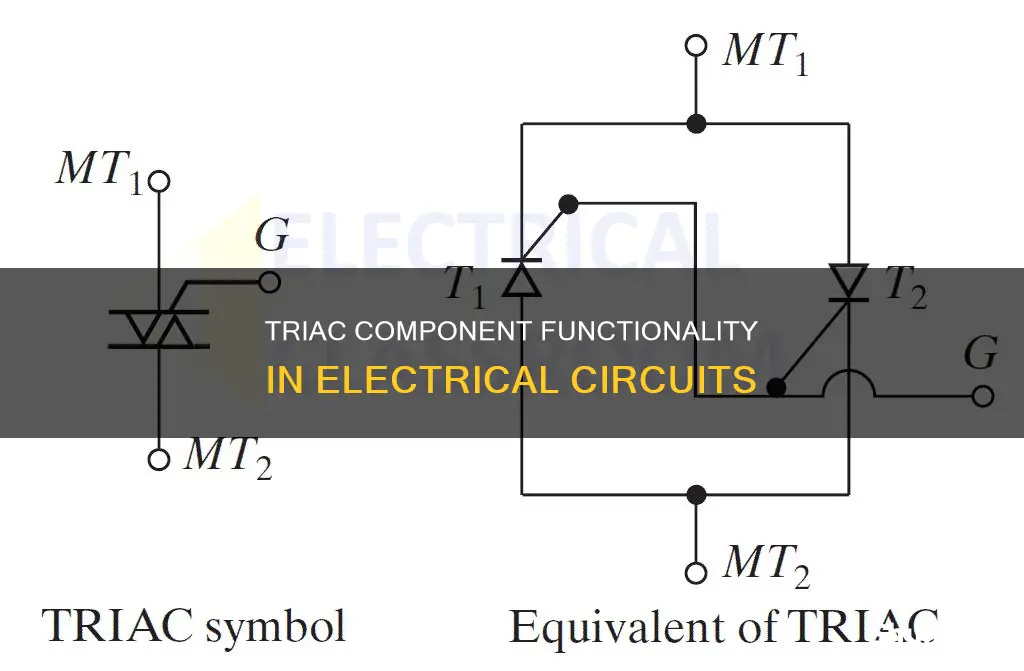

TRIACs (Triode for Alternating Current) are bidirectional semiconductor devices that can control current flow in both directions of an alternating current cycle. Unlike other devices, TRIACs don't have an anode and cathode, instead, they operate with three terminals: Main Terminal 1 (MT1), Main Terminal 2 (MT2), and a Gate terminal (G). This unique structure allows TRIACs to be triggered into conduction in either direction by a positive or negative pulse supplied to the gate. Their versatility and ability to handle a wide range of currents and voltages make them ideal for AC power control and switching applications.

Characteristics Values
Definition TRIAC is a three-terminal, four-layer, bi-directional semiconductor device that controls AC power.
Operation TRIAC operates in four different modes based on the polarities of MT2 and the gate relative to MT1.
Applications TRIACs are used in control circuits, high-power lamp switching, AC power control, light dimmers, speed controls for electric fans, and other electric motors.
Conductivity TRIAC can be triggered into conduction in either direction by a momentary positive or negative pulse supplied to the gate.
Voltage Sensitivity TRIACs can be sensitive to fast voltage changes (dv/dt) between MT1 and MT2, and care must be taken to ensure proper turn-off when controlling reactive loads.
Current Handling When the TRIAC turns on, a heavy current flows through it, requiring a current-limiting resistor to prevent damage.
Triggering TRIAC can be triggered by a gate voltage higher than the break-over voltage or a 35-microsecond gate pulse. Proper gate signals control the firing angle.
Efficiency TRIAC wastes virtually no power by converting it to heat, and it fully switches on or off without partially limiting current.
Comparison with SCR TRIAC is more versatile than SCR due to its bi-directionality, but SCR may be preferred for higher-powered loads as TRIAC may not reliably turn on with reactive loads.

shunzap

TRIAC's role in AC circuits

TRIAC, an acronym for Triode AC Switch, is a semiconductor device used for switching and power control of AC systems. It is a three-terminal, four-layer, bidirectional device that can conduct current in both directions when triggered by a single gate pulse. This makes it ideal for AC systems as it can be switched on by either a positive or negative gate pulse, regardless of the AC supply's polarity.

TRIACs are commonly used in control circuits, high-power lamp switching, and AC power control. In lamp dimmers, for example, TRIACs can control the average current flowing into the load (phase control) by applying a trigger at a controlled phase angle of the AC in the main circuit. This allows for smooth dimming of lamps without the annoying RFI pulses that can occur at high switch-on currents. To avoid these pulses, the dimmer can be fitted with an L-C filter network to reduce the rate-of-rise of the AC power line currents.

In motor control applications, TRIACs can be used to control the speed of universal motors by adjusting the average current flowing into the motor. However, care must be taken to ensure that the TRIAC turns off correctly at the end of each half-cycle of the AC to avoid unwanted turn-ons due to voltage spikes or rapid voltage changes (dv/dt) between MT1 and MT2. A snubber circuit, typically of the resistor/capacitor type, can be used between MT1 and MT2 to prevent premature triggering and ensure correct switching behaviour.

TRIACs have four possible triggering modes of operation, depending on the polarities of MT2 and the gate relative to MT1. In Quadrant I, the TRIAC is typically triggered by a positive gate current (mode I+), but it can also be triggered by a negative gate current (mode I-). Similarly, in Quadrant III, triggering with a negative gate current (mode III-) is common, along with mode III+ which uses a positive gate current. Modes I- and III+ are less sensitive configurations that require higher gate currents to activate.

Overall, TRIACs play a crucial role in AC circuits by providing bidirectional switching capability, enabling precise control of power delivery, and offering flexibility in triggering modes. Their unique characteristics make them well-suited for a range of applications, including lamp dimming, motor speed control, and electrical heater control.

shunzap

TRIAC's four modes of operation

A TRIAC is a three-terminal electronic component that conducts current in either direction when triggered. It is a type of high-speed solid-state device that can switch and control AC power in both directions of a sinusoidal waveform. Unlike other devices, it does not have an anode and cathode and works with three terminals: main terminal 1 (MT1), main terminal 2 (MT2), and a gate terminal (G).

The TRIAC operates in four different modes, depending on the polarities of MT2 and the gate relative to MT1. Here are the four modes of operation:

  • When MT2 and the Gate are Positive with Respect to MT1: In this mode, the current flows through the path P1-N1-P2-N2. Here, P1-N1 and P2-N2 are forward biased, but N1-P2 is reverse biased. The TRIAC is said to be operated in the positively biased region. A positive gate with respect to MT1 forward biases P2-N2 and causes breakdown.
  • When MT2 is Positive but the Gate is Negative with Respect to MT1: In this mode, the current flows through the same path as in mode 1 (P1-N1-P2-N2). However, P2-N3 is forward biased, and current carriers are injected into P2 on the TRIAC.
  • When MT2 and the Gate are Negative with Respect to MT1: In this mode, the current flows through a different path, P2-N1-P1-N4. Two junctions, P2-N1 and P1-N4, are forward biased, while the junction N1-P1 is reverse biased. The TRIAC is now said to be in the negatively biased region.
  • When MT2 is Negative but the Gate is Positive with Respect to MT1: In this mode, P2-N2 is forward biased, and current carriers are injected, turning on the TRIAC. This mode of operation has the disadvantage of not being suitable for high (di/dt) circuits.

The sensitivity of triggering in modes 2 and 3 is higher than in mode 1. If marginal triggering capability is required, negative gate pulses should be used. Additionally, modes 1 and 3 are the only operating modes in most applications, while modes 2 and 3 are used in applications with single polarity triggering from an IC or digital drive circuit.

Customizing Your Razor X: Modding Guide

You may want to see also

shunzap

TRIAC's advantages over mechanical switches

TRIACs, or Triode for Alternating Current, are three-terminal semiconductor devices that function as bidirectional switches, allowing current flow in both directions within an AC circuit. This bidirectional conductivity makes TRIACs ideal for AC circuit applications where controlled switching is required.

TRIACs offer several advantages over mechanical switches. Firstly, TRIACs have a very long lifespan as they are not limited by electromechanical ageing contingencies. Secondly, TRIACs can effectively replace mechanical switches for controlling loads in AC circuits. They can be configured to switch relatively heavier loads through minimal current triggering. When TRIACs switch off, they do so without producing any transients due to back EMFs, which is an issue with mechanical switches.

Another advantage of TRIACs is their flexible triggering. They can be switched at any point in the input AC cycle through a low-voltage positive signal across the gate and common ground. This triggering voltage can come from any DC source, such as a battery. TRIACs also eliminate fusing of contacts, arcing issues, and other forms of wear and tear commonly associated with mechanical switches.

TRIACs are also more economical than back-to-back SCRs (Silicon Controlled Rectifiers) when amperage is low. They are often used in dangerous environments where arcing is undesirable or dangerous, as they do not create an arc.

shunzap

TRIAC's applications in lighting control

TRIACs are commonly used in lighting control applications, particularly in domestic settings. They are used to control the brightness of lights, also known as dimming. This is achieved by controlling the percentage of current that flows through a circuit load. TRIAC dimmers are easy to set up and use, and they are compatible with various light bulbs such as incandescent, halogen, CFL, and some LED bulbs. They are also suitable for retrofitting older houses with new dimmable bulbs.

TRIAC dimmers can be used with standard forward-phase dimmers, which consist of a TRIAC and a resistance circuit. The resistance is controlled by a potentiometer, and the RC time controls the delay before the TRIAC turns on, also known as the firing angle. This allows for precise control over the brightness of the lights.

TRIAC circuits are also used in industrial-grade lighting control solutions, providing advanced features such as monitoring, dimming, colour control, and lighting patterns. They are often used in large-scale applications like sports stadium lighting. Digital Addressable Lighting Interface (DALI) and Digital Multiplex Signal (DXM) are two commonly used digital lighting protocols that utilize TRIAC technology. DALI is a complex system that can communicate directly with individual light fixtures, while DXM can control a network of LED lights remotely.

In addition to lighting control, TRIACs are also used in other applications such as motor speed control and electrical heater control. They are suitable for controlling small universal motors found in portable power tools and small appliances. Overall, TRIACs provide a versatile and effective solution for lighting control and other electrical applications.

shunzap

TRIAC's applications in motor control

TRIACs are commonly used for universal motor speed control. They are used to control the speed of series-connected motors, which is a linear function of voltage over a voltage range. The speed tends to drop abruptly at a certain threshold. For example, in the application of a lathe power feed, the measured feed rate is directly proportional to the motor's RPM (revolutions per minute) versus RMS voltage from the speed control circuit.

TRIAC circuits are well-known for their use in universal motor speed control. Unlike induction motors, universal motors can be easily speed-controlled by varying their voltage. The RMS voltage of an AC line can be varied by chopping out pieces of the sinusoidal waveform, which modern semiconductor power devices can easily enable.

TRIACs are also used in phase control for motor speed controllers. They can be triggered at any phase angle within the AC sine wave. Once triggered into conduction, they can only be turned off by reducing the current circulating through the anode and cathode to below their holding current value.

TRIACs are suitable for AC motor speed control, lamp dimmers, and electrical heater control. They are similar to a TRIAC light dimmer used in many homes. However, a commercial TRIAC dimmer should not be used as a motor speed controller, as they are intended to be used with resistive loads only, such as incandescent lamps.

TRIACs are three-terminal AC switches that can conduct in both directions, making them ideal for AC systems. They can be triggered into conduction in either direction and have four possible triggering modes, of which two are preferred.

Frequently asked questions

A TRIAC (Triode for Alternating Current) is a bidirectional AC switch with three electrodes, allowing current flow in either direction.

TRIACs are used in control circuits, high-power lamp switching, AC power control, speed controls for electric fans, light dimmers, and other electric motors.

TRIACs are considered versatile due to their ability to operate with positive or negative voltages across their terminals. They can handle a large range of currents and voltages and are ideal for switching applications utilizing AC power.

A TRIAC has three terminals: Main Terminal 1 (MT1), Main Terminal 2 (MT2), and Gate (G). It can be triggered into conduction in either direction by applying a gate voltage higher than the break-over voltage or by using a gate pulse. The four modes of operation depend on the polarities of MT2 and the gate relative to MT1.
