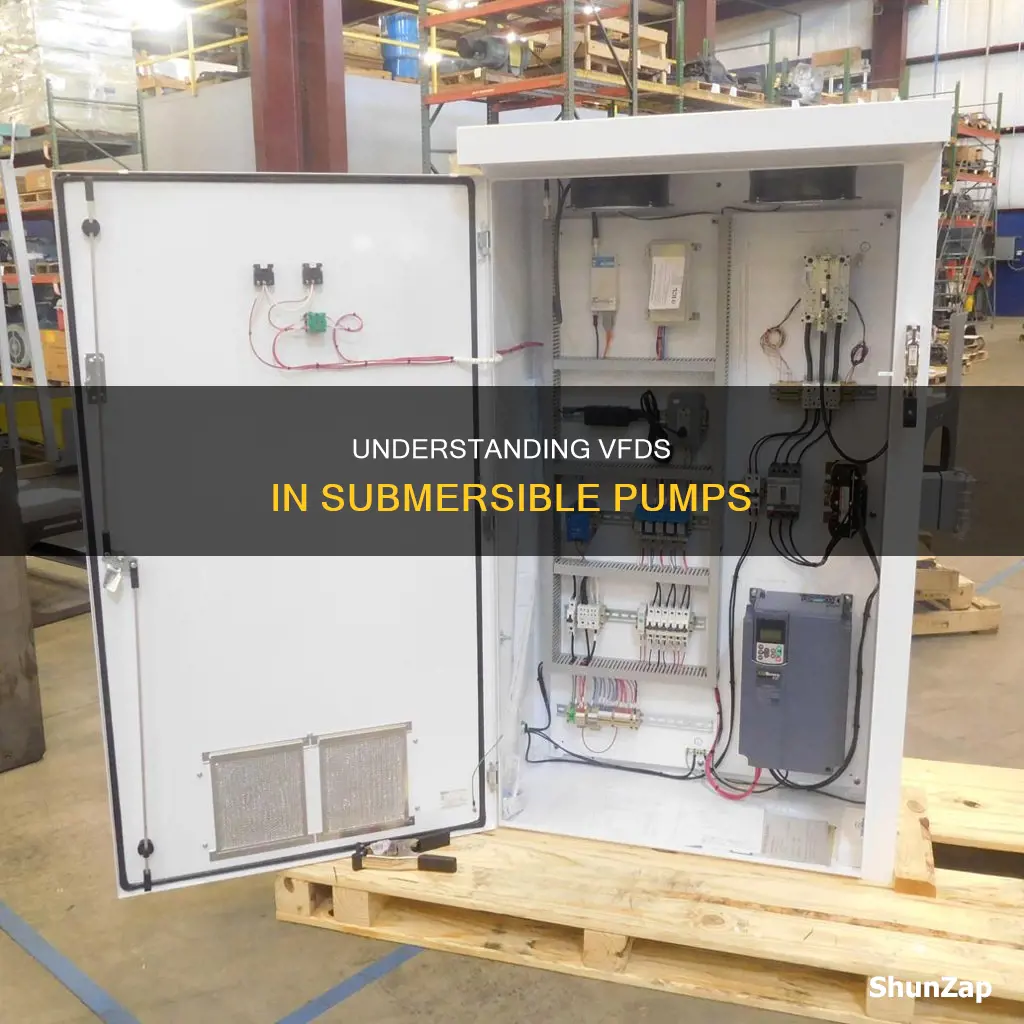

Variable Frequency Drive (VFD) is a technology that allows users to control the speed of a pump, providing a range of flow rates without the need for a gearbox or a different electric motor. VFDs are beneficial for submersible wastewater pumping applications as they can reduce energy costs and control output to aid in process control. When selecting a VFD, it is important to consider the electrical current required by the motor and the current output capability of the VFD. The compatibility of the motor with the VFD and the duty point of the pump are also crucial factors. Improper setup of a VFD can lead to premature pump failure, hence the installation should be done by a competent technician.
Explore related products
What You'll Learn
VFD suitability for submersible pumps
When considering the suitability of a variable-frequency drive (VFD) for a submersible pump, several key factors come into play. Firstly, it is essential to assess the compatibility of the motor with the VFD. Not all motors are designed to operate on VFDs, and using an incompatible motor may lead to premature insulation failure due to high voltage spikes during operation. Motors should meet the NEMA MG1 standard, Section 31, to ensure they can withstand these voltage spikes.
The selection of the pump for the specific duty point is another crucial consideration. Pumping systems with a static head exceeding 50% of the total head are typically not suitable for VFDs. Additionally, pump selections where the operating point is towards the left side of the pump curve may not be VFD-compatible due to a limited usable turn-down range. The electrical current output capability of the VFD should be about 10% higher than the motor's current demand to ensure optimal performance.
VFDs offer significant benefits for submersible pumps, including enhanced control over pumping speeds and improved energy efficiency. They are particularly advantageous in applications such as wastewater pumping, where slowing down the pump can lead to substantial energy savings. VFDs also enable users to regulate installation parameters, making them useful in maintaining groundwater levels at construction sites or mines and managing varying water demands in domestic water supply applications.
When installing a VFD, it is important to consider the environment and ensure the VFD is rated for outdoor exposure if necessary. Proper sizing of the system is crucial, as increasing pump speed impacts the required motor output. Additionally, output filters are recommended for installations with a net supply above 380 volts to protect the motor and extend its lifespan. Improper setup can lead to premature pump failure, so it is essential to engage technicians with experience in pumps, electricity, and wells for installation and maintenance.
Replacing Electric Showers: Installing Mixer Showers
You may want to see also
Explore related products
VFD installation
VFD, or variable frequency drive, is a type of motor controller that can be used with submersible pumps to offer greater control over pumping speeds and increase energy efficiency.
When installing a VFD, there are several key considerations to keep in mind. Firstly, it is important to ensure that the motor is suitable for operation with a VFD. The motor should meet the requirements of the NEMA MG1 standard, section 31, which relates to the ability of the motor's insulation system to withstand high voltage spikes during operation. If a motor is not designed to run on a VFD, it may suffer premature insulation failure.
Secondly, the selection of the pump for the specific duty point is crucial. Pumping systems where the static head exceeds 50% of the total head are typically not suitable for VFD pumping systems. Additionally, pump selections where the operating point is towards the left side of the pump curve may not be VFD-suitable due to a limited usable turn-down range.
Thirdly, the electrical current output capability of the VFD should be carefully considered. The current output capability of the VFD should be approximately 10% higher than the motor's current demand. In hot climates or higher elevations, this safety margin may need to be increased, and consultation with the VFD manufacturer is recommended.
It is also important to note that VFDs should be installed by experienced technicians with a high level of competency in pumps, electricity, and wells. Improper setup can lead to premature pump failure. Furthermore, if the VFD is to be used outdoors, it should be rated as NEMA 4 or IP66 to protect against rain and accidental water spray.
Finally, when installing a VFD on a submersible pump in a body of water, additional considerations arise. High-frequency losses in the VFD can cause ground fault circuit interrupter (GFCI) tripping issues. In such cases, a common-mode choke can be installed on the input and output of the VFD to mitigate this problem.
Keeping Chicks Warm: Alternative Methods to Electricity
You may want to see also
Explore related products
VFD maintenance
Variable Frequency Drives (VFDs) are major investments and critical devices for controlling the frequency and voltage of electricity reaching a device's electric motor. Hence, it is essential to keep them in peak operating condition through regular maintenance.
Firstly, VFDs should be installed by technicians with a high level of competency and experience with pumps, electricity, and wells. Proper installation ensures optimal operation and a long life for the device.
Secondly, VFDs should be maintained and inspected regularly to ensure they are safe from external factors such as water and debris, as well as faulty internal mechanics. Visual inspections should be conducted weekly to examine all surfaces of the drive for signs of corrosion, condensation, and debris buildup. Cleaning procedures should be implemented to remove dust and debris from the VFD's control panel and vents, especially for NEMA 1 VFDs.
Thirdly, electrical checks are crucial to identify loose connections that may have occurred due to mechanical vibration, heat cycles, or incidental movement. Connections should be adjusted according to the original equipment manufacturer (OEM) specifications.
Firmware updates are also essential for effective operation, accurate monitoring, streamlined troubleshooting, and smoother startups. VFDs use programming software to control drive settings according to user input, so keeping this software updated is crucial.
Finally, it is important to maintain a consistent preventive maintenance schedule. This includes keeping the VFD clean, dry, and with tight connections. Regular maintenance can help extend the drive's lifespan, prevent problems, and reduce the risk of malfunctions and costly repairs.
Electrical Service Amps: What Your Home Needs
You may want to see also
Explore related products
VFD energy efficiency
A variable-frequency drive (VFD) is an electronic controller that adjusts the speed of a pump's motor to match the required output, ensuring the pump runs at optimal efficiency. VFDs are used with submersible pumps to improve energy efficiency, extend pump life, and enhance performance.
VFDs can reduce energy costs by adjusting the motor speed to meet the actual demand, ensuring the pump is not running at full power when it is unnecessary. This reduces energy consumption and lowers operational costs. For example, in systems where most of the head is dynamic, meaning friction loss, slowing the pump down with a VFD will significantly drop the power required to pump the water, resulting in lower energy costs.
VFDs also provide improved speed control, allowing for a soft start and stop. This minimizes mechanical stress and electrical surges, reducing wear and tear on the pump and motor and extending their life.
When selecting a VFD, it is important to consider the electrical current required by the motor compared to the current output capability of the VFD. The VFD should have a current output capability approximately 10% higher than the motor's current demand. Additionally, the motor should meet the requirements of the NEMA MG1 standard, which defines the ability of the motor's insulation system to withstand high voltage spikes during VFD operation.
While VFDs offer energy efficiency benefits, there are also some drawbacks to consider. For example, improper setup can lead to premature pump failure, and frequent power outages can be an issue as VFDs do not have large pressure tanks installed.
Electric Guitar-Amp Connection: A Beginner's Guide
You may want to see also
Explore related products
VFD speed control
Variable Frequency Drive (VFD) water pumps are designed to regulate the speed and output of the pump according to the specific needs of the system. This is achieved by using a variable frequency drive controller that can adjust the speed of the motor powering the pump.
The soft-start and stop feature of VFDs is another advantage. It gradually increases or decreases the motor speed, minimizing mechanical stress and electrical surges. This reduces wear and tear on the pump and motor, extending their lifespan and reducing the need for repairs and replacements.
When selecting a VFD for speed control, it is important to consider the electrical current required by the motor compared to the current output capability of the VFD. The VFD's current output capability should be approximately 10% higher than the motor's current demand. Additionally, the suitability of the motor to operate on a VFD should be ensured, as not all motors are compatible. Suitable motors should meet the requirements of the NEMA MG1 standard, which defines the ability of the motor's insulation system to withstand high voltage spikes during VFD operation.
Overall, VFD speed control offers improved control, energy efficiency, and reduced wear and tear on submersible pumps, making it a valuable investment for operators seeking firmer control of their pumping speeds and greater energy efficiency.
Understanding Electric Force and Distance Relationship
You may want to see also
Frequently asked questions
VFD stands for Variable Frequency Drive. It is a technology that allows you to control the speed of a pump by changing the frequency of the power supply, without the need for a gearbox or a different electric motor.
VFDs offer greater control over pumping speeds and can help reduce energy costs. They also reduce mechanical stress and improve the efficiency of electric motors by matching motor speed to load requirements.
The suitability of the motor to operate on a VFD, the selection of the pump for the particular duty point, and the electrical current output capability of the VFD are the primary considerations. Not all motors are suitable for VFDs, and the pump selection can impact the suitability of a VFD for a specific application.
VFDs are commonly used in applications such as mines, construction sites, domestic water supply, and geothermal wells. They help regulate groundwater levels, adapt to varying pump demands, provide constant temperatures, and efficiently manage water supply.
