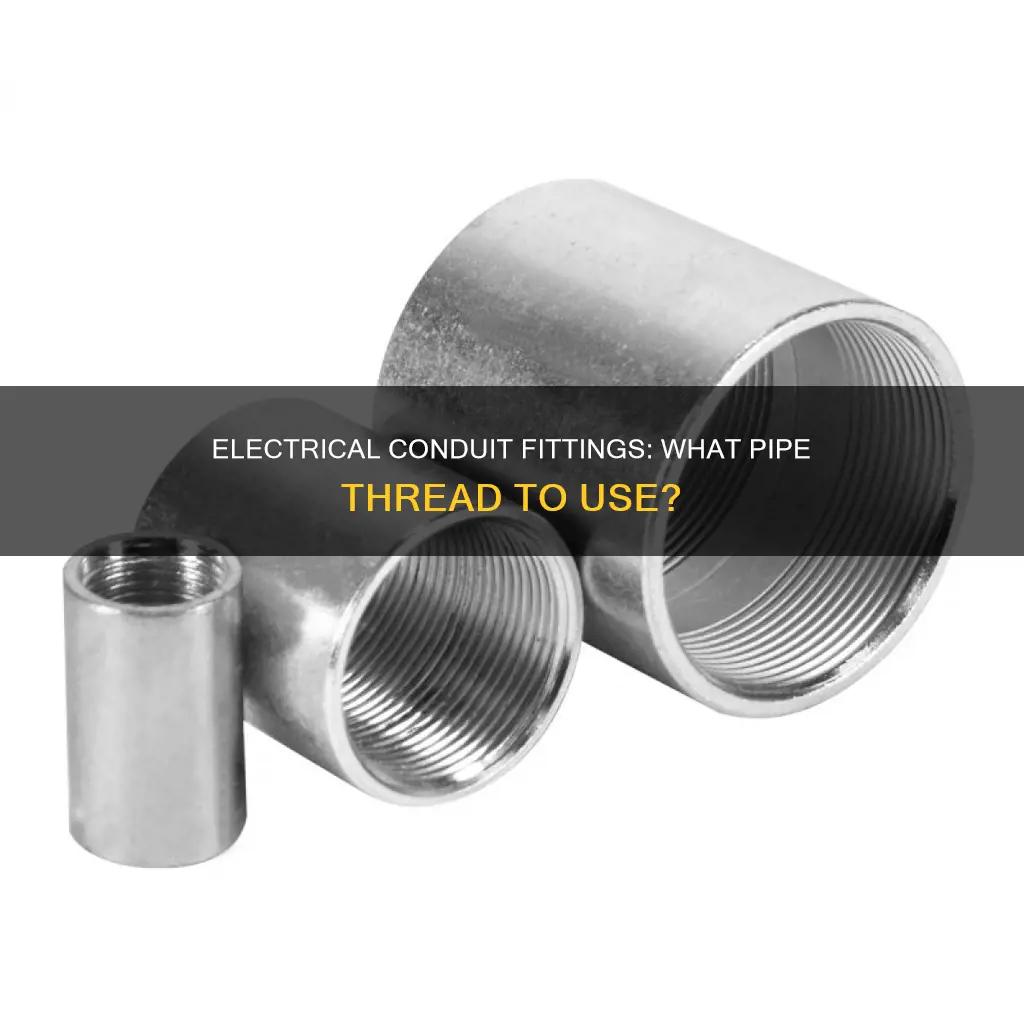

Conduit fittings are used to make connections in electrical systems. They can be used to connect two conduits or to secure a conduit to an electrical device. The type of conduit fitting used depends on the type and size of the raceway (thread). Rigid conduit systems are installed using threaded connections, which provide electrically continuous joints. The two most common types of threads found in electrical fittings in a rigid conduit system are National Standard Pipe Tapered (NPT) and National Standard Pipe Straight (NPS). NPT threads are often found on conduit fittings, while NPS threads provide a secure, electrically continuous connection that is not sealed.
| Characteristics | Values |
|---|---|
| Common types of threads | National Standard Pipe Tapered (NPT), National Standard Pipe Straight (NPS) |
| NPT use case | Conduit, nipples, elbows, and fittings |
| NPT taper rate | 3/4-inch per foot or 1 inch per 16 inches of length |
| NPS use case | Secure, electrically continuous connection |
| Rigid conduit | Tapered male thread |
| Rigid couplings | Straight female thread |
| Rigid conduit locknuts | Internal threads |
| Conduit fittings | Connect two runs of conduit or secure conduit to an electrical device |
| Elbow fittings | Join like with like with a gentle curve |
| Conduit strap | Secures a length of conduit to a wall or a joist |
| Connector fittings | Connect components of an electrical system |
| Weatherheads | Waterproof cap installed outside for wiring access |
| Reducer couplings | Connect two conduits of varying size |
| EMT | Electrical metallic tubing with thin metal walls |
| RMC | Rigid metallic conduit with thick walls |
| ENT | Electrical non-metallic tubing with thin walls |
| RNC | Rigid non-metallic tubing with thick walls |
Explore related products
What You'll Learn
- Rigid conduit systems use threaded connections for easy installation
- NPT and NPS are the most common types of threads in rigid conduit systems
- Tapered NPT threads form a tight seal and are found on conduit, nipples, elbows, and fittings
- NPS threads provide a secure, electrically continuous connection that is not sealed
- Conduit fittings connect two runs of conduit or conduit to an electrical device
Rigid conduit systems use threaded connections for easy installation
Rigid conduit systems are used to protect and route electrical wiring in buildings and structures. They are typically made of metal or plastic, with varying wall thicknesses and stiffness depending on the application. These conduit systems use threaded connections, which provide electrically continuous joints and make installation easier.
There are two main types of threads commonly found in electrical fittings in rigid conduit systems: National Standard Pipe Tapered (NPT) and National Standard Pipe Straight (NPS). NPT threads are tapered and form a tight seal when torqued, preventing loosening due to vibrations. NPS threads, on the other hand, provide an electrically continuous connection that is not sealed, allowing unwanted substances like condensation to escape.
The type of thread used in a rigid conduit system is important for ensuring safety and compliance with electrical standards. For example, in hazardous locations, the National Electrical Code (NEC) requires threaded rigid conduits to be "wrench-tight" with fully engaged threads to maintain the explosion-proof integrity of the system.
The selection of conduit fittings depends on the type and size of the raceway (thread) used. Fittings such as couplings, elbows, and connectors allow for connections between conduits or to electrical devices. It is important to ensure that the fittings are compatible with the type of raceway and comply with safety codes to prevent risks of fire, injury, or damage.
Overall, rigid conduit systems with threaded connections provide both functionality and ease of installation, making them a common choice for electrical wiring protection in various applications.
Electric vs Manual: Which Breast Pump is Superior?
You may want to see also
Explore related products
NPT and NPS are the most common types of threads in rigid conduit systems
National Standard Pipe Tapered (NPT) and National Standard Pipe Straight (NPS) are the two most common types of threads used in rigid conduit systems. Rigid conduit systems are installed using threaded connections, which provide electrically continuous joints and easy installation.
NPT threads are tapered and are widely used in applications where a secure, leak-proof seal is necessary. They are defined by their tapered thread design, where the diameter of the threads decreases along the length of the fitting. This taper creates a wedging action when male and female threads are tightened together, allowing for a secure and leak-resistant connection. NPT threads are typically used in fluid and gas systems where a tight seal is critical. When mated, NPT-to-NPT tapered threads compress against each other to form a close, tight seal that will not loosen due to vibrations.
On the other hand, NPS threads are straight and are used in situations where a tight seal is achieved through other means, such as gaskets or O-rings. The straight design of NPS threads allows for easy and precise alignment of components, making them ideal for applications where accurate positioning of parts is critical. NPS threads are commonly used in electrical conduit systems, pipe hangers, and low-pressure fluid systems where the risk of leakage is minimal.
It is important to note that NPT and NPS threads have different sealing requirements. NPT threads create a seal through the threads themselves, while NPS threads require additional sealing methods to achieve a leak-proof connection. This distinction is crucial to ensure proper installation and prevent potential leaks or safety hazards.
Conduit fittings are essential in electrical systems as they facilitate connections between conduits or secure conduits to electrical devices. Elbow fittings, for example, introduce a gentle curve to the length of conduit, making it easier to pull wires through. Conduit straps secure conduits to walls or joists, reducing sagging that can lead to conduit breakage. Understanding the different types of threads and fittings is crucial for selecting the appropriate components for a safe and functional electrical system.
Turkey's Electrical Sockets: What You Need to Know
You may want to see also
Explore related products
Tapered NPT threads form a tight seal and are found on conduit, nipples, elbows, and fittings
Conduit fittings are used to make connections in an electrical system. They can be used to connect two runs of conduit or to secure conduit to an electrical device. These fittings are commonly referred to as electrical fittings or conduit fittings. Conduits vary in size, and the size refers to the diameter of the raceway (thread).
When it comes to pipe threads in electrical conduit fittings, the two most common types found in rigid conduit systems are National Standard Pipe Tapered (NPT) and National Standard Pipe Straight (NPS). NPT threads are tapered and form a tight seal, making them ideal for use in various applications, including electrical conduits and high-pressure piping carrying natural gas or chemically aggressive liquids.
NPT-to-NPT tapered threads compress against each other to create a tight seal that won't loosen due to vibrations. This makes NPT threads suitable for conduit, nipples, elbows, and fittings. The taper rate for NPT threads is ¾-inch per foot or 1 inch per 16 inches in length.
NPT threads are often used in conjunction with thread sealants to ensure a leakproof connection. Pipe dopes, pastes, and anaerobic resin compounds are commonly used as thread sealants. NPTF (National Pipe Taper Fuel) is a variation of NPT that is specifically designed as a dryseal tapered pipe thread, providing an even more secure connection.
It is important to note that proper installation and reuse practices are critical for NPT and NPTF fittings to prevent leaking and damage to the female connections. Overtightening can permanently distort the tapered threads, so care must be taken during assembly and disassembly.
Electric Skateboards: Legal in New York?
You may want to see also
Explore related products
NPS threads provide a secure, electrically continuous connection that is not sealed
Conduit fittings are used to make connections in an electrical system. They can be used to connect two runs of conduit or to secure conduit to an electrical device. The two most common types of threads found in electrical fittings in a rigid conduit system are National Standard Pipe Tapered (NPT) and National Standard Pipe Straight (NPS). NPT threads are often found on conduit, nipples, elbows, and fittings. When mated, NPT-to-NPT tapered threads compress against each other to form a close, tight seal that will not loosen due to vibrations.
NPS threads, on the other hand, provide a secure and electrically continuous connection that is not sealed by design. This intentional lack of sealing allows unwanted substances, such as condensation or hot gases, to escape from the raceway. NPS threads can be mated together or with male NPT threads. When creating a sealed connection at an NPS threaded joint, care must be taken to avoid electrically insulating the joint with non-conductive thread sealants, which would interrupt the path to ground.
It is important to note that the selection of thread types for a given product is based on several factors, including design intent, industry convention, and UL regulation. In addition, conduit fittings should be chosen based on the type and size of the raceway (thread) used.
Safety is a crucial aspect of electrical projects. It is recommended to have a professional inspect any electrical work before use to ensure that it meets all safety codes and to prevent potential risks such as fire, injury, or damage to wiring.
Dutch Wives' Dreams: Electric Eels and Their Intriguing Lives
You may want to see also
Explore related products
Conduit fittings connect two runs of conduit or conduit to an electrical device
Conduit fittings are used to make connections in an electrical system. They are used to connect two runs of conduit or to secure conduit to an electrical device. Conduit fittings are also referred to as electrical fittings to differentiate them from plumbing fittings.
Conduit fittings are selected based on the type and size of the raceway (thread) used. The raceway, or thread, refers to the diameter of the conduit. Conduits vary in size and can be made of metal or non-metal materials. Common types of conduits include EMT (electrical metallic tubing), RMC (rigid metallic conduit), ENT (electrical non-metallic tubing), and RNC (rigid non-metallic tubing).
Different types of conduit fittings are used depending on the application and the type of conduit being used. For example, EMT is typically used indoors, while outdoor applications require compression fittings. Fittings for metallic conduits differ from those for non-metallic conduits. For instance, metallic conduits can be connected using threaded, set-screw, or compression couplings, while non-metallic conduits may use glue to bind to the body.
Conduit fittings such as connectors are used to join conduits with pull boxes, junction boxes, and other electrical enclosures. Conduit bodies act as connecting components and allow electricians to change the direction of the raceway. They can be straight or form right angles, T-shapes, or X-shapes. Elbow fittings are short conduit segments with specified turn angles, typically 90 degrees or 45 degrees, and are used to introduce gentle curves to the length of conduit.
It is important to select the appropriate conduit fittings for the specific application and to have electrical projects inspected by a professional to ensure they meet safety codes.
Electricity's Thermodynamic Link: Understanding the Energy Connection
You may want to see also
Frequently asked questions
Conduit fittings are used to make connections in an electrical system. They can connect two runs of conduit or secure conduit to an electrical device.
Common application types include EMT (thin-walled metallic tubing), RMC (thick-walled metallic tubing), ENT (thin-walled non-metallic tubing), and RNC (thick-walled non-metallic tubing).
The two most common types of threads found in electrical conduit fittings are NPT (National Pipe Tapered) and NPS (National Pipe Straight). NPT threads form a tight seal when torqued, while NPS threads provide an electrically continuous but unsealed connection.
The ANSI/ASME B1.20.1 standard specifies the requirements for pipe threads in electrical conduit fittings. This includes the number of threads, thread pitch, and taper per foot. Conduit threads should also be galvanised and coated with a corrosion-resistant compound.
