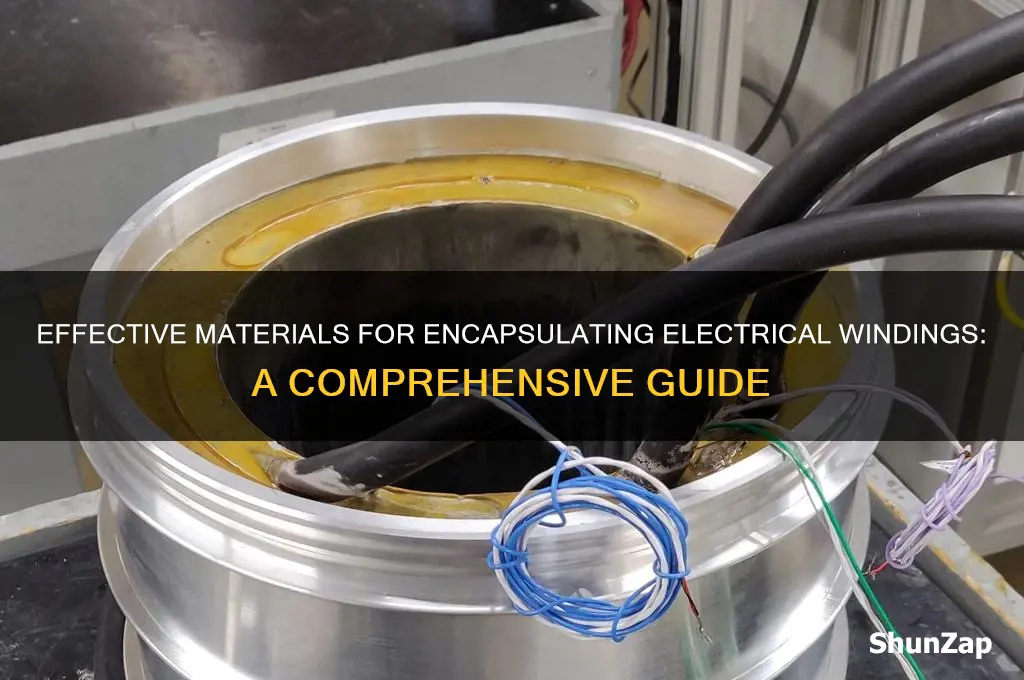

Encapsulating electrical windings is a critical process in ensuring the longevity, reliability, and performance of electrical components such as motors, transformers, and coils. The primary purpose of encapsulation is to protect the windings from environmental factors like moisture, dust, chemicals, and mechanical stress, while also enhancing thermal management and electrical insulation. Common materials used for this purpose include epoxy resins, silicone compounds, polyurethane, and varnishes, each offering unique properties such as high thermal conductivity, flexibility, or resistance to specific conditions. The choice of material depends on the application requirements, operating environment, and desired performance characteristics, making it essential to select the most suitable encapsulant to optimize the functionality and durability of the electrical windings.
| Characteristics | Values |
|---|---|
| Material Type | Epoxy Resins, Polyurethane Resins, Silicone Resins, Varnishes (e.g., Polyester, Alkyd), Encapsulation Compounds (e.g., Silicone Gels, RTV Silicones), Potting Compounds, Conformal Coatings |
| Key Properties | High Electrical Insulation, Thermal Conductivity, Chemical Resistance, Mechanical Strength, Low Shrinkage, Low Viscosity (for easy penetration), High Adhesion, Moisture Resistance, Flame Retardancy |
| Thermal Conductivity | 0.5–2.0 W/m·K (for epoxy resins), 0.1–0.5 W/m·K (for silicones) |
| Dielectric Strength | 10–50 kV/mm (epoxy), 5–20 kV/mm (silicones) |
| Operating Temperature Range | -40°C to +150°C (epoxy), -50°C to +200°C (silicones) |
| Curing Mechanism | Heat Cure, Room Temperature Cure (RTV), UV Cure, Moisture Cure |
| Application Methods | Potting, Casting, Spraying, Brushing, Dip Coating |
| Environmental Compliance | RoHS, REACH, UL Recognition (e.g., UL 94 V-0 for flame retardancy) |
| Common Brands/Products | Loctite, Dow Corning, Henkel (e.g., Loctite EA 9466, Dow Corning 3-6580), Electrolube |
| Cost | $5–$50 per kg (varies by material and brand) |
| Applications | Transformers, Motors, Generators, Coils, Solenoids, Relays, Sensors |
| Advantages | Protects against moisture, dust, chemicals, and mechanical stress; Enhances thermal management; Improves insulation properties |
| Disadvantages | Curing time may be long; Some materials may shrink during curing; Difficult to repair or rework |
Explore related products
What You'll Learn
- Varnishes and Resins: Polyester, epoxy, polyurethane, and acrylic varnishes for insulation and protection
- Silicone Coatings: Heat-resistant silicone for high-temperature applications and flexibility
- Epoxy Encapsulants: Two-part epoxy systems for robust mechanical and environmental protection
- Polyurethane Foams: Lightweight, insulating foams for vibration damping and thermal management
- Tape and Sleeving: Fiberglass, Kapton, and Nomex tapes for localized winding encapsulation
Varnishes and Resins: Polyester, epoxy, polyurethane, and acrylic varnishes for insulation and protection
When encapsulating electrical windings, varnishes and resins play a crucial role in providing insulation, protection, and mechanical stability. Among the most commonly used materials are polyester, epoxy, polyurethane, and acrylic varnishes, each offering unique properties tailored to specific applications. These materials form a protective layer around the windings, safeguarding them from moisture, thermal stress, mechanical damage, and electrical shorts. The choice of varnish or resin depends on factors such as operating temperature, chemical exposure, and the required dielectric strength.
Polyester varnishes are widely used due to their cost-effectiveness and ease of application. They provide good electrical insulation and resistance to moisture, making them suitable for general-purpose applications. Polyester resins cure quickly at room temperature or with mild heat, forming a hard, durable coating. However, they may not perform well under high-temperature conditions or in environments with aggressive chemicals. For this reason, polyester varnishes are often used in low to medium voltage applications where thermal stress is minimal.
Epoxy resins are highly regarded for their exceptional mechanical strength, chemical resistance, and thermal stability. They offer superior adhesion to windings and substrates, ensuring long-term reliability. Epoxy coatings are ideal for high-temperature environments and applications requiring high dielectric strength. However, epoxy resins typically require higher curing temperatures and longer curing times compared to polyester or polyurethane. Their excellent resistance to solvents and oils makes them a preferred choice for motors and transformers operating in harsh industrial conditions.
Polyurethane varnishes strike a balance between flexibility and durability, making them suitable for applications where the windings may experience vibration or mechanical stress. They exhibit good resistance to moisture, chemicals, and abrasion, while also maintaining flexibility over a wide temperature range. Polyurethane coatings are often used in dynamic applications such as generators and automotive motors. However, they may not match the dielectric strength of epoxy resins, limiting their use in high-voltage systems.
Acrylic varnishes are valued for their fast curing times, low viscosity, and excellent electrical properties. They provide good insulation and are resistant to UV radiation, making them suitable for outdoor applications. Acrylic coatings are also lightweight and flexible, reducing stress on the windings during operation. However, they may not offer the same level of chemical or thermal resistance as epoxy or polyurethane resins. Acrylic varnishes are commonly used in low-voltage applications and where quick production turnaround is essential.
In summary, the selection of polyester, epoxy, polyurethane, or acrylic varnishes for encapsulating electrical windings depends on the specific requirements of the application. Polyester offers affordability and ease of use, epoxy provides high strength and chemical resistance, polyurethane combines flexibility with durability, and acrylic ensures fast curing and UV resistance. Proper application techniques, such as dipping, spraying, or vacuum impregnation, are essential to ensure complete coverage and optimal performance of the chosen varnish or resin.
Avoid These Mistakes: What Not to Use on Electrical Fires
You may want to see also
Explore related products
Silicone Coatings: Heat-resistant silicone for high-temperature applications and flexibility
Silicone coatings are an excellent choice for encapsulating electrical windings, particularly in applications that demand high-temperature resistance and flexibility. These coatings are formulated with heat-resistant silicone polymers that can withstand extreme temperatures, often ranging from -50°C to 250°C or higher, depending on the specific formulation. This makes them ideal for motors, transformers, and other electrical components that generate significant heat during operation. The ability to maintain their protective properties under thermal stress ensures the longevity and reliability of the encapsulated windings.
One of the key advantages of silicone coatings is their inherent flexibility. Unlike rigid encapsulants, silicone remains pliable even after curing, allowing it to accommodate thermal expansion and contraction of the windings without cracking or delaminating. This flexibility is crucial in dynamic environments where components are subjected to vibration or mechanical stress. Additionally, silicone coatings adhere well to various substrates, including metals and composites, ensuring a secure and durable bond that enhances the overall performance of the electrical assembly.
Silicone coatings also offer excellent electrical insulation properties, which are vital for preventing short circuits and ensuring the safe operation of electrical windings. Their high dielectric strength and resistance to arcing make them a reliable barrier against electrical discharge. Furthermore, silicone is inherently resistant to moisture, chemicals, and UV radiation, providing additional protection against environmental factors that could degrade the windings over time. This multi-faceted protection is particularly beneficial in outdoor or harsh industrial settings.
The application process for silicone coatings is relatively straightforward, with options for brushing, spraying, or dipping, depending on the size and complexity of the windings. Most silicone coatings cure at room temperature, though some formulations may require heat curing for faster processing or enhanced performance. It is important to ensure proper surface preparation, such as cleaning and degreasing, to achieve optimal adhesion. Once applied, the coating forms a seamless, uniform layer that encapsulates the windings completely, leaving no gaps or voids that could compromise insulation.
In summary, silicone coatings are a superior choice for encapsulating electrical windings in high-temperature and flexible applications. Their heat resistance, flexibility, electrical insulation properties, and ease of application make them a versatile and reliable solution for protecting critical electrical components. Whether used in automotive, aerospace, or industrial applications, silicone coatings provide the durability and performance needed to meet the demanding requirements of modern electrical systems.
The Country That Outlawed Electric Vehicles
You may want to see also
Explore related products
Epoxy Encapsulants: Two-part epoxy systems for robust mechanical and environmental protection
Epoxy encapsulants, particularly two-part epoxy systems, are widely recognized as one of the most effective solutions for encapsulating electrical windings. These systems offer robust mechanical and environmental protection, ensuring the longevity and reliability of electrical components. Two-part epoxy systems consist of a resin and a hardener that, when mixed, undergo a chemical reaction to form a rigid, protective material. This cured epoxy creates a durable barrier that shields the windings from moisture, chemicals, thermal stress, and mechanical shocks, which are common causes of failure in electrical devices.
One of the key advantages of two-part epoxy encapsulants is their ability to provide excellent electrical insulation. The cured epoxy has a high dielectric strength, preventing electrical leakage and short circuits. This property is critical for applications where windings are exposed to high voltages or harsh operating conditions. Additionally, epoxy encapsulants adhere strongly to a variety of substrates, including metals, ceramics, and plastics, ensuring a secure and long-lasting bond that enhances the overall structural integrity of the encapsulated component.
The application process for two-part epoxy systems is straightforward but requires careful attention to detail. The resin and hardener must be mixed in the correct ratio, typically specified by the manufacturer, to ensure proper curing. Once mixed, the epoxy is applied to the electrical windings using methods such as pouring, brushing, or dispensing, depending on the size and complexity of the component. It is essential to degas the mixture to remove air bubbles, as these can weaken the cured material. After application, the epoxy is left to cure at room temperature or under controlled heat, depending on the specific product requirements.
Two-part epoxy encapsulants also offer superior thermal management properties, which are crucial for electrical windings that generate heat during operation. The epoxy acts as a thermal conductor, dissipating heat away from the windings and preventing overheating. Some epoxy systems are specifically formulated with fillers that enhance thermal conductivity, making them ideal for high-power applications. Furthermore, epoxy encapsulants can be customized with additives to improve specific properties, such as flexibility, flame resistance, or UV stability, to meet the unique demands of different applications.
Environmental protection is another significant benefit of using two-part epoxy systems for encapsulating electrical windings. The cured epoxy creates a hermetic seal that protects against moisture ingress, which can cause corrosion and electrical failure. It also resists exposure to chemicals, solvents, and extreme temperatures, making it suitable for use in harsh industrial environments. This level of protection ensures that the encapsulated windings maintain their performance and reliability over time, even in challenging conditions.
In summary, two-part epoxy encapsulants are an ideal choice for encapsulating electrical windings due to their robust mechanical strength, excellent electrical insulation, and superior environmental protection. Their versatility, ease of application, and customizable properties make them a preferred solution across various industries, from automotive and aerospace to electronics and renewable energy. By using two-part epoxy systems, manufacturers can enhance the durability and performance of their electrical components, ultimately reducing maintenance costs and improving overall product quality.
Who Uses Static Electricity? Surprising Applications in Everyday Life
You may want to see also
Explore related products
Polyurethane Foams: Lightweight, insulating foams for vibration damping and thermal management
Polyurethane foams have emerged as a highly effective solution for encapsulating electrical windings, offering a unique combination of lightweight construction, superior insulation, and excellent vibration damping properties. These foams are engineered to provide robust protection for sensitive electrical components while ensuring optimal thermal management. The lightweight nature of polyurethane foams minimizes added mass to the system, which is crucial in applications where weight is a critical factor, such as in aerospace or automotive industries. Their low density does not compromise their structural integrity, making them ideal for encapsulating windings without imposing additional stress on the assembly.
One of the standout features of polyurethane foams is their exceptional insulating capabilities. Electrical windings often generate heat during operation, and improper thermal management can lead to performance degradation or even failure. Polyurethane foams act as efficient thermal barriers, reducing heat transfer and maintaining safe operating temperatures. Additionally, their insulating properties extend to electrical conductivity, preventing short circuits and ensuring the longevity of the winding system. This dual functionality makes them a versatile choice for encapsulation in high-performance electrical applications.
Vibration damping is another critical aspect where polyurethane foams excel. Electrical windings are susceptible to mechanical stress from vibrations, which can cause wire fatigue, insulation damage, or misalignment. Polyurethane foams absorb and dissipate vibrational energy, significantly reducing the risk of mechanical failure. Their cellular structure allows for effective energy absorption, providing a cushioning effect that protects the windings from both high-frequency and low-frequency vibrations. This property is particularly beneficial in dynamic environments, such as in generators or motors subjected to constant motion.
The application of polyurethane foams for encapsulating electrical windings is straightforward and customizable. These foams can be formulated with specific densities, cell structures, and additives to meet the exact requirements of the winding system. They can be molded or sprayed directly onto the windings, ensuring complete coverage and adherence to complex geometries. Furthermore, polyurethane foams are resistant to chemicals, moisture, and aging, ensuring long-term reliability in harsh operating conditions. Their durability and adaptability make them a preferred choice for engineers seeking a reliable encapsulation material.
In summary, polyurethane foams offer a comprehensive solution for encapsulating electrical windings, addressing key challenges such as weight management, thermal control, and vibration resistance. Their lightweight, insulating, and damping properties make them an ideal material for enhancing the performance and durability of electrical systems. By leveraging the unique characteristics of polyurethane foams, engineers can achieve superior protection and efficiency in their winding designs, ensuring optimal functionality across various applications.
Why Electrical Tape on Alligators? Uncovering the Surprising Reason
You may want to see also
Explore related products
Tape and Sleeving: Fiberglass, Kapton, and Nomex tapes for localized winding encapsulation
When it comes to encapsulating electrical windings, tape and sleeving materials such as fiberglass, Kapton, and Nomex are widely used for localized protection and insulation. These materials offer excellent thermal and electrical properties, making them ideal for applications where specific areas of the winding require targeted encapsulation. Fiberglass tape, for instance, is known for its high temperature resistance and dielectric strength, ensuring that it can withstand the harsh operating conditions often found in motors, transformers, and other electrical devices. Its flexibility allows it to conform closely to the contours of the winding, providing a secure and uniform barrier against moisture, chemicals, and mechanical stress.
Kapton tape is another popular choice for localized winding encapsulation due to its exceptional thermal stability and thin profile. Made from polyimide film, Kapton can operate at temperatures up to 400°C (752°F) without degrading, making it suitable for high-performance applications. Its thin construction minimizes added bulk, which is crucial in compact designs where space is limited. Kapton tape is also resistant to solvents, radiation, and abrasion, ensuring long-term reliability in demanding environments. It is often used to insulate specific sections of windings, such as end turns or high-stress areas, where additional protection is needed.
Nomex tape, derived from aramid fibers, is valued for its outstanding mechanical toughness and thermal resistance. It can operate continuously at temperatures up to 220°C (428°F) and offers excellent resistance to tears and punctures. Nomex is particularly effective in applications where windings are subjected to vibration or mechanical stress, as it provides a robust physical barrier. Its inherent flame resistance also makes it a safe choice for high-risk environments. Nomex tape is commonly used in conjunction with other insulation materials to reinforce critical areas of the winding, ensuring comprehensive protection.
The application of these tapes and sleeving materials requires careful consideration of the winding geometry and operating conditions. For example, fiberglass tape may be wrapped around individual coils or layers to provide insulation and structural support, while Kapton tape can be applied to specific hotspots or areas prone to electrical discharge. Nomex sleeving, on the other hand, is often used to cover entire sections of the winding, offering a combination of thermal and mechanical protection. Proper tension and overlap during application are essential to avoid gaps or weak points that could compromise the encapsulation.
In addition to their protective properties, these materials are compatible with common impregnation resins and varnishes, allowing for seamless integration into the overall insulation system. For instance, after applying fiberglass or Nomex tape, the assembly can be impregnated with epoxy or polyester resin to enhance moisture resistance and mechanical strength. Kapton tape, due to its chemical resistance, can withstand the impregnation process without degradation, ensuring its performance remains intact. This compatibility ensures that localized encapsulation with tape and sleeving does not interfere with the broader insulation strategy.
When selecting between fiberglass, Kapton, and Nomex tapes for localized winding encapsulation, engineers must consider factors such as temperature requirements, mechanical stress, and space constraints. Fiberglass is ideal for general-purpose applications requiring high thermal resistance, while Kapton excels in high-temperature, space-limited scenarios. Nomex is the preferred choice for applications demanding superior mechanical toughness and flame resistance. By leveraging the unique properties of these materials, designers can achieve targeted protection for electrical windings, ensuring optimal performance and longevity in diverse operating conditions.
The Surprising Purpose of the First Electric Battery Invention
You may want to see also
Frequently asked questions
Common materials for encapsulating electrical windings include epoxy resins, silicone compounds, polyurethane, and varnish. These materials provide insulation, protection against moisture, and mechanical stability.
Encapsulation is necessary to protect windings from environmental factors like moisture, dust, and chemicals, to enhance insulation, and to improve mechanical strength, ensuring longer lifespan and reliable performance.
The encapsulation process involves cleaning the windings, applying the chosen material (e.g., resin or varnish) through dipping, brushing, or vacuum impregnation, and then curing it under controlled temperature and pressure conditions.
