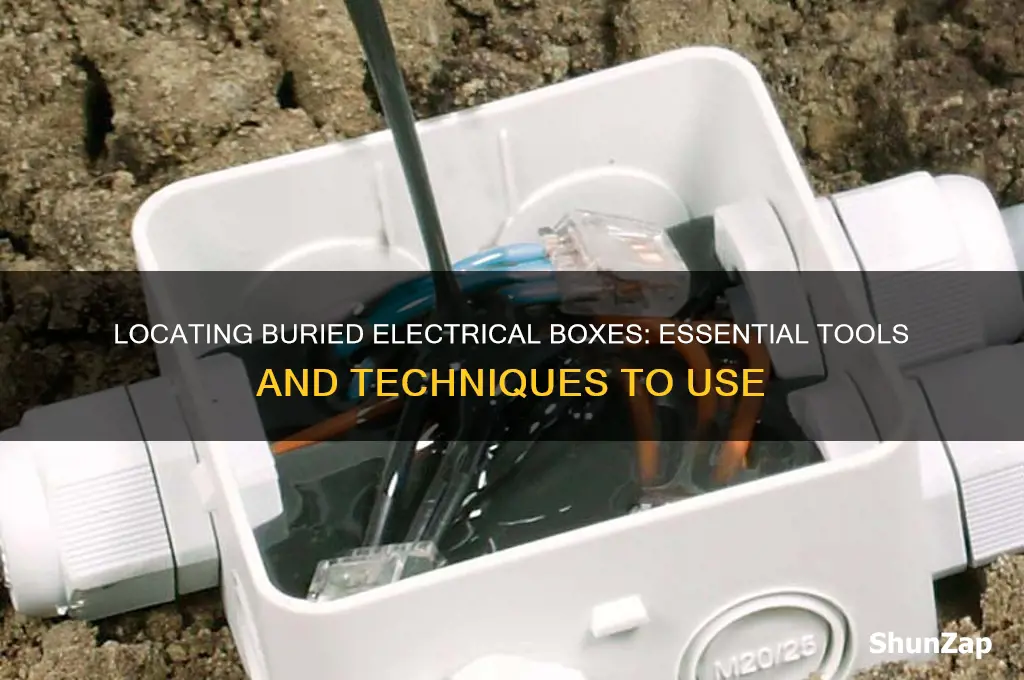

Locating a buried electrical box can be a challenging task, but with the right tools and techniques, it becomes manageable. Commonly used methods include employing a metal detector to identify the metallic components of the box, using a utility locator to detect underground cables, or relying on a ground penetrating radar (GPR) for a more detailed subsurface image. Additionally, visual cues such as faint outlines in the soil, patches of grass growing differently, or markings left during installation can provide valuable clues. Always consult utility maps or contact local authorities to avoid damaging other underground services, and prioritize safety by turning off power to the area before beginning any excavation.
| Characteristics | Values |
|---|---|
| Tool Type | Metal Detector, Cable Locator, Underground Wire Tracer, Ground Penetrating Radar (GPR) |
| Detection Depth | Varies by tool; metal detectors typically 6-12 inches, GPR up to several feet |
| Accuracy | High for metal detectors and GPR; cable locators depend on signal strength |
| Power Source | Battery-operated (rechargeable or replaceable) |
| Weight | Lightweight (2-10 lbs) for handheld devices |
| Display | LCD or LED screen for visual indicators |
| Audio Alerts | Yes, for metal detectors and some cable locators |
| Water Resistance | Varies; some models are weather-resistant |
| Cost | $50 (basic metal detector) to $10,000+ (professional GPR) |
| Ease of Use | User-friendly for basic models; training required for advanced tools |
| Applications | Locating buried electrical boxes, cables, pipes, and other utilities |
| Additional Features | Depth estimation, signal strength indicators, multiple frequency settings |
Explore related products
What You'll Learn
Metal detectors for locating buried electrical boxes
When it comes to locating buried electrical boxes, metal detectors are one of the most effective tools available. These devices are specifically designed to detect metal objects beneath the surface, making them ideal for finding electrical boxes, which are typically made of metal. Metal detectors work by generating an electromagnetic field that interacts with metallic objects, causing a change in the field that the detector can pick up. This makes them a reliable choice for homeowners, contractors, and utility workers who need to pinpoint the location of buried electrical components without resorting to invasive digging.
Choosing the right metal detector for locating buried electrical boxes is crucial for accuracy and efficiency. Look for a detector with a high sensitivity to small metal objects, as electrical boxes are often compact. Models with discrimination features are particularly useful, as they allow you to filter out unwanted metals like nails or screws, focusing solely on the type of metal commonly found in electrical boxes. Additionally, a metal detector with a waterproof search coil is beneficial, especially if you’re working in areas prone to moisture or need to detect boxes buried near water lines.
Using a metal detector to find buried electrical boxes requires a systematic approach. Start by clearing the area of debris and marking out the general search zone based on any available blueprints or records. Sweep the detector slowly and methodically across the ground, overlapping each pass slightly to ensure full coverage. When the detector signals a find, use a handheld probe or small digging tool to carefully excavate the area and confirm the presence of the electrical box. Avoid using sharp tools that could damage wires or the box itself.
Advanced metal detectors often come with additional features that can enhance the process of locating buried electrical boxes. For example, some models offer depth indicators, which can give you an estimate of how deep the box is buried, helping you plan your excavation. Others may include pinpointers, which provide a more precise location of the metal object once the general area is identified. These features can save time and reduce the risk of damaging underground utilities.
While metal detectors are highly effective, it’s important to combine their use with other methods for the best results. For instance, consulting existing utility maps or contacting local authorities for records can narrow down the search area. Additionally, using a stud finder or ground-penetrating radar (GPR) in conjunction with a metal detector can provide a more comprehensive approach, especially in complex or densely packed areas. By leveraging these tools and techniques, you can locate buried electrical boxes with greater accuracy and confidence.
