When it comes to measuring electricity, the most commonly used tool is the multimeter, a versatile device that can measure voltage, current, and resistance. For more specific applications, tools like clamp meters are used to measure current without breaking the circuit, while wattmeters are employed to measure power consumption. Additionally, energy meters or electricity meters are installed in homes and businesses to track overall energy usage over time. Each tool serves a unique purpose, ensuring accurate and safe measurement of electrical parameters in various settings.
| Characteristics | Values |
|---|---|
| Tool Name | Multimeter (most common), Clamp Meter, Wattmeter, Energy Meter (Utility Meter), Power Quality Analyzer |
| Primary Function | Measure electrical parameters like voltage, current, resistance, power, energy consumption |
| Measured Units | Volts (V), Amperes (A), Ohms (Ω), Watts (W), Kilowatt-hours (kWh) |
| Types | Analog, Digital |
| Accuracy | Varies by model and type, typically ±0.5% to ±3% |
| Range | Varies by model, typically 200V to 1000V AC/DC, 10A to 20A AC/DC |
| Safety Features | Overload protection, insulated probes, CAT ratings (I, II, III, IV) |
| Display | LCD or LED for digital, needle for analog |
| Power Source | Battery-operated (most portable models), some plug-in models |
| Applications | Electrical troubleshooting, circuit testing, energy audits, appliance power consumption monitoring |
| Cost | $10 (basic) to $500+ (advanced) |
Explore related products
What You'll Learn
- Clamp Meters: Measure current without breaking circuits, ideal for live wire diagnostics
- Multimeters: Test voltage, current, resistance, and continuity in electrical systems
- Wattmeters: Specifically measure electrical power consumption in watts or kilowatts
- Energy Monitors: Track real-time electricity usage for home or industrial efficiency
- Oscilloscopes: Visualize electrical waveforms to analyze voltage over time

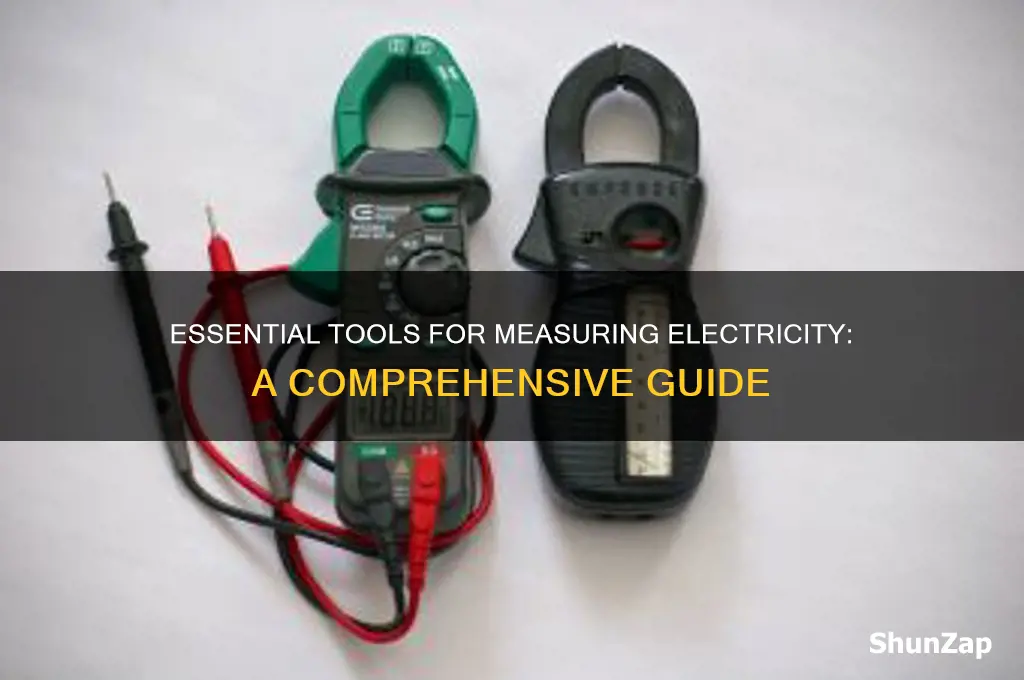

Clamp Meters: Measure current without breaking circuits, ideal for live wire diagnostics
Clamp meters are essential tools for electricians and technicians who need to measure electrical current in live circuits without interrupting the flow of electricity. Unlike traditional multimeters that require breaking the circuit to connect in series, clamp meters allow users to simply clamp around a conductor, making them ideal for diagnosing issues in live wires. This non-invasive approach ensures safety and efficiency, as there’s no need to shut down power or expose live wires, reducing the risk of electrical hazards. The clamp mechanism contains a current transformer that detects the magnetic field generated by the flowing current, translating it into a measurable value displayed on the meter.
One of the standout features of clamp meters is their ability to measure both AC (alternating current) and DC (direct current) in various applications, from residential wiring to industrial machinery. They are particularly useful in troubleshooting scenarios where identifying overloads, short circuits, or improper current flow is critical. For instance, in live wire diagnostics, a clamp meter can quickly determine if a circuit is drawing too much current, which could indicate a faulty appliance or wiring issue. This real-time measurement capability makes clamp meters indispensable for preventive maintenance and emergency repairs.
Using a clamp meter is straightforward, even for those with minimal electrical experience. To measure current, simply open the clamp jaw, place it around the conductor, and close it securely. The meter will then display the current reading on its screen. Advanced models may also include additional features such as voltage measurement, temperature sensing, and data logging, enhancing their versatility. However, it’s important to ensure the clamp meter is rated for the current range of the circuit being tested to avoid damage to the device or inaccurate readings.
Clamp meters are especially valuable in situations where breaking the circuit is impractical or dangerous, such as in high-voltage systems or critical infrastructure. Their design allows for quick, one-handed operation, freeing up the other hand to manage tools or maintain stability in challenging work environments. Additionally, many clamp meters are built to withstand rugged conditions, with features like drop resistance and durable casing, ensuring they can handle the demands of fieldwork.
In summary, clamp meters are the go-to tool for measuring current in live circuits without disrupting power flow, making them ideal for live wire diagnostics. Their non-invasive design, ease of use, and ability to handle both AC and DC currents make them a staple in electrical testing and maintenance. Whether for routine checks or emergency troubleshooting, clamp meters provide accurate, safe, and efficient measurements, helping professionals ensure the reliability and safety of electrical systems.
