When installing an electrical box, selecting the appropriate post for support is crucial to ensure safety, stability, and compliance with building codes. The type of post used depends on factors such as the weight of the electrical box, the surrounding environment, and the specific application. Common options include wooden posts, metal posts, or PVC posts, each offering distinct advantages and limitations. Wooden posts are cost-effective and easy to work with but may degrade over time due to weather exposure. Metal posts provide superior strength and durability, making them ideal for heavy-duty installations, though they can be more expensive. PVC posts are lightweight, corrosion-resistant, and suitable for outdoor use, but they may not support heavier loads as effectively. Understanding these differences helps in choosing the right post to securely and safely support an electrical box in any given scenario.
| Characteristics | Values |
|---|---|
| Material | Pressure-treated wood, galvanized steel, aluminum, or fiberglass |
| Height | Typically 8-10 feet (adjustable based on installation height requirements) |
| Diameter/Thickness | 4x4 inches (wood), 2-3 inches (metal) |
| Load Capacity | Must support the weight of the electrical box and wiring (check local codes) |
| Weather Resistance | Rust-resistant (metal) or rot-resistant (wood/fiberglass) |
| Grounding Requirements | Must be grounded if metal; wood posts may require additional grounding |
| Installation Depth | Minimum 30 inches below ground for stability (check local codes) |
| Mounting Hardware | Compatible brackets, bolts, or clamps for securing the electrical box |
| Compliance | Must meet NEC (National Electrical Code) and local building codes |
| Use Case | Outdoor installations, such as outdoor outlets, lights, or service panels |
| Maintenance | Regular inspection for corrosion, rot, or damage |
Explore related products
What You'll Learn
- Wood Stud Installation: Best practices for securing electrical boxes using wood studs in residential settings
- Metal Stud Mounting: Techniques for attaching electrical boxes to metal framing in commercial projects
- Concrete Wall Support: Methods for anchoring electrical boxes in concrete or masonry walls
- Old Work vs. New Work: Choosing the right post type for retrofits versus new construction applications
- Outdoor Box Posts: Specialized posts for weatherproof electrical boxes in exterior installations
Wood Stud Installation: Best practices for securing electrical boxes using wood studs in residential settings
When installing electrical boxes in residential settings using wood studs, it's crucial to follow best practices to ensure safety, stability, and compliance with electrical codes. The type of post or support used is directly tied to the method of attachment and the structural integrity of the installation. Wood studs are commonly used in residential framing and provide a sturdy base for securing electrical boxes. The key is to use the right fasteners and techniques to ensure the box is firmly attached and can support the weight of the devices and wiring.
One of the most effective methods for securing an electrical box to a wood stud is using wood screws. These screws should be long enough to penetrate the stud by at least 1 inch to ensure a strong hold. For standard plastic or metal electrical boxes, use screws that are compatible with the box material. For example, self-tapping screws work well with metal boxes, while coarse-thread screws are ideal for wood studs with plastic boxes. Avoid using nails, as they can loosen over time and compromise the stability of the installation. Additionally, ensure the box is flush with the wall surface or adjusted to the correct depth using spacers or extensions if necessary.
Another important consideration is the placement of the electrical box on the wood stud. The box should be centered on the stud to maximize support. If the stud is not wide enough to center the box, use a stud bracket or box extender to provide additional support. Stud brackets are metal supports that attach to the stud and provide a wider base for the box, ensuring it remains secure. These brackets are particularly useful for larger boxes or installations where the stud spacing is irregular. Always ensure the bracket is securely fastened to the stud before attaching the electrical box.
For installations where the electrical box needs to be mounted between studs or in a location without direct stud support, a furring strip can be used. A furring strip is a thin piece of wood attached to the studs, providing a solid base for the electrical box. The furring strip should be securely fastened to the adjacent studs using wood screws, and the box should then be attached to the strip. This method ensures the box is properly supported and aligned, even in challenging locations. Always verify that the furring strip is level and plumb before securing the box.
Lastly, it’s essential to follow local electrical codes and manufacturer guidelines when installing electrical boxes on wood studs. Most codes require that the box is firmly attached and capable of supporting the intended load. Inspect the installation to ensure there is no movement or play in the box, as this can lead to damage or safety hazards over time. Using the correct fasteners, centering the box on the stud, and employing additional supports like brackets or furring strips when necessary will ensure a secure and compliant installation. By adhering to these best practices, you can achieve a safe and durable electrical box installation in any residential setting.
Energy-Efficient Heating: Top Low-Electricity Heaters for Your Home
You may want to see also
Explore related products
Metal Stud Mounting: Techniques for attaching electrical boxes to metal framing in commercial projects
When it comes to Metal Stud Mounting in commercial projects, selecting the appropriate post or method to support electrical boxes is crucial for ensuring stability, safety, and compliance with building codes. Metal studs, commonly used in commercial construction, require specific techniques to securely attach electrical boxes. One of the most effective methods is using metal stud framing brackets designed specifically for this purpose. These brackets are typically made of galvanized steel to resist corrosion and provide a sturdy base for the electrical box. They are attached directly to the metal stud using self-tapping screws, ensuring a tight and secure fit. This method is ideal for both new construction and retrofit applications, as it minimizes damage to the framing and provides a reliable mounting solution.

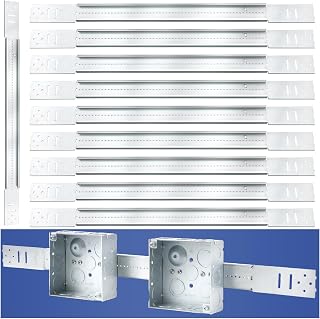

Another technique for Metal Stud Mounting involves using adjustable electrical box supports, which are particularly useful when dealing with varying stud depths or uneven surfaces. These supports consist of a metal post with a threaded rod that can be adjusted to the desired height, allowing the electrical box to be positioned accurately. The post is secured to the metal stud using screws or rivets, and the box is then attached to the support. This method offers flexibility and precision, making it a preferred choice for complex installations where alignment is critical. It is essential to ensure that the support post is rated for the weight and size of the electrical box to avoid sagging or failure over time.
For heavier electrical boxes or applications requiring additional strength, metal stud furring channels can be employed as a mounting solution. Furring channels are attached horizontally or vertically to the metal studs, providing a robust surface for securing the electrical box. The box is then fastened to the furring channel using screws or specialized clamps. This technique distributes the weight more evenly across the framing, reducing the risk of stress points on the studs. It is particularly useful in commercial projects where larger electrical boxes or multiple boxes are installed in close proximity.
In some cases, direct-mount electrical boxes designed for metal studs can be used without additional posts or supports. These boxes feature built-in flanges or brackets that attach directly to the stud using screws. While this method is straightforward and cost-effective, it is essential to verify that the box is compatible with the specific metal stud profile and gauge. Direct-mount boxes are best suited for lighter applications and may not provide sufficient support for heavier loads or larger boxes. Always refer to the manufacturer’s guidelines and local building codes to ensure proper installation.
Lastly, metal stud clips offer a versatile and efficient solution for mounting electrical boxes in commercial projects. These clips are designed to snap onto the metal stud and provide a secure mounting point for the box. They are available in various sizes and configurations to accommodate different box types and stud dimensions. Metal stud clips are easy to install, require minimal tools, and can be repositioned if needed during the installation process. However, they may not be suitable for very heavy boxes or high-vibration environments, so it’s important to assess the specific requirements of the project before selecting this method.
In conclusion, Metal Stud Mounting for electrical boxes in commercial projects requires careful consideration of the available techniques and materials. Whether using framing brackets, adjustable supports, furring channels, direct-mount boxes, or metal stud clips, the goal is to achieve a secure, code-compliant installation that ensures the safety and functionality of the electrical system. Always consult manufacturer instructions and local regulations to determine the most appropriate method for your specific application.
Fuel-Cell Electric Vehicles: The Future of Green Transport
You may want to see also
Explore related products
Concrete Wall Support: Methods for anchoring electrical boxes in concrete or masonry walls
When anchoring electrical boxes in concrete or masonry walls, selecting the appropriate support method is crucial for ensuring safety, stability, and compliance with electrical codes. One of the most common and reliable methods is using concrete anchors, which are specifically designed to secure fixtures in solid, dense materials like concrete and masonry. These anchors come in various types, including expansion anchors, sleeve anchors, and wedge anchors, each suited for different load requirements and installation conditions. Expansion anchors, for example, work by expanding within the drilled hole to create a tight grip, making them ideal for lighter electrical boxes. For heavier loads, wedge anchors are often preferred due to their superior holding strength and ease of installation.
Another effective method for supporting electrical boxes in concrete walls is the use of plastic or fiberglass inserts, which are embedded directly into the concrete during the pouring process. These inserts provide a pre-determined mounting point for the electrical box, ensuring a secure and stable installation. While this method requires planning ahead, it offers a clean and professional finish, as the anchor is hidden within the wall. It is particularly useful in new construction or renovation projects where the concrete is still being poured.
For retrofitting or installations where drilling into the concrete is necessary, masonry screws can be a viable option. These screws are designed to self-tap into concrete, brick, or block without the need for pre-drilling, making them a quick and efficient choice. However, their holding strength is generally lower compared to traditional anchors, so they are best suited for lightweight electrical boxes or applications with minimal stress. It’s essential to use masonry screws rated for the specific material and load to avoid failures.
In some cases, surface-mounted electrical boxes can be used in conjunction with adhesive anchors for concrete walls. Adhesive anchors rely on high-strength epoxy or polyester resins to bond the box to the wall surface. This method is advantageous when drilling deep holes is impractical or when the wall structure prohibits traditional anchoring. However, proper surface preparation and curing time are critical to ensure the adhesive achieves maximum strength. This method is often used in commercial or industrial settings where heavy-duty support is required.
Lastly, for applications requiring additional reinforcement or where the wall material is less dense, metal studs or brackets can be installed behind the concrete or masonry to provide a solid mounting surface for the electrical box. These studs are typically anchored into the wall using concrete screws or anchors and offer a versatile solution for both new and existing installations. This method is particularly useful when mounting larger or heavier electrical boxes that demand extra support. Regardless of the method chosen, it is imperative to follow manufacturer guidelines and local building codes to ensure the installation is safe and compliant.
When Can Your Dog Safely Use an Electric Fence? A Guide
You may want to see also
Explore related products
Old Work vs. New Work: Choosing the right post type for retrofits versus new construction applications
When it comes to supporting electrical boxes, the choice between old work and new work applications significantly influences the type of post you should use. Old work refers to installations in existing walls, where the wall material (drywall, plaster, etc.) is already in place. In contrast, new work involves installations in open walls or new construction, where the wall material has not yet been installed. Understanding the differences between these two scenarios is crucial for selecting the appropriate post type to ensure a secure and code-compliant installation.
For old work applications, the most common post type used is the old-work bracket or remodeling bracket. These brackets are designed to clamp onto the backside of the wall material, providing a sturdy support for the electrical box. They are ideal for retrofits because they require minimal wall modification—typically just a hole large enough for the box and bracket. Old-work brackets are available in various sizes and styles to accommodate different box sizes and wall thicknesses. They are also adjustable, allowing for precise positioning of the box even in uneven or irregular walls. This makes them a go-to choice for homeowners and electricians working on upgrades or repairs in existing structures.
In new work applications, new-work boxes with integrated nails or screws are the preferred choice. These boxes are attached directly to the wall studs before the wall material is installed. The nails or screws are driven into the studs, securing the box firmly in place. New-work boxes are more cost-effective and easier to install in new construction because they eliminate the need for additional brackets or supports. They also provide a more permanent and robust solution, as the box is anchored directly to the structural framework of the building. However, they are not suitable for retrofits because they require access to the studs behind the wall, which is not possible in finished walls.
Another consideration when choosing between old work and new work posts is the load-bearing capacity and code compliance. Old-work brackets must meet specific strength requirements to ensure they can support the weight of the box and any devices installed in it. Similarly, new-work boxes must be securely fastened to the studs to comply with electrical codes. It’s essential to verify that the chosen post type meets local building and electrical codes, as requirements can vary by jurisdiction. Additionally, consider the material compatibility of the post with the wall and box to prevent corrosion or damage over time.
Finally, the ease of installation and long-term durability should factor into your decision. Old-work brackets offer flexibility and simplicity for retrofits but may require more careful installation to ensure proper alignment. New-work boxes, on the other hand, provide a more straightforward installation process in new construction but are not adaptable to existing walls. By carefully evaluating the specific needs of your project—whether it’s a retrofit or new construction—you can choose the right post type to support your electrical box effectively and safely.
Understanding Phantom Charges: Why Your Electric Bill Doesn't Reflect Zero Usage
You may want to see also
Explore related products
Outdoor Box Posts: Specialized posts for weatherproof electrical boxes in exterior installations
When installing electrical boxes outdoors, selecting the right post is crucial for ensuring stability, durability, and compliance with safety standards. Outdoor box posts are specifically designed to support weatherproof electrical boxes in exterior environments, where exposure to rain, wind, UV rays, and temperature fluctuations can compromise lesser materials. These posts are typically made from robust materials such as galvanized steel, aluminum, or treated wood, which resist corrosion and decay. Galvanized steel is a popular choice due to its strength and ability to withstand harsh weather conditions, while aluminum offers a lightweight yet durable alternative. Treated wood, though less common, can be used in certain applications but requires regular maintenance to prevent rot and insect damage.
The design of outdoor box posts is tailored to accommodate weatherproof electrical boxes, which are essential for protecting wiring and connections from moisture and debris. These posts often feature pre-drilled holes or mounting brackets that align with the box's attachment points, ensuring a secure fit. Additionally, many posts include grounding provisions, such as integrated grounding rods or plates, to meet electrical code requirements for exterior installations. Proper grounding is critical for safety, as it prevents electrical hazards and ensures the system functions correctly during power surges or faults.
Installation of outdoor box posts requires careful planning to ensure stability and longevity. Posts should be buried at an appropriate depth, typically one-third of their height, and set in concrete to provide a solid foundation. This is especially important in areas prone to high winds or heavy snow, where the post must withstand significant lateral forces. For added stability, some installations may require guy wires or additional bracing, particularly for taller posts or those supporting larger electrical boxes. Local building codes often dictate specific requirements for post depth, material, and installation methods, so it’s essential to consult these guidelines before beginning the project.
Another key consideration is the post's height and positioning relative to the electrical box. The post should be tall enough to elevate the box to the required height, typically 6 to 8 feet above ground level for accessibility and safety. However, the exact height may vary depending on the application, such as whether the box is for a security light, outdoor outlet, or other exterior fixture. Proper alignment ensures that the box is level and securely attached, preventing strain on the wiring and reducing the risk of damage over time.
Finally, maintenance of outdoor box posts is essential to prolong their lifespan and ensure continued reliability. Regular inspections should be conducted to check for signs of corrosion, loose connections, or damage to the post or electrical box. Galvanized coatings may need touch-ups if scratched, while aluminum posts should be cleaned periodically to remove dirt and grime. Treated wood posts may require reapplication of preservatives to maintain their resistance to the elements. By choosing the right post and following best practices for installation and maintenance, outdoor electrical installations can remain safe, functional, and weather-resistant for years to come.
Hybrid Cars vs. Electric Vehicles: Understanding the Key Differences
You may want to see also
Frequently asked questions
For outdoor lighting, use a pressure-treated wooden post or a metal post (such as galvanized steel or aluminum) to ensure durability against weather and ground moisture.
PVC posts are not recommended for supporting electrical boxes due to their lack of structural strength and stability, especially for heavy fixtures. Use a wooden or metal post instead.
In wet or damp locations, use a non-corrosive material like fiberglass, stainless steel, or pressure-treated wood with a waterproof coating to prevent damage from moisture.
No, standard wooden posts are not suitable for ceiling fan installations due to weight and vibration. Use a metal or reinforced post rated for the load and movement of a ceiling fan.
For temporary setups, use a metal post (such as steel or aluminum) with a sturdy base or a wooden post with proper bracing to ensure stability and safety.
