The exact year when electrical grounding in buildings began is unclear, but it appears that the practice started sometime in the 1950s. Some sources mention that the 1928 code required a grounding means to some degree, and that by the mid-1950s, equipment with three-prong plugs became available. By the late 1960s, it is believed that grounded wiring and three-prong electrical outlets became standard. However, it was not until 1975 that the requirement to install grounding receptacles on 15- and 20-ampere branch circuits was explicitly stated.
| Characteristics | Values |
|---|---|
| Year electrical grounding was discovered | 1836-1837 |
| Discoverer | German scientist C.A. von Steinheil |
| Year grounding was mandated for laundry outlets in dwelling units | 1947 |
| Year equipment with a 3-prong plug became available | Mid-1950s |
| Year 210-7 stated that "Receptacles installed on 15- and 20-ampere branch circuits shall be of the grounding type" | 1975 |
Explore related products
What You'll Learn
- Grounded wiring and three-prong electrical outlets became standard in the late 1960s
- In 1947, the NEC required laundry outlets in dwelling units to be a 3-pole type designed for grounding
- In 1950, grounded outlet boxes were required by code in California
- In 1975, it became mandatory to install a grounded receptacle on 15- and 20-ampere branch circuits
- Equipment with three-prong plugs became available in the mid-1950s
Grounded wiring and three-prong electrical outlets became standard in the late 1960s
The standardisation of grounded wiring and three-prong electrical outlets in the late 1960s was a significant development in electrical safety. This period marked a transition towards more consistent and rigorous electrical grounding practices, particularly in residential settings.
While there were some earlier instances of grounding requirements, such as the 1947 NEC mandate for laundry outlets in dwelling units to be "3-pole type designed for grounding", standardised grounded wiring and three-prong outlets became more prevalent in the 1960s. Changes in the 1962 Code played a pivotal role in this transformation. The Code mandated equipment grounding for all branch circuits, which popularised the use of NM cable with ground. This cable type allowed for a dedicated grounding conductor, enhancing the safety of electrical installations.
Prior to the 1960s, electrical grounding practices were less consistent and well-understood. For instance, a discussion on a 1950s house in the Midwest reveals that only certain areas, like baths and kitchens, might have separate ground wires, while exterior walls were sometimes grounded, but interior walls often lacked grounding. This inconsistency in grounding practices during the 1950s extended to California, where some homes built in 1950 had grounded outlets, while others did not.
The transition to grounded wiring and three-prong outlets gained further momentum in 1969 with new requirements that no longer permitted undersized grounding conductors for specific cable gauges. By the mid-1960s to the late 1960s, equipment with three-prong plugs also became more widely available, contributing to the growing adoption of grounded electrical systems.
While the late 1960s marked a significant shift towards standardised grounding practices, it was not until 1975 that the requirement for grounding was explicitly stated in the 210-7 code, specifying that "receptacles installed on 15- and 20-ampere branch circuits shall be of the grounding type". This code clarification further solidified the importance of grounded wiring and three-prong electrical outlets as the standard for safe electrical installations.
Electric Receptor Testing: How It Works and Why It's Important
You may want to see also
Explore related products
In 1947, the NEC required laundry outlets in dwelling units to be a 3-pole type designed for grounding
The use of electrical grounding in outlooks, or residential dwellings, has evolved over time, with the National Electrical Code (NEC) playing a pivotal role in establishing standards and requirements. One significant milestone in this evolution occurred in 1947, when the NEC mandated a specific type of electrical outlet for laundry areas in homes.
In 1947, the NEC introduced a requirement that laundry outlets in residential units be of a particular type designed for grounding. Specifically, the code stated, "At least one receptacle outlet shall be installed for the connection of laundry appliances. This receptacle shall be 3-pole, of a type designed for grounding." This requirement marked a significant step towards enhancing electrical safety in homes, particularly in laundry rooms where the presence of water and electrical appliances can create hazardous conditions.
The 3-pole type outlet, also known as a grounding-type outlet, is designed to minimize the risk of electric shock and improve overall electrical safety. It features three prongs, including a dedicated ground connection that provides a path for electrical currents to safely flow back to the earth in the event of a fault or malfunction. This design helps protect users from dangerous voltage levels that may occur during normal operation or in the case of internal insulation failure.
While the 1947 NEC requirement specifically addressed laundry outlets, it set a precedent for subsequent expansions of grounding requirements in residential settings. Over time, the NEC and local codes have built upon this foundation, mandating the use of grounding outlets in an increasing number of areas within homes. For example, in 1956, the NEC expanded the requirement for grounded receptacles to exterior areas of homes, including open porches, breezeways, and garages.
It is worth noting that the understanding and implementation of grounding practices have evolved over the years. Early installations may have utilised alternative grounding methods, such as bonding to other outlet boxes or cold water pipes. However, the 1947 NEC requirement for laundry outlets in dwelling units marked a pivotal moment in the standardisation and widespread adoption of dedicated grounding-type outlets in residential electrical systems.
Home Inspectors: Electrical Safety and Compliance Check
You may want to see also
Explore related products
In 1950, grounded outlet boxes were required by code in California
In the 1950s, electrical grounding practices were not well understood by most people, and interpretations of requirements were inconsistent. This meant that the grounding of outlet boxes varied across the United States. For instance, in the Midwest, only baths and kitchens were grounded with a separate ground wire, while exterior walls were sometimes grounded.
In California, it seems that the electrical code was different from the rest of the country. In a 1950 house in Southern California, it was noted that the original builder grounded the outlet boxes with a separate ground wire to meet the local code. This suggests that grounded outlet boxes were, indeed, required by code in California at that time.
However, another person with a 1950 house in the same region questioned this, stating that their home did not have grounded outlet boxes. This inconsistency could be due to varying practices and interpretations of the code during that period.
To confirm the exact requirements of the California code in 1950 regarding grounded outlet boxes, one would need to refer to historical records or consult retired electricians who worked in the area during that era.

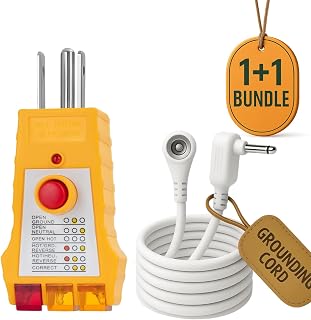

Even today, not everyone grounds their outlet boxes correctly, and it is recommended to test every receptacle with a meter or a receptacle tester to ensure proper grounding.
Waterproof Electric Razors: Expensive but Worth It?
You may want to see also
Explore related products
In 1975, it became mandatory to install a grounded receptacle on 15- and 20-ampere branch circuits
Electrical grounding has been a topic of discussion and regulation for many years, with a focus on ensuring safety and functionality in various applications. In 1975, a significant development in this field occurred, mandating the installation of grounded receptacles on 15- and 20-ampere branch circuits. This decision was likely influenced by the growing awareness of the importance of grounding in electrical systems and the need to enhance safety measures.
Prior to 1975, the practices and interpretations of grounding requirements were not always consistent, especially in residential settings. Some homes built in the 1950s, for example, exhibited inconsistencies in grounding, with certain areas like bathrooms and kitchens being more likely to have separate ground wires. However, there was a general lack of understanding about grounding issues during that time.
The mandate introduced in 1975 aimed to standardize and enhance the safety of electrical installations. By requiring grounded receptacles on 15- and 20-ampere branch circuits, the risk of electrical faults and potential hazards was significantly reduced. This measure ensured that any exposed metal parts that became energised due to fraying or damaged insulation would create a short circuit. As a result, the overcurrent device would activate, disconnecting the fault and protecting users from electrical shock.
The Occupational Safety and Health Administration (OSHA) also plays a crucial role in establishing and enforcing regulations related to electrical grounding. Their guidelines, outlined in sections like 1910.304 and 1926.404, provide specific requirements for wiring design and protection. These regulations cover various scenarios, including temporary wiring installations during construction and the use of ground-fault circuit interrupters for certain receptacles. OSHA's regulations complement the broader mandate by ensuring that electrical systems are properly designed, installed, and maintained to safeguard against electrical hazards.
While the 1975 mandate specifically addressed 15- and 20-ampere branch circuits, it is important to note that electrical grounding requirements continue to evolve. Over time, additional regulations and updates have been implemented to address a wide range of electrical applications, ensuring that safety remains a top priority in the ever-changing landscape of electrical engineering and technology.
Setting Up Electricity in Your Apartment: A Step-by-Step Guide
You may want to see also
Explore related products
Equipment with three-prong plugs became available in the mid-1950s
The use of electrical grounding in outlets, or earthing, became more common with the advent of three-prong plugs in the mid-20th century. The three-pin outlet was developed following the invention of the two-prong plug in the 1920s. The three-prong plug was designed to mitigate the effects of a short circuit, providing a safe path for stray electricity and reducing the risk of electrocution, electrical fires, and damage to equipment.
While the exact timing varied across regions, equipment with three-prong plugs became available in the mid-1950s. In the United States, the National Electrical Manufacturers Association (NEMA) has been responsible for publishing standards for plugs and sockets. The two-blade tandem configuration plug received its official rating of 250 V in the 1950s but was banned from use in the 1960s due to the lack of a ground or neutral connection.
In 1951, the International Commission on the Rules for the Approval of Electrical Equipment (CEE) published the CEE 7 Specification, which outlined the standards for plugs and sockets used in mainland Europe. This was followed by Technical Report 83 (later 60083) in 1953, which provided a comprehensive listing of plugs and sockets in use at the time.
During this period, electrical grounding in outlets was not consistently implemented, as evidenced by accounts of 1950s houses with a mix of grounded and ungrounded outlets. For example, in a 1950 house in Southern California, it was noted that the original builder grounded the outlet boxes with a separate ground wire to meet the code requirements. However, in the Midwest, it was observed that only certain areas, like baths and kitchens, had separate ground wires, while exterior walls were sometimes grounded.
The variation in grounding practices during the 1950s can be attributed to evolving safety standards and inconsistent interpretations of requirements. Over time, the importance of proper electrical grounding became more widely understood, and three-prong plugs became increasingly prevalent to ensure optimal electrical safety in residential, commercial, and industrial settings.
Electrical Switch Basics: Single-Throw Switches Explained
You may want to see also
Frequently asked questions
Electrical grounding in outlooks, or outlet boxes, began in the 1950s with the introduction of three-prong grounded outlets. However, it was not until 1975 that it was mandated by the NEC that "receptacles installed on 15- and 20-ampere branch circuits shall be of the grounding type".
The adoption of electrical grounding was a gradual process influenced by various factors:
- Safety: Grounding helps protect users from electrical shock hazards by providing a low-impedance path for current to flow back to the source in the event of a fault.
- Standardization: The NEC (National Electrical Code) and other standardizing bodies introduced requirements for grounding to ensure consistent and safe electrical installations.
- Technology advancements: The development of three-prong plugs and advancements in cable technology, such as the inclusion of grounding conductors, enabled the widespread adoption of grounding.
The understanding of grounding and its importance has evolved significantly since its inception. In the 1950s, grounding practices were inconsistent and less well-understood by most people. Over time, with advancements in technology and a deeper understanding of electrical safety, the importance of proper grounding has become more widely recognized.
One challenge with electrical grounding is ensuring proper installation and maintenance. Even today, not everyone grounds their outlet boxes correctly, and testing is often required to ensure safety. Additionally, early grounding systems faced issues with varying soil resistance, which could affect the effectiveness of the ground connection.
Yes, in some cases, alternative methods can be used to achieve similar results as electrical grounding. For example, in earlier installations, an outlet box could be "grounded" by bonding it to other outlet boxes on different circuits or to a cold water pipe. However, these methods may not always meet modern safety standards and are generally not recommended.
