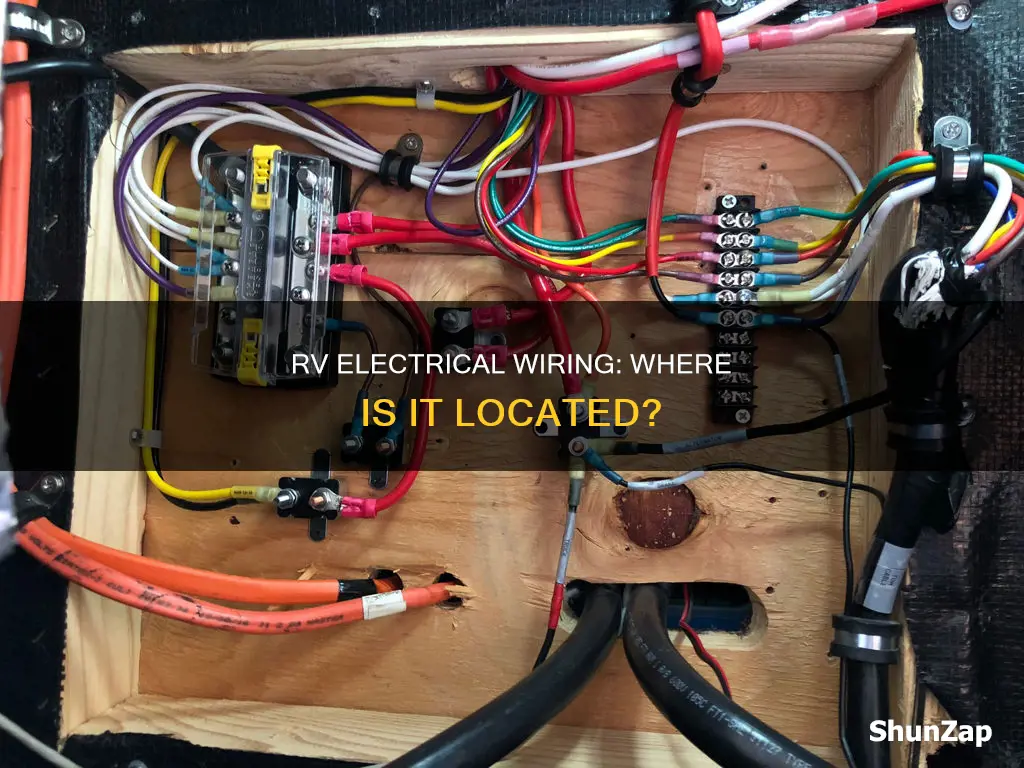

The electrical wiring in an RV is a complex system that combines both AC and DC currents. The AC system, or Alternating Current, operates at 120 volts and powers daily-use items such as kitchen appliances, TVs, and other large electrical appliances. The DC system, or Direct Current, operates at 12 volts and is powered by batteries, providing energy for items such as the water heater, furnace, refrigerator, and lights. The wiring for these systems is typically located in an obscure place, such as under the stove, and includes a junction box that houses the fuses and breakers. Solar panels and converters are also part of the electrical setup, with solar panels wired directly to the battery and converters changing AC power to DC power. Understanding the electrical system in an RV is important for maintenance and troubleshooting, and online resources and forums provide valuable information for RV owners.
| Characteristics | Values |
|---|---|
| RV electrical panel location | Located in an obscure place, typically under the stove |
| RV electrical panel contents | Fuses, breakers, 12VDC, 120VAC, and a converter |
| RV shore power | Allows RVs to plug into shore power, but some older models may not have this feature |
| RV power cord | Allows RVs to plug into shore power |
| RV outlets | Function differently from house outlets due to shallow RV walls, increasing the risk of overload |
| RV wiring | Behind access panels, electrical panels, and other places |
Explore related products
What You'll Learn
Electrical wiring safety
Understanding the Basics
Firstly, familiarize yourself with the electrical wiring basics of your RV. Know the difference between AC (Alternating Current) and DC (Direct Current) systems. Your RV has both a 12-volt DC system and a 120-volt AC system, each serving different purposes. The DC system is powered by batteries and runs essential functions like water heaters, furnaces, and lights. On the other hand, the AC system is powered by an electrical hookup or generator and caters to daily-use items like kitchen appliances and TVs. Understanding this basic distinction is crucial for safe electrical practices.
Live Wire Safety
Before beginning any electrical work on your RV, always ensure there are no live wires. Confirm which circuit you'll be working on and turn off the breaker or pull the fuse. If you're unsure, disconnect from shore power and your batteries from the main distribution box. Use a multimeter to double-check for live wires, ensuring your safety before proceeding.
Proper Tools and Techniques
When working on electrical wiring, use the appropriate tools and techniques. Utilize wire cutters/strippers to safely cut and strip wires, removing only enough insulation to make the connection. Connect wires using wire crimpers and the correct splice or terminal. Insulate and secure your connections with butt connectors and heat shrink wrap. Understand the difference between terminal rings, butt connectors, and disconnects, and use them appropriately.
Power Management
Be mindful of your power usage. RV outlets have a higher risk of overload due to less wire contact and increased resistance. Avoid pushing outlets to their maximum capacity. Know the hot wire in your RV, typically black, as recognized by the National Electrical Code (NEC). Respect the electrical system's limitations and manage your power usage accordingly.
Professional Guidance
If you're ever unsure or confused about electrical wiring in your RV, don't hesitate to seek professional guidance. Electrical work can be dangerous, and it's always better to be safe than sorry. Consult a certified electrician or technical support team for assistance. They can provide valuable insights and ensure your electrical projects are completed safely and correctly.
By following these electrical wiring safety guidelines, you can confidently maintain and use your RV's electrical systems while minimizing risks and ensuring your well-being. Remember, when it comes to electricity, knowledge, caution, and respect are key.
Electricity's Core Units: Understanding the Fundamentals of Power
You may want to see also
Explore related products
RV electrical panels
An RV's electrical system can be intimidating for newcomers, but it's important to understand the basics. Your RV has two separate electrical systems: a 12-volt DC electrical system and a 120-volt AC system. The 12-volt system is powered by a battery and runs essential items such as the water pump, lights, and fans. The 120-volt system, on the other hand, is powered by an RV electrical hookup plug or a generator and powers daily-use items like kitchen appliances and TVs.
The 12V DC system can be powered by a single 12V battery or multiple batteries wired together. Using two 6V batteries wired in series to create 12V is often preferable, as it provides longer battery life. When plugged into shore power or a campground power source, the 12V batteries automatically charge. An inverter can convert the 12V battery's DC to 120V AC, allowing you to power appliances requiring 120V.
RV outlets may resemble household outlets, but they function differently. RVs have shallow walls, which can lead to less wire contact, increased resistance, and a higher risk of outlet overload. Therefore, it's crucial to monitor power usage and avoid overloading the outlets. Additionally, always refer to a professional if you're uncomfortable repairing or installing electrical components.
When working on your RV's electrical system, safety is paramount. Before beginning any electrical project, ensure there are no live wires by disconnecting from shore power and batteries. Always use a multimeter to double-check for power, and never assume a circuit is safe. Understanding your RV's electrical system is crucial, and online resources and forums can provide valuable information and troubleshooting guides.
Resending Your Electricity Token: Standard Bank Guide
You may want to see also
Explore related products
DC and AC systems
An RV's electrical system can be intimidating for newcomers, but it is important to understand the basics of RV power. Recreational vehicles (RVs) have two separate electrical systems: a 12-volt DC (Direct Current) electrical system and a 120-volt AC (Alternating Current) system.
The 12-volt DC system is powered by a battery or multiple batteries wired together in a parallel or series circuit. This system powers essential functions such as the water pump, lights, and fans, water heater, furnace, refrigerator, and most of the lights in the living space. When plugged into shore power or a campground pedestal, the batteries automatically charge. The DC system can also be powered by solar panels, which can provide self-sufficiency for electrical needs. However, solar power alone may not be sufficient to run air conditioning.
The 120-volt AC system, on the other hand, is powered by an RV electrical hookup plug or a generator. It powers daily-use items and larger appliances that require higher voltage, such as kitchen appliances, TVs, and air conditioners. When plugged into shore power, a converter reduces the 120V AC to 12V DC, sending power to 12V appliances and charging the batteries.
RV electrical panels typically combine the AC and DC currents in a junction box, often located in an obscure place. The right side of the box houses the DC system, where the positive and negative wires from the battery connect to the circuit board, powering the DC panel and fuse holders. The left side of the box contains the AC system. It is important to know where the electrical panel is located to reset breakers or locate fuses in the event of a power outage.
When working on the electrical wiring of an RV, it is crucial to ensure there are no live wires. Disconnecting from shore power and the batteries is essential for safety. Proper tools, such as a multimeter, wire cutters/strippers, terminal rings, butt connectors, and disconnects, are necessary for cutting, connecting, securing, and insulating wires.
Understanding Electric Flux: Determining the Charge Q
You may want to see also
Explore related products
Solar panels
Before beginning any electrical work on your RV, it is important to ensure there are no live wires. You can do this by turning off the breaker or pulling the fuse for the specific circuit you are working on. If you are unsure, you may need to disconnect from shore power and your batteries from the main distribution box. Always use a multimeter to double-check that there is no power before proceeding.
When wiring solar panels, the first step is to mount the panels to the roof of your RV. This provides maximum sun exposure and ensures optimal performance. Next, you will need to decide whether to wire the panels together in series or parallel. After that, attach the charge controller to the inside of the RV near the battery bank and run wires from the solar panels to the charge controller, ensuring there is a circuit breaker or fuse in between.
Finally, connect the charge controller to the battery bank, again ensuring that a fuse is in place. Once all connections are made, you can plug in the solar panels and seal any holes or exposures created during the installation. Remember to use connectors that are appropriate for the wire size and follow the polarity indications on your RV's electrical system.
Body Electric on PBS St. Louis: What to Expect
You may want to see also
Explore related products
Wiring diagrams
Understanding the Basics
Before delving into wiring diagrams, it's crucial to grasp the fundamentals of electrical systems in RVs. An RV typically has two separate electrical systems: a 12-volt DC (Direct Current) system and a 120-volt AC (Alternating Current) system. The DC system powers essential functions like water pumps, lights, and fans, while the AC system handles daily-use items like kitchen appliances and TVs.
Sources of Power
When examining an RV wiring diagram, you'll typically encounter various power sources. These can include solar power, lithium batteries, the RV's starter battery, and shore power (external power source). Solar panels, for instance, are wired directly to the battery and inverter/charger unit, providing self-sufficiency for electrical needs.
Components and Connections
Safety Precautions
Safety is paramount when working with RV electrical systems. Before beginning any electrical project, ensure there are no live wires by turning off the breaker or pulling the fuse. Always use a multimeter to double-check for power. Proper fuse usage is critical to preventing electrical fires. Additionally, be mindful of wire colours; black typically indicates a negative connection, while red signifies a positive connection in DC circuits.
Interactive and Downloadable Diagrams
Interactive wiring diagrams are available online, allowing users to explore components and their connections. These diagrams often include clickable products with additional information. Downloadable PDF wiring diagrams are also offered by some sources, providing a convenient reference for RV owners.
Upgrades and Replacements
Boosting Electric Fence Voltage: Simple and Effective Methods
You may want to see also
Frequently asked questions
The electrical wiring in an RV is located behind the electrical panel, which is usually found in an obscure place. The panel houses the fuses and breakers for the RV's electrical system.
An RV has two separate electrical systems: a 12-volt DC electrical system and a 120-volt AC system. The DC system is powered by batteries and the AC system is powered by an RV electrical hookup plug or a generator.
The 12-volt DC system powers essential components such as the water pump, lights, fans, water heater start-up, furnace, refrigerator, and other 12V appliances.
Locate the breaker panel and find the tripped breaker. Flip it to the 'off' position and then back on. If this doesn't work, check the breaker at the electric pole, as it may have tripped.
Turn off the breaker or pull the fuse for the specific circuit you are working on. If you are unsure, disconnect from shore power and disconnect your batteries from the main distribution box. Use a multimeter to double-check that there is no power.
