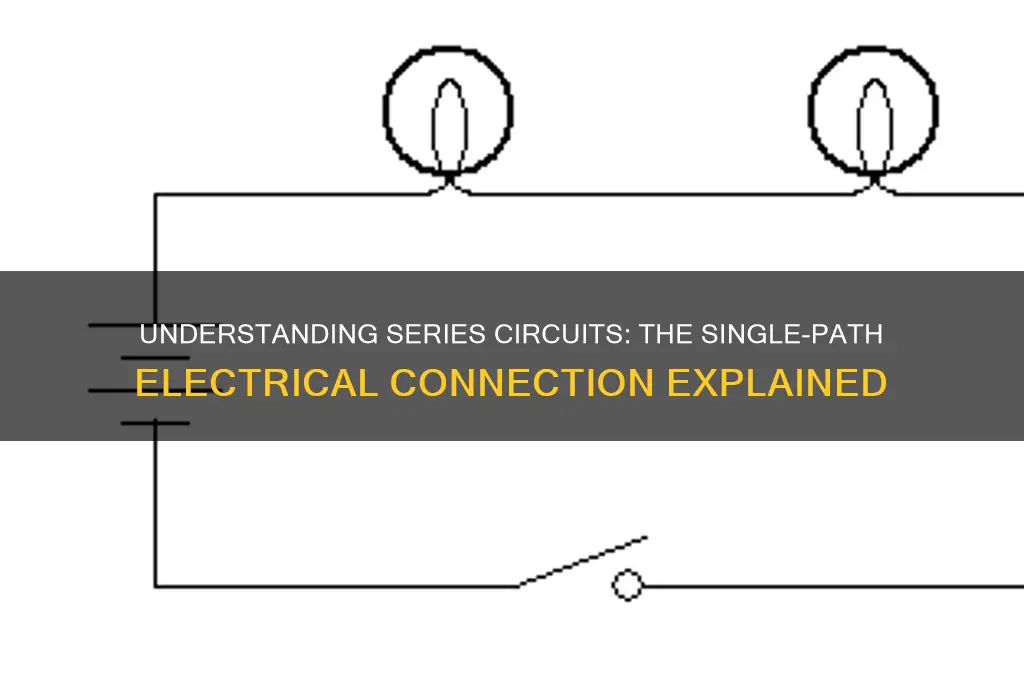

The type of circuit that uses only one electrical path is known as a series circuit. In a series circuit, all components—such as resistors, bulbs, or other devices—are connected end-to-end along a single path, allowing current to flow through each component sequentially. This configuration ensures that the same current passes through every part of the circuit, while the total voltage is divided across the components. However, a key drawback is that if one component fails or is disconnected, the entire circuit is interrupted, breaking the flow of current. Series circuits are commonly used in applications like string lights or certain types of batteries, where simplicity and a single current path are advantageous.
Explore related products
What You'll Learn
- Series Circuits Basics: Single path for current flow, components connected end-to-end in a line
- Voltage Distribution: Voltage divides across components based on resistance values in series
- Current Flow: Same current flows through all components in a series circuit
- Resistance Calculation: Total resistance is the sum of individual resistances in series
- Applications: Used in flashlights, LED strings, and simple electronic devices
Series Circuits Basics: Single path for current flow, components connected end-to-end in a line
A series circuit is a fundamental concept in electrical engineering, characterized by its single path for current flow. In this type of circuit, components such as resistors, capacitors, or light bulbs are connected end-to-end in a continuous line, forming an unbroken loop. This arrangement ensures that the same current flows through each component, as there is only one route for the electrons to follow. The simplicity of this design makes series circuits easy to understand and analyze, but it also comes with specific characteristics and limitations that are crucial to grasp.
In a series circuit, the current remains constant throughout the entire loop, meaning the amount of current flowing through the first component is the same as that flowing through the last. This is a direct consequence of having only one path for the current. However, the voltage across each component can vary, depending on its resistance or impedance. According to Ohm's Law (V = I * R), if the current (I) is constant, the voltage (V) across a component is directly proportional to its resistance (R). This principle is essential when calculating the voltage drop across each element in a series circuit.
One of the key features of series circuits is that the total resistance (or impedance, in AC circuits) is the sum of the individual resistances. For example, if three resistors with values of 10 ohms, 20 ohms, and 30 ohms are connected in series, the total resistance would be 60 ohms. This cumulative effect can be both advantageous and problematic. On the positive side, it allows for the use of lower-rated components in applications where higher total resistance is required. However, if one component fails or is disconnected, the entire circuit is interrupted because there is no alternative path for the current.
Example: If a string of series-connected LED lights has one burnt-out bulb, the entire string will stop working.
Another important aspect of series circuits is how they handle voltage distribution. The total voltage supplied by the source is divided among the components based on their resistances. This is described by the voltage divider rule, which states that the voltage across any component in a series circuit is proportional to its resistance relative to the total resistance. For instance, in a circuit with two resistors in series, if one resistor has twice the resistance of the other, it will also have twice the voltage drop across it. This property is often utilized in applications like volume controls or sensor circuits.
Despite their simplicity, series circuits are limited in their ability to provide independent control over individual components. Since all components share the same current, adjusting one element affects the entire circuit. This makes series circuits less suitable for complex systems where independent operation of components is necessary. However, they are ideal for applications where a single function is required, such as in flashlights, simple LED displays, or certain types of sensors. Understanding the basics of series circuits—their single current path, end-to-end component connection, and voltage/resistance behavior—is essential for anyone working with electrical systems.
