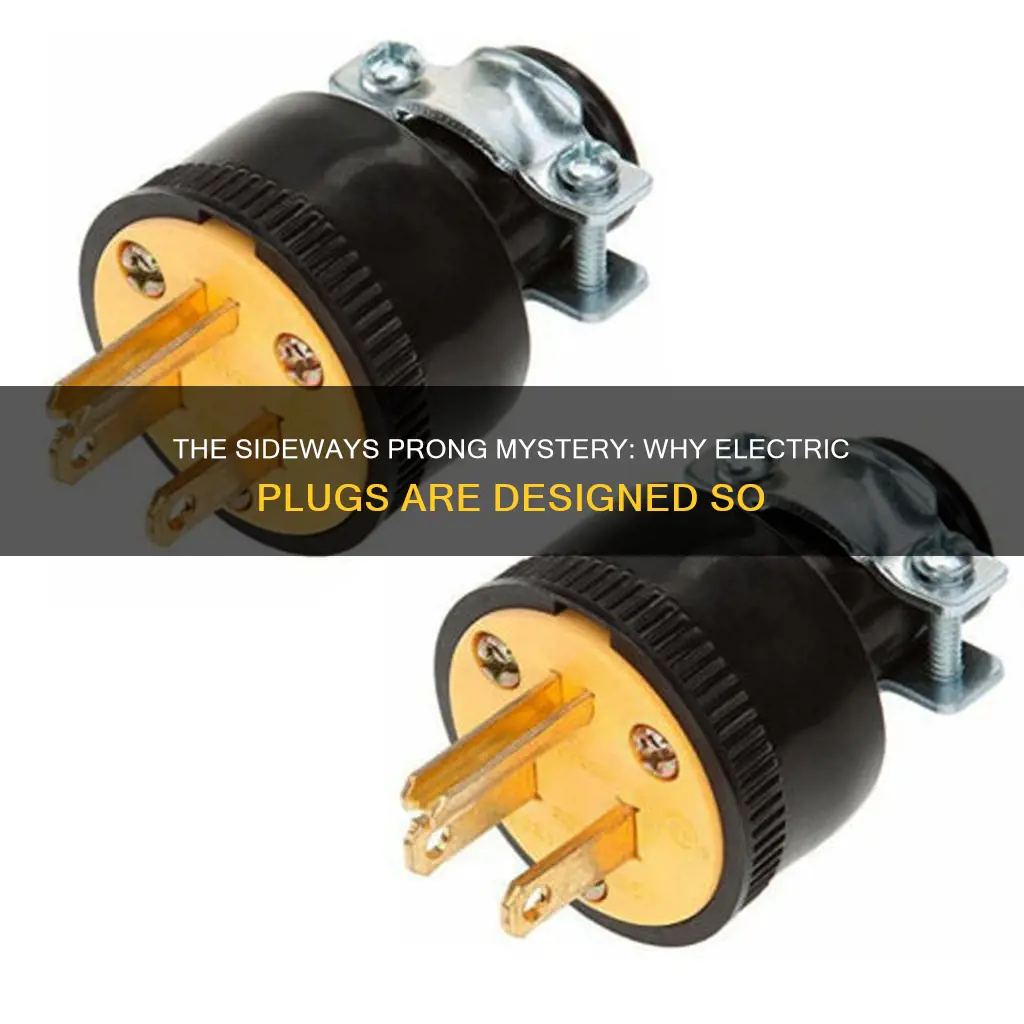

There are many different types of electrical plugs, each with a unique configuration of prongs. The prongs on a plug carry the power, or current, from the outlet to the device. The number of prongs on a plug varies, but the most common plugs have two or three prongs. Some plugs have the prongs positioned sideways, which can be for a number of reasons. One reason could be to prevent the plug from being inserted incorrectly, as one blade is larger than the other. Another reason could be to ensure that the correct electrical equipment is used with the appropriate outlet, as some plugs are designed to deliver a higher power than others. Additionally, sideways prongs can be used to reduce the chances of an accidental fault or electrocution by preventing a conductive object from falling between the hot and neutral blades.
Explore related products
![[UL Listed] Cable Matters 3-Pack 3 Outlet Wall Adapter (Grounded Cube Tap, Outlet Splitter, 3 Way Plug Adapter, 3-Prong Power Splitter), Black](https://m.media-amazon.com/images/I/7140B+g9SNL._AC_UL320_.jpg)
What You'll Learn
- Safety: sideways prongs prevent accidental faults or electrocution
- Compatibility: sideways prongs ensure appliances are plugged into the correct outlet
- Stability: sideways prongs reduce the risk of accidental disconnection
- Convenience: sideways prongs allow for easier insertion and removal of plugs
- Standardisation: sideways prongs adhere to NEMA standards for voltage and amperage
Safety: sideways prongs prevent accidental faults or electrocution
The orientation of electrical outlets and their prongs is an important consideration for safety. While there is no official standard for the orientation of electrical receptacles, certain configurations can help prevent accidental faults or electrocution.
One safety consideration is the shape and orientation of the prongs themselves. For example, the NEMA 5-15 plug is a standard three-prong plug with two flat prongs and a round prong. One of the flat prongs is larger than the other, preventing the plug from being inserted incorrectly. This is an example of a polarized plug, where the prongs are different sizes to ensure the correct orientation when plugged in. Non-polarized plugs, on the other hand, have prongs that are the same size, which can potentially lead to incorrect insertion and safety hazards.
Another safety consideration is the orientation of the grounding prong. In some outlets, the grounding prong is placed above the slots for the flat prongs. This arrangement aims to reduce the risk of accidental electrocution by minimizing the chances of a conductive object falling between the hot and neutral blades. However, some electricians argue that this scenario is unlikely and that placing the grounding prong up can lead to cord tugging and damage to the outlet. They recommend placing the grounding prong down to reduce the risk of accidental disconnection, especially for outlets located at a lower height.
Additionally, certain plug and outlet configurations are designed to ensure compatibility and prevent the use of incorrect plugs. For example, the NEMA L5-20 plug has a unique twist-lock design that ensures a secure connection and reduces the risk of accidental disconnection. The NEMA L5-30 and L6-30 plugs have similar configurations but differ in amperage ratings, with the L6-30 capable of handling higher voltages and currents. These plugs have distinct prong arrangements to prevent mix-ups and ensure the correct plug is used for the appropriate application.
The variety of electrical plug configurations serves as a safety measure to ensure that appliances are used with compatible outlets. By having different prong shapes, sizes, and orientations, the risk of accidental faults or electrocution is reduced, as long as the correct plug is paired with the corresponding outlet. This standardization in the electrical industry helps to maintain safety in various settings, from residential homes to commercial and industrial environments.
Nonmetals: Poor Electric Conductors, Why?
You may want to see also
Explore related products
Compatibility: sideways prongs ensure appliances are plugged into the correct outlet
The orientation of electrical outlets and their prongs is an important consideration for ensuring compatibility and safety. Sideways prongs on plugs are designed to be inserted into the correct outlet, preventing potential damage to equipment and reducing safety hazards. This is especially important for appliances with immediate-turn plugs, such as clothes washers, refrigerators, and window air conditioners.
The National Electrical Manufacturers Association (NEMA) sets standards for electrical plugs and outlets. NEMA plugs and receptacles have specific configurations of prongs and slots to ensure compatibility and safety. For example, the NEMA L5-20 plug, commonly used in commercial and industrial settings, has a unique twist-lock design that prevents accidental disconnection. This feature is ideal for environments with vibrations or movement, like construction sites.
Additionally, the shape and size of prongs play a crucial role in compatibility. Some plugs have polarized prongs, where one blade is larger than the other, ensuring the plug cannot be inserted incorrectly. This design prevents users from plugging a cord into an outlet that cannot support the amps and volts of the appliance, reducing the risk of overloading the circuit.
The orientation of the grounding prong is also a factor in compatibility and safety. While there is no official standard, some electricians recommend orienting the receptacle so that the plug inserts without looping over itself. For immediate-turn plugs, placing the ground slot on the bottom prevents the downward pull of the cord from dislodging the plug. However, others argue that placing the ground prong on the top minimizes the risk of electric shock by reducing the likelihood of multiple finger contacts with the positive prongs during plug removal.
The configuration of prongs and slots in electrical plugs and outlets is designed to ensure compatibility and safety. Sideways prongs are just one aspect of this design, ensuring appliances are correctly plugged into the appropriate outlet and reducing the risk of equipment damage and electrical hazards.
Explore Portland General Electric's Flex Program Benefits
You may want to see also
Explore related products
![[UL Listed] Cable Matters 3-Pack 3 Way Plug Adapter 15A 1875W, 3 Prong 3 Outlet Adapter, Power Splitter Plug Outlet, 3 Way Electrical Splitter, Multicolored (White, Gray, Orange)](https://m.media-amazon.com/images/I/71CuygCpTiL._AC_UL320_.jpg)
Stability: sideways prongs reduce the risk of accidental disconnection
While there is no official standard regarding the orientation of electrical outlets, sideways prongs can offer certain benefits in terms of stability and safety. One key advantage is the reduced risk of accidental disconnection.
The orientation of prongs can influence the stability of the connection between the plug and the outlet. Sideways prongs can provide a more secure connection, especially in environments with vibrations or movement, such as construction sites or manufacturing facilities. This stability is crucial to prevent accidental disconnection, which can not only be inconvenient but also lead to equipment damage or potential safety hazards.
For example, the NEMA L5-20 plug, commonly used in commercial and industrial settings, features a unique twist-lock design. This design ensures a secure connection, reducing the chances of accidental disconnection. The NEMA L5-30 and NEMA L6-30 plugs also have a similar twist-lock feature, emphasizing the importance of stability in power connections.
Additionally, sideways prongs can help prevent electrical faults and enhance safety. By positioning the outlet with the ground slot on the bottom, the risk of a direct short circuit is minimized. This arrangement ensures that any metal objects falling on the outlet are less likely to come into contact with the hot and neutral blades, reducing the chances of electrocution or accidental faults.
The orientation of prongs also plays a role in preventing incorrect insertion. For instance, the NEMA 5-15 plug has two flat prongs of different sizes to ensure proper polarity during insertion. This design prevents users from plugging the cord into an outlet that cannot support the appliance's amps and volts, further reducing the risk of accidental disconnection and potential damage.
Electric Toothbrushes: Gum Health and Hard Bristles
You may want to see also
Explore related products
Convenience: sideways prongs allow for easier insertion and removal of plugs
Convenience is a key factor in the design of electrical plugs and outlets. Sideways prongs on plugs offer several advantages in terms of ease of insertion and removal.
Firstly, sideways prongs can facilitate a more secure connection by reducing the risk of accidental disconnection. This is particularly important for certain types of equipment and machinery that require a stable and uninterrupted power source. For example, the NEMA L5-20 plug, commonly used in commercial and industrial settings, features a unique twist-lock design that prevents accidental disconnection, enhancing the reliability of the power connection.
Additionally, the orientation of the prongs can influence the ease of insertion. For appliances with immediate-turn plugs, orienting the outlet with the ground slot on the bottom allows for a smoother connection without the cord looping over itself. This design consideration prevents the downward pull of the cord from tugging the plug out of the receptacle. By contrast, for plugs with a more gradual turn, placing the grounding slot on top can provide a more stable connection.
The shape and size of the prongs also play a role in convenience. For instance, the NEMA 5-15 plug, commonly found in commercial settings, features two flat prongs of different sizes for the hot and neutral wires. This polarization ensures that the plug cannot be inserted incorrectly, enhancing user convenience and safety.
Moreover, sideways prongs can contribute to the overall versatility and compatibility of electrical connections. By allowing for various orientations, sideways prongs enable a wider range of devices to be plugged into the same outlet, as long as the voltage and amperage requirements are met. This flexibility is particularly advantageous in commercial and industrial settings where diverse equipment needs to be powered.
In conclusion, the sideways orientation of prongs on electrical plugs offers significant convenience benefits. It facilitates easier insertion and removal, enhances connection security, and provides versatility in accommodating different devices. These design considerations ultimately improve the user experience and help ensure a safe and reliable power supply.
Electricity in the Home: Powering Your Life
You may want to see also
Explore related products
![Cable Matters [UL Listed] 2-Pack 3-Outlet Grounded 180 Degree Swivel Wall Tap, 3 Plug Wall Adapter, Multi-Plug Outlets, White](https://m.media-amazon.com/images/I/61TZP+OkvDL._AC_UL320_.jpg)
![K KASONIC - 3-Outlet Grounding Adapter, [UL Listed] Plug Extender, Heavy-Duty Grounded Power Tap - 3 Pack (Orange)](https://m.media-amazon.com/images/I/81UJCS+5x8L._AC_UL320_.jpg)
Standardisation: sideways prongs adhere to NEMA standards for voltage and amperage
Standardisation is an important aspect of electrical plug and outlet configurations, ensuring safety and compatibility. NEMA (National Electrical Manufacturers Association) standards play a crucial role in defining the voltage and amperage requirements for electrical connections.
NEMA has established specific standards, such as the NEMA 5-15P, which is a standard three-prong plug with two flat prongs for hot and neutral wires and a round prong for the ground wire. This plug is rated for 15 amps and 125 volts, making it suitable for a wide range of applications, from computers to small appliances. The NEMA L5-20 plug, commonly used in commercial and industrial settings, has a unique locking mechanism with a twist-lock design, ensuring a secure connection and preventing accidental disconnection.
The NEMA L5-30 plug is another example of standardisation, with a notable difference in amperage rating from the L5-20 plug. The L5-30 can handle up to 30 amps of current, making it ideal for heavy-duty machinery requiring higher electrical loads. The NEMA 14-50 plug is also standardised and designed for high-power applications, with a capacity of 250V and 50 amps, making it suitable for industrial and commercial use.
NEMA standards also allow for versatility and compatibility across different settings. For instance, the NEMA 5-20R outlet can accommodate various plugs, including NEMA 5-15P, NEMA-20P, NEMA 1-15, and NEMA 1-20, as long as the voltage and amperage requirements do not exceed 125 volts and 20 amps. This standardisation ensures that a range of devices can be safely utilised with the correct outlet, preventing potential overloading of circuits and enhancing electrical safety.
Setting Up Electricity in Pottstown, PA: A Guide
You may want to see also
Frequently asked questions
There is no official rule on the orientation of a plug, but sideways prongs are often designed to prevent the plug from being inserted incorrectly. They are also used to ensure that the right electrical equipment is used with the correct outlet, as a safety feature.
Some people believe that having the ground slot on the bottom of an outlet can be safer, as it minimises the danger when plugging in or pulling out a cord. This is because there is only one thumb on the top, whereas on the bottom of a plug, multiple fingers are more likely to come into contact with the unseen positive prongs.
Sideways prongs are often found in the USA and Canada, where they are used in standard AC power outlets.
