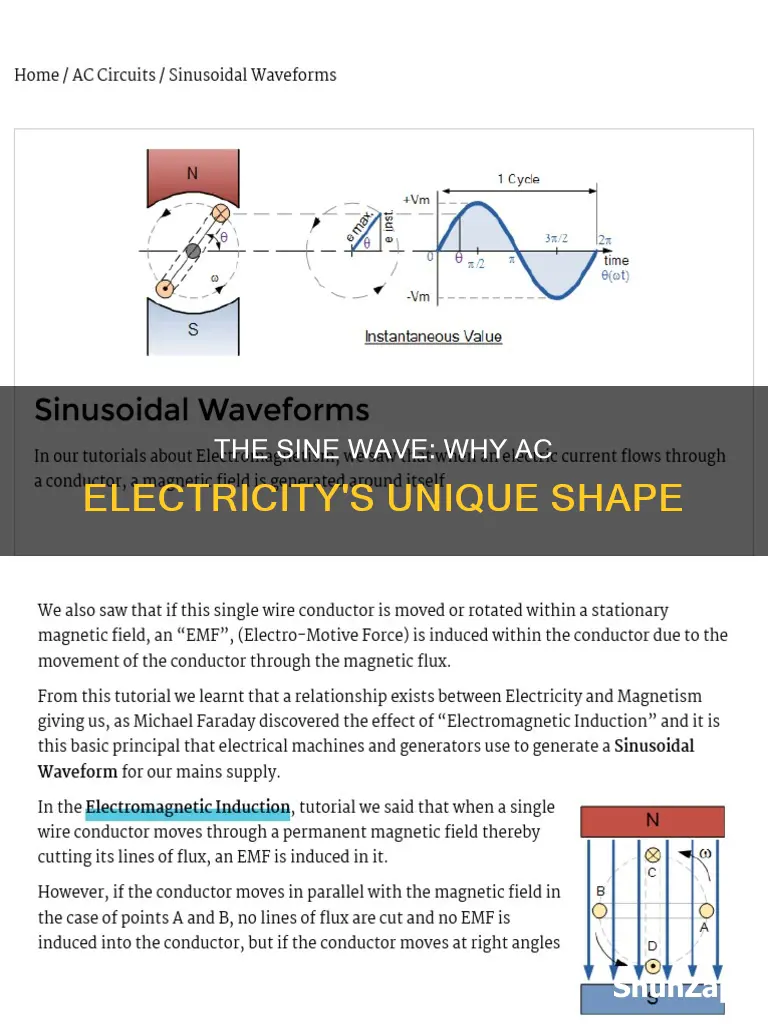

The use of sinusoidal waveforms, or sine waves, is prevalent in AC circuits due to their periodic nature and the relationship between electricity and magnetism. When an electric current flows through a conductor, a circular magnetic field is formed around the wire, and if this conductor is moved within a stationary magnetic field, an Electro-Motive Force (EMF) is induced, leading to the concept of electromagnetic induction. This relationship between electricity and magnetism forms the basis for electrical machines and generators to generate sinusoidal waveforms for our mains supply. While AC doesn't have to be a sine wave, the smooth transition in sine waves from positive to negative voltages prevents buzzing sounds in transformers, unlike the sudden changes in square waves. Additionally, the rounded edges and slower voltage changes in sine waves make them a preferred choice for designers to work with, as they can use cheaper and smaller components.
| Characteristics | Values |
|---|---|
| Waveform | Sinusoidal or Sine Wave |
| Circuit Type | AC Circuit |
| Polarity | Changes every cycle |
| Voltage | Changes over time |
| Direction | Alternates |
| Period | Time taken to complete one cycle |
| Frequency | Number of cycles per second |
| Efficiency | Reduced energy loss as heat |
| Safety | Lower voltage for use |
| Applications | Guitar amplifiers, audio and radio signals |
| Shape | Rounded edges, smooth |
| Power | Reduced power loss |
Explore related products
What You'll Learn
- Sine waves are the most important type of AC waveform in electrical engineering
- The physics of an electromechanical alternator's operation results in a sine wave
- Sine waves are naturally produced by spinning generators
- Sine waves are preferred over square waves to avoid buzzing sounds
- Sine waves are used to run electromagnets in devices like old computer monitors
Sine waves are the most important type of AC waveform in electrical engineering
Sine waves, or sinusoidal waveforms, are the most common type of AC waveform used in electrical engineering. They are produced by electromechanical alternators and rotating electrical generators, which use Faraday's Law of Electromagnetic Induction to generate electricity. This law states that the voltage produced by the motion of a rotating magnet is proportional to the rate at which the magnetic flux changes perpendicular to the coils. This naturally creates a sine wave.
Sine waves are important because they are smooth and do not cause transformers in electronics to buzz, unlike square waves. A square wave is composed of an infinite number of sine waves, including a main sine wave and a series of faster waves with less energy that square off the corners, known as harmonics. The buzzing sound is caused by the higher frequencies of these harmonics.
Additionally, sine waves have rounded edges and slower changes in voltage compared to other waveforms. This allows for the use of cheaper and smaller components in electrical devices. The shape of a sine wave can be plotted using the sine or cosine function from trigonometry. The instantaneous ordinate values of voltage or current are plotted against time to create an AC waveform.
The AC waveform constantly changes its polarity every half cycle, alternating between a positive and negative maximum value. This is different from direct current (DC), which flows in a single direction and has a fixed magnitude. The effective value of a sine wave, or Root Mean Squared (RMS) value, is the same as the I2*R heating effect value of a constant DC supply.
Electric Hook-ups: Pilot Truck Stops Powering the Future
You may want to see also
Explore related products
The physics of an electromechanical alternator's operation results in a sine wave
The physics behind the operation of an electromechanical alternator is what results in a sine wave. The voltage produced by the stationary coils due to the motion of the rotating magnet is directly proportional to the rate of change of magnetic flux perpendicular to the coils, as described by Faraday's Law of Electromagnetic Induction. This rate is at its maximum when the magnet poles are closest to the coils and at its minimum when they are farthest apart. The rate at which the magnetic flux changes due to a rotating magnet follows a sine function, and thus the voltage produced by the coils follows the same function.
The shaft of a typical alternator is connected to the engine crankshaft via a belt and pulley system. Once the alternator starts generating electricity, it can power the electromagnet itself with the help of rectifier diodes that convert three-phase AC into DC. The output voltage of the alternator is dependent on the speed of the engine. The alternator contains a regulator to limit the output at high speeds, a feature absent in AC motors, which run at a constant speed.
The geometry of circles and sine waves is closely related. A point travelling in a circle over time can be represented by a sine wave. Similarly, for a travelling magnetic field in a rotating generator or alternator, the induced magnetic field in the stator will be sinusoidal. This is why the generated voltage is a sinusoid of the same frequency as the rotating generator.
The physics of an alternator's operation can be further understood by examining its makeup. The voltage regulator plays a crucial role in controlling the output by regulating the current through the rotor coils as they spin. The placement of stator coils at different angles generates multiple phases due to the changing intensity of the magnetic field at different times. This results in a sine wave with the current flowing in positive and negative regions.
Electric Scooters: Allowed on MTA Buses?
You may want to see also
Explore related products
Sine waves are naturally produced by spinning generators
The use of sine waves in AC electricity is due to the physics of its operation. The voltage produced by the stationary coils by the motion of the rotating magnet is proportional to the rate at which the magnetic flux is changing perpendicular to the coils, as described by Faraday's Law of Electromagnetic Induction. This law states that the rate is greatest when the magnet poles are closest to the coils and least when they are farthest away.
Electrical circuits supplied by sinusoidal waveforms whose polarity changes every cycle are commonly known as “AC” voltages and current sources. When an electric current flows through a wire or conductor, a circular magnetic field is created around the wire, and its strength is related to the current value. If this single wire conductor is moved or rotated within a stationary magnetic field, an “EMF”, or Electro-Motive Force, is induced within the conductor due to the movement of the conductor through the magnetic flux.
Sine waves are the most important type of AC waveform used in electrical engineering. They are used because they are smooth and do not cause transformers in electronics to make a buzzing sound, unlike square waves. Square waves are composed of an infinite number of sine waves, with one “main” sine wave that carries a big chunk of the energy, and a bunch of faster waves with less energy that square off the corners, which are called harmonics.
The time taken for an AC Waveform to complete one full pattern from its positive half to its negative half and back to its zero baseline again is called a Cycle, and one complete cycle contains both a positive half-cycle and a negative half-cycle. The time taken by the waveform to complete one full cycle is called the Periodic Time of the waveform, and is given the symbol “T”. The number of complete cycles that are produced within one second (cycles/second) is called the Frequency, symbol ƒ of the alternating waveform.
Understanding Mechanical and Electrical Drawings: A Beginner's Guide
You may want to see also
Explore related products
Sine waves are preferred over square waves to avoid buzzing sounds
While alternating current (AC) can take the form of different waveforms, including square waves, sinusoidal waveforms, or sine waves, are the most commonly used in electrical circuits. This is because the polarity of a sine wave changes every cycle, alternating between a positive maximum value and a negative maximum value, making it a "time-dependent signal".
Sine waves are preferred over square waves in AC circuits for several reasons. Firstly, sine waves are naturally produced by spinning generators, making them convenient for electrical generation. Secondly, sine waves have smoother transitions between polarities, resulting in a more efficient transmission of power with minimal energy loss. In contrast, the sudden change from positive to negative in a square wave tends to cause transformers in electronics to make a buzzing sound. This buzzing sound is caused by the presence of a “main” sine wave carrying a large chunk of energy and several faster waves with less energy, known as harmonics. As a result, the main frequency and the harmonics create a buzzing sound in square waves, while sine waves produce a more harmonious hum with fewer harmonics.
Additionally, the slower changes in voltage in sine waves allow for the use of cheaper and physically smaller components in electrical devices. This is because the voltage in a sine wave changes most rapidly at the zero ("crossover") point and most slowly at its peak. In contrast, a square wave with the same peak-to-peak voltage and frequency as a sine wave would deliver more power, potentially causing devices to heat up more quickly. Furthermore, the higher frequencies in a square wave are more likely to be radiated by the electric wire, leading to significant power loss and signal degradation into a sine wave.
While some electrical devices can operate with modified sine waves, many require a pure or smooth sine wave voltage supply to function correctly. This is because the waveform of an AC voltage or current significantly impacts its behaviour in a circuit. Therefore, sine waves are generally preferred over square waves to avoid buzzing sounds and ensure the efficient and safe operation of electrical devices.
Electricity Theft: Understanding the High Costs and Dangers
You may want to see also
Explore related products
Sine waves are used to run electromagnets in devices like old computer monitors
Sine waves, or sinusoidal waveforms, are a type of AC (alternating current) waveform commonly used in electrical engineering. They are characterised by their constantly changing polarity, alternating between positive and negative maximum values. This is important because when an electric current flows through a wire, a circular magnetic field is created around it, and the strength of this field is related to the current value.
In the context of old computer monitors, particularly those with cathode ray tubes (CRTs), magnets placed close to the tube can alter the magnetic field and cause visual distortions. To address this, some monitors were designed with built-in electromagnets and a "demagnetise" setting. Activating this setting would power up the built-in electromagnet, strategically placed around the screen, to restore the balance and eliminate any distortions.
The use of sine waves in AC electricity is closely related to the operation of electromagnets in devices like old computer monitors. The changing polarity of the sine wave allows for the creation and control of magnetic fields, which is essential for the functioning of electromagnets. By varying the direction and strength of the current, the magnetic field produced by the electromagnet can be manipulated, enabling various applications, such as the demagnetisation feature in old computer monitors.
Furthermore, spinning generators, which are commonly used in electricity generation, naturally produce sine waves. The geometry of a spinning generator results in a perfect sine wave when the output values are plotted over time. This natural occurrence makes sine waves a convenient choice for AC electricity. Additionally, the smooth transition between positive and negative values in a sine wave helps avoid the buzzing sound that can occur with other waveforms, such as square waves, due to the sudden change in polarity.
While AC electricity doesn't have to be a sine wave, and other waveforms like square waves can be used, sine waves offer advantages in terms of both the natural generation process and the smooth transition between polarities, making them a practical choice for running electromagnets in devices like old computer monitors.
Understanding Electrical Circuits: Student's Guide
You may want to see also
Frequently asked questions
AC electricity is a sine wave because it is generated by a rotating device, and the movement of a rotating device maps out a perfect sine wave.
A sine wave is a periodic waveform whose shape can be plotted using the sine or cosine function from trigonometry.
Sine waves are used because they are smooth and do not cause transformers in electronics to make a buzzing sound, unlike other waveforms such as square waves. Additionally, the slow change in voltages of sine waves means that cheaper and smaller components can be used.
Other waveforms that can be used for AC electricity include complex waves, square waves, and triangular waves.
