Split rings, also known as commutators, are essential components in electric motors because they facilitate the reversal of current direction in the motor's windings, enabling continuous rotation. In a DC motor, as the armature rotates, the split rings make contact with carbon brushes, ensuring that the current flow through the windings alternates with each half-turn. This alternation creates a consistent magnetic field interaction, allowing the motor to maintain unidirectional rotation. Without split rings, the motor would experience torque in opposite directions during each half-cycle, resulting in inefficient or no rotation. Thus, split rings are critical for converting electrical energy into mechanical motion efficiently in electric motors.
| Characteristics | Values |
|---|---|
| Purpose | Reverse current direction in the armature coil |
| Mechanism | Split into two halves, insulated from each other and the shaft |
| Connection | Connected to the armature winding |
| Brush Contact | Brushes maintain contact with each half of the split ring |
| Current Flow | Alternates direction through the armature coil with each half-turn |
| Result | Continuous rotation of the motor |
| Alternative Name | Commutator |
| Material | Typically made of copper or copper alloy for good conductivity |
| Wear and Tear | Subject to wear due to friction with brushes, requiring periodic maintenance |
| Applications | Used in DC motors and some types of AC motors (e.g., universal motors) |
Explore related products
What You'll Learn
- Current Reversal: Split rings reverse current in the coil, maintaining continuous rotation of the motor
- Commutator Function: Split rings act as a commutator, switching current direction in the armature
- Unidirectional Torque: Ensures consistent torque by reversing coil current at each half-turn
- Mechanical Simplicity: Provides a simple, efficient method for current reversal without complex wiring
- Brush Contact: Facilitates reliable contact between brushes and the rotating armature for current flow
Current Reversal: Split rings reverse current in the coil, maintaining continuous rotation of the motor
In an electric motor, the interaction between magnetic fields and electric currents produces rotational motion. However, without a mechanism to reverse the current direction in the coil, the motor would only rotate momentarily and then stall. This is where split rings play a crucial role. Split rings, also known as commutators, are designed to reverse the current flow in the coil at precisely the right moment, ensuring continuous rotation. When the motor's coil reaches a position where the torque would otherwise drop to zero, the split rings switch the current direction, maintaining the magnetic force needed to keep the motor spinning.
The process of current reversal is fundamental to the operation of a DC motor. As the coil rotates, it passes through a position where the magnetic field alignment changes. At this point, if the current direction remains the same, the torque would reverse, causing the motor to stop or oscillate. Split rings are segmented in such a way that they connect to brushes, which are in contact with the power source. As the coil rotates, the split rings ensure that the current direction in the coil reverses just as the magnetic alignment shifts, thereby sustaining the torque in the same direction.

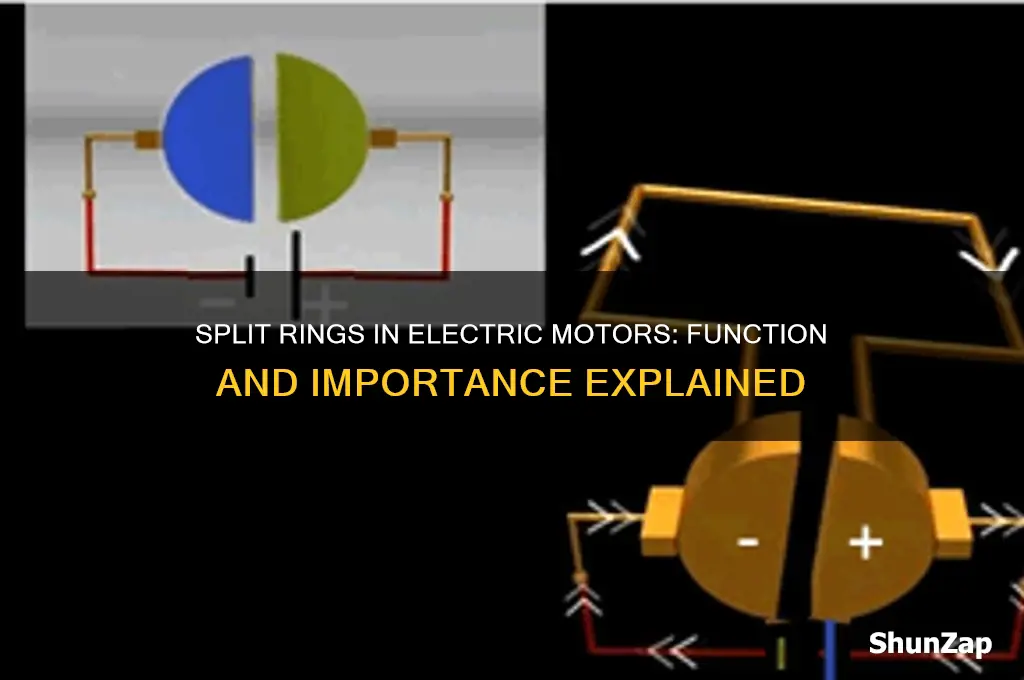

The design of split rings is intentionally segmented into two halves, each connected to one end of the coil. As the motor spins, the brushes make contact with alternating segments of the split rings, effectively switching the polarity of the current in the coil. This switching action ensures that the magnetic field generated by the coil always interacts with the external magnetic field in a way that produces consistent rotational force. Without this reversal mechanism, the motor would experience periodic stops or reversals in rotation, rendering it ineffective for practical use.
Another critical aspect of split rings is their timing. The reversal of current must occur precisely when the coil is in the correct position to maintain the direction of rotation. Split rings achieve this by physically rotating with the coil, ensuring that the brushes transition between segments at the exact moment needed. This synchronization is essential for smooth and continuous operation, as any delay or misalignment would disrupt the motor's performance. Thus, split rings act as a dynamic switch, enabling the motor to overcome the natural tendency of electromagnetic forces to halt rotation.
In summary, split rings are indispensable in electric motors because they facilitate current reversal in the coil, which is vital for maintaining continuous rotation. By reversing the current direction at the appropriate moments, split rings ensure that the magnetic forces driving the motor remain consistent and unidirectional. This mechanism not only prevents stalling but also allows the motor to operate efficiently and reliably. Without split rings, the motor's ability to sustain rotation would be severely compromised, highlighting their critical role in the functionality of DC motors.
Electric vs. Gas Cars: Reliability Compared for Modern Drivers
You may want to see also
Explore related products
Commutator Function: Split rings act as a commutator, switching current direction in the armature
In an electric motor, the commutator function is crucial for maintaining continuous rotation of the armature. Split rings, also known as commutator segments, play a pivotal role in this process by acting as a mechanical switch that reverses the current direction in the armature windings. The armature, which is the rotating part of the motor, consists of coils that interact with the magnetic field to produce motion. For the armature to rotate continuously, the current flowing through these coils must periodically change direction, ensuring the magnetic forces remain aligned to drive rotation. This is where the split rings come into play, functioning as a commutator to facilitate this reversal.
The split rings are mounted on the armature shaft and are divided into two insulated segments, each connected to the ends of the armature windings. As the armature rotates, brushes (typically made of carbon) maintain contact with these split rings, supplying current to the windings. The key to the commutator function lies in the split design of the rings. When the armature reaches a position where the magnetic field would otherwise cause it to stop or reverse direction, the split rings ensure that the current direction in the windings is reversed at precisely the right moment. This reversal maintains the torque in the same direction, allowing the armature to continue rotating smoothly.
The timing of the current reversal is critical, and the split rings achieve this by physically switching the connections to the brushes as the armature turns. When a brush transitions from one segment of the split ring to the other, the path of the current through the armature windings is effectively reversed. This mechanical switching action ensures that the magnetic fields generated by the armature windings always interact with the stator's magnetic field in a way that sustains rotation. Without the split rings, the armature would experience alternating torque, leading to inefficient or jerky motion instead of smooth, continuous rotation.
Another important aspect of the commutator function is its ability to handle the back electromotive force (back EMF) generated by the rotating armature. As the armature spins, it acts as a generator, producing a voltage that opposes the applied current. The split rings, in conjunction with the brushes, help manage this back EMF by ensuring the current direction aligns with the changing magnetic polarity of the armature. This alignment minimizes energy loss and maximizes the efficiency of the motor. Thus, the split rings not only switch the current direction but also optimize the motor's performance by addressing the challenges posed by back EMF.
In summary, the commutator function of split rings is essential for the operation of an electric motor. By acting as a mechanical switch, the split rings reverse the current direction in the armature windings at the appropriate moments, ensuring continuous and smooth rotation. Their design and interaction with the brushes enable precise timing of the current reversal, which is vital for maintaining torque in a single direction. Additionally, they manage back EMF, enhancing the motor's efficiency. Without split rings, the motor would lack the ability to sustain rotation, underscoring their indispensable role in the commutator function.
Transform Your Ride: A Step-by-Step Guide to Electric Car Conversion
You may want to see also
Explore related products
Unidirectional Torque: Ensures consistent torque by reversing coil current at each half-turn
Split rings, also known as commutators, play a crucial role in ensuring unidirectional torque in electric motors. Unidirectional torque refers to the consistent rotational force produced by the motor in a single direction, which is essential for its efficient operation. In a basic DC motor, the interaction between the magnetic field and the current-carrying coils generates torque. However, without a mechanism to reverse the current direction in the coils at the appropriate time, the torque would alternate in direction, causing the motor to oscillate rather than rotate continuously. This is where split rings come into play.
The primary function of split rings is to reverse the current direction in the motor's coils at each half-turn of the rotor. As the rotor spins, the split rings make contact with carbon brushes, which are connected to the power supply. The split rings are divided into two segments, each connected to one end of the coil. When the rotor completes half a turn, the split rings switch their contact points with the brushes, effectively reversing the current flow through the coil. This reversal ensures that the magnetic force acting on the coil always generates torque in the same direction, maintaining unidirectional rotation.
Reversing the coil current at each half-turn is critical for overcoming the natural tendency of the motor to align its magnetic fields in a way that minimizes torque. Without this reversal, the motor would experience a torque reversal every half-turn, leading to inefficient and jerky motion. Split rings enable this current reversal by physically breaking and re-establishing the circuit connections as the rotor rotates. This mechanical switching ensures that the current direction in the coils is always synchronized with the rotor's position, thereby sustaining continuous and smooth rotation.
Another important aspect of split rings is their role in simplifying the motor design while achieving unidirectional torque. Alternative methods, such as using multiple windings or electronic switches, could theoretically accomplish the same goal but would add complexity and cost. Split rings provide a straightforward, mechanical solution that has been proven effective in countless motor applications. Their reliability and simplicity make them a preferred choice for many DC motor designs, especially in applications where consistent torque is paramount.
In summary, split rings are indispensable in electric motors for ensuring unidirectional torque by reversing the coil current at each half-turn. This mechanism prevents torque reversals, enabling smooth and continuous rotation. By physically switching the current direction through their segmented design, split rings maintain the synchronization between the rotor's position and the magnetic forces acting on the coils. Their simplicity and effectiveness make them a fundamental component in the operation of DC motors, highlighting their importance in achieving consistent and reliable performance.
Dishwasher vs. Hand Washing: Which Saves More Energy?
You may want to see also
Explore related products
Mechanical Simplicity: Provides a simple, efficient method for current reversal without complex wiring
Split rings, also known as commutators, play a crucial role in the operation of electric motors by providing a simple yet highly efficient mechanism for current reversal. This functionality is essential for the continuous rotation of the motor's armature. In a basic DC motor, the direction of current flowing through the armature coils must periodically reverse to maintain consistent rotational motion. Without split rings, achieving this reversal would require complex wiring and external switching mechanisms, which would not only increase the motor's complexity but also introduce potential points of failure. Split rings eliminate this need by integrating the current reversal process directly into the motor's design, thereby enhancing mechanical simplicity.
The design of split rings is inherently straightforward, consisting of two segmented rings insulated from each other and mounted on the motor's rotating shaft. These rings are in contact with stationary carbon brushes, which connect the power supply to the armature coils. As the armature rotates, the split rings ensure that the current direction through the coils reverses at precisely the right moments. This automatic reversal occurs because the segments of the split rings are positioned to switch the connections to the brushes at the appropriate points in the rotation cycle. This simplicity in design reduces the need for additional components, making the motor more compact and easier to manufacture.
One of the key advantages of split rings is their ability to achieve current reversal without requiring external intervention or complex circuitry. In contrast, alternative methods, such as using electronic switches or relays, would necessitate additional wiring, control systems, and power sources. These additions would not only complicate the motor's design but also increase its cost and potential for malfunction. Split rings, by contrast, operate passively, relying solely on the mechanical rotation of the armature to perform their function. This passive operation ensures reliability and reduces the likelihood of failures associated with active electronic components.
Furthermore, the use of split rings contributes to the overall efficiency of the motor. By directly integrating current reversal into the rotating mechanism, energy losses associated with external switching devices are minimized. The seamless transition of current direction facilitated by split rings ensures that the motor operates smoothly and efficiently, without the interruptions or inefficiencies that could arise from more complex wiring systems. This efficiency is particularly important in applications where motor performance and energy conservation are critical.
In summary, split rings provide a mechanically simple and efficient solution for current reversal in electric motors. Their design eliminates the need for complex wiring and external switching mechanisms, reducing the motor's overall complexity and enhancing its reliability. By passively achieving current reversal through the rotation of the armature, split rings ensure smooth and efficient motor operation. This simplicity not only simplifies manufacturing and maintenance but also contributes to the motor's performance and durability, making split rings an indispensable component in the design of electric motors.
Hydraulic vs. Electric: The 737's Power System Choice Explained
You may want to see also
Explore related products
Brush Contact: Facilitates reliable contact between brushes and the rotating armature for current flow
In an electric motor, the split rings (also known as commutators) play a crucial role in ensuring reliable brush contact with the rotating armature. Brush contact is essential for maintaining a consistent flow of current through the armature windings, which in turn generates the motor's rotational motion. The split rings are designed to reverse the current direction in the armature coils as they rotate, ensuring that the torque produced is always in the same direction. This process is fundamental to the operation of DC motors, where the direction of current flow must be periodically reversed to maintain continuous rotation.
The split rings are typically made of a conductive material, such as copper, and are divided into segments that correspond to the armature windings. As the armature rotates, the brushes, which are stationary carbon or metal contacts, maintain physical contact with the split rings. This contact ensures that current from the power source is transferred to the armature windings. The split rings' segmented design allows the brushes to transition smoothly from one segment to the next, minimizing interruptions in current flow. Without this smooth transition, the motor could experience sparking, reduced efficiency, or even damage to the brushes and commutator.
Reliable brush contact is critical because it directly impacts the motor's performance and longevity. If the brushes do not maintain consistent contact with the split rings, the current flow to the armature windings can become intermittent or uneven. This can lead to torque fluctuations, reduced motor efficiency, and increased wear on the brushes and commutator. To facilitate reliable contact, the brushes are spring-loaded to ensure they remain pressed against the split rings with sufficient force, even as the motor operates under varying loads and speeds. The material and design of the brushes are also carefully chosen to optimize conductivity and minimize wear.
Another important aspect of brush contact is the need to manage the mechanical and electrical stresses that occur during operation. As the motor rotates, the brushes slide over the split rings, generating friction and heat. The split rings' design helps distribute these stresses evenly across their surface, reducing wear and tear. Additionally, the brushes are often designed with a slight curvature or tilt to match the shape of the split rings, ensuring maximum contact area and minimizing the risk of arcing or sparking. This careful engineering ensures that the brush-commutator interface remains stable and efficient over the motor's lifespan.
In summary, brush contact facilitated by split rings is a cornerstone of electric motor operation. By ensuring reliable and consistent contact between the brushes and the rotating armature, split rings enable the continuous flow of current necessary for motor rotation. Their segmented design, combined with the spring-loaded brushes, minimizes interruptions in current flow and reduces wear, contributing to the motor's overall efficiency and durability. Understanding the importance of this interface highlights why split rings are indispensable in the design and function of electric motors.
Are All Car Makers Going Electric? The Future of Auto Industry
You may want to see also
Frequently asked questions
Split rings are used in electric motors to reverse the current direction in the armature coil each half-turn, ensuring continuous rotation of the motor by maintaining the torque in the same direction.
Split rings, also known as commutators, periodically reverse the current flow in the armature winding, allowing the motor to rotate continuously by ensuring the magnetic fields interact correctly at all times.
Without split rings, the motor would not rotate continuously. The armature would experience torque in alternating directions, causing it to vibrate or oscillate instead of spinning smoothly.
No, split rings are primarily used in DC motors and some types of AC motors with commutators. Brushless DC motors and induction motors do not require split rings as they use different mechanisms for current reversal or rotation.
